Maintenance
■■Lamp part malfunction due to
net-work failure
The headlamp, taillight, and fog light
may lit up when the head lamp switch
is turned ON, and not light up when
the taillight or for light switch is turned
ON. This may be cause by network
failure or vehicle electrical control
system malfunction. If there is a prob-
lem, we recommend the system be
serviced by an authorized Kia dealer.
■
■ Lamp part malfunction due to
electrical control system stabi-lization
A normally functioning lamp may
flicker momentarily. This momentaryoccurrence is due to stabilization
unction of the vehicle's electrical on
control system. If the lamp soon
returns to normal, the vehicle does
not require service.
However, if the lamp goes out after
he momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.
✽✽ NOTICE
 If the light bulb or lamp connector is removed from an operating lamp
activated by electricity, the fuse
box’s electronic device may scan it
as a malfunction. Therefore, a lamp
malfunction history may be record-
ed in Diagnostic Trouble Code
(DTC) in the fuse box.
 It is normal for an operating lamp may blink temporarily. Since this
occurrence is due stabilization
function of the vehicle’s electronic
control device, if the lamp lights up
normally after temporary blinking,
there is no problem in the vehicle.
However, if the lamp continues to
blink several times or turn off com-
pletely, there may be an error in the
vehicle’s electronic control device.
So we recommend that you have
the vehicle checked by an author-
ized Kia dealer immediately. ✽✽
NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillamp lenses
could appear frosty. This condition is
caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the
lamp bulb circuitry, have the vehicle
checked by an authorized Kia dealer.

Maintenance
70
8
Headlamp, Front position lamp,
Front turn signal lamp, Front
fog lamp bulb replacement (1) Headlamp (High)
(2) Headlamp (Low)
(3) Front turn signal lamp
(4) Front position lamp /
Daytime running lamp (LED)*
(5) Front fog lamp (Bulb)
* : if equippedHeadlamp bulb
OHM076030L
(Continued) A bulb should be operated
only when installed in a head-light.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-dling it.
OHD076046
WARNING - Halogen
bulbs
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burstwhen lit.
(Continued)

871
Maintenance
1. Open the hood.
2. Remove the headlight bulb coverby turning it counterclockwise.
3. Disconnect the headlight bulb socket-connector.
4. Unsnap the headlight bulb retain- ing wire by depressing the end
and pushing it upward.
5. Remove the bulb from the head- light assembly.
6. Install a new headlight bulb and snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb. 7. Connect the headlight bulb socket-
connector.
8. Install the headlight bulb cover by turning it clockwise.
✽✽ NOTICE
If the headlight aiming adjustment
is necessary after the headlight
assembly is reinstalled, we recom-
mend that you consult an authorized
Kia dealer.
Headlight (HID type), position, turn signal, and front fog light bulb replacement
If the light bulb does not operate, we
recommend that you have the vehi-
cle checked by an authorized Kia
dealer.
OEN076051
WARNING
- HID Headlight low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, we recom-
mend that you have your vehi-
cle checked by an authorized
Kia dealer.

Maintenance
72
8
✽✽
NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than halo-
gen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs thus
have higher replacement cost.Side repeater lamp replacement
If the light bulb does not operate, we
recommend that you checked an
authorized Kia dealer. Rear combination light bulb replacement (1) Stop and tail light
(2) Tail light
(3) Back-up light
(4) Rear turn signal light
OHM078032OHM078033
OHM076074L
■
Type A
■ Type B

873
Maintenance
Outside light
Type A
1. Open the tailgate.
2. Loosen the light assembly retain-ing screws with a philips head
screwdriver. 3. Remove the rear combination light
assembly from the body of the
vehicle.
4. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
OHM078044N
OHM078045N
OHM078046N
OHM078047N

Maintenance
74
8
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Reinstall the light assembly to the body of the vehicle.
Type B
If the light bulb does not operate, we
recommend that you have the vehi-
cle checked by an authorized Kia
dealer.Inside light
1. Open the tailgate.
2. Remove the service cover using a flat-blade screwdriver.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
OHM078048
OHM078049

875
Maintenance
High mounted stop light and
rear fog light bulb replacement
If the light does not operate, we rec-
ommend that you have the vehicle
checked by an authorized Kia dealer.License plate light bulb replacement
1. Loosen the lens retaining screws
with a philips head screwdriver.
2. Remove the lens.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Reinstall the lens securely with the lens retaining screws. Door courtesy lamp bulb replacement
If the light does not operate, we rec-
ommend that you have the vehicle
checked by an authorized Kia dealer.
OHM078050
OHM078041
OHM076066
■
Higt mounted stop light
■
■ Rear fog lightOHM078058

Maintenance
76
8

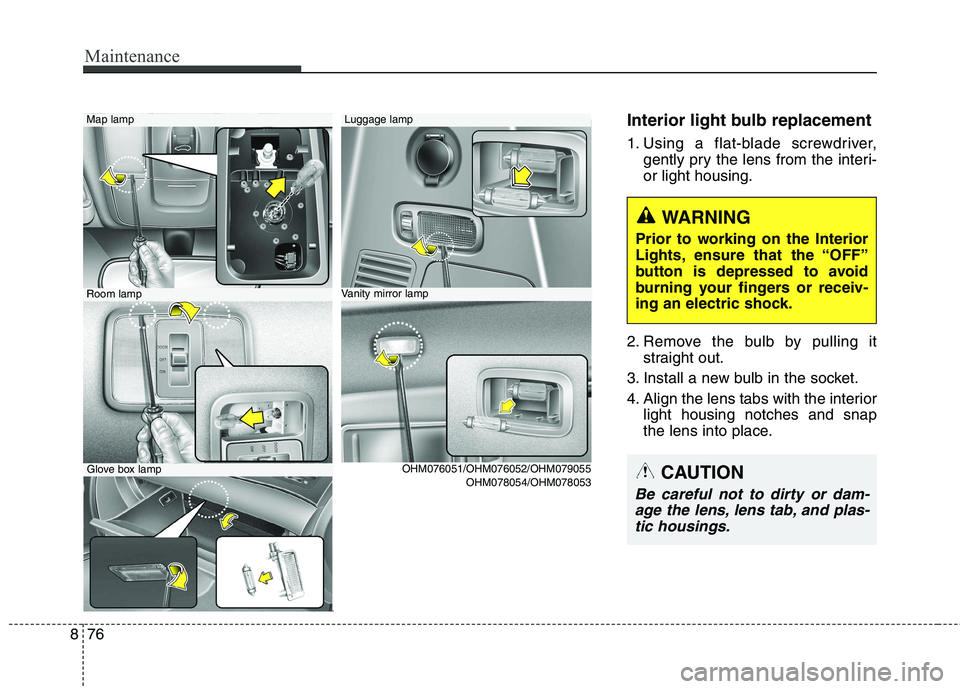

Interior light bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens from the interi- or light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap
the lens into place.Luggage lamp Map lamp
OHM078054/OHM078053
Vanity mirror lampRoom lamp
Glove box lamp OHM076051/OHM076052/OHM079055
WARNING
Prior to working on the Interior
Lights, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
CAUTION
Be careful not to dirty or dam- age the lens, lens tab, and plas-tic housings.
