Audio system
AUDIO SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
 Steering wheel audio controls. . . . . . . . . . . . . . . . . . . . 5-3
 Aux, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
 How vehicle radio works . . . . . . . . . . . . . . . . . . . . . . . 5-4
AUDIO (With Touch Screen) . . . . . . . . . . . . . . . . . 5-7  Features of Your Audio . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
 Radio Mode (Type-1) . . . . . . . . . . . . . . . . . . . . . . . . . 5-20
 Radio Mode (Type-2) . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
 Media Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
 Phone Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
 Bluetooth ®
Wireless Technology (Type-1) . . . . . . . . . 5-41
 Bluetooth ®
Wireless Technology (Type-2) . . . . . . . . . 5-48
 Voice Recognition Mode . . . . . . . . . . . . . . . . . . . . . . . 5-55
 Setup Mode (Type-1) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-63
 Setup Mode (Type-2) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-72
Declaration of Conformity . . . . . . . . . . . . . . . . . . 5-80  FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
 CE for EU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-82
5

Audio system
35
Steering wheel audio controls (if equipped)
The steering wheel may incorporate
audio control buttons.VOLUME ( / ) (1)
• Press the lever upward ( ) toincrease the volume.
Press the lever downward ( ) to decrease the volume.
SEEK/PRESET ( / ) (2)
The SEEK/PRESET lever has differ- ent functions based on the system
mode. For the following functions the
lever should be pressed for 0.8 sec-
onds or more.
RADIO mode
It will function as the AUTO SEEK
select button. It will SEEK until you
release the button.
MEDIA mode
It will function as the FF/REW button.
If the SEEK/PRESET button is
pressed for less than 0.8 seconds, it
will work as follows in each mode. RADIO mode
It will function as the PRESET STA-
TION buttons.
MEDIA mode
It will function as TRACK UP/DOWN
button.
MODE ( ) (3)
Press the button to change audio
source. FM
➟ AM ➟ CD ➟ USB/iPod ®
➟ AUX ➟
MY MUSIC ➟
Bluetooth®wireless
technology audio
MUTE ( ) (4)
Press the button to mute the sound.
Press the button to turn off the microphone during a telephone call.
Detailed information for audio control
buttons are described in the followingpages in this section.
OHM046355L
■ Type A
■Type C
■Type B
CAUTION
Do not operate audio remote
control buttons simultaneously.

Audio system
75
AUDIO (With Touch Screen)■Type-1
(With
Bluetooth®Wireless Technology)
■Type-2
HMH3F0000EE/HMH3F0001EE

Audio system
58Features of Your Audio (1)
EJECT
Ejects the disc. (2) RADIO
Changes to FM/AM mode.
Each time the button is pressed, the mode is changed in the order of FM1 ➟FM2 ➟FMA ➟AM ➟
AMA. (3)
MEDIA
Changes to CD/USB(iPod ®
)/AUX
/My Music/Bluetooth ®
Audio mode.
Each time the b utton is pressed, the
mode is changed in the order of CD ➟ USB(iPod ®
) ➟ AUX ➟My Music
➟ BT(Bluetooth ®
) Audio.
(4) PHONE
Changes to Phone mode.
When a phone is not connected, the connection screen is displayed.
(5) POWER/VOL knob
Power knob : Turns power On/Off by pressing the knob.
Volume knob : Sets volume by turning the knob left/right. (6)
SEEK TRACK
When pressed briefly
Radio mode : plays previous/next fre- quency.
CD, USB, iPod ®
, My Music, BT Audio
mode : changes the track, Song(file).
When pressed and held
Radio mode : continuously changes the frequency. Upon release, plays
the current frequency.
CD, USB, iPod ®
, My Music mode :
rewinds or fast forwards the track or
file.
During a Handsfree call, controls the call volume.

Audio system
15
5
(Continued)

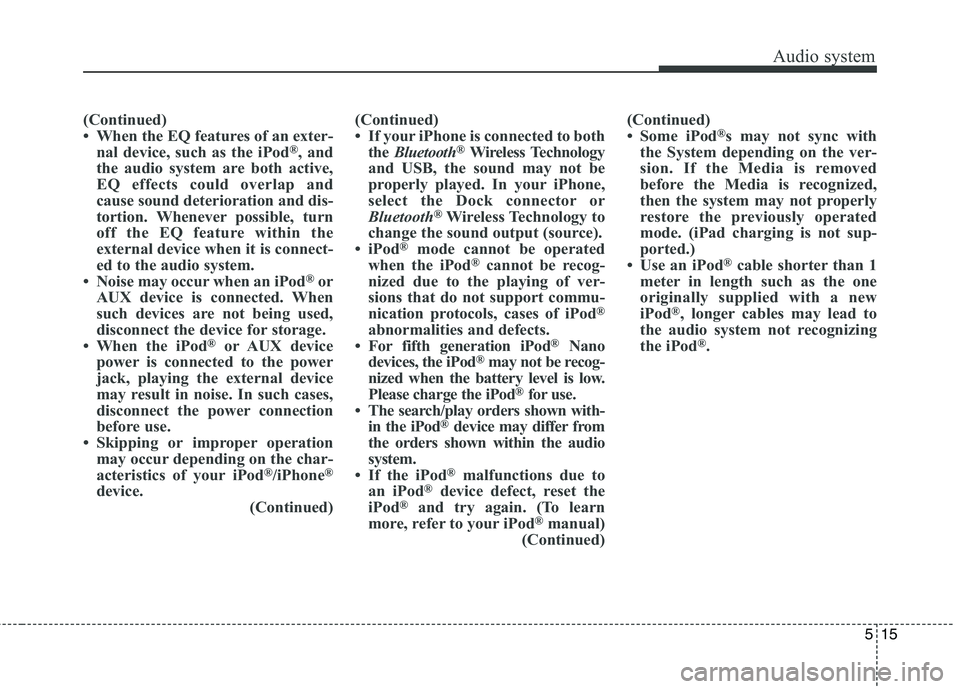

 When the EQ features of an exter-
nal device, such as the iPod ®
, and
the audio system are both active,
EQ effects could overlap and
cause sound deterioration and dis-
tortion. Whenever possible, turn
off the EQ feature within the
external device when it is connect-
ed to the audio system.
 Noise may occur when an iPod ®
or
AUX device is connected. When
such devices are not being used,
disconnect the device for storage.
 When the iPod ®
or AUX device
power is connected to the power
jack, playing the external device
may result in noise. In such cases,
disconnect the power connection
before use.
 Skipping or improper operation may occur depending on the char-
acteristics of your iPod ®
/iPhone ®
device. (Continued)(Continued)
 If your iPhone is connected to both
the Bluetooth ®
Wireless Technology
and USB, the sound may not be
properly played. In your iPhone,
select the Dock connector or
Bluetooth ®
Wireless Technology to
change the sound output (source).
 iPod ®
mode cannot be operated
when the iPod ®
cannot be recog-
nized due to the playing of ver-
sions that do not support commu-
nication protocols, cases of iPod ®
abnormalities and defects.
 For fifth generation iPod ®
Nano
devices, the iPod ®
may not be recog-
nized when the battery level is low.
Please charge the iPod ®
for use.
 The search/play orders shown with- in the iPod ®
device may differ from
the orders shown within the audio
system.
 If the iPod ®
malfunctions due to
an iPod ®
device defect, reset the
iPod ®
and try again. (To learn
more, refer to your iPod ®
manual)
(Continued) (Continued)
 Some iPod
®
s may not sync with
the System depending on the ver-
sion. If the Media is removed
before the Media is recognized,
then the system may not properly
restore the previously operated
mode. (iPad charging is not sup-
ported.)
 Use an iPod ®
cable shorter than 1
meter in length such as the one
originally supplied with a new
iPod ®
, longer cables may lead to
the audio system not recognizing
the iPod ®
.

Audio system
516
✽✽NOTICE - Using the
Bluetooth®Wireless
Technology Audio Mode
 Bluetooth ®
Wireless Technology
Audio Mode can be used only
when a Bluetooth®
Wireless
Technology phone has been con-
nected.
 Bluetooth ®
Wireless Technology
Audio Mode will not be available
when connecting mobile phones
that do not support this feature.
 If a Bluetooth ®
Wireless Technology
Phone is being used to play music
and receives an incoming or out-
going phone call, then the music
will stop.
 Moving the Track up/down while playing Bluetooth®
Wireless
Technology audio mode may
result in pop noises with some
mobile phones.
 Bluetooth ®
Wireless Technology
streaming audio may not be sup-
ported in some mobile phones. (Continued)(Continued)
 When returning to
Bluetooth®
Wireless Technology Audio mode
after ending a call, the mode may
not automatically restart in some
mobile phones.
 Receiving an incoming call or making an outgoing call while
playing Bluetooth®
Wireless
Technology Audio may result in
audio interference. ✽
✽
NOTICE - Using the
Bluetooth®Wireless
Technology Cellular Phone
 Bluetooth ®
Wireless Technology
Handsfree refers to a device which
allows the user to conveniently
make phone calls with Bluetooth®
Wireless Technology mobile
phones through the audio system.
 Bluetooth ®
Wireless Technology
allows devices to be connected in a
short distance, including hands-
free devices, stereo headsets, wire-
less remote controllers, etc. For
more information, visit the
Bluetooth ®
Wireless Technology
website at www
.Bluetooth.com.
Before using Bluetooth®
Wireless
Technology audio features.
 The Bluetooth ®
word mark and
logos are registered trademarks
owned by Bluetooth ®
SIG, Inc. and
any use of such marks by Kia is
under license. Other trademarks
and trade names are those of their
respective owners. A Bluetooth ®
enabled cell phone is required to use
Bluetooth ®
Wireless Technology.
(Continued)

Audio system
17
5
(Continued)
 Bluetooth ®
Wireless Technology
features supported within the
vehicle are as follows. Some fea-
tures may not be supported
depending on your Bluetooth®
Wireless Technology device.
- Answering and placing Bluetooth ®
Wireless Technology
Handsfree calls
- Menu operation during call (Switch to Private, Switch to call
waiting, Outgoing volume)
- Download Call History
- Download Mobile Phone book
- Phone book/Call History Auto Download
- Bluetooth ®
Wireless Technology
device auto connection
- Bluetooth ®
Wireless Technology
Audio
 Before using Bluetooth®
Wireless
Technology related features of the
audio system, refer your phone’s
User’s Manual for phone-side
Bluetooth ®
Wireless Technology
operations. (Continued)(Continued)
 The phone must be paired to the
audio system to use Bluetooth®
Wireless Technology related fea-
tures.
 Pairing and connecting a Bluetooth ®
Wireless Technology
enabled mobile phone will work
only when the Bluetooth®
Wireless
Technology option within your
mobile phone has been turned on.
(Methods of turning on the
Bluetooth ®
Wireless Technology
enabled feature may differ
depending on the mobile phone.)
 Do not use a cellular phone or per- form Bluetooth ®
Wireless
Technology settings (e.g. pairing a
phone) while driving.
 Even if the phone supports Bluetooth ®
Wireless Technology,
the phone will not be found during
device searches if the phone has
been set to hidden state or the
Bluetooth ®
Wireless Technology
has been deactivated. Disable the
hidden state or activate the
Bluetooth ®
Wireless Technology
prior to searching/connecting with
the car audio system. (Continued)(Continued)
 You will not be able to use the
hands-free feature when your
phone (in the car) is outside of the
cellular service area. (e.g. in a tun-
nel, in an underground area, in a
mountainous area, etc.)
 If the cellular phone signal is poor or the vehicles interior noise is too
loud, it may be difficult to hear the
other person’s voice during a call.
 Do not place the phone near or inside metallic objects, otherwise
communications with Bluetooth®
Wireless Technology system or cel-
lular service stations can be dis-
turbed.
 Placing the audio system within an electromagnetic environment may
result in noise interference.
 Some cellular phones or other devices may cause interference
noise or malfunction to the audio
system. In this case, storing the
device in a different location may
resolve the condition. (Continued)

Audio system
518
(Continued)
 While a phone is connectedthrough Bluetooth®
Wireless
Technology your phone may dis-
charge quicker than usual for
additional Bluetooth®
Wireless
Technology-related operations.
 If Priority is set upon vehicle igni- tion (IGN/ACC ON), the
Bluetooth ®
Wireless Technology
phone will be automatically con-
nected. Even if you are outside, the
Bluetooth ®
Wireless Technology
phone will be automatically con-
nected once you are in the vicinity
of the vehicle. If you do not want
to automatically connect your
Bluetooth ®
Wireless Technology
phone, try the following.
1) Turn off the Bluetooth®
Wireless
Technology feature in your
mobile phone.
2) Turn off the Bluetooth®
Wireless
Technology feature in your car
audio system. (Continued)(Continued)
- To turn off the Bluetooth®
Wireless Technology feature in
your car audio system, go to
[SETUP]> [Phone] and [turn
off] the Bluetooth®
Wireless
Technology feature.
 Bluetooth ®
Wireless Technology
connection may become intermit-
tently disconnected in some
mobile phones. Follow these steps
to try again.
1) Turn the Bluetooth®
Wireless
Technology function within the
mobile phone off/on and try
again.
2) Turn the mobile phone power Off/On and try again.
3) Completely remove the mobile phone battery, reboot, and then
try again.
4) Reboot the audio system and try again.
5) Delete all paired devices, pair and try again.
 It is possible to pair up to five Bluetooth ®
Wireless Technology
devices to the car system. (Continued)(Continued)
 Phone contact names should be
saved in English or they may not
be displayed correctly.
 The Handsfree call volume and quality may differ depending on
the mobile phone.
 Only one Bluetooth®
Wireless
Technology device can be connect-
ed at a time.
 In some mobile phones, starting the ignition while talking through
Bluetooth ®
Wireless Technology
enabled handsfree call will result
in the call becoming disconnected.
(Switch the call back to your
mobile phone when starting the
ignition.)
 If the mobile phone is not paired or connected, it is not possible to
enter Phone mode. Once a phone
is paired or connected, the guid-
ance screen will be displayed.
