NOTE
Indicates additional helpful information.
If you see this symbol, it means“Do not do this”
or“Do not let this happen”.
If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.
Arrows in an illustration that are similar to
these indicate movement or action.
Arrows in an illustration that are similar to
these call attention to an item in the illustra-
tion.
[]:
Square brackets are used to indicate messages,
keys, or items displayed on a screen.
<>:
Chevrons or angle brackets are used to indicate
texts on controls like buttons or switches inside
or on the vehicle.
CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm. In addition, certain fluids con-
tained in vehicles and certain products of com-
ponent wear contain or emit chemicals known
to the State of California to cause cancer and
birth defects or other reproductive harm.
CALIFORNIA PERCHLORATE ADVISORY
Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The following
advisory is provided: “Perchlorate Material - spe-
cial handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
DENSO CORPORATION is under license.
Other trademarks and trade names are
those of their respective owners.
SiriusXM® services require a subscription
after trial period and are sold separately or
as a package. The satellite service is avail-
able only in the 48 contiguous USA and DC.
SiriusXM® satellite service is also available
in Canada: see www.siriusxm.ca
Required SiriusXM Satellite Radio and
SiriusXM Travel Link monthly subscriptions
are sold separately. Sirius XM Travel Link is
only available in select markets. For more
information, see www.siriusxm.com/
travellink

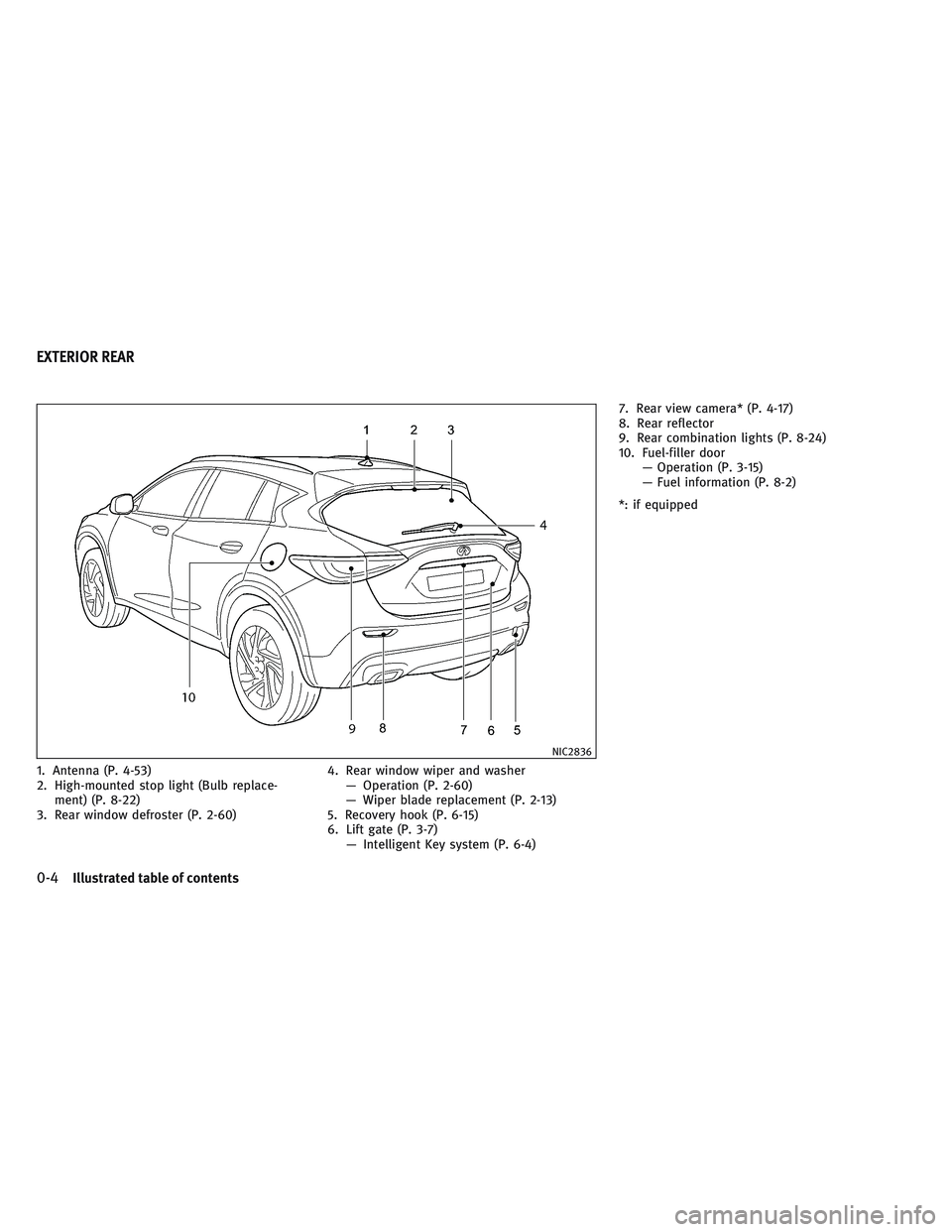

1. Antenna (P. 4-53)
2. High-mounted stop light (Bulb replace-
ment) (P. 8-22)
3. Rear window defroster (P. 2-60)4. Rear window wiper and washer
— Operation (P. 2-60)
— Wiper blade replacement (P. 2-13)
5. Recovery hook (P. 6-15)
6. Lift gate (P. 3-7)
— Intelligent Key system (P. 6-4)7. Rear view camera* (P. 4-17)
8. Rear reflector
9. Rear combination lights (P. 8-24)
10. Fuel-filler door
— Operation (P. 3-15)
— Fuel information (P. 8-2)
*: if equipped
NIC2836
EXTERIOR REAR
0-4Illustrated table of contents

close to, or is against, the front air bag module
during inflation. The front air bags deflate
quickly after a collision.
The front air bags operate only when the ignition
switch is placed in the ON position. After placing
the ignition switch in the ON position, the
supplemental air bag warning light illuminates.
The supplemental air bag warning light will turn
off a few seconds after the engine starts if the
system is operational.
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to au-
tomatically turn OFF under some conditions.
Read this section carefully to learn how it op-
erates. Proper use of the seat, seat belt and
child restraints is necessary for most effective
protection. Failure to follow all instructions in
this manual concerning the use of seats, seat
belts and child restraints can increase the risk
or severity of injury in an accident.
1indicator
lamp
2indica-
tor lamp
Status light
The indicator lamps inform you whether the
front-passenger front air bag is disabled or
enabled.
Turn the key to the ACC or ON position in the
ignition switch. The system carries out a self-
diagnosis.
The and AIRBAG ON> indicator lamps must light up si-
multaneously for approximately six seconds.The indicator lamps display the status of the
front-passenger front air bag:
• lights up: the
front-passenger front air bag is enabled. If, in
the event of an accident, all deployment
criteria are met, the front-passenger front air
bag is deployed.
• lights up: the
front-passenger front air bag is disabled. It
will then not be deployed in the event of an
accident.
SSS0676ZNIC2740
Safety — seats, seat belts and supplemental restraint system1-47

Activating/deactivating the surround lighting
and exterior lighting delayed switch-off:
If you have activated the Surround lighting
function and the light switch is set to ,
the following functions are activated when it is
dark:
•Surround lighting: the exterior lighting re-
mains lit for 40 seconds after unlocking with
the key. If you start the engine, the surround
lighting is switched off and automatic head-
light mode is activated .
•Exterior lighting delayed switch-off: the ex-
terior lighting remains lit for 60 seconds
after the engine is switched off. If you close
all the doors and the lift gate, the exterior
lighting goes off after 15 seconds.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Surround Lighting] function.5. Press the button to save the setting.
When the [Surround Lighting] function is
activated, the light cone and the area around
the vehicle are displayed in orange in the
vehicle information display
6. Press the button to confirm the setting.
Deactivating delayed switch-off of the exterior
lighting temporarily:
1. Before leaving the vehicle, switci the igni-
tion switch to the OFF position.
2. Switch the ignition switch to the ON posi-
tion.
The exterior lighting delayed switch-off is
deactivated.
Delayed switch-off of the exterior lighting is
reactivated the next time you start the engine.
Depending on your vehicle’s equipment, when
the surround lighting and delayed switch-off
exterior lighting are on, the following light up:•Side lights
•Fog lights
•Low beam headlights
•Daytime driving lights
•Surround lighting in the exterior mirrorsActivating/deactivating the interior lighting
delay
:
If you activate the [Interior Lighting Delay] func-
tion, the interior lighting remains on for 20
seconds after you remove the key from the
ignition lock.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Interior Lighting Delay] function. If the
[Interior lighting delayed switch-off] function
has been switched on, the vehicle interior is
displayed in orange in the vehicle informa-
tion display
5. Press the button to save the setting.
Instruments and controls2-27

Message Possible causes/consequences and solutions
[Inoperative See Operator’s
Manual]EBD (electronic brake force distribution) ABS (Anti-Lock Braking System), BAS (Brake Assist System), VDC (Vehicle Dynamic Contro), and
hill start assist are not available due to a malfunction.
Forward Emergency Braking (FEB) may also have failed.
A warning tone sounds.
In addition, the
,andwarning lights may light up in the combination meter.
WARNING
The brake system continues to function normally, but without the functions listed above. The front and rear wheels could therefore lock if
you brake hard, for example.
The steering and braking characteristics may be severely affected. The braking distance may increase in an emergency braking situation.
If VDC is not operational, VDC is unable to stabilize the vehicle. There is an increased danger of skidding and risk of an accident.
Drive on carefully and have the system checked immediately. It is recommended you visit an INFINITI retailer for this service.
[Turn On The Ignition to Re-
lease the Parking Brake]The redindicator light lights up.
You attempted to release the electric parking brake while the ignition was switched off.
Key: turn the key to the ON position in the ignition switch
[Please Release Parking
Brake]The redindicator light flashes and a warning tone sounds. A condition for automatic release of the electric parking brake is not
fulfilled (seeApplying automatically (vehicles with automatic transmission)in the5. Starting and drivingsection).
You are driving with the electric parking brake applied.
Release the electric parking brake manually.
The red
indicator light flashes and a warning tone sounds.
You are making an emergency stop using the electric parking brake (seeEmergency brakingin the5. Starting and drivingsection)
[Parking Brake See Opera-
tor’s Manual]The yellowwarning light lights up.
The electric parking brake is malfunctioning.
To apply:
1. Switch the ignition off.
2. Press the electric parking brake handle for at least ten seconds.
3. Press the P (Park) button.
4. Have the system checked. It is recommended you consult an INFINITI retailer.
2-32Instruments and controls

Message Possible causes/consequences and solutions
[Steering Malfunction See
Operator’s Manual]The electric steering lock is malfunctioning.WARNING
The steering may be locked by the electric steering lock.
There is a risk of an accident.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Do not drive on. It is recommended you contact the nearest INFINITI retailer.
The electric steering lock was unable to unlock the steering.
1. Remove the key from the ignition switch.
2. To unlock the steering, move the steering wheel slightly.
3. Insert the key into the ignition lock again.
[Check Washer Fluid]The washer fluid level in the washer fluid reservoir has dropped below the minimum.
Top up the washer fluid (seeWindow washer fluidin the8. Do-it-yourselfsection)
[Wiper Malfunctioning] The windshield wipers are defective.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Hazard Warning Flashers
Malfunctioning]The hazard warning lights are faulty.
Visit an INFINITI retailer.
Instruments and controls2-55

Key
Message Possible causes/consequences and solutions
[Key Does Not Belong to
Vehicle]You have put the wrong key in the ignition switch.
Use the correct key.
[Obtain a New Key]The key needs to be replaced.
It is recommended you visit an INFINITI retailer for this service.
[Replace Key Battery]The key battery is discharged.
Replace the battery (seeChecking the batteryin the8. Do-it-yourselfsection)
2-56Instruments and controls

IMMOBILISER
The immobiliser prevents your vehicle from
being started without the correct key.
•To activate with the key: remove the key
from the ignition lock.
•To deactivate:switch on the ignition.
When leaving the vehicle, always take the key
with you and lock the vehicle. Anyone can start
the engine if a valid key has been left inside the
vehicle.
NOTE
The immobiliser is always deactivated when you
start the engine.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
ANTI-THEFT ALARM SYSTEM (IF
EQUIPPED)
To arm:lock the vehicle with the key or Intelli-
gent key. Indicator lamp
1flashes. The alarm
system is armed after approximately 15 sec-
onds.
To deactivate:unlock the vehicle with the key or
intelligent key.
or
Insert the key into the ignition switch.
NIC2750
SECURITY SYSTEM
Instruments and controls2-57
