KEY POSITIONS
OFF (Normal parking position)
0
The ignition key can only be removed when in
this position.
The steering lock can only be locked in this
position.
ACC (Accessories)/1
The engine is turned off without locking the
steering wheel. This position activates electrical
accessories, such as the radio, when the engine
is not running.
ON (Normal operating position)2
This position turns on the ignition system and
electrical accessories.
START3
The engine starter activates and the engine will
start. As soon as the engine has started, release
the key immediately. It will return to the ON
position.NOTE
For vehicles fitted with Idle Stop/Start System:
When the engine is automatically stopped by
the Idle Stop/Start System the ignition switch
can still be operated as usual.
At the end of a journey turn the ignition OFF to
avoid a discharged battery. The Idle Stop/Start
System does not automatically turn ignition off.
•Make sure the area around the vehicle is
clear.
•Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer fluid
as frequently as possible, or at least when-
ever you refuel.
•Check that all windows and lights are clean.
•Visually inspect tires for their appearance
and condition. Measure and check the tire
pressure for proper inflation.
•Check that all doors are closed.
•Position seat and adjust head restraints/
headrests.
•Adjust the inside and outside rear view
mirrors.
•Fasten your seat belt and ask all passengers
to do likewise.
•Check the operation of the warning lights
when the ignition switch is pushed to the ON
position.
BEFORE STARTING ENGINE
Starting and driving5-15

WARNING
•Be sure the parking brake is fully released
before driving. Failure to do so can cause
brake failure and lead to an accident.
•Do not release the parking brake from out-
side the vehicle.
•Do not use the shift lever in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.
•To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, do not leave children, people
who require the assistance of others, or
pets unattended in your vehicle. Addition-
ally, the temperature inside a closed vehicle
on a warm day can quickly become high
enough to cause a significant risk of injury
or death to people and pets.The function of the electric parking brake is
dependent on the on-board voltage. If the on-
board voltage is low or if there is a malfunction
in the system, it may not be possible to apply
the released parking brake. If this is the case:
•Only park the vehicle on level ground and
secure it to prevent it from rolling away.
•Shift the automatic transmission to position
P (Park).
•It is recommended you contact an INFINITI
retailer.
It may not be possible to release an applied
parking brake if the on-board voltage is low or
if there is a malfunction in the system. It is
recommended you contact an INFINITI retailer.
The electric parking brake carries out a function
check at regular intervals when the engine is
switched off. Noises that occur are normal.APPLYING/RELEASING MANUALLY
The electric parking brake can be applied or
released by operating the parking brake handle
1.
To apply:Push handle
1.
When the electric parking brake is applied, the
red
indicator lamp lights up in the
combination meter.
The electric parking brake can also be applied
when the ignition switch is in the OFF position
or the key is removed.
To release:With the ignition switch in the ON
position, pull handle
1.
NPA1485
PARKING BRAKE
Starting and driving5-25

Before driving, check that the brake warning
lightgoes out. For additional informa-
tion, seeWarning lights, indicator lights and
audible remindersin the2. Instruments and
controlssection.
The electric parking brake can only be released
when the ignition switch is in the ON position.
APPLYING AUTOMATICALLY (VEHICLES
WITH AUTOMATIC TRANSMISSION)
The electric parking brake is automatically ap-
plied when:
•Intelligent cruise control (if equipped) brings
the vehicle to a standstill.
or
•Intelligent Parking Assist (if equipped) is
keeping the vehicle stationary.
The red
indicator lamp lights up in the
combination meter.
The electric parking brake is not automatically
applied if the engine is switched off by the Idle
Stop/Start function.
RELEASING AUTOMATICALLY
The electric parking brake can only be released
automatically in vehicles with automatic trans-
mission.
The electric parking brake of your vehicle is
released automatically when all of the following
conditions are fulfilled:
•The engine is running.
•The transmission is in position D (Drive) or R
(Reverse).
•The seat belt is fastened.
•You depress the accelerator pedal.
If the transmission is in position R, the lift gate
must be closed.
If your seat belt is not fastened, the following
conditions must be fulfilled to automatically
release the electric parking brake:
•The driver’s door is closed
•You have shifted out of transmission posi-
tion P (Park) or you have previously driven
faster than 2 MPH (3 km/h).
Ensure that you do not depress the accelerator
pedal unintentionally. Otherwise, the parking
brake will be released and the vehicle will start
to move.
EMERGENCY BRAKING
The vehicle can also be braked during an emer-
gency by using the electric parking brake.
While driving, push handle
1of the electric
parking brake. The vehicle is braked as long as
you keep handle
1of the electric parking
brake pressed. The longer the electric parking
brake handle
1is depressed, the greater the
braking force.
During braking:
•A warning tone sounds.
•The [Please Release Parking Brake] message
appears.
•The redindicator lamp in the combi-
nation meter flashes.
When the vehicle has been braked to a stand-
still, the electric parking brake is applied.
5-26Starting and driving

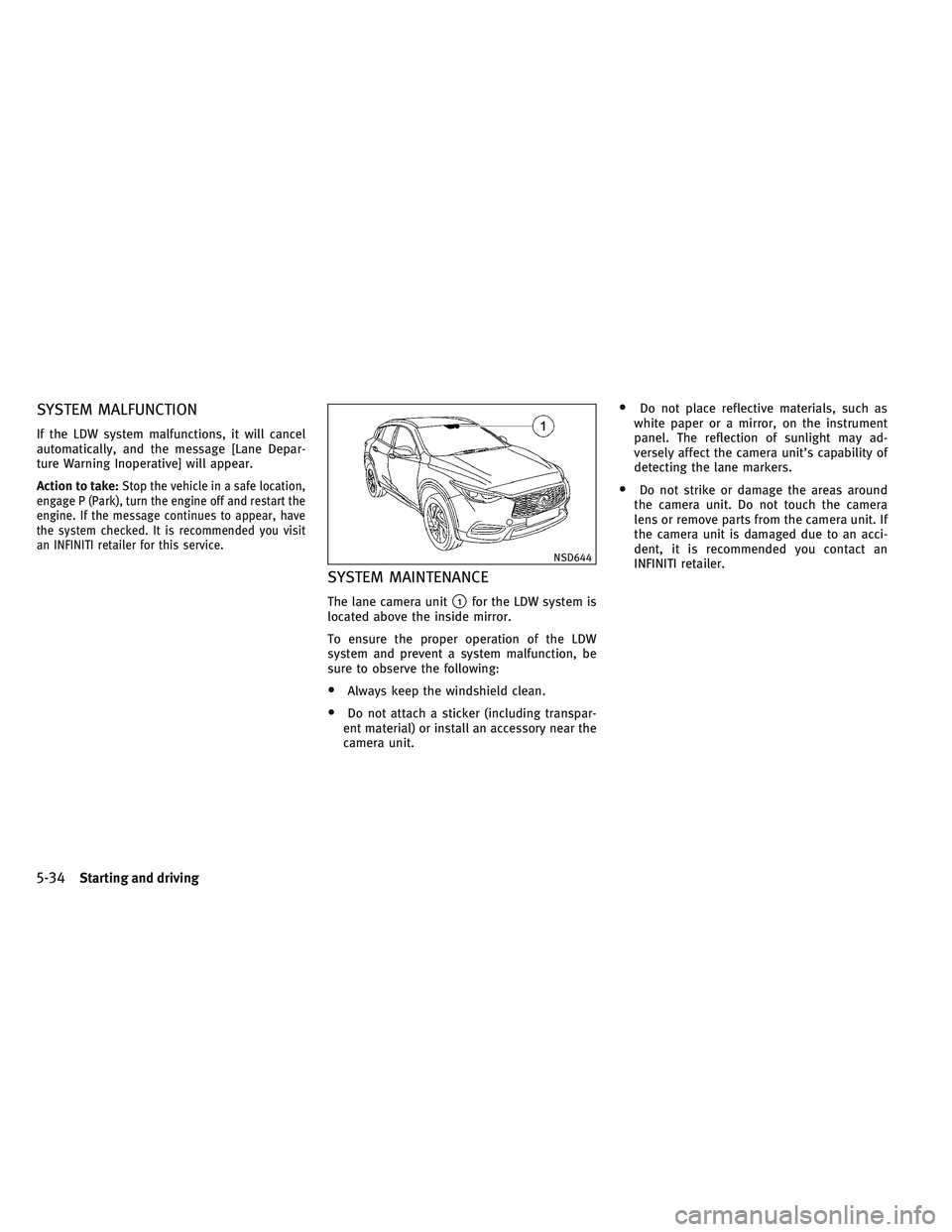

SYSTEM MALFUNCTION
If the LDW system malfunctions, it will cancel
automatically, and the message [Lane Depar-
ture Warning Inoperative] will appear.
Action to take:
Stop the vehicle in a safe location,
engage P (Park), turn the engine off and restart the
engine. If the message continues to appear, have
the system checked. It is recommended you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the LDW system is
located above the inside mirror.
To ensure the proper operation of the LDW
system and prevent a system malfunction, be
sure to observe the following:
•Always keep the windshield clean.
•Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit.
•Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
•Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove parts from the camera unit. If
the camera unit is damaged due to an acci-
dent, it is recommended you contact an
INFINITI retailer.
NSD644
5-34Starting and driving

RADAR MAINTENANCE
The two radar sensor unitsAfor the BSW
system are located near the rear bumper. Al-
ways keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.Do not strike or damage the area around the
radar sensors. It is recommended you consult
an INFINITI retailer if the area around the radar
sensors is damaged due to a collision.
FCC NOTICE
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modification not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equip-
ment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference re-
ceived, including interference that may cause
undesired operation of the device.Cruise control maintains a constant road speed
for you. It brakes automatically in order to avoid
exceeding the set speed. You must select a
lower gear in good time on long and steep
downhill gradients, especially if the vehicle is
laden or towing a trailer.WARNING
For vehicles with automatic transmission, you
need to have selected manual drive program M
(seeManual drive programearlier in this sec-
tion). By doing so, you will make use of the
braking effect of the engine. This relieves the
load on the brake system and prevents the
brakes from overheating and wearing too
quickly.
Use cruise control only if road and traffic con-
ditions are appropriate for maintaining a steady
speed for a prolonged period. You can set the
cruise control at any road speed above 20 MPH
(30 km/h).
The speed indicated in the speedometer may
differ slightly from the set speed.
NAA1640
CRUISE CONTROL
5-44Starting and driving

PROBLEMS WITH PARKING SENSOR SYSTEM
Problem Possible causes/consequences and solutions
Only the red segments in the
Parking Sensor System displays are
lit. You also hear a warning tone for
approximately two seconds.
The Parking Sensor System is then
deactivated and the indicator light
on the Parking Sensor System
button lights up.The Parking Sensor System has malfunctioned and has been
deactivated.
If problems persist, have the Parking Sensor System checked. It is
recommended you visit an INFINITI retailer for this service.
Only the red segments in the
parking sensor displays are lit. The
Parking Sensor System is then
deactivated.The parking sensors are dirty or there is interference.
•Clean the sensors.•Switch the ignition back on.
The problem may be caused by an external source of radio or ultrasound
waves.
See if the Parking Sensor System functions in a different location.
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle. Failure
to follow these recommendations may result in
shortened engine life and reduced engine per-
formance.
•Avoid driving for long periods at constant
speed, either fast or slow, and do not run the
engine over 4,000 RPM.
•Do not accelerate at full throttle in any gear.
•Avoid quick starts.
•Avoid hard braking as much as possible.
•Do not tow a trailer for the first 500 mi (805
km). Your engine, axle or other parts could
be damaged.
You should also observe these notes on
break-in if the engine or parts of the drive train
on your vehicle have been replaced.
BREAK-IN SCHEDULE
Starting and driving5-81

Tire type and condition may also affect braking
effectiveness.
–When replacing tires, install the specified
size of tires on all four wheels.
–
When installing a replacement tire, make sure
that it is the proper size and type as specified on
the tire and loading information label. (See
Wheels and Tiresin the9. Maintenance and
Schedulessection.)
–For detailed information, seeWheels and
tiresin the8. Do-it-yourselfsection.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.
Normal operation
The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h). The speed varies according to
road conditions.
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.
Starting and driving5-89

•When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly and
the VDC warning light
may illuminate.
Do not drive on these types of roads.
•When driving on an unstable surface such
as a turntable, ferry, elevator or ramp, the
VDC warning light
may illuminate. This
is not a malfunction. Restart the engine af-
ter driving onto a stable surface.
•If wheels or tires other than the INFINITI
recommended ones are used, the VDC sys-
tem may not operate properly and the VDC
warning light
may illuminate.
•The VDC system is not a substitute for win-
ter tires or tire chains on a snow covered
road.
•If VDC is malfunctioning, VDC is unable to
stabilize the vehicle. In addition, other driv-
ing safety systems are switched off. This
increases the risk of skidding and an acci-
dent. Drive on carefully. Have VDC checked.
It is recommended you visit an INFINITI re-
tailer for this service.
CAUTION
•When VDC is deactivated, theVDC
OFF warning light lights up continuously.
•If both thewarning light andwarning light are lit continuously, VDC is
not available due to a malfunction.
TRACTION CONTROL SYSTEM (TCS)
The Traction Control System (TCS) is part of
VDC..
Traction control brakes the drive wheels indi-
vidually if they spin. This enables you to pull
away and accelerate on slippery surfaces, for
example if the road surface is slippery on one
side. In addition, more drive torque is trans-
ferred to the wheel or wheels with traction.
Traction control remains active if you deactivate
VDC.
CHARACTERISTICS OF VDC
If theVDC warning light goes out before
beginning the journey, VDC is automatically
active.
If VDC intervenes, the
VDC warning lamp
flashes in the combination meter.If VDC intervenes:
•Do not deactivate VDC under any circum-
stances.
•When pulling away, only depress the accel-
erator pedal as far as is necessary.
•Adapt your driving style to suit the prevail-
ing road and weather conditions.
Deactivating/activating VDC
WARNING
If you deactivate VDC, VDC no longer stabilizes
the vehicle. There is an increased risk of skid-
ding and an accident.
Only deactivate VDC in the situations de-
scribed in the following section.
You can select between the following statuses
of VDC:
•VDC is activated.
•VDC is deactivated.
It may be best to deactivate VDC in the follow-
ing situations:
•When using snow chains.
•In deep snow.
•On sand or gravel.
Starting and driving5-91
