CAUTION
This is used to indicate the presence of a haz-
ard that could cause minor or moderate per-
sonal injury or damage to your vehicle. To
avoid or reduce the risk, the procedures must
be followed carefully.
NOTE
Indicates additional helpful information.
If you see this symbol, it means “Do not do this”
or “Do not let this happen”.
If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.
Arrows in an illustration that are similar to
these indicate movement or action.
Arrows in an illustration that are similar to
these call attention to an item in the illustra-
tion.
[]:
Square brackets are used to indicate messages,
keys, or items displayed on a screen. <>
:
Chevrons or angle brackets are used to indicate
texts on controls like buttons or switches inside
or on the vehicle.
CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm. In addition, certain fluids con-
tained in vehicles and certain products of com-
ponent wear contain or emit chemicals known
to the State of California to cause cancer and
birth defects or other reproductive harm.
CALIFORNIA PERCHLORATE ADVISORY
Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The following
advisory is provided: “Perchlorate Material -
special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/
perchlorate.”
The Bluetooth® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc.
and any use of such marks by
DENSO CORPORATION is under
license. Other trademarks and
trade names are those of their
respective owners.
SiriusXM® services require a
subscription after trial period
and are sold separately or as a
package. The satellite service is
available only in the 48
contiguous USA and DC.
SiriusXM® satellite service is
also available in Canada: see
www.siriusxm.ca
Required SiriusXM Satellite Ra-
dio and SiriusXM Travel Link
monthly subscriptions are sold
separately. Sirius XM Travel
Link is only available in select
markets. For more information,
see www.siriusxm.com/
travellink

1. Antenna (P. 4-52)
2. High-mounted stop light (Bulb replace-ment) (P. 8-22)
3. Rear window defroster (P. 2-61) 4. Rear window wiper and washer
— Operation (P. 2-61)
— Wiper blade replacement (P. 2-13)
5. Recovery hook (P. 6-15)
6. Lift gate (P. 3-7) — Intelligent Key system (P. 6-4) 7. Rear view camera* (P. 4-16)
8. Rear reflector
9. Rear combination lights (P. 8-24)
10. Fuel-filler door
— Operation (P. 3-15)
— Fuel information (P. 8-2)
*: if equipped
NIC2836
EXTERIOR REAR
0-4Illustrated table of contents

this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the front air bag module
during inflation. The front air bags deflate
quickly after a collision.
The front air bags operate only when the ignition
switch is placed in the ON position. After placing
the ignition switch in the ON position, the
supplemental air bag warning light illuminates.
The supplemental air bag warning light will turn
off a few seconds after the engine starts if the
system is operational.
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to au-
tomatically turn OFF under some conditions.
Read this section carefully to learn how it op-
erates. Proper use of the seat, seat belt and
child restraints is necessary for most effective
protection. Failure to follow all instructions in
this manual concerning the use of seats, seat
belts and child restraints can increase the risk
or severity of injury in an accident.
1indicator
lamp
2indicator
lamp
Status light
The indicator lamps inform you whether the
front-passenger front air bag is disabled or
enabled.
Turn the key to the ACC or ON position in the
ignition switch. The system carries out a self-
diagnosis.
The and AIRBAG ON> indicator lamps must light up si-
multaneously for approximately six seconds.
The indicator lamps display the status of the
front-passenger front air bag:
• lights up: the front-
passenger front air bag is enabled. If, in the
event of an accident, all deployment criteria
are met, the front-passenger front air bag is
deployed.
• lights up: the
front-passenger front air bag is disabled. It
will then not be deployed in the event of an
accident.
If the status of the front-passenger front air bag
changes while the vehicle is in motion, an air
bag display message appears in the vehicle
information display (see Supplemental Re-
straint System (SRS) air bag warning light
SSS0676Z
NIC2740
Safety — seats, seat belts and supplemental restraint system1-47
** Click HERE to see "Owner's Manual Supplement" **

When you switch the [Adaptive front lighting
system] function on, you activate the following
functions:
•Freeway mode
•Active light function
•Cornering light function
If you set the low beam headlights for driving
on the right/left, the vehicle information display
shows the [Adaptive front lighting system: Sys-
tem Inoperative Inactive For Left-side Traffic] or
[Adaptive front lighting system: System Inop-
erative Inactive for Right-side Traffic] display
message instead of the [Adaptive front lighting]
function in the [Light] submenu.
For further information about the Adaptive Front
Lighting system, see Adaptive front lighting
system (LED headlight only) (if equipped) later
in this section
Setting the low beam headlights for driving on
the left/right
:
This function is only available on vehicles with
the Adaptive Front Lighting System (see Adap-
tive front lighting system (LED headlight only) (if
equipped) later in this section).
1. Press the
orbutton on the
steering wheel to select the [Settings] menu. 2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Low-b. Headl. Setting For:] function.
You will see the selected setting: [Right-side
Traffic] or [Left-side Traffic].
5. Press the button to save the setting. If you change the setting, conversion does
not take place until the next time the vehicle
is stationary.
If you set the low beam headlights for driving
on the right/left, then freeway mode is unavail-
able. This is only deactivated if the setting for
driving on the left/right is set opposite to your
vehicle’s country version.
An INFINITI retailer can set the low beam head-
lights for driving on the left/right.
Setting the brightness of the ambient lighting
:
1. Press theorbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm. 4. Press the
orbutton to select
the [Ambient Light Brightness] function.
You will see the selected setting.
5. Change the setting with . If you change the setting, conversion does
not take place until the next time the vehicle
is stationary.
6. Press the
orbutton to adjust
the brightness to a level from [Off] to [Level
5] (bright).
7. Press the or
button to save the
setting.
Activating/deactivating the surround lighting
and exterior lighting delayed switch-off
:
If you have activated the Surround lighting
function and the light switch is set to ,
the following functions are activated when it is
dark:
•Surround lighting: the exterior lighting re-
mains lit for 40 seconds after unlocking with
the key. If you start the engine, the surround
lighting is switched off and automatic head-
light mode is activated .
•Exterior lighting delayed switch-off: the exte-
rior lighting remains lit for 60 seconds after
the engine is switched off. If you close all the
2-26Instruments and controls

doors and the lift gate, the exterior lighting
goes off after 15 seconds.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Surround Lighting] function.
5. Press the button to save the setting. When the [Surround Lighting] function is
activated, the light cone and the area around
the vehicle are displayed in orange in the
vehicle information display
6. Press the button to confirm the setting.
Deactivating delayed switch-off of the exterior
lighting temporarily:
1. Before leaving the vehicle, switci the ignition switch to the OFF position.
2. Switch the ignition switch to the ON posi- tion.
The exterior lighting delayed switch-off is
deactivated.
Delayed switch-off of the exterior lighting is
reactivated the next time you start the engine. Depending on your vehicle’s equipment, when
the surround lighting and delayed switch-off
exterior lighting are on, the following light up:
•Side lights
•Fog lights
•Low beam headlights
•Daytime driving lights
•Surround lighting in the exterior mirrors
Activating/deactivating the interior lighting
delay
:
If you activate the [Interior Lighting Delay] func-
tion, the interior lighting remains on for 20
seconds after you remove the key from the
ignition lock.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Interior Lighting Delay] function. If the
[Interior lighting delayed switch-off] function
has been switched on, the vehicle interior is
displayed in orange in the vehicle informa-
tion display 5. Press the button to save the setting.
Vehicle
Setting permanent speed limiter:
You can set permanent speed limiter using the
[Limit Speed (Winter Tires)] function.
1. Press the
orbutton on the
steering wheel to select the [Settings] menu.
2. Press the
orbutton to select
[Vehicle] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Limit Speed (Winter Tires)] function.
You will see the selected setting.
5. Press to confirm.
6. Press the
orbutton to adjust
permanent speed limiter in increments of
ten ([150 mph] to [100 mph]), 240 km/h] to
[160 km/h]). The [Off] setting switches per-
manent speed limiter off).
7. Press the or
button to store the
entry.
Instruments and controls2-27

MessagePossible causes/consequences and solutions
[Inoperative See Operator’s
Manual]EBD (electronic brake force distribution) ABS (Anti-Lock Braking System), BAS (Brake Assist System), VDC (Vehicle Dynamic Contro), and
hill start assist are not available due to a malfunction.
Forward Emergency Braking (FEB) may also have failed.
A warning tone sounds.
In addition, the
,andwarning lights may light up in the combination meter.
WARNING
The brake system continues to function normally, but without the functions listed above. The front and rear wheels could therefore lock if
you brake hard, for example.
The steering and braking characteristics may be severely affected. The braking distance may increase in an emergency braking situation.
If VDC is not operational, VDC is unable to stabilize the vehicle. There is an increased danger of skidding and risk of an accident.
Drive on carefully and have the system checked immediately. It is recommended you visit an INFINITI retailer for this service.
[Turn On The Ignition to Re-
lease the Parking Brake]The redindicator light lights up.
You attempted to release the electric parking brake while the ignition was switched off.
Key: turn the key to the ON position in the ignition switch
[Please Release Parking
Brake] The redindicator light flashes and a warning tone sounds. A condition for automatic release of the electric parking brake is not
fulfilled (see Applying automatically (vehicles with automatic transmission) in the5. Starting and driving section).
You are driving with the electric parking brake applied.
Release the electric parking brake manually.
The red
indicator light flashes and a warning tone sounds.
You are making an emergency stop using the electric parking brake (see Emergency brakingin the5. Starting and driving section)
[Parking Brake See Opera-
tor’s Manual] The yellowwarning light lights up.
The electric parking brake is malfunctioning.
To apply:
1. Switch the ignition off.
2. Press the electric parking brake handle for at least ten seconds.
3. Press the P (Park) button.
4. Have the system checked. It is recommended you consult an INFINITI retailer.
2-32Instruments and controls

MessagePossible causes/consequences and solutions

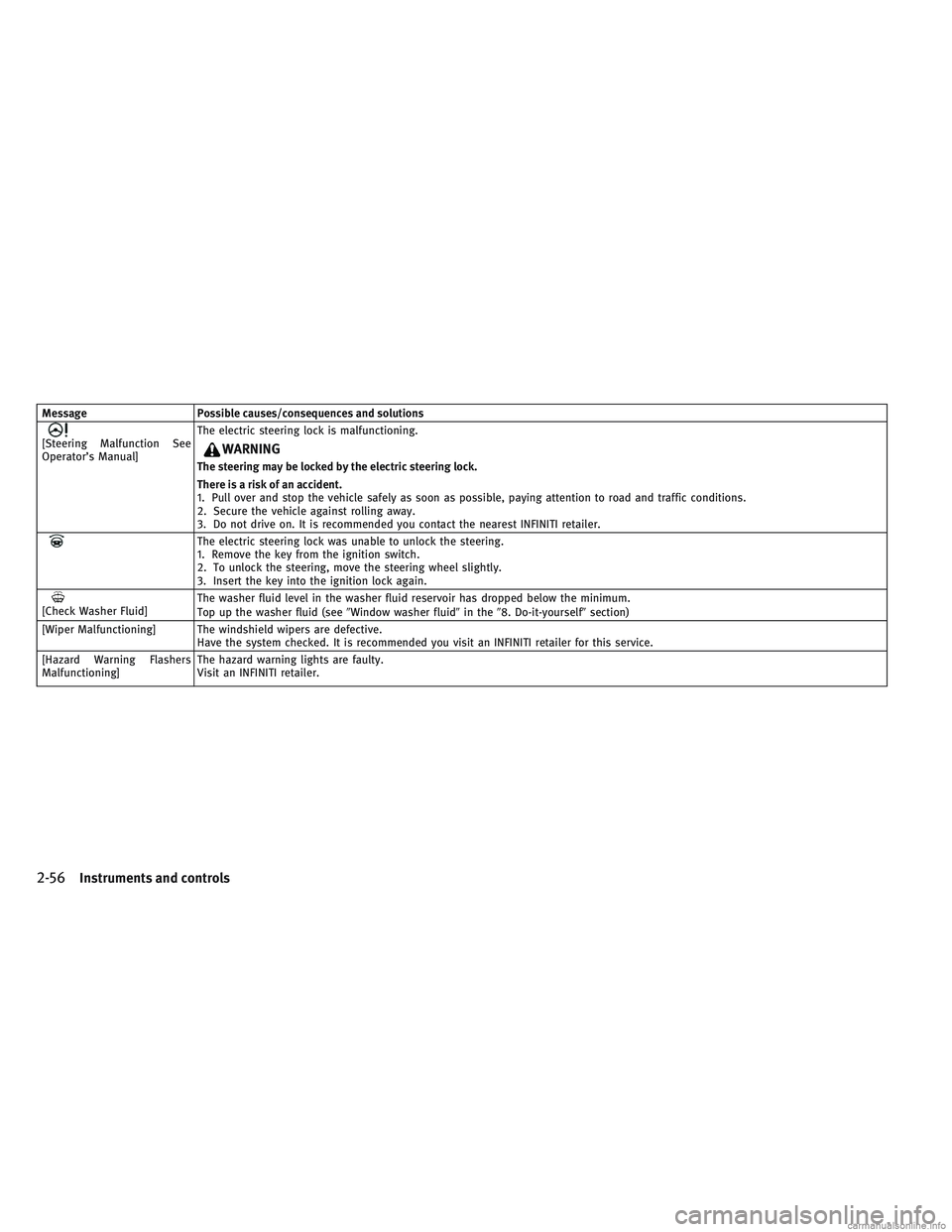

[Steering Malfunction See
Operator’s Manual]The electric steering lock is malfunctioning.WARNING
The steering may be locked by the electric steering lock.
There is a risk of an accident.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Do not drive on. It is recommended you contact the nearest INFINITI retailer.
The electric steering lock was unable to unlock the steering.
1. Remove the key from the ignition switch.
2. To unlock the steering, move the steering wheel slightly.
3. Insert the key into the ignition lock again.
[Check Washer Fluid]
The washer fluid level in the washer fluid reservoir has dropped below the minimum.
Top up the washer fluid (see
Window washer fluidin the8. Do-it-yourself section)
[Wiper Malfunctioning] The windshield wipers are defective. Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Hazard Warning Flashers
Malfunctioning] The hazard warning lights are faulty.
Visit an INFINITI retailer.
2-56Instruments and controls

Key
MessagePossible causes/consequences and solutions
[Key Does Not Belong to
Vehicle]You have put the wrong key in the ignition switch.
Use the correct key.
[Obtain a New Key]
The key needs to be replaced.
It is recommended you visit an INFINITI retailer for this service.
[Replace Key Battery]The key battery is discharged.
Replace the battery (see
Checking the batteryin the8. Do-it-yourself section)
Instruments and controls2-57
