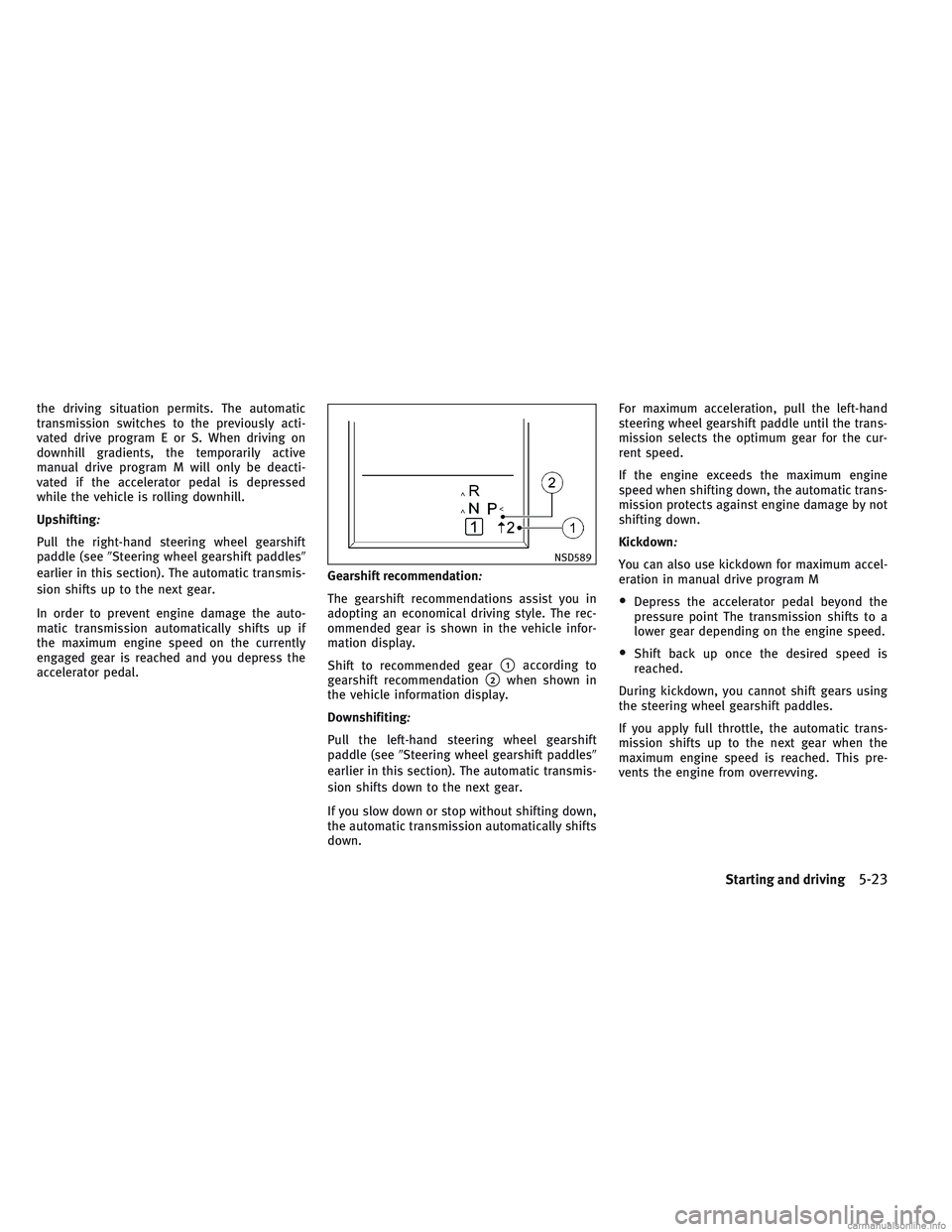

the driving situation permits. The automatic
transmission switches to the previously acti-
vated drive program E or S. When driving on
downhill gradients, the temporarily active
manual drive program M will only be deacti-
vated if the accelerator pedal is depressed
while the vehicle is rolling downhill.
Upshifting
:
Pull the right-hand steering wheel gearshift
paddle (seeSteering wheel gearshift paddles
earlier in this section). The automatic transmis-
sion shifts up to the next gear.
In order to prevent engine damage the auto-
matic transmission automatically shifts up if
the maximum engine speed on the currently
engaged gear is reached and you depress the
accelerator pedal. Gearshift recommendation
:
The gearshift recommendations assist you in
adopting an economical driving style. The rec-
ommended gear is shown in the vehicle infor-
mation display.
Shift to recommended gear
1according to
gearshift recommendation
2when shown in
the vehicle information display.
Downshifiting
:
Pull the left-hand steering wheel gearshift
paddle (see Steering wheel gearshift paddles
earlier in this section). The automatic transmis-
sion shifts down to the next gear.
If you slow down or stop without shifting down,
the automatic transmission automatically shifts
down. For maximum acceleration, pull the left-hand
steering wheel gearshift paddle until the trans-
mission selects the optimum gear for the cur-
rent speed.
If the engine exceeds the maximum engine
speed when shifting down, the automatic trans-
mission protects against engine damage by not
shifting down.
Kickdown
:
You can also use kickdown for maximum accel-
eration in manual drive program M
•Depress the accelerator pedal beyond the
pressure point The transmission shifts to a
lower gear depending on the engine speed.
•Shift back up once the desired speed is
reached.
During kickdown, you cannot shift gears using
the steering wheel gearshift paddles.
If you apply full throttle, the automatic trans-
mission shifts up to the next gear when the
maximum engine speed is reached. This pre-
vents the engine from overrevving.
NSD589
Starting and driving5-23

Deactivating the temporary manual drive pro-
gram:
Pull and hold the right steering wheel gearshift
paddle until the automatic transmission shifts
into the last active automatic drive program E or S.
When manual drive program M is deactivated,
the automatic transmission in automatic drive
program E or S may shift from the current gear
into a higher or lower gear. This is dependent
on the position of the accelerator pedal, speed
and load.
Problems with the transmission
:
Problem Possible causes/consequences and solutions
The transmission has
problems shifting gear The transmission is losing oil.
Have the transmission checked immediately. It is recommended you visit an INFINITI retailer for this service.
The acceleration abil-
ity is deteriorating The
transmission no lon-
ger shifts into all of
the gears Reverse gear
can no longer be en-
gaged The transmission is in emergency mode.
•Stop.•Shift the transmission to position P (Park).•Switch off the engine.•Wait at least ten seconds before restarting the engine.•Shift the transmission to position D (Drive).•Have the transmission checked immediately. It is recommended you visit an INFINITI retailer for this service.
5-24Starting and driving

audible remindersin the9. Maintenance and
Schedules section.
The electric parking brake can only be released
when the ignition switch is in the ON position.
APPLYING AUTOMATICALLY (VEHICLES
WITH AUTOMATIC TRANSMISSION)
The electric parking brake is automatically ap-
plied when:
•Intelligent cruise control (if equipped) brings
the vehicle to a standstill.
or
•Intelligent Parking Assist (if equipped) is
keeping the vehicle stationary.
The red
indicator lamp lights up in the
combination meter.
The electric parking brake is not automatically
applied if the engine is switched off by the Idle
Stop/Start function.
RELEASING AUTOMATICALLY
The electric parking brake can only be released
automatically in vehicles with automatic trans-
mission.
The electric parking brake of your vehicle is
released automatically when all of the following
conditions are fulfilled:
•The engine is running.
•The transmission is in position D (Drive) or R
(Reverse).
•The seat belt is fastened.
•You depress the accelerator pedal.
If the transmission is in position R, the lift gate
must be closed.
If your seat belt is not fastened, the following
conditions must be fulfilled to automatically
release the electric parking brake:
•The driver’s door is closed
•You have shifted out of transmission position
P (Park) or you have previously driven faster
than 2 MPH (3 km/h).
Ensure that you do not depress the accelerator
pedal unintentionally. Otherwise, the parking
brake will be released and the vehicle will start
to move.
EMERGENCY BRAKING
The vehicle can also be braked during an emer-
gency by using the electric parking brake.
While driving, push handle
1of the electric
parking brake. The vehicle is braked as long as
you keep handle
1of the electric parking
brake pressed. The longer the electric parking
brake handle
1is depressed, the greater the
braking force.
During braking:
•A warning tone sounds.
•The [Please Release Parking Brake] message
appears.
•The redindicator lamp in the combi-
nation meter flashes.
When the vehicle has been braked to a stand-
still, the electric parking brake is applied.
5-26Starting and driving

The Idle Stop/Start function switches the en-
gine off automatically if the vehicle is stopped
under certain conditions.
When pulling away again, the engine starts
automatically. The Idle Stop/Start function
thereby helps you to reduce the fuel consump-
tion and emissions of your vehicle.
WARNING
If the engine is switched off automatically and
you exit the vehicle, the engine is restarted
automatically. The vehicle may begin moving
There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against roll-
ing away.If the
Idle Stop/Start symbol is shown in
green in the vehicle information display, the
Idle Stop/Start function switches the engine off
automatically once the vehicle stops moving.
The Idle Stop/Start function is automatically
activated each time you start the engine with
the ignition key.
If the Idle Stop/Start function has been manu-
ally deactivated (see Deactivating/activating
the Idle Stop/Start function later in this sec-
tion) or a malfunction has caused the system to
be deactivated, the
Idle Stop/Start sym-
bol is not displayed.
AUTOMATIC ENGINE SWITCH-OFF
The Idle Stop/Start function is operational and
theIdle Stop/Start symbol is displayed
in green in the vehicle information display, if:
•The indicator lamp in the ECO button is lit
green.
•The outside temperature is within the range
that is suitable for the system.
•The engine is at normal operating tempera-
ture.
•The set temperature for the vehicle interior
has been reached.
•The battery is sufficiently charged.
•The system detects that the windshield is not
misted up when the air-conditioning system
is switched on.
•The hood is closed.
•The driver’s door is closed and the driver’s
seat belt is fastened.
If the conditions for automatic engine switch-off
are not all fulfilled, the
Idle Stop/Start
symbol is shown in yellow.
All of the vehicle’s systems remain active when
the engine is switched off automatically.
NSD620Idle Stop/Start symbol
IDLE STOP/START SYSTEM (IF EQUIPPED)
Starting and driving5-27

The engine can be switched off automatically a
maximum of four times (initial stop, then three
subsequent stops) in succession. The
Idle Stop/Start symbol is shown in yellow in the
vehicle information display after the engine has
been started automatically for the fourth time.
When the
Idle Stop/Start symbol is
shown in green in the vehicle information dis-
play, automatic engine switch-off is again pos-
sible.
NOTE
If the hood is opened while the engine is running
and the Idle Stop/Start function is operational,
the engine will switch off automatically.
If the vehicle is brought to a standstill in D or N,
the Idle Stop/Start function switches off the
engine automatically.
AUTOMATIC ENGINE START
The engine is started automatically if:
•You switch off the Idle Stop/Start function by
pressing the ECO button.
•You engage Reverse R or Drive D.
•You unfasten your seat belt or open the
driver’s door.
•The vehicle starts to roll.
•The brake system requires this.
•The temperature in the vehicle interior devi-
ates from the set range.
•The system detects moisture on the wind-
shield when the air-conditioning system is
switched on.
•The battery’s charge status is too low.
The engine is started automatically if you:
•Release the brake pedal in transmission
position D (Drive) or N (Neutral).
•Depress the accelerator pedal.
•Move the transmission out of position P
(Park).
Shifting the transmission to position P (Park)
does not start the engine.
If you shift the transmission from R (Reverse) to
D (Drive), the Idle Stop/Start function is avail-
able again once the
Idle Stop/Start
symbol reappears in green in the vehicle infor-
mation display.
DEACTIVATING/ACTIVATING THE IDLE
STOP/START FUNCTION
•To deactivate: press ECO button1. Indicator
lamp
2and theIdle Stop/Start
symbol in the vehicle information display
turn off.
•To activate: press ECO button1. Indicator
lamp
2lights up. If all conditions for auto-
matic engine switch-off (see Automatic en-
gine switch-off earlier in this section) are
fulfilled, the
Idle Stop/Start symbol is
shown in green in the vehicle information
display.
If not all conditions for automatic engine
switch-off are met, the
Idle Stop/Start
symbol is lit yellow in the vehicle information
NIC2633
5-28Starting and driving

display. If this is the case, the Idle Stop/Start
function is not active.
If indicator lamp
2on ECO button1is off, the
Idle Stop/Start function has been deactivated
manually or as the result of a malfunction. The
engine will then not be switched off automati-
cally when the vehicle stops.
WARNING
Failure to follow the warnings and instructions
for proper use of the LDW system could result
in serious personal injury or death. The LDW
system will not steer the vehicle or prevent
loss of control. It is the driver’s responsibility
to stay alert, drive safely, keep the vehicle in
the traveling lane, and be in control of the
vehicle at all times.
The LDW system warns the driver with a warn-
ing light and intermittent steering vibration that
the vehicle is beginning to leave the traveling
lane. The LDW system uses a camera
1installed
behind the windshield to monitor the lane
markers of your traveling lane.
NSD644
LANE DEPARTURE WARNING (LDW)
SYSTEM (IF EQUIPPED)
Starting and driving5-29

1Steering wheel mounted controls
2Vehicle information display
ADisplay area
BMenu bar
LDW SYSTEM TEMPORARILY
UNAVAILABLE
Under the following conditions, the LDW system
will be canceled automatically, and the mes-
sage [Lane Departure Warning Currently Un-available See Operator’s Manual] is displayed
in the vehicle information display
2. The LDW
system is temporarily unavailable.
•The windshield is dirty in the camera’s field
of vision.
•Visibility is impaired due to heavy rain, snow
or fog.
•There have been no lane markings for an
extended period.
•The lane markings are worn, dark, or covered
by dirt or snow, etc..
Action to take: When the above conditions no
longer exist, the message goes out and the LDW
system is operational again. If the message
continues to appear, stop the vehicle in a safe
location, press the P (Park) button , and clean
the windshield.
NSD626
Starting and driving5-33

SYSTEM MALFUNCTION
If the LDW system malfunctions, it will cancel
automatically, and the message [Lane Depar-
ture Warning Inoperative] will appear.
Action to take:Stop the vehicle in a safe loca-
tion, engage P (Park), turn the engine off and
restart the engine. If the message continues to
appear, have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The lane camera unit1for the LDW system is
located above the inside mirror.
To ensure the proper operation of the LDW
system and prevent a system malfunction, be
sure to observe the following:
•Always keep the windshield clean.
•Do not attach a sticker (including transparent
material) or install an accessory near the
camera unit.
•Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
•Do not strike or damage the areas around the
camera unit. Do not touch the camera lens or
remove parts from the camera unit. If the
camera unit is damaged due to an accident,
it is recommended you contact an INFINITI
retailer.
NSD644
5-34Starting and driving
