Seat belt reminder chime
A chime will sound for approximately 120 sec-
onds if the vehicle’s speed exceeds 16 MPH
(25 km/h) and the driver’s seat belt or front
passenger’s seat belt, if occupied is not se-
curely fastened. SeeSeat belt warning light in
the 1. Safety — seats, seat belts and supple-
mental restraint system section.
Idle Stop/Start System reminder
chime (if equipped)
The engine will shift to the normal stopped
state if any of the following operations is made
during Idle Stop/Start System activation, and
the Idle Stop/Start System chime will sound if:
– The vehicle engine hood is open.
When the above condition continues for over 3
minutes the Idle Stop/Start System chime will
sound in 5-minute intervals as a reminder to
prevent the possibility of a discharged battery.
Use the ignition switch to turn off the engine.
Close the hood or the driver’s door, or fasten
the seat belt then restart the engine using the
ignition switch.
For more information, see Idle Stop/Start
System (if equipped) in the5. Starting and
driving section. The vehicle information display1is located
between the tachometer and the speedometer.1Permanent display: depending on vehicle
specification: outside temperature or speed
2Time
3Text field
4Menu bar
5Drive program
6Shift lever position
Text field
3shows the selected menu or
submenu as well as display messages.
NOTE
Set the time using the INFINITI controller and the
[Settings] menu available in the central display
(see Clock settings in the4. Display screen,
heater and air conditioner, and audio system
section).
NIC2751NIC2752
VEHICLE INFORMATION DISPLAY
Instruments and controls2-15

INSTRUMENT BRIGHTNESS CONTROL
The light sensor in the combination meter au-
tomatically controls the brightness of the in-
strument panel
In daylight, the displays in the combination
meter are not illuminated
The lighting in the combination meter, displays
and controls in the vehicle interior can be
adjusted using the brightness control knob.
The brightness control knob
1is located be-
hind the steering wheel.
Turn the brightness control knob clockwise or
counterclockwise. If the light switch is set to
orthe brightness is dependent
upon the brightness of the ambient light.
FRONT FOG LIGHTS
In conditions where visibility is poor due to fog,
snow or rain, the fog lights improve visibility as
well as making it easier for other road users to
see you. They can be operated together with the
side lights or together with the side lights and
low beam headlights.
To switch on the fog lights:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor .
•Press thebutton. The greenindicator light in the combination meter
lights up To switch off the front fog lights:
•press thebutton The greenindica-
tor light in the combination meter turns off.
Only vehicles with front fog lights are equipped
with the “Fog lights” function.
REAR FOG LIGHT
The rear fog light improves the visibility of your
vehicle in heavy fog for the following traffic.
Please observe the country-specific laws on the
use of rear fog lights.
NOTE
The front fog lights must be switched on before
the rear fog light will operate.
To switch on the rear fog light:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor .
•Press thebutton. The yellowindicator light in the combination meter
lights up
To switch off the rear fog light:
•press thebutton The yellowindicator light in the combination meter
turns off.
NIC2615NIC2699
FOG LIGHT SWITCH (IF SO EQUIPPED)
Instruments and controls2-69

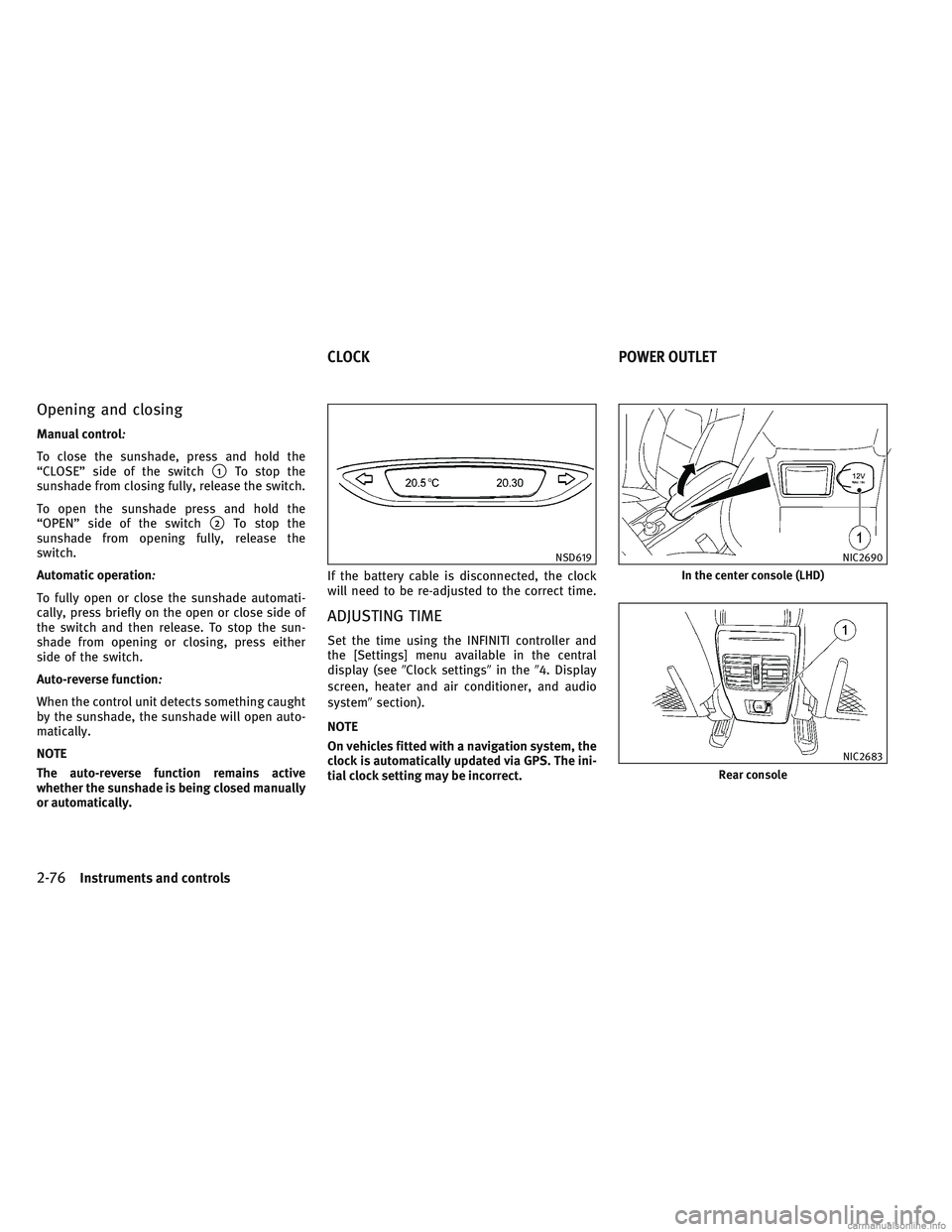

Opening and closing
Manual control:
To close the sunshade, press and hold the
“CLOSE” side of the switch
1To stop the
sunshade from closing fully, release the switch.
To open the sunshade press and hold the
“OPEN” side of the switch
2To stop the
sunshade from opening fully, release the
switch.
Automatic operation
:
To fully open or close the sunshade automati-
cally, press briefly on the open or close side of
the switch and then release. To stop the sun-
shade from opening or closing, press either
side of the switch.
Auto-reverse function
:
When the control unit detects something caught
by the sunshade, the sunshade will open auto-
matically.
NOTE
The auto-reverse function remains active
whether the sunshade is being closed manually
or automatically. If the battery cable is disconnected, the clock
will need to be re-adjusted to the correct time.
ADJUSTING TIME
Set the time using the INFINITI controller and
the [Settings] menu available in the central
display (see
Clock settings in the4. Display
screen, heater and air conditioner, and audio
system section).
NOTE
On vehicles fitted with a navigation system, the
clock is automatically updated via GPS. The ini-
tial clock setting may be incorrect.
In the center console (LHD)
Rear console
NSD619NIC2690
NIC2683
CLOCK POWER OUTLET
2-76Instruments and controls

Clock settings
Clock settings can be changed.
1. Push

AIR CONDITIONING SYSTEM
1Sets the temperature
2De-ices/defogs the windshield
3Set the air distribution
4Activates/deactivates air-recirculation
mode
5Sets the airflow
6Activates/deactivates cooling with air de-
humidification
7Switches the rear window defroster on/off
Operating tips
A number of tips and recommendations for
optimum use of the air-conditioning system are
listed below:
•Switch on the air-conditioning system by
turning control knob
5clockwise to the
desired position (except position 0)
•Set the temperature to 70oF (22oC)
•Recommendation for avoiding misted win-
dows at low exterior temperatures or in rain:
switch on the
cooling with dehumidi-
fication function. Set air distribution to
and if possible switch offand. Deactivate air-recirculation mode.
Set airflow control
5to a setting between 3
and 6.
•Recommendation for rapid cooling or heating
of the vehicle interior: briefly set airflow
control
5to a setting between 3 and 6.
•Recommendation for a constant vehicle inte-
rior temperature: set airflow control
5to a
setting between 1 and 3.
•Recommendation for air distribution in win-
ter: select theandsettings.
NAA1644
Display screen, heater and air conditioner, and audio system4-43

Recommendation for air distribution in sum-
mer: select theorandsettings.
•Only use theWindshield demisting function
briefly until the windshield is clear again
•Only use air-recirculation mode briefly, e. g if
there are unpleasant outside odors or when
in a tunnel. The windows could otherwise
mist up as no fresh air is drawn into the
vehicle in air-recirculation mode
•If you change the settings of the climate
control system, the climate status display
appears for approximately three seconds at
the bottom of the screen in the central
display (see separate operating instruc-
tions). You will see the current settings of the
various climate control functions.
Switching air-conditioning system
on/off
Make sure the ignition switch is in the ON
position.
To switch on: turn control
5clockwise to the
desired position (except position 0).
To switch off: turn control
5counter-clockwise
to position 0.
Activating/deactivating the cooling
with air dehumidification function
If you deactivate the Cooling with air dehumidi-
fication function, the air inside the vehicle will
not be cooled. The air inside the vehicle will
also not be dehumidified. The windows can mist
up more quickly. Therefore, only deactivate the
Cooling with air dehumidification function
briefly.
The Cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu-
midified according to the temperature selected.
Condensation may drip from the underside of
the vehicle when cooling mode is active. This is
normal and not a sign that there is a malfunc-
tion.
To activate
:
Press thebutton The indicator lamp in
thebutton lights up.
To deactivate
:
Press thebutton. The indicator lamp in
thebutton goes out. The cooling with air
dehumidification function has a delayed switch-
off feature. Problems with the
Cooling with air dehumidifi-
cation function
:
Problem: The indicator lamp in thebutton flashes three times or remains off. The
cooling with air dehumidification function can-
not be activated.
Cause and solution: The cooling with air dehu-
midification function has been deactivated due
to a malfunction. Have the system checked. It is
recommended you visit an INFINITI retailer for
this service.
Setting the temperature
You can set the temperature for the entire
vehicle. The set temperature is automatically
maintained at a constant level.
To increase or reduce the temperature: turn
control
1counterclockwise or clockwise. Only
change the temperature setting in small incre-
ments. Start at 70
oF (22oC).
Setting the air distribution
Directs the airflow through the demister ventilators.
Directs the airflow through the center
and side air ventilators.
Directs the airflow through the footwell
air ventilators.
4-44Display screen, heater and air conditioner, and audio system

NOTE
•You can also activate several of the air
distribution settings simultaneously. In order
to do this, press several of the air distribu-
tion buttons. The air is then routed through
different air ventilators.
•Regardless of the air distribution setting,
airflow is always directed through the side
air ventilators. The side air ventilators can
only be closed if the adjusters are turned
clockwise until they engage.
To set air distribution:
1. Make sure the engine is running.
2. Press one or more of the
,,orbuttons. The corresponding indicator
lamp comes on.
Setting the airflow
1. Make sure the ignition switch is in the ON position.
2. To increase or reduce airflow: turn control
5counterclockwise or clockwise.
Defogging the windshield
You can use this function to de-ice the wind-
shield or to defog the inside of the windshield
and the side windows. NOTE
You should only select the
Windshield demist-
ing function until the windshield is clear again.
Activating the Windshield demisting function
:
Make sure the ignition switch is in the ON
position.
To activate: press the
button The indica-
tor light in thebutton lights up.
The climate control system switches to the
following functions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air-recirculation mode off
NOTE
•The Windshield demisting function auto-
matically sets the blower output to the opti-
mum demisting effect. As a result, the airflow
may increase or decrease automatically after
the
button is pressed.
•You can adjust the blower output manually
while the Windshield demisting function is
in operation. Turn airflow control
5counter-
clockwise or clockwise. Deactivating the
Windshield demisting func-
tion
:
Press thebutton. The indicator lamp in
thebutton goes out. The previous set-
tings are reactivated. Air-recirculation mode
remains deactivated.
or
Turn temperature control
1counterclockwise
or clockwise.
Defogging the windows
Windows misted up on the inside:
1. Activate theCooling with air dehu-
midification function.
2. If the windows continue to mist up, activate the
Windshield demisting function.
NOTE
You should only select this setting until the
windshield is clear again.
Windows misted up on the outside
:
1. Activate the windshield wipers.
2. Set the air distribution to
or.
NOTE
You should only select this setting until the win-
dows are clear again.
Display screen, heater and air conditioner, and audio system4-45

In automatic mode, the set temperature is
maintained automatically at a constant level
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
The automatic mode functions optimally when
theCooling with air dehumidification function
is activated. If desired, cooling with air dehu-
midification can be deactivated.
If you deactivate the Cooling with air-
dehumidification function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The win-
dows can mist up more quickly. Therefore, only
deactivate the Cooling with air-
dehumidification function briefly.
To set climate control to automatic mode
:
Make sure the ignition switch is in the ON
position.
Set the desired temperature.
To activate: press the
button The indica-
tor lamp in thebutton lights up. Auto-
matic air distribution and airflow are activated.
To switch to manual mode: press the
orbutton
or Press the
orbutton. The indicator
lamp in thebutton goes out. Automatic
air distribution and airflow are deactivated.
Setting the temperature
Different temperatures can be set for the driv-
er’s and front-passenger sides. The set tem-
perature is automatically maintained at a con-
stant level.
Make sure the ignition switch is in the ON
position.
To increase or reduce temperature: turn control
1or9counterclockwise or clockwise. Only
change the temperature setting in small incre-
ments. Start at 70
oF (22oC).
Setting the air distribution
Directs the airflow through the demister ventilators.
Directs the airflow through the center
and side air ventilators.
Directs the airflow through the footwell
air ventilators.
Directs the airflow through the center
and side air ventilators as well as the
footwell air ventilators.
Directs the airflow through the center
and side air ventilators as well as the
demister ventilators.
Directs the airflow through the footwell
and demister ventilators.
Directs the airflow through the demister ventilators, the center and side air ven-
tilators as well as the footwell air venti-
lators.
NOTE
Regardless of the air distribution setting, airflow
is always directed through the side air ventila-
tors. The side air ventilators can only be closed if
the adjusters are turned clockwise until they
engage.
To set the air distribution:
1. Make sure the engine is running.
2. Press the
orbutton repeatedly
until the desired symbol appears in the
display.
Setting the airflow
1. Make sure the ignition switch is in the ON position.
2. To increase or reduce airflow: press the
orbutton.
Display screen, heater and air conditioner, and audio system4-49
