2017 Hyundai Ioniq Hybrid Multimedia Manual

21

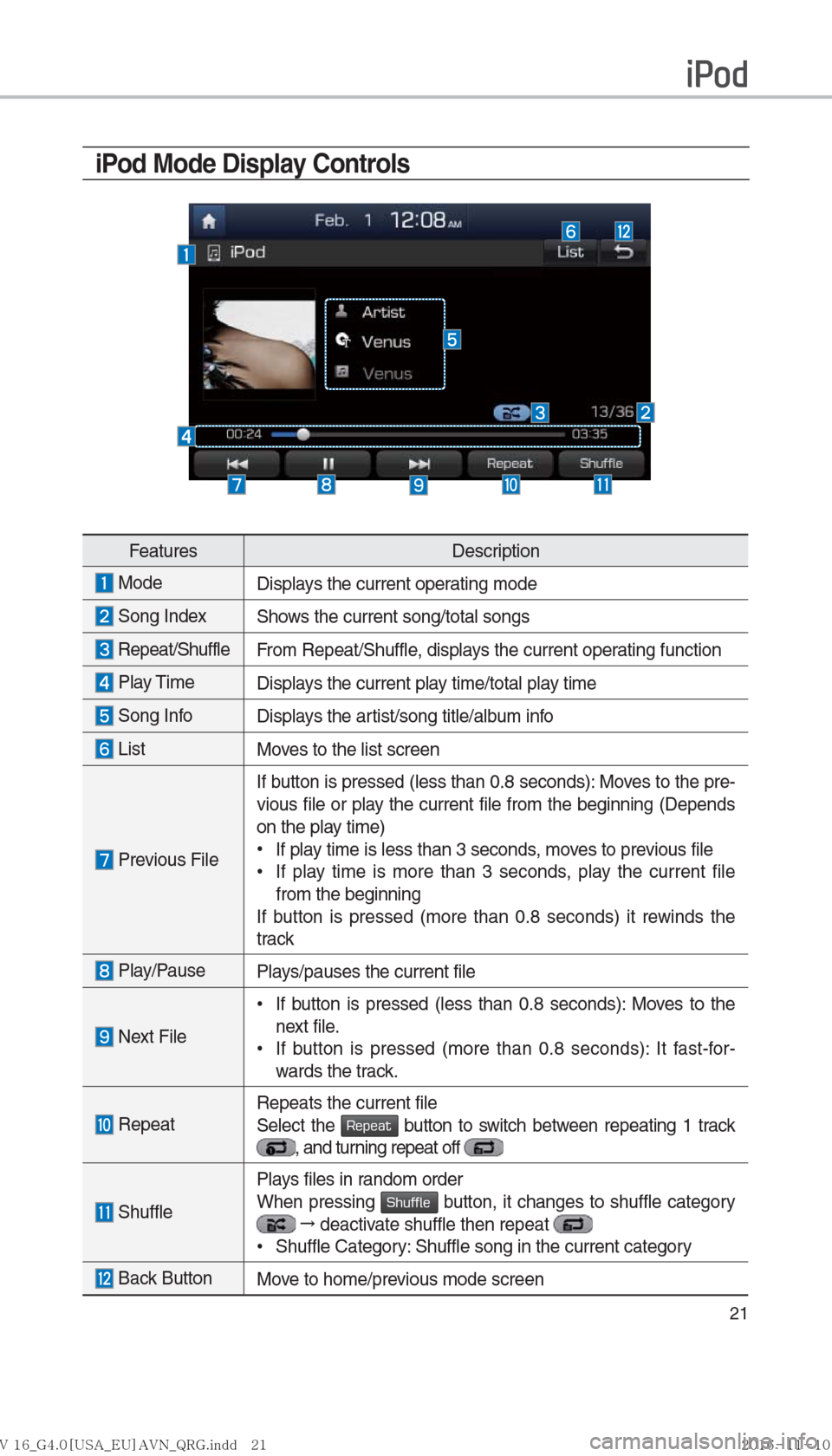

iPod Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the current operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous FileIf button is pressed (less than 0.8 seconds): Moves to the pre-
vious file or play the current file from the beginning (Depends
on the play time)

•
If play time is less than 3 seconds, moves to previous file

•
If play time is more than 3 seconds, play the current file
from the beginning
If button is pressed (more than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
•
If button is pressed (less than 0.8 seconds): Moves to the
next file.

•
If button is pressed (more than 0.8 seconds): It fast-for-
wards the track.
Repeat Repeats the current file
Select the Repeat button to switch between repeating 1 track
, and turning repeat off
ShufflePlays files in random order
When pressing Shuffle button, it changes to shuffle category
→
deactivate shuffle then repeat
•
Shuffle Category: Shuffle song in the current category
Back Button
Move to home/previous mode screen
iPod
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


7
@(<64"@&6>"7/@23(JOEE





ß
1


22
FeaturesDescription
TUNETurn the

TUNE
knob to search a desired track. If the
desired track is displayed, press the TUNE
knob to play the
track.
If the TUNE
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
NOTICE
For USB media or iPod music, the USB/iPod cable must be plugged in to the USB port
in the front m
ultibox. The USB port in the center storage console is for charging only.
iPod
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


7
@(<64"@&6>"7/@23(JOEE





ß
1


23
AUX
Connecting an External Device
If an external device connector is connected with the AUX terminal, then AUX
mode will automatically operate. Once the connector is disconnected, the pre-
vious mode will be restored.
•
AUX mode can be used only when an external audio player has been connected.

•
The AUX volume can also be controlled separately through the connected device.
Information
SEEK , TRACK key, TUNE is not supported.
NOTICE
If only a cable is connected to the AUX without an external device, the mode will be
changed to A
UX, but noise may occur. When an external device is not being used,
remove the connector jack.
When the external device power is connected to the power jack, playing the external
de

vice may output noise. In such cases, disconnect the power connection before use.
※ The actual feature in the vehicle may differ from the illustration.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


24
Bluetooth® Audio
Bluetooth Audio Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode.

Phone Name
Displays name of connected phone.
Artist Info Name of current artist.
TitleName of current song.
Previous File
•
If play time is less than 3 seconds, moves to the previous file.

•
If play time is more than 3 seconds, plays the current file
from the beginning.
This function may differ depending on the model of mobile-
phone.
Play/Pause Plays/Pauses Bluetooth Audio.
Next FileMoves to the next file.
RepeatRepeats the current file.

This function may differ depending on the model of mobile
phone.
Shuffle Plays files in random order.

This function may differ depending on the model of mobile
phone.
Connections Moves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s).
SEEK/TRACK Pla ys the previous/next file.
TUNE
TUNE is not supported.
Information
Artist info and Title may not be supported by mobile phone.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


25
My Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the current operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track

•
When a track in the file tab on the list screen is selected:
Displays file, artist, title, album info

•

When a track in the other tab on the list screen is selected:
Displays artist, title, album info
List Moves to the list screen
Previous
File If button is pressed (less than 0.8 seconds): Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)

•
If play time is less than 3 seconds, moves to previous file

•
If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File
•

If button is pressed (less than 0.8 seconds): Moves to the next
file.

•

If button is pressed (more than 0.8 seconds): It fast-forwards
the track.
My Music
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1



26
FeaturesDescription
RepeatRepeats the current file

•
If select the song in the file tab on the list screen: Select the
Repeat
button to switch between repeating one song and turning
repeat off.

•
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen: Select the
Repeat button to switch
between repeating one song and turning repeat off
Shuffle Plays files in random order

•
If select the song in the file tab on the list screen: Select the
Shuffle
button to switch between shuffle
and turning shuffle off

•
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen: Select the
Shuffle button to switch
between shuffle
and turning shuffle off
Scan Scans the beginning parts of files (approx. 10seconds per file)

•
If select the song in the file tab on the list screen: Select the Scan button to switch between scan and turning scan off

•
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen: Select the
Scan button to switch
between scan
and turning scan off
Menu
•
Add to Playlist: Adds the current song to the Playlist
Playlist is placed on the left tab in the list

•
Delete Current File: Deletes the current track from My Music.
TUNE Turn the
TUNE knob to search a desired track. If the desired track
is displayed, press the TUNE knob to play the track.
If the TUNE knob is not pressed within 5 seconds of searching
tracks, the track info for the current track is restored.
My Music
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1



27
Bluetooth
Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the PHONE key or
key in the steering wheel control. ▶

Pair your car after your mobile phone
detects the Bluetooth device. ▶

Enter the passkey or accept the
authorization popup. ▶
Connect
Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the SETUP key. ▶ Select
Bluetooth. ▶ Select Bluetooth Connection.
▶ Select Add New. ▶
Pair your car
after your mobile phone detects the
Bluetooth device. ▶
Enter the pass-
key or accept the authorization
popup. ▶
Connect Bluetooth.
The default passkey is 0000.
The Vehicle Name above is an
example. Check the actual informa-
tion on the product.
Connecting Bluetooth
Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Press the PHONE key or
key in the steering wheel control. ▶

Select the name of the device to
connect. ▶
Connect Bluetooth.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


28
Connecting Devices Through the
Phone Settings
Press the SETUP key. ▶
Select
Bluetooth. ▶
Select Bluetooth Connection.
▶ Select the name of the device to con-
nect. ▶
Connect Bluetooth.
Dial
Dials a call after the Bluetooth
devices are connected.
Press the
PHONE key, and then
Dial.
Name Description
Keypad Use the keypad to enter
the phone number that
you want to call. Press
and hold the last num-
ber of a speed dial to
dial a number that you
added to the Speed
Dial list in the phone
Delete
Deletes the numbers
that you entered.
SettingsMoves to a screen of
Phone Settings.
CallMakes a call after you
dial a number and
select CALL. If the num-
ber is listed in Dialed
Calls, you can select
the number and press
CALL to automatically
dial that number again.
Information

Some types of mobile phones may not
suppor
t the Speed Dial function.
Bluetooth
)@"&
