2017 Hyundai Ioniq Electric sport mode

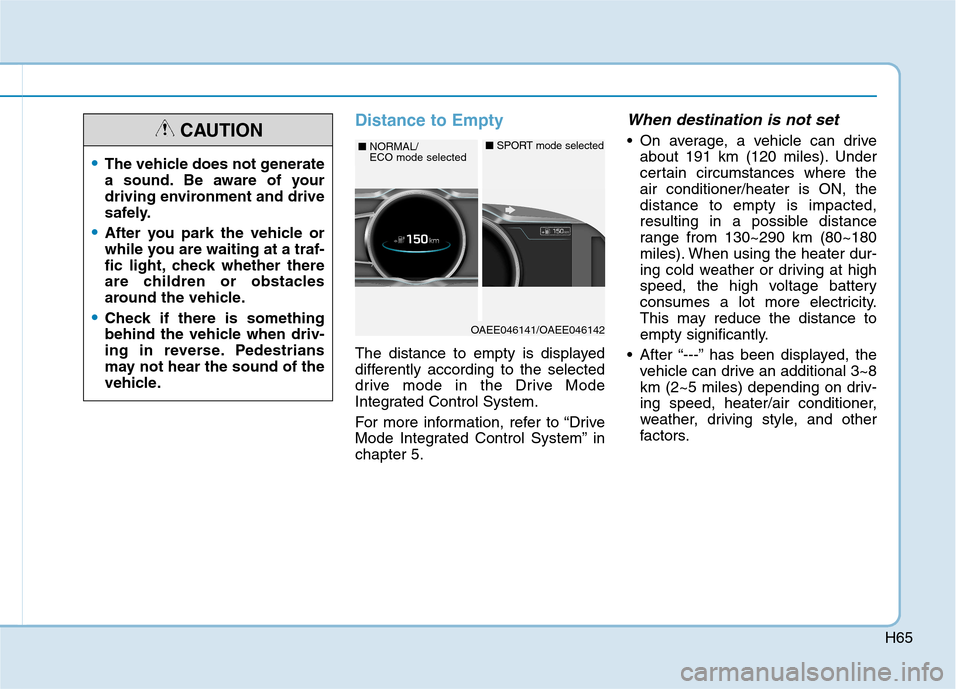

H65
Distance to Empty
The distance to empty is displayed
differently according to the selected
drive mode in the Drive Mode
Integrated Control System.
For more information, refer to “Drive
Mode Integrated Control System” inchapter 5.
When destination is not set
On average, a vehicle can driveabout 191 km (120 miles). Under
certain circumstances where theair conditioner/heater is ON, thedistance to empty is impacted,
resulting in a possible distance
range from 130~290 km (80~180
miles). When using the heater dur-
ing cold weather or driving at high
speed, the high voltage battery
consumes a lot more electricity.
This may reduce the distance to
empty significantly.
After “---” has been displayed, the vehicle can drive an additional 3~8
km (2~5 miles) depending on driv-
ing speed, heater/air conditioner,
weather, driving style, and other
factors.
OAEE046141/OAEE046142
■NORMAL/ ECO mode selected■ SPORT mode selected
The vehicle does not generate
a sound. Be aware of your
driving environment and drive
safely.
After you park the vehicle or
while you are waiting at a traf-
fic light, check whether there
are children or obstacles
around the vehicle.
Check if there is something
behind the vehicle when driv-
ing in reverse. Pedestrians
may not hear the sound of the
vehicle.
CAUTION

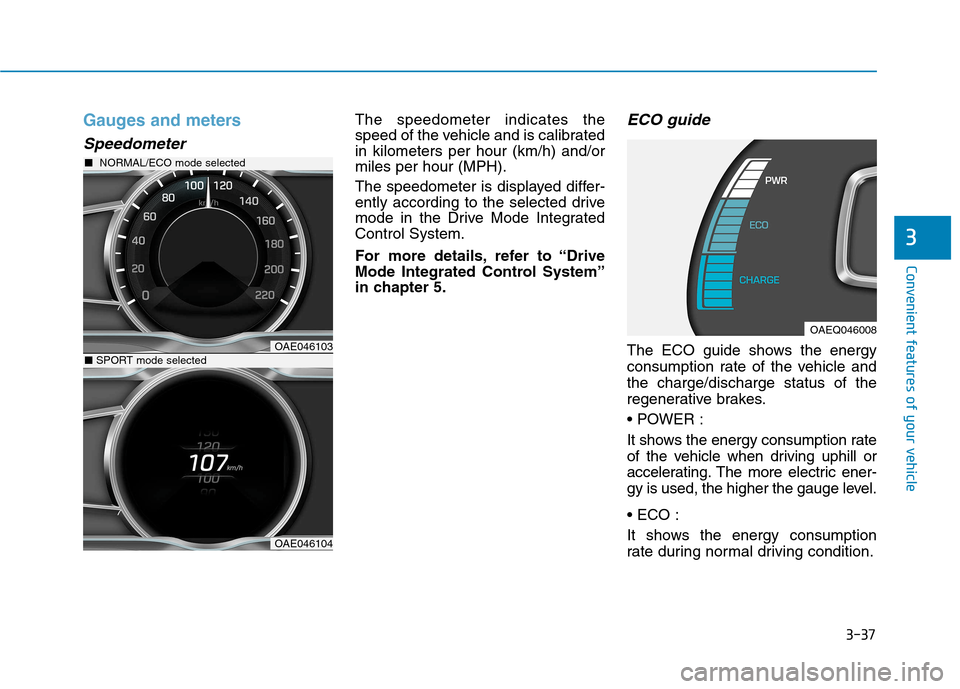

3-37
Convenient features of your vehicle
3
Gauges and meters
Speedometer
The speedometer indicates the
speed of the vehicle and is calibratedin kilometers per hour (km/h) and/ormiles per hour (MPH).
The speedometer is displayed differ-
ently according to the selected drive
mode in the Drive Mode IntegratedControl System.
For more details, refer to “Drive
Mode Integrated Control System”
in chapter 5.ECO guide
The ECO guide shows the energy
consumption rate of the vehicle andthe charge/discharge status of the
regenerative brakes.

It shows the energy consumption rate
of the vehicle when driving uphill or
accelerating. The more electric ener-
gy is used, the higher the gauge level.
It shows the energy consumption
rate during normal driving condition.OAE046103
■NORMAL/ECO mode selected
OAE046104
■SPORT mode selected
OAEQ046008

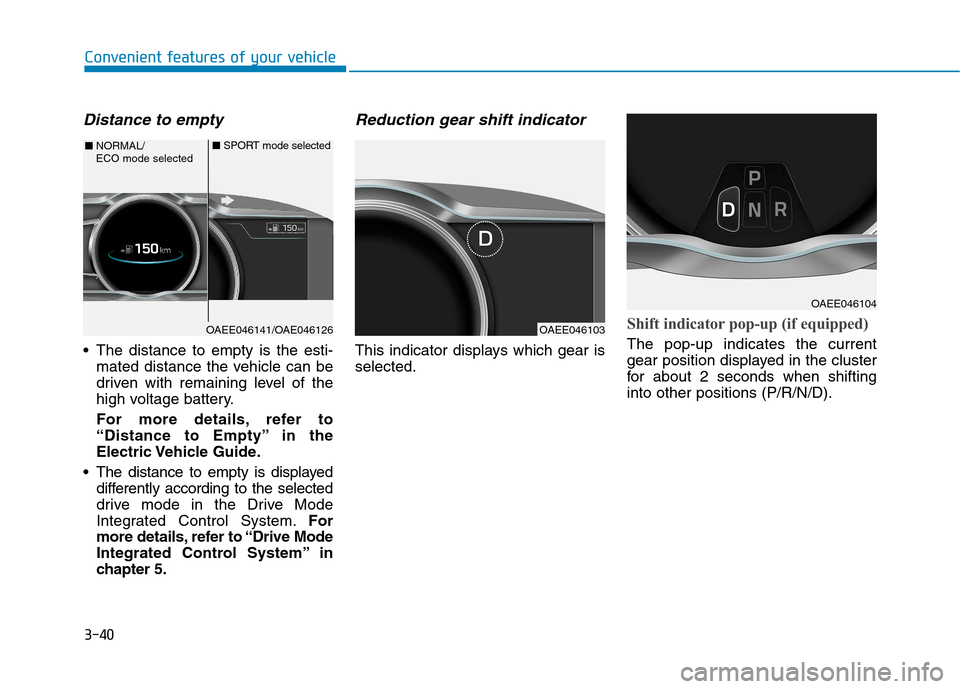

3-40
Convenient features of your vehicle
Distance to empty
The distance to empty is the esti-mated distance the vehicle can be
driven with remaining level of the
high voltage battery.
For more details, refer to
“Distance to Empty” in the
Electric Vehicle Guide.
The distance to empty is displayed differently according to the selected
drive mode in the Drive Mode
Integrated Control System. For
more details, refer to “Drive Mode
Integrated Control System” in
chapter 5.
Reduction gear shift indicator
This indicator displays which gear isselected.
Shift indicator pop-up (if equipped)
The pop-up indicates the current
gear position displayed in the cluster
for about 2 seconds when shiftinginto other positions (P/R/N/D).
OAEE046141/OAE046126
■ NORMAL/ ECO mode selected ■
SPORT mode selected
OAEE046103
OAEE046104

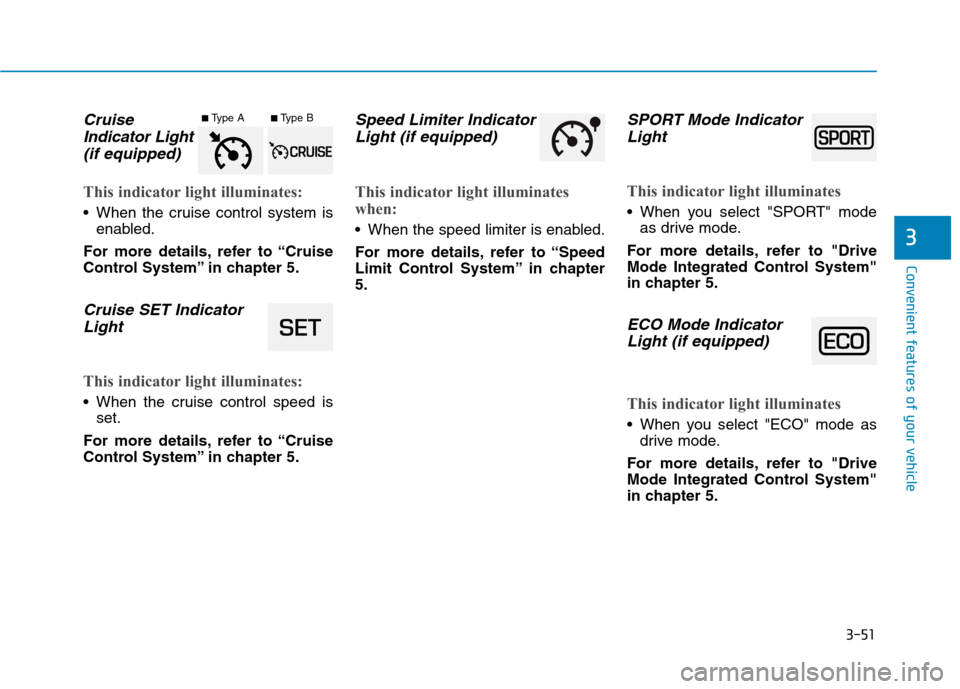

3-51
Convenient features of your vehicle
3
CruiseIndicator Light
(if equipped)
This indicator light illuminates:
When the cruise control system is enabled.
For more details, refer to “Cruise
Control System” in chapter 5.
Cruise SET Indicator Light
This indicator light illuminates:
When the cruise control speed is set.
For more details, refer to “Cruise
Control System” in chapter 5.
Speed Limiter Indicator Light (if equipped)
This indicator light illuminates
when:
When the speed limiter is enabled.
For more details, refer to “Speed
Limit Control System” in chapter5.
SPORT Mode IndicatorLight
This indicator light illuminates
When you select "SPORT" mode as drive mode.
For more details, refer to "Drive
Mode Integrated Control System"
in chapter 5.
ECO Mode Indicator Light (if equipped)
This indicator light illuminates
When you select "ECO" mode as drive mode.
For more details, refer to "Drive
Mode Integrated Control System"
in chapter 5.
■ Type A ■
Type B

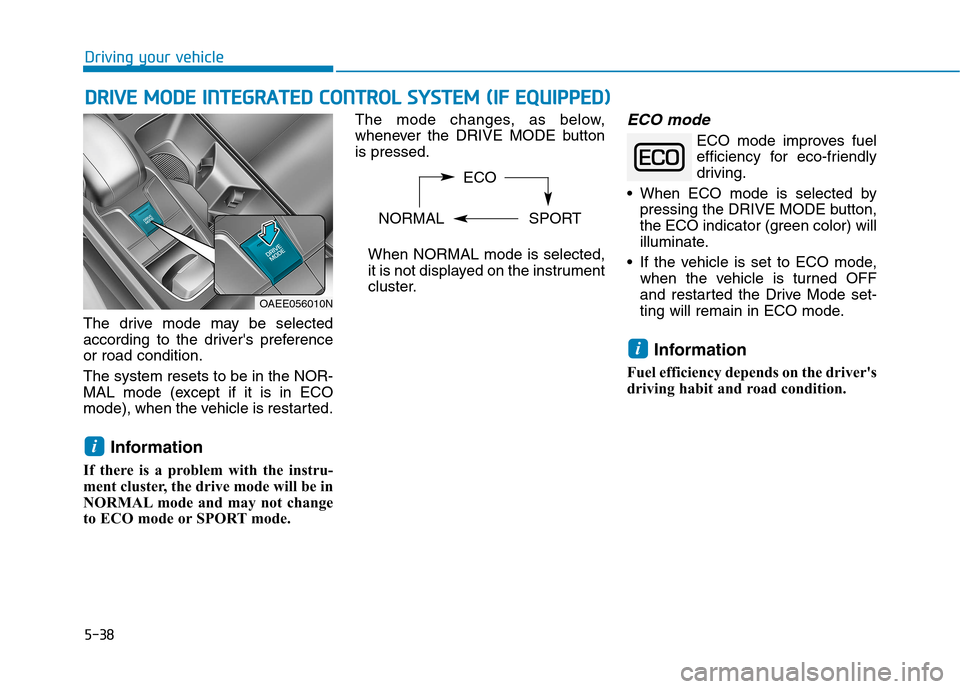

5-38
Driving your vehicle
The drive mode may be selected
according to the driver's preferenceor road condition. The system resets to be in the NOR-
MAL mode (except if it is in ECO
mode), when the vehicle is restarted.Information
If there is a problem with the instru-
ment cluster, the drive mode will be in
NORMAL mode and may not change
to ECO mode or SPORT mode. The mode changes, as below,
whenever the DRIVE MODE buttonis pressed.
When NORMAL mode is selected,
it is not displayed on the instrument
cluster.
ECO mode
ECO mode improves fuelefficiency for eco-friendly
driving.
• When ECO mode is selected by pressing the DRIVE MODE button,
the ECO indicator (green color) will
illuminate.
If the vehicle is set to ECO mode, when the vehicle is turned OFF
and restarted the Drive Mode set-
ting will remain in ECO mode.
Information
Fuel efficiency depends on the driver's
driving habit and road condition.
i
i
DD RRIIVV EE MM OODDEE IINN TTEEGG RRAA TTEEDD CC OO NNTTRR OO LL SS YY SSTT EEMM (( IIFF EE QQ UUIIPP PPEEDD ))
OAEE056010N ECO
NORMAL SPORT

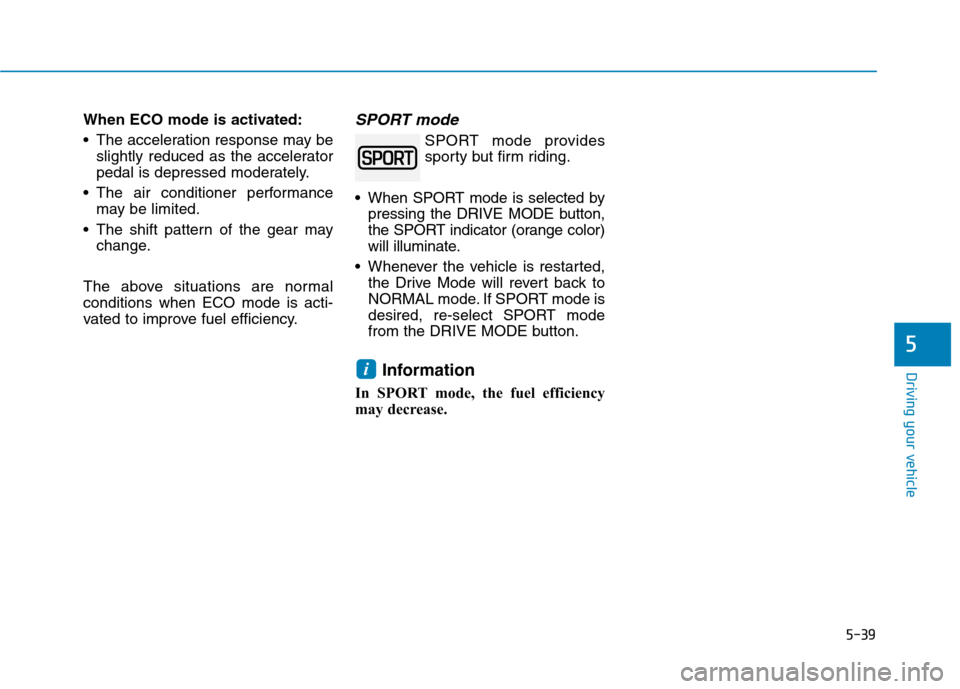

5-39
Driving your vehicle
5
When ECO mode is activated:
The acceleration response may beslightly reduced as the accelerator
pedal is depressed moderately.
The air conditioner performance may be limited.
The shift pattern of the gear may change.
The above situations are normalconditions when ECO mode is acti-
vated to improve fuel efficiency.SPORT mode
SPORT mode provides
sporty but firm riding.
When SPORT mode is selected by pressing the DRIVE MODE button,
the SPORT indicator (orange color)
will illuminate.
Whenever the vehicle is restarted, the Drive Mode will revert back to
NORMAL mode. If SPORT mode is
desired, re-select SPORT mode
from the DRIVE MODE button.
Information
In SPORT mode, the fuel efficiency
may decrease.
i

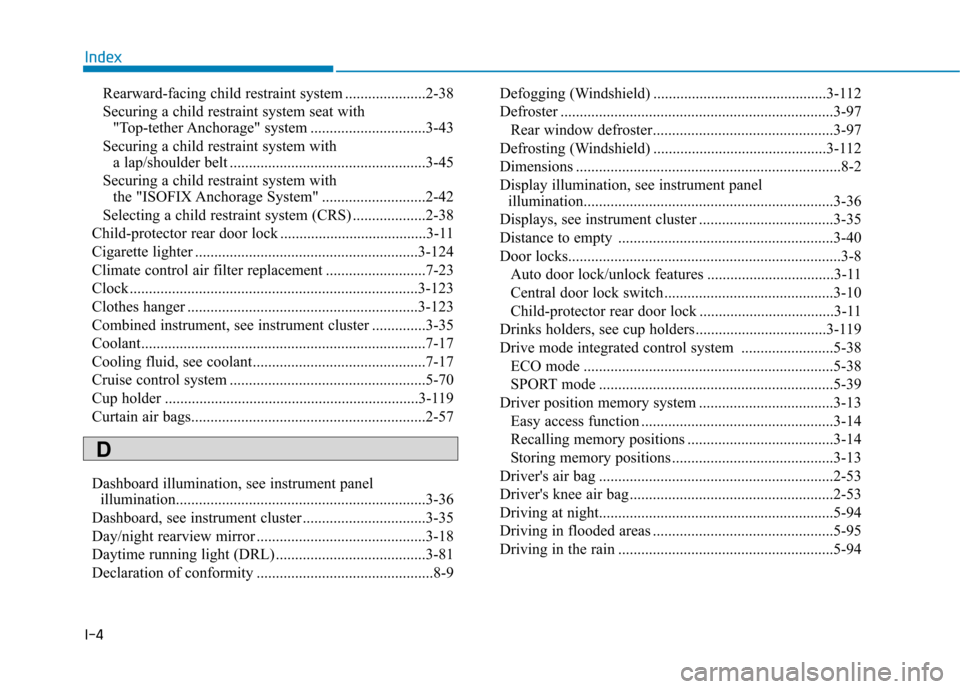

I-4Rearward-facing child restraint system .....................2-38
Securing a child restraint system seat with
"Top-tether Anchorage" system ..............................3-43
Securing a child restraint system with a lap/shoulder belt ...................................................3-45
Securing a child restraint system with the "ISOFIX Anchorage System" ...........................2-42
Selecting a child restraint system (CRS) ...................2-38
Child-protector rear door lock ......................................3-11
Cigarette lighter ..........................................................3-124
Climate control air filter replacement ..........................7-23
Clock ...........................................................................3-123
Clothes hanger ............................................................3-123
Combined instrument, see instrument cluster ..............3-35
Coolant..........................................................................7-17
Cooling fluid, see coolant.............................................7-17
Cruise control system ...................................................5-70
Cup holder ..................................................................3-119
Curtain air bags.............................................................2-57
Dashboard illumination, see instrument panel illumination.................................................................3-36
Dashboard, see instrument cluster ................................3-35
Day/night rearview mirror ............................................3-18
Daytime running light (DRL) .......................................3-81
Declaration of conformity ..............................................8-9 Defogging (Windshield) .............................................3-112
Defroster .......................................................................3-97
Rear window defroster...............................................3-97
Defrosting (Windshield) .............................................3-112
Dimensions .....................................................................8-2
Display illumination, see instrument panel illumination.................................................................3-36
Displays, see instrument cluster ...................................3-35
Distance to empty ........................................................3-40
Door locks.......................................................................3-8 Auto door lock/unlock features .................................3-11
Central door lock switch ............................................3-10
Child-protector rear door lock ...................................3-11
Drinks holders, see cup holders ..................................3-119
Drive mode integrated control system ........................5-38 ECO mode .................................................................5-38
SPORT mode .............................................................5-39
Driver position memory system ...................................3-13 Easy access function ..................................................3-14
Recalling memory positions ......................................3-14
Storing memory positions ..........................................3-13
Driver's air bag .............................................................2-53
Driver's knee air bag .....................................................2-53
Driving at night.............................................................5-94
Driving in flooded areas ...............................................5-95
Driving in the rain ........................................................5-94
Index
D

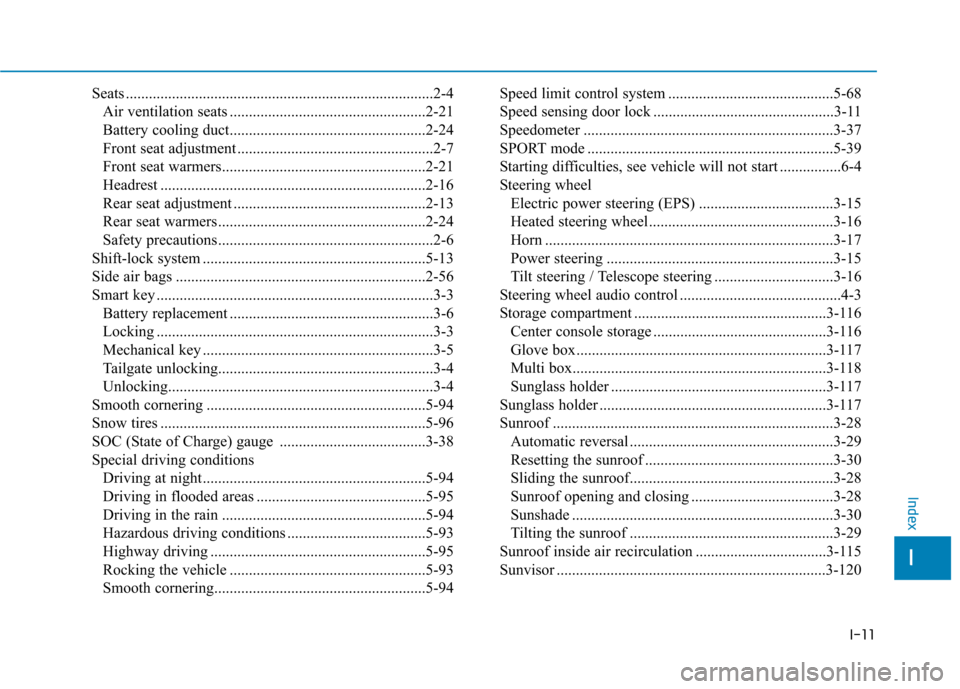

I-11
Seats ................................................................................2-4
Air ventilation seats ...................................................2-21
Battery cooling duct...................................................2-24
Front seat adjustment ...................................................2-7
Front seat warmers.....................................................2-21
Headrest .....................................................................2-16
Rear seat adjustment ..................................................2-13
Rear seat warmers ......................................................2-24
Safety precautions........................................................2-6
Shift-lock system ..........................................................5-13
Side air bags .................................................................2-56
Smart key ........................................................................3-3 Battery replacement .....................................................3-6
Locking ........................................................................3-3
Mechanical key ............................................................3-5
Tailgate unlocking........................................................3-4
Unlocking.....................................................................3-4
Smooth cornering .........................................................5-94
Snow tires .....................................................................5-96
SOC (State of Charge) gauge ......................................3-38
Special driving conditions Driving at night..........................................................5-94
Driving in flooded areas ............................................5-95
Driving in the rain .....................................................5-94
Hazardous driving conditions ....................................5-93
Highway driving ........................................................5-95
Rocking the vehicle ...................................................5-93
Smooth cornering.......................................................5-94 Speed limit control system ...........................................5-68
Speed sensing door lock ...............................................3-11
Speedometer .................................................................3-37
SPORT mode ................................................................5-39
Starting difficulties, see vehicle will not start ................6-4
Steering wheel
Electric power steering (EPS) ...................................3-15
Heated steering wheel ................................................3-16
Horn ...........................................................................3-17
Power steering ...........................................................3-15
Tilt steering / Telescope steering ...............................3-16
Steering wheel audio control ..........................................4-3
Storage compartment ..................................................3-116 Center console storage .............................................3-116
Glove box .................................................................3-117
Multi box..................................................................3-118
Sunglass holder ........................................................3-117
Sunglass holder ...........................................................3-117
Sunroof .........................................................................3-28 Automatic reversal .....................................................3-29
Resetting the sunroof .................................................3-30
Sliding the sunroof.....................................................3-28
Sunroof opening and closing .....................................3-28
Sunshade ....................................................................3-30
Tilting the sunroof .....................................................3-29
Sunroof inside air recirculation ..................................3-115
Sunvisor ......................................................................3-120
I
Index
