2017 Hyundai Ioniq Electric Owner's Manual

H10
EEVV MM OODDEE (( CC OO NNTT..))

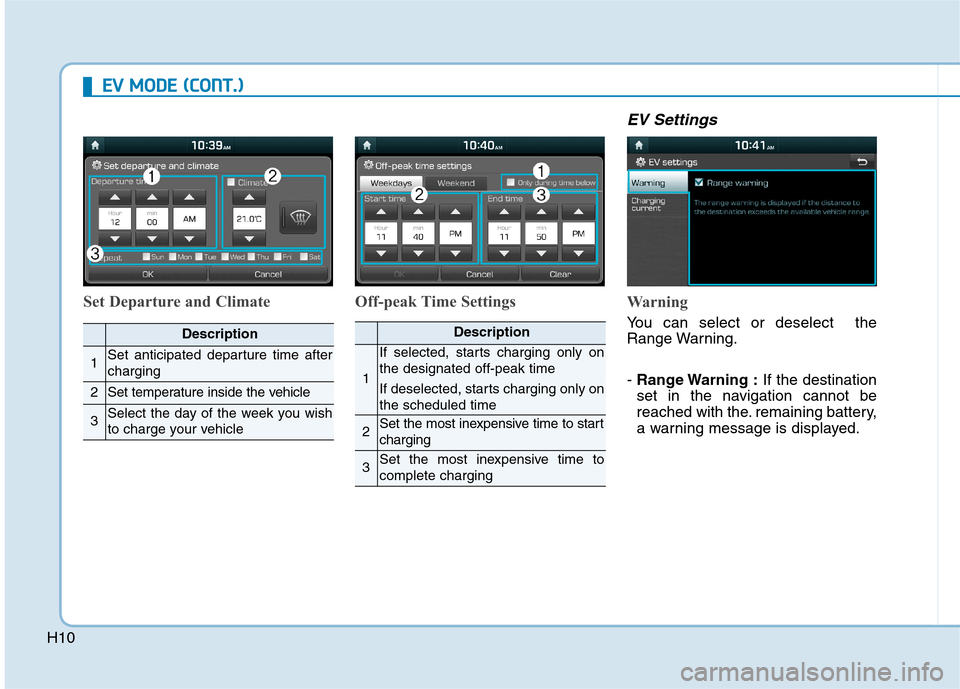

Set Departure and Climate Off-peak Time Settings
EV Settings
Warning
You can select or deselect the
Range Warning. - Range Warning : If the destination
set in the navigation cannot be
reached with the. remaining battery,
a warning message is displayed.Description
1Set anticipated departure time after charging
2Set temperature inside the vehicle
3Select the day of the week you wish
to charge your vehicle
Description
1
If selected, starts charging only on the designated off-peak time
If deselected, starts charging only on the scheduled time
2Set the most inexpensive time to start charging
3Set the most inexpensive time to complete charging

H11

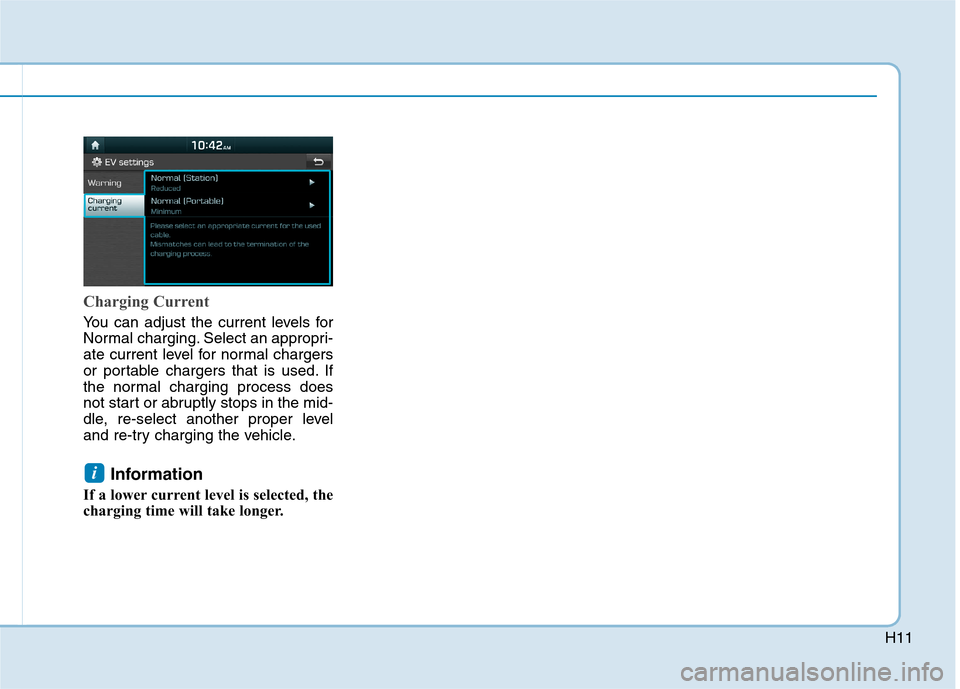

Charging Current
You can adjust the current levels for
Normal charging. Select an appropri-
ate current level for normal chargers
or portable chargers that is used. If
the normal charging process does
not start or abruptly stops in the mid-
dle, re-select another proper level
and re-try charging the vehicle.Information
If a lower current level is selected, the
charging time will take longer.
i

H12
Charging Information
Normal Charge :
The electric vehicle is charged by
plugging into a normal charger
installed in your home or a public
charging station. (For further details,
refer to the 'Normal Charge'.)
Fast Charge (if equipped):
You can charge at high speeds at
public charging stations. Refer to
the respective company's manual
that is provided for each fast charg-
er type.
Battery performance and durability
can deteriorate if the fast charger is
used constantly.
Use of fast charge should be mini-
mized in order to help prolong high
voltage battery life.
Trickle Charge :
The Electric vehicle can be charged
by using household electricity. The
electrical outlet in your home mustcomply with regulations and can
safely accommodate the Voltage /
Current (Amps) / Power (Watts) rat-
ings specified on the portable
charge.
Charging Time Information
Normal Charge :
Takes about 4 hours 25 minutes at
room temperature. (Can becharged to 100%.)
Fast Charge (if equipped):
- 50 kw charger : Takes about 30
minutes at room temperature when charged to 80%.
- 100 kw charger : Takes about 23 minutes at room temperaturewhen charged to 80%.
Both 50/100 kw charger can becharged to 94%.
Trickle Charge :
Takes up to 12 hours at room tem-
perature. (Can be charged to100%.) Information
Depending on the condition and dura-
bility of the high voltage battery,
charger specifications, and ambient
temperature, the time required for
charging the high voltage battery may
vary.
i
CC HH AARRGG EE TT YY PPEESS FF OO RR EE LLEE CCTT RR IICC VV EEHH IICC LLEE

H13

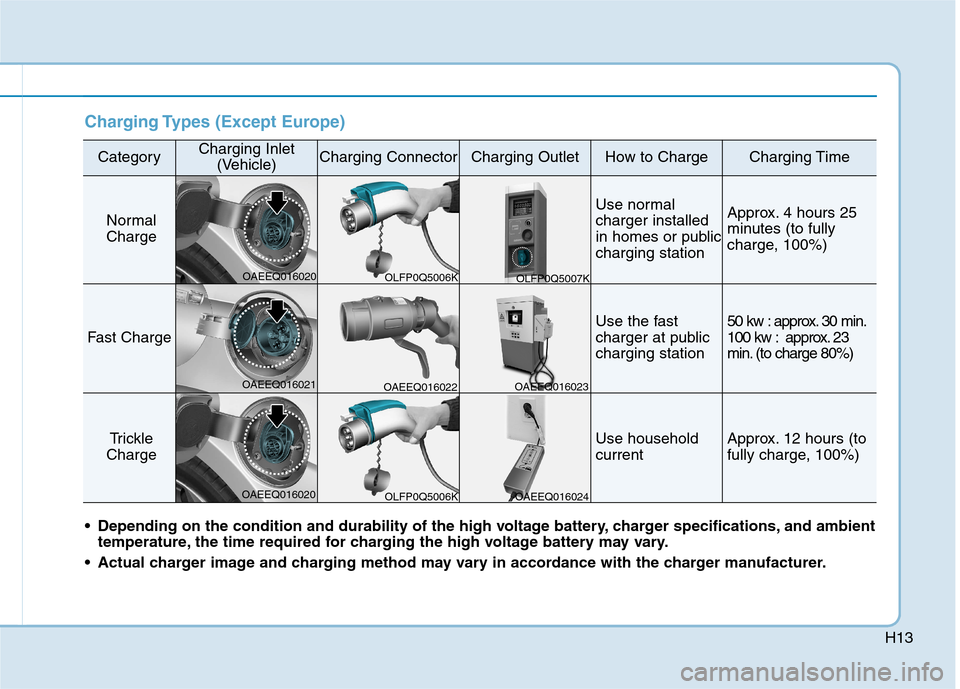

Charging Types (Except Europe)
CategoryCharging Inlet(Vehicle)Charging ConnectorCharging OutletHow to ChargeCharging Time
Normal
Charge
Use normal charger installed
in homes or publiccharging stationApprox. 4 hours 25
minutes (to fully
charge, 100%)
Fast Charge
Use the fast
charger at publiccharging station50 kw : approx. 30 min.
100 kw : approx. 23
min. (to charge 80%)
Trickle
Charge Use household currentApprox. 12 hours (to
fully charge, 100%)
Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.
Actual charger image and charging method may vary in accordance with the charger manufacturer. OLFP0Q5006K
OAEEQ016020
OAEEQ016021
OAEEQ016020 OAEEQ016022
OAEEQ016023
OAEEQ016024 OLFP0Q5007K
OLFP0Q5006K

H14

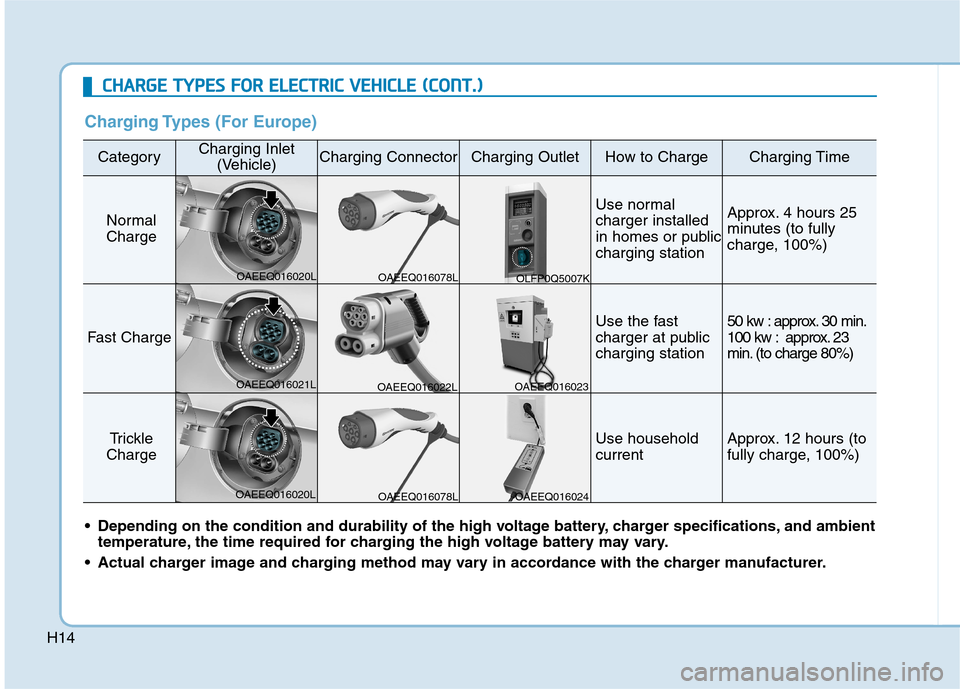

Charging Types (For Europe)
CategoryCharging Inlet(Vehicle)Charging ConnectorCharging OutletHow to ChargeCharging Time
Normal
Charge
Use normal charger installed
in homes or publiccharging stationApprox. 4 hours 25
minutes (to fully
charge, 100%)
Fast Charge
Use the fast
charger at publiccharging station50 kw : approx. 30 min.
100 kw : approx. 23
min. (to charge 80%)
Trickle
Charge Use household currentApprox. 12 hours (to
fully charge, 100%)
Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.
Actual charger image and charging method may vary in accordance with the charger manufacturer. OAEEQ016078L
OAEEQ016020L
OAEEQ016021L
OAEEQ016020L OAEEQ016022L
OAEEQ016023
OAEEQ016024 OLFP0Q5007K
OAEEQ016078L
CC HH AARRGG EE TT YY PPEESS FF OO RR EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( CC OO NNTT..))

H15

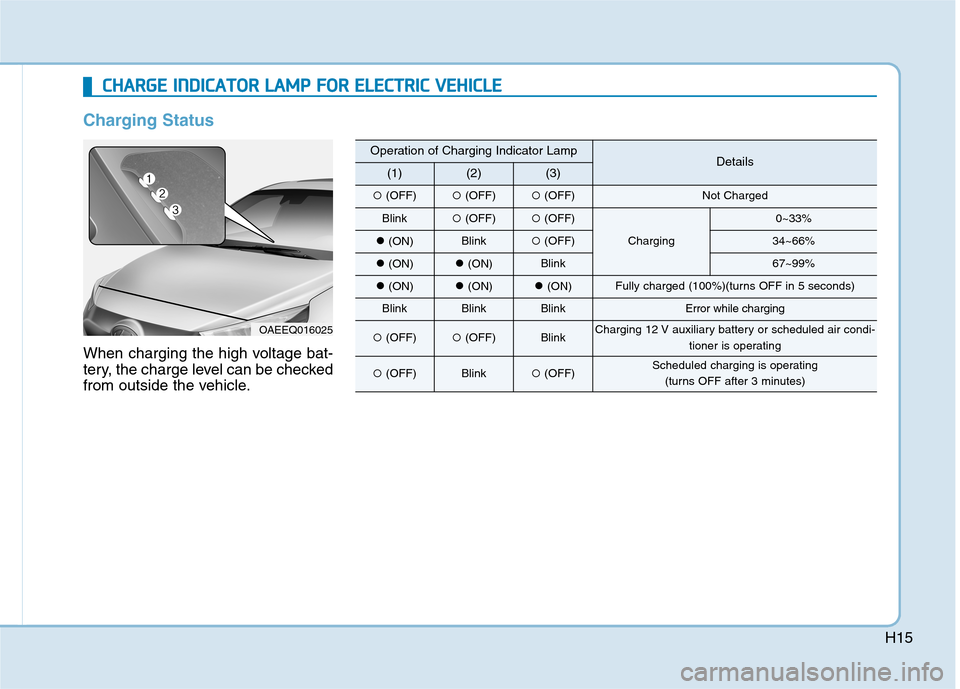

Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
CCHH AARRGG EE IINN DDIICC AA TTOO RR LL AA MM PP FF OO RR EE LLEE CCTT RR IICC VV EEHH IICC LLEE
OAEEQ016025
Operation of Charging Indicator LampDetails(1)(2)(3)
(OFF) (OFF)(OFF)Not Charged
Blink (OFF)(OFF)
Charging
0~33%
(ON)Blink (OFF)34~66%
(ON)(ON)Blink67~99%
(ON)(ON)(ON)Fully charged (100%)(turns OFF in 5 seconds)
BlinkBlinkBlinkError while charging
(OFF) (OFF)BlinkCharging 12 V auxiliary battery or scheduled air condi-
tioner is operating
(OFF)Blink(OFF)Scheduled charging is operating
(turns OFF after 3 minutes)

H16

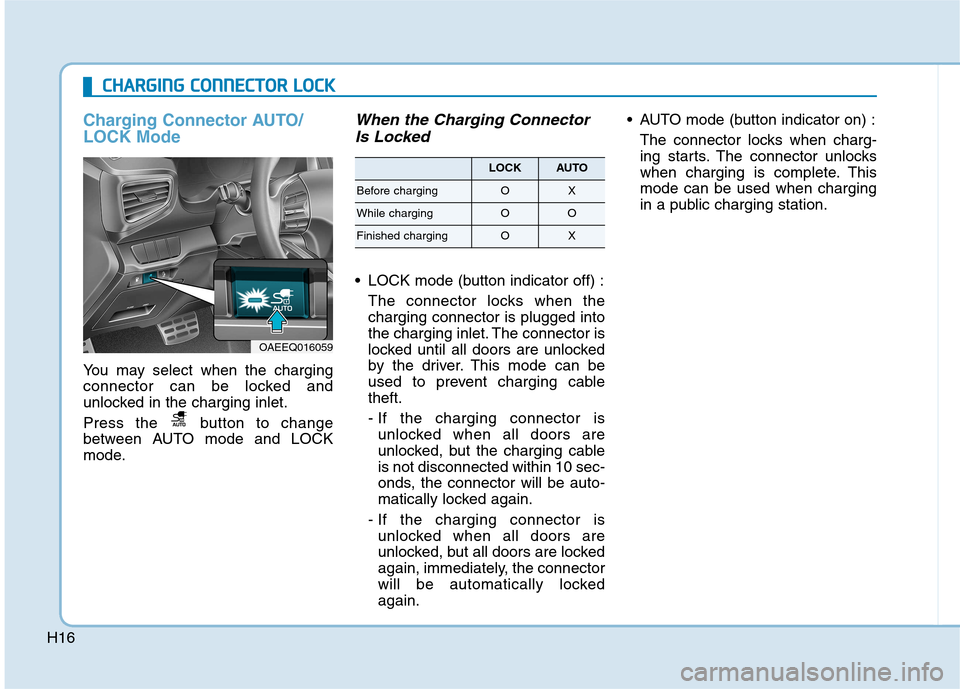

CCHH AARRGG IINN GG CC OO NNNNEECCTT OO RR LL OO CCKK
Charging Connector AUTO/ LOCK Mode
You may select when the charging
connector can be locked and
unlocked in the charging inlet.
Press the button to change
between AUTO mode and LOCK
mode.
When the Charging Connector
Is Locked
LOCK mode (button indicator off) :
The connector locks when thecharging connector is plugged into
the charging inlet. The connector is
locked until all doors are unlocked
by the driver. This mode can be
used to prevent charging cabletheft.
- If the charging connector isunlocked when all doors are
unlocked, but the charging cableis not disconnected within 10 sec-
onds, the connector will be auto-
matically locked again.
- If the charging connector is unlocked when all doors are
unlocked, but all doors are locked
again, immediately, the connector
will be automatically lockedagain. AUTO mode (button indicator on) :
The connector locks when charg-
ing starts. The connector unlocks
when charging is complete. Thismode can be used when charging
in a public charging station.
OAEEQ016059
LOCKAUTO
Before chargingOX
While chargingOO
Finished chargingOX

H17

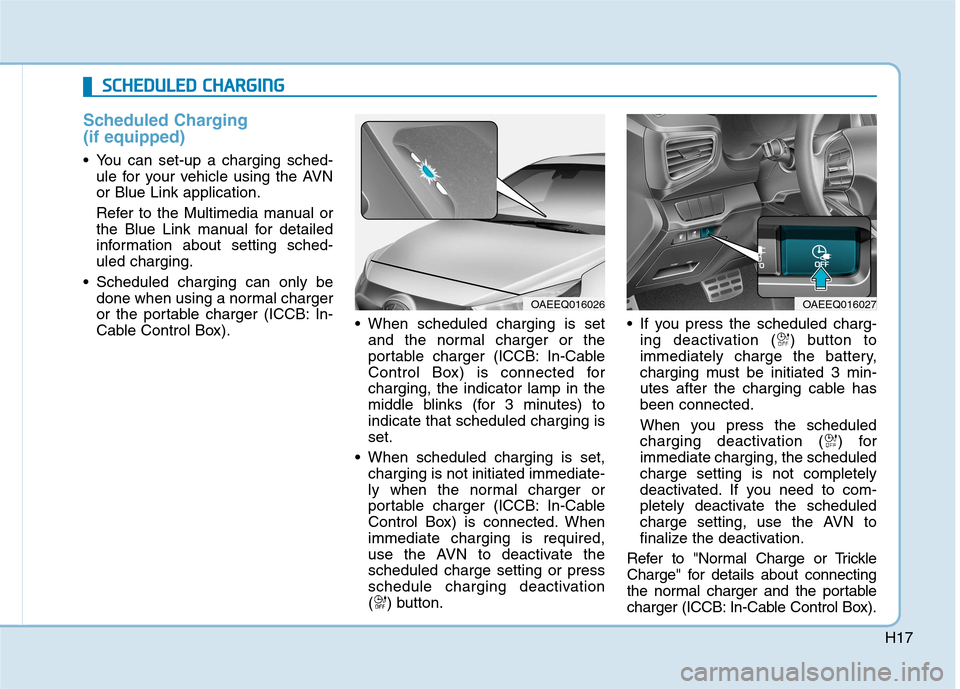

Scheduled Charging (if equipped)
You can set-up a charging sched-ule for your vehicle using the AVN or Blue Link application.
Refer to the Multimedia manual or
the Blue Link manual for detailed
information about setting sched-uled charging.
Scheduled charging can only be done when using a normal charger
or the portable charger (ICCB: In-
Cable Control Box). When scheduled charging is set
and the normal charger or the
portable charger (ICCB: In-Cable
Control Box) is connected forcharging, the indicator lamp in the
middle blinks (for 3 minutes) toindicate that scheduled charging isset.
When scheduled charging is set, charging is not initiated immediate-
ly when the normal charger or
portable charger (ICCB: In-Cable
Control Box) is connected. Whenimmediate charging is required,
use the AVN to deactivate thescheduled charge setting or press
schedule charging deactivation
( ) button. If you press the scheduled charg-
ing deactivation ( ) button to
immediately charge the battery,
charging must be initiated 3 min-
utes after the charging cable hasbeen connected.
When you press the scheduled
charging deactivation ( ) forimmediate charging, the scheduledcharge setting is not completely
deactivated. If you need to com-
pletely deactivate the scheduled
charge setting, use the AVN to
finalize the deactivation.
Refer to "Normal Charge or Trickle
Charge" for details about connecting
the normal charger and the portable
charger (ICCB: In-Cable Control Box).
OAEEQ016026
SS CC HH EEDD UU LLEE DD CC HH AARRGG IINN GG
OAEEQ016027
