2017 HYUNDAI I40 Owners Manual

Downloaded from www.Manualslib.com manuals search engine If the malfunction indicator light contin-
ues to be blinked in spite of the proce-
dure, please visit an authorized
HYUNDAI dealer and then check the
DPF system.
If you continue to drive with the malfunc-
tion indicator light blinking for a long
time, the DPF system can be damaged
and fuel consumption can be worsen.
CAUTION - Diesel Fuel
(if equipped with DPF)
It is recommended to use the regu-
lated automotive diesel fuel fordiesel vehicle equipped with theDPF system.
If you use diesel fuel including highsulfur (more than 50 ppm sulfur) and unspecified additives, it cancause the DPF system to be dam-aged and white smoke can be emit-ted.
7108
Maintenance

Downloaded from www.Manualslib.com manuals search engine 8
Dimensions / 8-2
Engine / 8-2
Bulb wattage / 8-3
Tires and wheels / 8-4
Weight and volume / 8-4
Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-8
Vehicle certification label / 8-8
Tire specification and pressure label / 8-9
Engine number / 8-9
E-mark label / 8-10
Specifications & Consumer information

Downloaded from www.Manualslib.com manuals search engine Specifications & Consumer information
28
DIMENSIONSENGINE
ItemGasoline 1.6 Gasoline 2.0Diesel 1.7
Displacement cc (cu. in) 1591
(97.08) 1999
(121.9) 1685
(102.8)
Bore x Stroke mm (in.)77x85.44
(3.03x3.36) 81x97
(3.18x3.81) 77.2x90
(3.04x3.54)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-lineItemmm (in)
Overall length4770 (187.7)
Overall width1815 (71.4)
Overall height 1470 (57.8)
Front tread
205/60R161591 (62.6)
215/50R171579 (62.1)225/45R18
Rear tread
205/60R161597 (62.8)
215/50R171585 (62.4)225/45R18
Wheelbase2770 (109.0)

Downloaded from www.Manualslib.com manuals search engine 83
Specifications & Consumer information
BULB WATTAGE
Light BulbWattageBulb type
Front
HeadlightsLow55 or 35 (HID or AFLS)H7S or D1S
High55H7L
Smart cornering light55H7L
Dedicated lampLEDLED
Front turn signal lights21PY21W
Position lightsLEDLED
Side repeater lightsLEDLED
Front fog lights35H8L
Rear
Rear fog light21H21W
Stop and tail lights (Outside)LEDLED
Rear turn signal lights (Outside)21PY21W
Tail light (Inside)LEDLED
Back-up lights (Inside)16W16W
High mounted stop lightLEDLED
License plate lights5W5W
Interior
Map lamps8FESTON
Room lampsType A10FESTON
Type BLEDLED
Luggage lamp5FESTON
Glove box lamp5FESTON
Vanity mirror lamps5FESTONHID : High Intensity Discharge
AFLS : Adaptive Front-Lighting System

Downloaded from www.Manualslib.com manuals search engine Specifications & Consumer information
48
TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure bar (psi, kPa)
Wheel lug nut torque

Normal load Maximum load
Front Rear Front Rear
Full size tire 205/60R16 7.0J×16
2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230)
9~11
(65~79, 88~107)
215/50R17
225/45R18 7.5Jx17
8.0Jx18
2.4
(35, 240) 2.4
(35, 240) 2.4
(35, 240) 2.4
(35, 240)
Compact
spare tire T125/80D16
T135/80D17 4.0Tx16
4.0Tx17
4.2
(60, 420) 4.2
(60, 420) 4.2
(60, 420) 4.2
(60, 420)
WEIGHT AND VOLUME
Item Gasoline 1.6LGasoline 2.0L Diesel 1.7L
Gross vehicle weight kg (lbs.)M/T 2030 (4475)
2050 (4519)2120 (4673)
A/T-2080 (4585)2150 (4739)
Luggage volume l(cu ft) Min. 553 (19.5)
Max. 1719 (60.7)
M/T : Manual transaxle
A/T : Automatic transaxle
Min. : Behind rear seat to upper edge of the seat back.
Max. : Behind front seat to roof.

Downloaded from www.Manualslib.com manuals search engine 85
Specifications & Consumer information
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
RECOMMENDED LUBRICANTS AND CAPACITIES
*1Refer to the recommended SAE viscosity numbers on 8-6 page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3Diesel Particulate Filter
Lubricant Volume Classification
Engine oil
*1 *2
(drain and refill)
Recommends Gasoline
Engine
1.6L
3.3
l(3.48 US qt.) GDI engine
API Service SL or SM, ACEA A5 or above
Use the engine oils approved by Hyundai Motor Company.
Consult an authorized HYUNDAI dealer for details.
MPI engine
API Service SM, ILSAC GF-4 or above
2.0L
4.0
l(4.22 US qt.)
Diesel
Engine 1.7Lwith DPF *
35.3
l(5.60 US qt.)
ACEA C3
without DPF *
35.3 l(5.60 US qt.)
ACEA B4
Manual
transaxle fluid Gasoline
Engine
1.6L
1.8
l ~ 1.9 l
(1.90 ~ 2.01US qt.)
API GL-4, SAE 75W/85
2.0L
1.9
l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
Diesel
Engine 1.7LHigh
1.8
l ~ 1.9 l
(1.90 ~ 2.01US qt.)
Low 1.9
l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
Automatic
transaxle fluid Gasoline Engine
7.1
l(7.50 US qt.) MICHANG ATF SP-IV
SK ATF SP-IV
NOCA ATF SP-IV
HYUNDAI genuine ATF SP-IV
Diesel Engine7.1 l(7.50 US qt.)

Downloaded from www.Manualslib.com manuals search engine Specifications & Consumer information
68

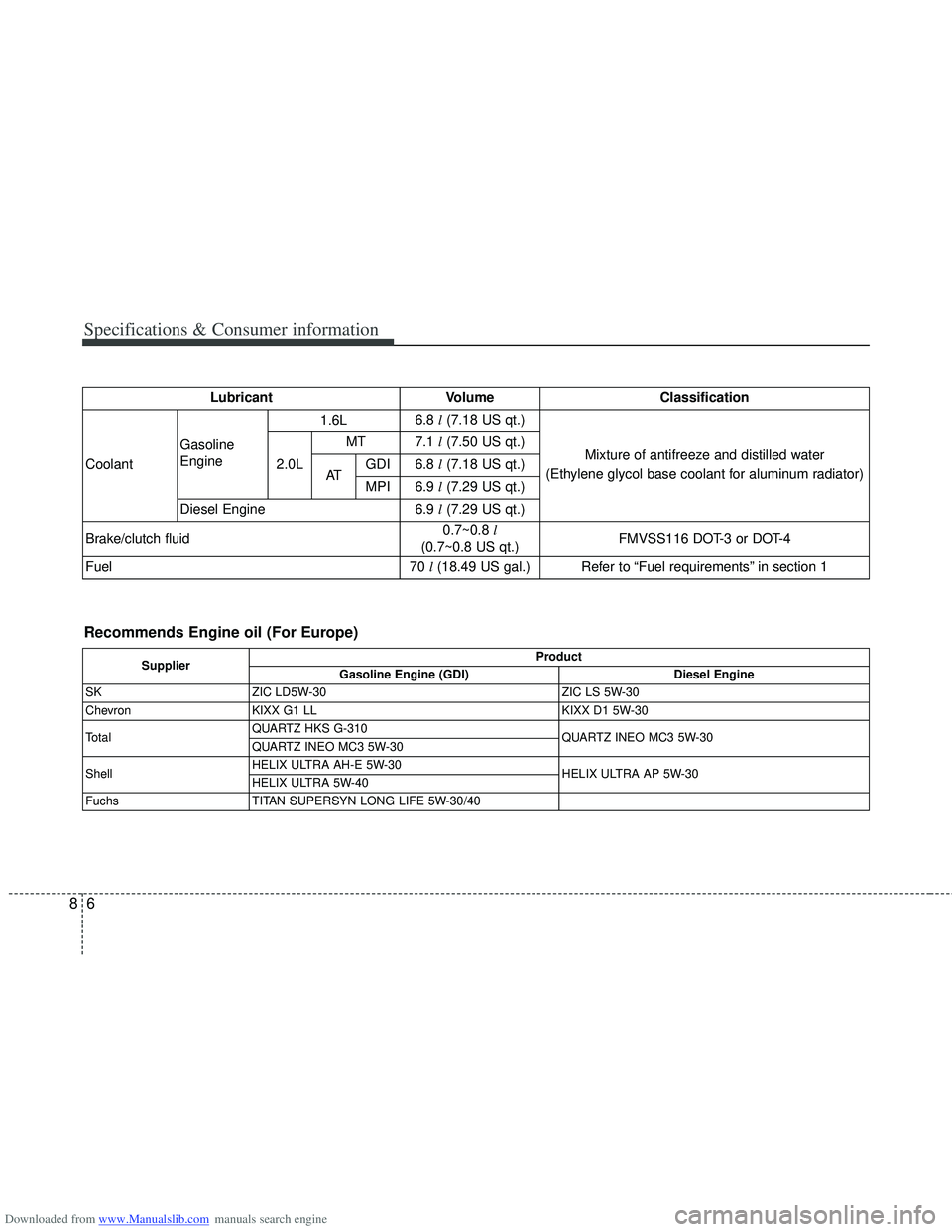

Recommends Engine oil (For Europe)
SupplierProduct
Gasoline Engine (GDI) Diesel Engine
SK ZIC LD5W-30 ZIC LS 5W-30
Chevron KIXX G1 LL KIXX D1 5W-30
Total QUARTZ HKS G-310
QUARTZ INEO MC3 5W-30
QUARTZ INEO MC3 5W-30
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
Fuchs TITAN SUPERSYN LONG LIFE 5W-30/40
Lubricant Volume Classification
Coolant
Gasoline
Engine
1.6L6.8 l(7.18 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)2.0L
MT7.1 l(7.50 US qt.)
ATGDI6.8 l(7.18 US qt.)
MPI6.9 l(7.29 US qt.)
Diesel Engine6.9 l(7.29 US qt.)
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel 70
l(18.49 US gal.)
Refer to “Fuel requirements” in section 1

Downloaded from www.Manualslib.com manuals search engine 87
Specifications & Consumer information
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil °C
(°F)
GDI
MPI *
1
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil (1.7L)
5W-30
15W-40
10W-30
0W-30
0W-40, 5W-30, 5W-40
5W-20*2, 5W-30
*1For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20*2(API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
*
2In the Middle East, do not use the engine oil viscosity grade SAE 5W-20.
