2017 HONDA RIDGELINE Owners Manual

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P511)
❙Windshield Wipers (P152, 529)
❙Power Door Mirrors (P160)
❙Headlights (P144, 523)
❙Front Side Marker Lights (P144, 525)
❙Fog Lights* (P147, 526)
❙Side Turn Signal Lights* (P143, 526)
❙Daytime Running Lights /Parking Lights* (P148, 525)
❙How to Refuel (P499)
❙Rear Turn Signal and Back-Up Lights (P527)
❙Door Lock/Unlock Control (P112)
❙Tires (P531, 553)
❙Front Turn Signal/Parking Lights* (P143, 526)
❙Brake/Taillight and Rear Side Marker Lights (P527)
❙Rear License Plate Light (P528)
❙Multi-View Rear Camera (P496)
❙Drop Opening the Tailgate (P127)
❙Rear License Plate Light (P528)
❙Swing Opening the Tailgate (P127)
❙Opening and Closing the Trunk (P128)
❙AC Power Outlet* (P182)
❙High-Mount Brake Light (P528)
❙Bed Lights (P184)

9
Quick Reference Guide
Eco Assist® System
Ambient Meter
●Changes color to reflect your driving style.
Green: Fuel efficient driving
Light green: Moderate acceleration/deceleration
White: Aggressive acceleration/deceleration
● The ambient meter color changes in accordance
with your brake or accelerator pedal operation.
ECON Mode Indicator
(P85)
Comes on when the ECON button is
pressed.
ECON Button (P428)
Helps maximize fuel economy.
* Not available on all models

10
Quick Reference Guide

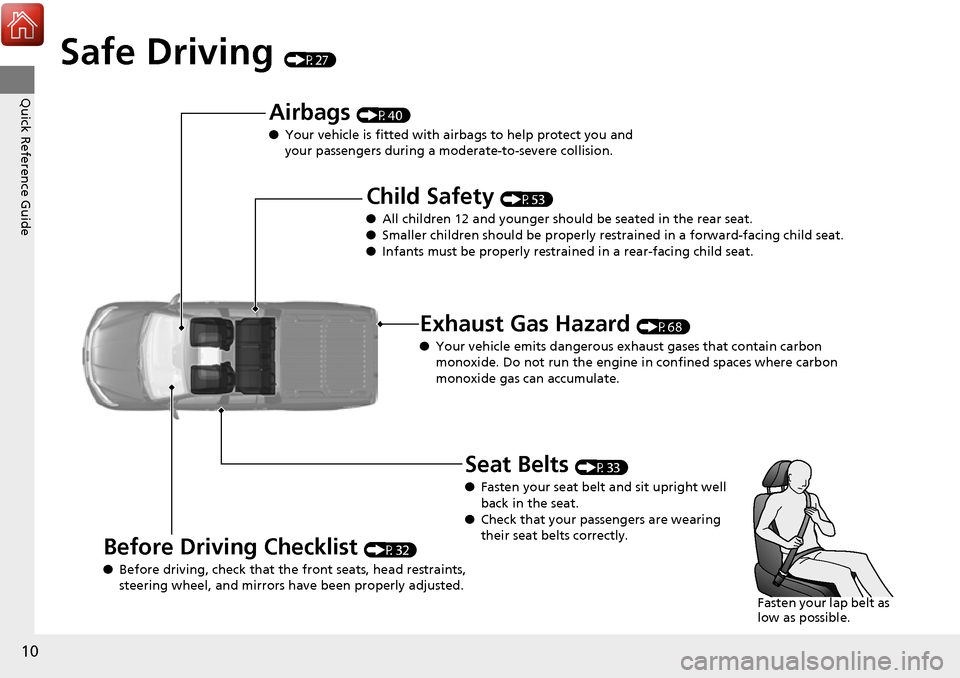

Safe Driving (P27)
Airbags (P40)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P53)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P68)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P32)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P33)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.

11
Quick Reference Guide
Instrument Panel (P71)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
(VSA®
) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorParking Brake and
Brake System
Indicator (Red)Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P101)/Multi-Information Display (P102)/System Indicators (P72)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Smart Entry System
Indicator Ambient Meter Shift Lever
Position Indicator
Fuel Gauge
Tachometer
Temperature
Gauge
Speedometer
Multi-Information Display
Brake System
Indicator (Amber)
All-wheel drive system
(AWD ) Indicator*
Blind spot information
(BSI) Indicator*
System Indicators
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator*
Road Departure Mitigation
(RDM) Indicator*
Security System Alarm
Indicator
U.S.
Canada U.S.
Canada
Fog Light Indicator*
ECON Mode Indicator
Auto high-beam
Indicator
*
Lane Keeping Assist
System ( LKAS) Indicator*
CRUISE MAIN
Indicator*
CRUISE CONTROL
Indicator*
Adaptive Cruise
Control (ACC )
Indicator
*
Intelligent Traction
Management Indicator
Bed Lights On Indicator
* Not available on all models

12
Quick Reference Guide
Controls (P107)
Clock (P108)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock, then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set .
gPress to complete clock adjustment.
Models with color audio system
aSelect , then select Settings.
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the dates, hours and minutes by
selecting / .
dSelect OK to set the time.
Models with Display Audio
34
ENGINE START/STOP
Button
(P140)
Press the button to change the vehicle’s
power mode.

13
Quick Reference Guide
Turn Signals (P143)
Lights (P144)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P152)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
( -: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
AUTO should always be turned OFF before
the following situation:
● Cleaning the windshield
● Driving through a car wash
● Driving when it is not raining
Steering Wheel (P158)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
Models with automatic intermittent wipers

14
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P120)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 128)
● Press the trunk release button to unlock
and open the trunk when you are
carrying the smart entry remote.
Trunk Release Button
Power Door Mirrors
(P160)
● With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
● Press the folding button
* to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button*
Power Windows (P134)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window SwitchIndicator

15
Quick Reference Guide
Climate Control System* (P186)
● Press the AUTO button to activate th e climate control system.
● Press the button to turn the system on or off.
● Press the button to de frost the windshield.
The climate control system is voice operable. (P243)
Models with navigation system
Fan Control
Button (Windshield
Defroster) Button
A/C (Air
Conditioning)
Button
Air flows from dashboard and
back of the centre console
vents.
Air flows from dashboard, floor
and back of the centre console
vents.
Air flows from floor vents.
Air flows from floor and
windshield defroster vents. (Recirculation)
Button
Passenger’s Side
Temperature
Control Switch
AUTO
Button
Driver’s Side
Temperature
Control Switch
MODE Button
SYNC

(Synchronized) Button (On/Off) Button
Rear Climate Control* (P191)
● Press the AUTO button to activate the
rear climate control system.
● Press the button to turn the system
on or off.
Rear Temperature
Control Buttons /
(Rear Fan
Control) Button
Rear AUTO
Button
(Rear On/
Off) Button
MODE Button
Air flows from the rear floor vents. Air flow from the rear console
vents and floor vents. Air flows from the rear console vents.
* Not available on all models
