2017 HONDA RIDGELINE Owners Manual

uuChild Safety uSafety of Infants and Small Children
56

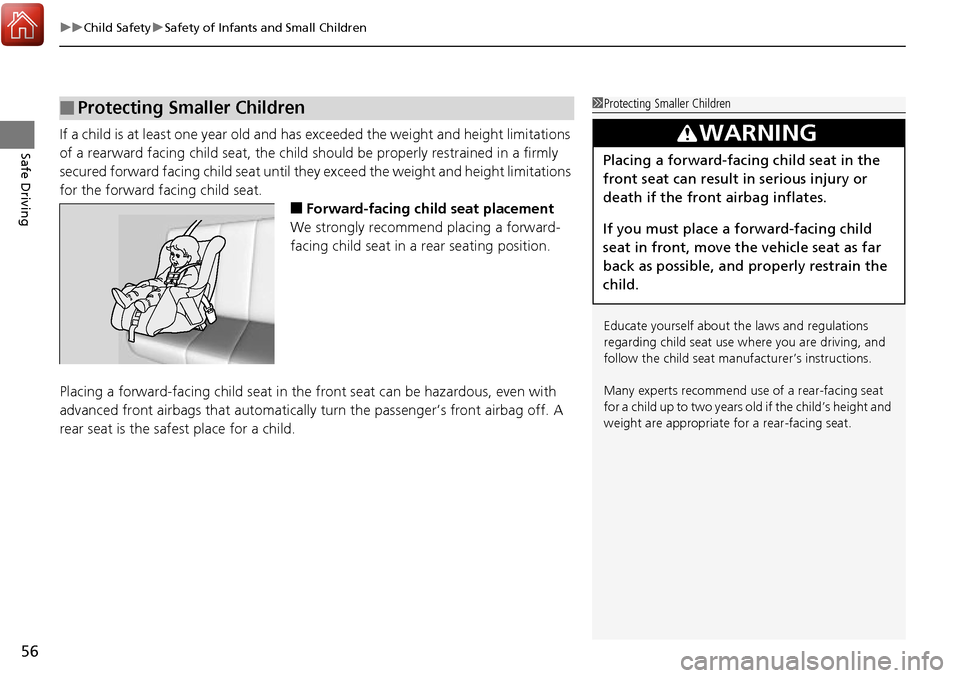

Safe DrivingIf a child is at least one year old and has exceeded the weight an d height limitations
of a rearward facing child s eat, the child should be prope rly restrained in a firmly
secured forward facing child seat until they exceed the weight and height limitations
for the forward facing child seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children1 Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
Many experts recommend us e of a rear-facing seat
for a child up to two years old if the child’s height and
weight are appropriate for a rear-facing seat.
3WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.

Continued57
uuChild Safety uSafety of Infants and Small Children

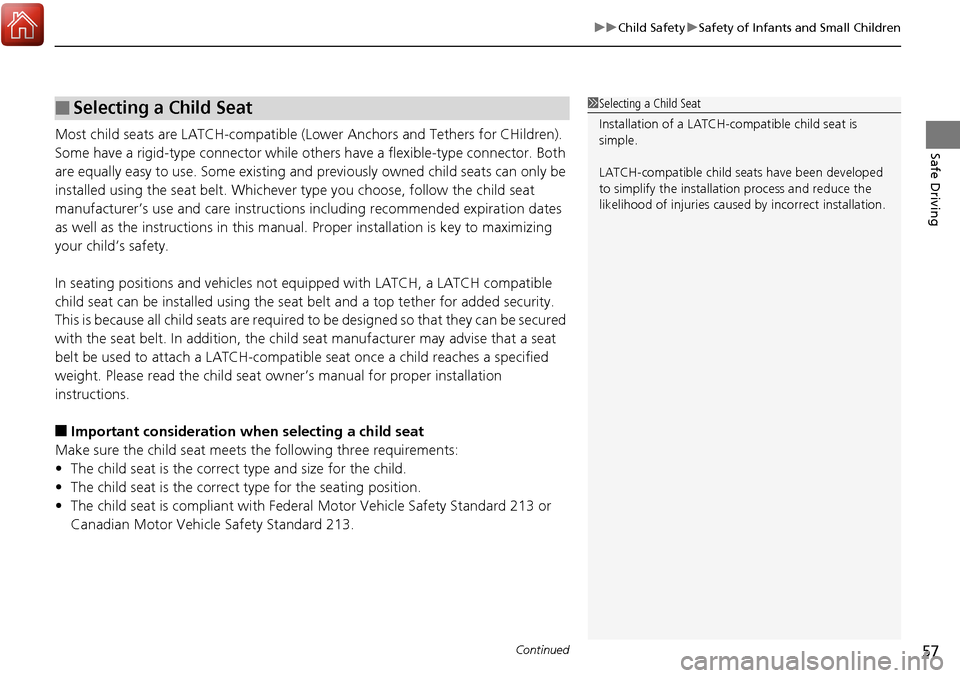

Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual . Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with the seat belt. In additi on, the child seat manufacturer may advise that a seat
belt be used to attach a LATCH-compatib le seat once a child reaches a specified
weight. Please read the child seat ow ner’s manual for proper installation
instructions.
■Important consideration when selecting a child seat
Make sure the child seat meets the following thr ee requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federa l Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1 Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.

58
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA LATCH-compatible child seat can be inst alled in any of the three rear seating
position. A child seat is attached to the lowe r anchors with either the flexible or rigid
type of connectors. 1.Locate the lower anchors under the marks.
2. Make sure there are no objects near the
anchors that could prevent a secure
connection between the child seat and the
anchors.
3. Lower the head restra int to its lowest
position.
4. Lift the upper guide co ver, then route the
tether strap around the upper guide.
5. Route the tether strap downward properly,
then attach the strap hook to the center
tether anchor.
u Making sure the strap is not twisted.
■Installing a LATCH-Compatible Child Seat
Marks
Upper Guide
Center Tether Anchorage Point
Center positionCenter position

59
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
6. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the ins tructions that came
with the child seat.
Flexible Type
Lower Anchors
All positions
Rigid Type

uuChild Safety uSafety of Infants and Small Children
60
Safe Driving
7. Put the outer head restraint to it’s upper-
most position (or remove it), then route
the tether strap over the seat-back and
through the head restraint legs.
8. Lift the upper guide co ver, then route the
tether strap around the upper guide.
9. Route the tether strap downward
properly, then attach the strap hook to the
tether anchor under the seat. See the
label.
u Making sure the strap is not twisted.
10. Tighten the tether strap as instructed by
the child seat manufacturer.
11. Make sure the child seat is firmly secured
by rocking it forward and back and side to
side; little movement should be felt.
12. Make sure any unused seat belt that a
child can reach is buckled, the lockable
retractor is activated, and the belt is fully
retracted and locked.
2Protecting Child Passengers P. 53
Upper Guide
Outer Tether Anchorage PointsOuter positionsOuter positions
1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Upper Guide
Outer Tether Anchorage PointsOuter positionsAll positions

Continued61
uuChild Safety uSafety of Infants and Small Children
Safe Driving1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1 Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.

uuChild Safety uSafety of Infants and Small Children
62
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused se at belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 53
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

Continued63
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchorage poin t is provided at each
outside of the seat bottom and between the
lower anchors of the rear center seat. If you
have a child restraint system that comes with
a tether but can be installed with a seat belt,
the tether may be used for additional security.
■Adding Security with a Tether
Covers
Outer Tether
Anchorage PointsUpper Guides
Center Tether Anchorage Point
1 Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Always use a tether for forward facing child seats
when using the seat be lt or lower anchors.
