2017 HONDA PILOT Owners Manual

uuWhen Driving uShifting
488
Driving
■Sequential Mode Operation1Sequential Mode Operation
Each paddle shift operation makes a single gear
change.
To change gears continuously, release the paddle
shifter before pulling it again for the next gear.
Recommended Shift Points
Use this table as a guideline for efficient fuel
economy and effectiv e emission control.
If the sequential mode gear selection indicator blinks
when you try to shift up or down, this means your
vehicle speed is not in its allowable gear range.
Slightly accelerate to shift up and decelerate to shift
down while the indi cator is blinking.
Shift Up Normal Acceleration
1st to 2nd15 mph (24 km/h)
2nd to 3rd 25 mph (40 km/h)
3rd to 4th40 mph (64 km/h)
4th to 5th 47 mph (76 km/h)
5th to 6th52 mph (84 km/h)
6th to 7th 57 mph (92 km/h)
7th to 8th62 mph (100 km/h)
8th to 9th 67 mph (108 km/h)
Downshifting when pulling
the paddle shifter.
(Changes to a lower gear)Upshifting when pulling
the paddle shifter.
(Changes to a higher gear)
Paddle Shifter
(Shift down) Paddle Shifter
(Shift up)
17 PILOT-31TG76100.book 488 ページ ２０１６年９月２０日　火曜日　午後４時９分

489
uuWhen Driving uAuto Idle-stop*
Continued
Driving
Auto Idle-stop*
To help maximize fuel economy, the engi ne automatically stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
indicator comes on. The engine then restarts once the vehicle is
about to move again, or depending on
environmental and vehicle operating
conditions, and the indicator goes off.
2The Engine Automatically Restarts When
P. 493
A message associated with Auto Idle-stop
appears on the MID.
2 Indicators P. 90
2 Customized Features P. 351
If the driver’s door is opened while the
indicator is on, a buzzer sounds to notify you
that the Auto Idle-stop function is in
operation.
1Auto Idle-stop*
The 12-volt battery insta lled in this vehicle is
specifically designed for a m odel with Auto Idle-stop.
Using a 12-volt battery other than this specified type
may shorten the battery life , and prevent Auto Idle-
stop from activating. If you need to replace the
battery, make sure to select the specified type. Ask a
dealer for more details.
The duration of the Auto Idle-stop operation:
•Increases in the ECON mode, compared to when
the ECON mode is off, with climate control in use.
Auto Idle-stop may activate less frequently in such
conditions as a traffic jam.
* Not available on all models
17 PILOT-31TG76100.book 489 ページ ２０１６年９月２０日　火曜日　午後４時９分

uuWhen Driving uAuto Idle-stop*
490
Driving
To turn the Auto Idle-s top system off, press
this button. Th e Auto Idle-stop system stops.
u The Auto Idle-stop system will stop and
the indicator (Amber) in meter will come
on.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
The vehicle stops with the gear position in
(D and the brake pedal depressed.
■Auto Idle-stop does not activate when:
• The driver’s seat belt is not fastened.
• The engine coolant temperature is low or high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• Stopped on a steep incline.
• A gear position other than
(D.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle-stop.
• The battery charge is low.
• The internal temperature of the ba ttery is 14°F (−10°C). or less.
■Auto Idle-stop System ON/OFF1Auto Idle-stop System ON/OFF
Press the Auto Idle-stop OFF button to restart the
engine from the idling stop.
■Auto Idle-stop Activates When:1 Auto Idle-stop Activates When:
Do not open the hood while the Auto Idle-stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button. 2 Starting the Engine P. 471
Pressing the ENGINE START/STOP button changes
the power mode to ACCESSORY even while Auto
Idle-stop is in operation. Once in ACCESSORY, the
engine no longer restarts automatically. Follow the
standard procedure to start the engine.
2 Starting the Engine P. 471
17 PILOT-31TG76100.book 490 ページ ２０１６年９月２０日　火曜日　午後４時９分

491
uuWhen Driving uAuto Idle-stop*
Continued
Driving
• The climate control system is in use, and the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system temperature is set to the Hi or Lo.
• is ON (indicator on).
• When the rear fan is set to maximum speed.
u Auto Idle-stop may not activate under ot her conditions when the rear climate
control system is in use.
• When the Intelligent Traction Mana gement is set to Snow, Mud
*, or Sand*.
* Not available on all models
17 PILOT-31TG76100.book 491 ページ ２０１６年９月２０日　火曜日　午後４時９分

492
uuWhen Driving uAuto Idle-stop*
Driving

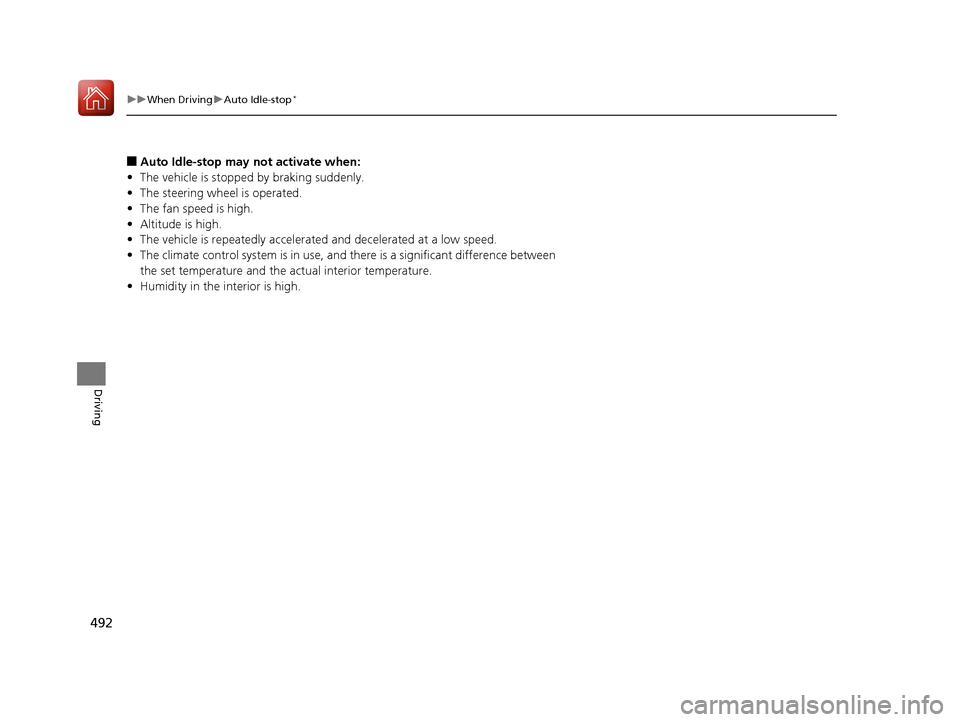

■Auto Idle-stop may not activate when:
• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• The fan speed is high.
• Altitude is high.
• The vehicle is repeated ly accelerated and dece lerated at a low speed.
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature.
• Humidity in the interior is high.
17 PILOT-31TG76100.book 492 ページ ２０１６年９月２０日　火曜日　午後４時９分

493
uuWhen Driving uAuto Idle-stop*
Driving
The brake pedal is released.
■The engine restarts even if the brake pedal is depressed when
• The Auto Idle-stop OFF button is pressed.
• When a steering wheel is operated.
• The gear position is in a position other than
(D.
• The pressure on the brake pedal is reduced and the vehicle starts moving while
stopped on an incline.
• The pressure on the brake pedal is repeat edly applied and released slightly during
a stop.
• The battery charge becomes low.
• The accelerator pedal is depressed.
• The driver’s seat belt is unlatched.
• is ON (indicator on).
• The climate control system is in use, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is being used to dehumidify the interior.
Briefly keeps the brakes applied after releas ing the brake pedal to restart the engine.
This can keep your vehicle from unexpe ctedly moving while on an incline.
■The Engine Automatically Restarts When
■Starting Assist Brake Function
1The Engine Automatically Restarts When
•If you are using an elec tronic device during Auto
Idle-stop, the device may temporarily be turned off
when the engine restarts.
17 PILOT-31TG76100.book 493 ページ ２０１６年９月２０日　火曜日　午後４時９分

494
uuWhen Driving uECON Button
Driving

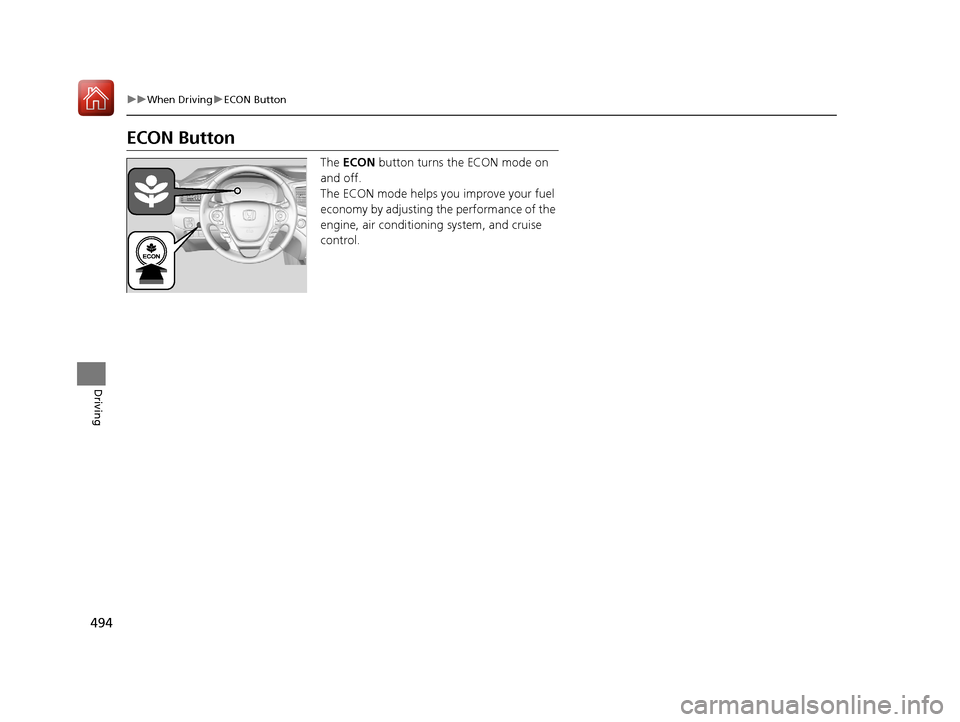

ECON Button
The ECON button turns the ECON mode on
and off.
The ECON mode helps you improve your fuel
economy by adjusting the performance of the
engine, air conditioning system, and cruise
control.
17 PILOT-31TG76100.book 494 ページ ２０１６年９月２０日　火曜日　午後４時９分

495
uuWhen Driving uIntelligent Traction Management*
Driving

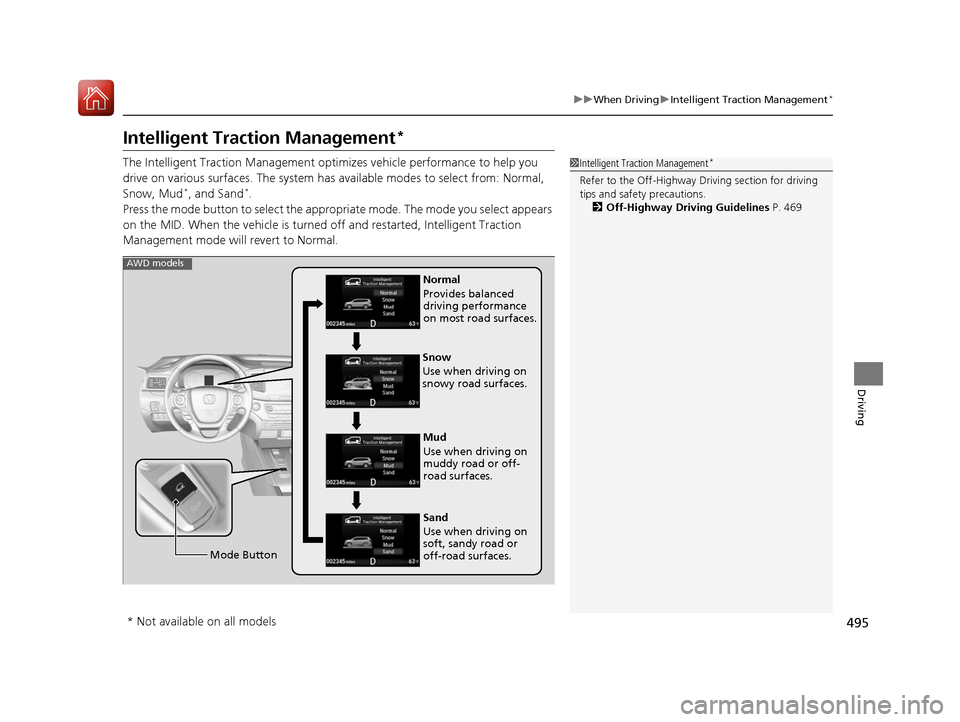

Intelligent Traction Management*
The Intelligent Traction Management optimizes vehicle performance to help you
drive on various surfaces. The system has available modes to select from: Normal,
Snow, Mud
*, and Sand*.
Press the mode button to select the appropr iate mode. The mode you select appears
on the MID. When the vehicle is turned off and restarted, Intelligent Traction
Management mode will revert to Normal.
1 Intelligent Traction Management*
Refer to the Off-Highway Dr iving section for driving
tips and safety precautions.
2 Off-Highway Driving Guidelines P. 469
Mud
Use when driving on
muddy road or off-
road surfaces.
Sand
Use when driving on
soft, sandy road or
off-road surfaces. Normal
Provides balanced
driving performance
on most road surfaces.
Mode Button
Snow
Use when driving on
snowy road surfaces.
AWD models
* Not available on all models
