2017 HONDA PILOT Owners Manual

344
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features

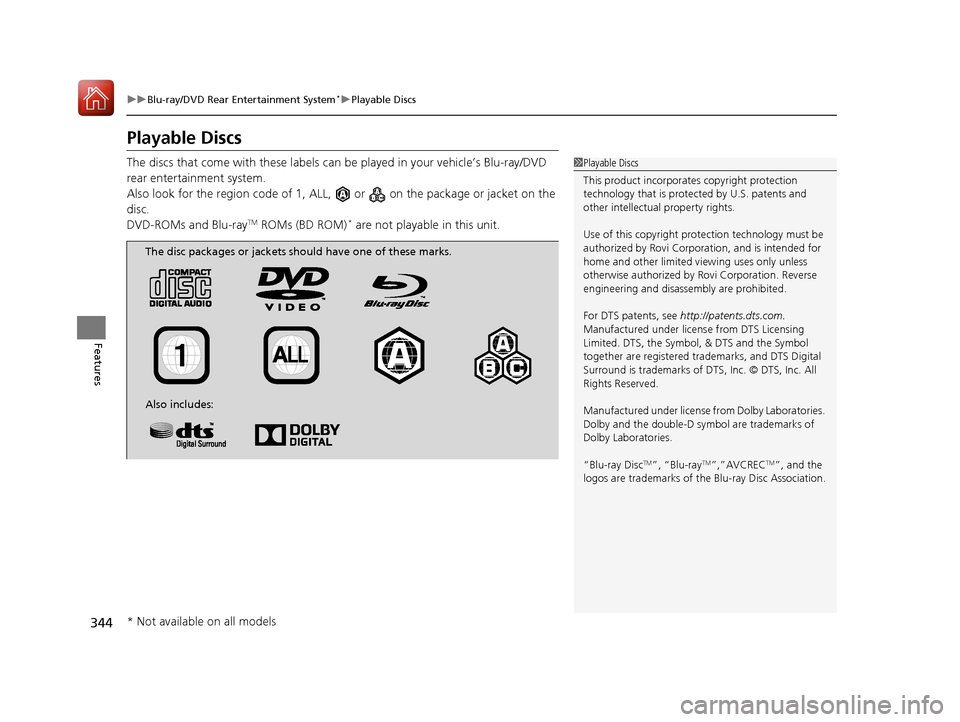

Playable Discs
The discs that come with these labels can be played in your vehicle’s Blu-ray/DVD
rear entertainment system.
Also look for the region co de of 1, ALL, or on th e package or jacket on the
disc.
DVD-ROMs and Blu-ray
TM ROMs (BD ROM)* are not playable in this unit.
1 Playable Discs
This product incorporates copyright protection
technology that is protec ted by U.S. patents and
other intellectual property rights.
Use of this copyright prot ection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited vi ewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering and disassembly are prohibited.
For DTS patents, see http://patents.dts.com.
Manufactured under licens e from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS Digital
Surround is trademarks of DTS, Inc. © DTS, Inc. All
Rights Reserved.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
“Blu-ray Disc
TM”, “Blu-rayTM”,”AVCRECTM”, and the
logos are trademarks of th e Blu-ray Disc Association.
The disc packages or jackets should have one of these marks.
Also includes:
* Not available on all models
17 PILOT-31TG76100.book 344 ページ ２０１６年９月２０日　火曜日　午後４時９分

345
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features

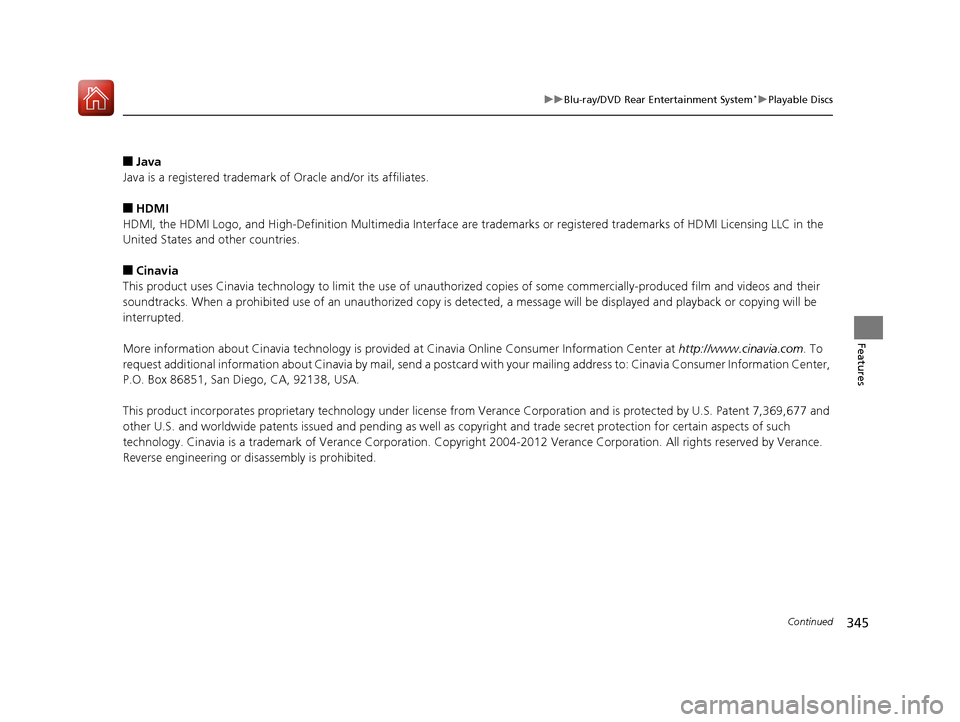

■Java
Java is a registered trademark of Oracle and/or its affiliates.
■HDMI
HDMI, the HDMI Logo, and High-Definition Mult imedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
■Cinavia
This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their
soundtracks. When a prohib ited use of an unauthorized copy is detected, a message will be displayed and playback or copying wil l be
interrupted.
More information about Cinavia technology is provided at Cinavia Online Consumer Information Center at http://www.cinavia.com. To
request additional information ab out Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Informatio n Center,
P.O. Box 86851, San Diego, CA, 92138, USA.
This product incorporates proprietary tech nology under license from Verance Corporatio n and is protected by U.S. Patent 7,369,677 and
other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of suc h
technology. Cinavia is a trademark of Verance Corporation. Copy right 2004-2012 Verance Corporation. All rights reserved by Vera nce.
Reverse engineering or disassembly is prohibited.
17 PILOT-31TG76100.book 345 ページ ２０１６年９月２０日　火曜日　午後４時９分

346
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features

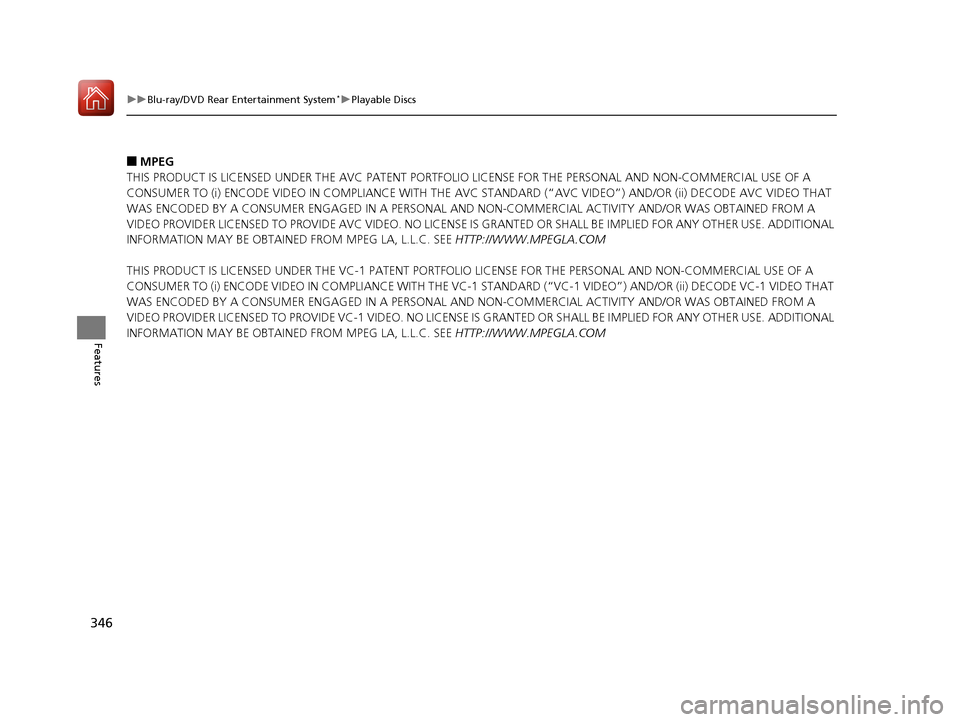

■MPEG
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFO LIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD (“VC-1 VIDEO”) AND/OR (i i) DECODE VC-1 VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
17 PILOT-31TG76100.book 346 ページ ２０１６年９月２０日　火曜日　午後４時９分

347
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features
■OSS
This product contains software licensed under GNU General Public License (GPL) or GNU Lesser General Public License (LGPL), etc.
You have the right of acquisition, modification, and distribution of the source code of the GPL/LGPL software. You may download Source
Code from the following website at no charge.
URL: http://www.embedded-carmultimedia .jp/linux/oss/download/MP_632_34W913
The website provides the Source Code “As Is ” and without warranty of any kind. By downloading Source Code, you expressly assume all
risk and liability associated wi th downloading and using the Source Code and comp lying with the user agreements that accompany each
Source Code.
Please note that we cannot respond to any inquiries regarding the source code.
Software List
■ FDA
-Caution-
Use of controls or adjustments or performance of procedures othe r than those specified herein may result in hazardous radiation exposure.
kernel2.6.16.29/FreeType2 2.2.1gcc sh4eb-3.4.5glibc-2.3.5boot_loader sh-ipl+g
libgcc_s-3.4.5bash-3.0-31busybox-1.00v2lin 0.1module-init-tools-3.1.0
libtermcap-2.0.8mtd-utils-20050619initscripts-8.11.1-1libstdc++-3.4.5-10libiconv-1.11
coreutils-6.9dosfstools-2.10-3directfb 1.0.0-rc1kxml 1.21binutils-sh4eb-2.16.91.0.2
17 PILOT-31TG76100.book 347 ページ ２０１６年９月２０日　火曜日　午後４時９分

uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
348
Features

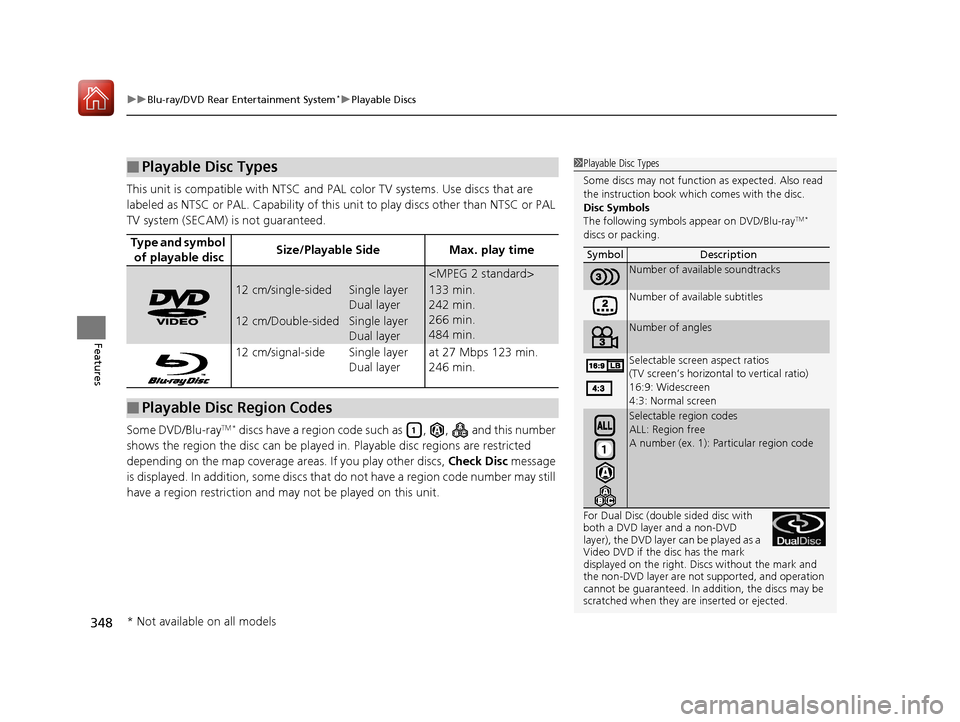

This unit is compatible with NTSC and PAL color TV systems. Use discs that are
labeled as NTSC or PAL. Capability of this unit to play discs other than NTSC or PAL
TV system (SECAM) is not guaranteed.
Some DVD/Blu-ray
TM * discs have a region code su ch as , , and this number
shows the region the disc can be played in. Playable disc regions are restricted
depending on the map coverage areas. If you play other discs, Check Disc message
is displayed. In addition, some discs that do not have a region code number may still
have a region restriction and may not be played on this unit.
■Playable Disc Types
Type and symbol of playable discSize/Playable SideMax. play time

12 cm/single-sidedSingle layer
Dual layer133 min.
242 min.
266 min.
484 min.
12 cm/Double-sidedSingle layer
Dual layer
12 cm/signal-side Single layer
Dual layerat 27 Mbps 123 min.
246 min.
■Playable Disc Region Codes
1 Playable Disc Types
Some discs may not function as expected. Also read
the instruction book which comes with the disc.
Disc Symbols
The following symbols appear on DVD/Blu-ray
TM *
discs or packing.
For Dual Disc (doubl e sided disc with
both a DVD layer and a non-DVD
layer), the DVD layer can be played as a
Video DVD if the disc has the mark
displayed on the right. Disc s without the mark and
the non-DVD layer are not supported, and operation
cannot be guaranteed. In a ddition, the discs may be
scratched when they are inserted or ejected. Symbol
Description
Number of available soundtracks
Number of available subtitles
Number of angles
Selectable screen aspect ratios
(TV screen’s horizontal to vertical ratio)
16:9: Widescreen
4:3: Normal screen
Selectable region codes
ALL: Region free
A number (ex. 1): Pa rticular region code
* Not available on all models
17 PILOT-31TG76100.book 348 ページ ２０１６年９月２０日　火曜日　午後４時９分

349
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features
Compression video not supported, Compression audio specification are following.
■Recommended Discs
MediaCD-R/CD-RW
DVD-R/DVD-RW
DVD+R/DVD+RW
Disc formatCD-ROM Mode1
CD-ROM Mode2 Form1 DVD-ROM
File formatISO9660 Level 1 & 2Romeo, Joliet
Audio formatMP3WMAAAC
Audio format
specificationMPEG-1 AUDIO LAYER3
MPEG-2 AUDIO LAYER3
MPEG-2.5 AUDIO LAYER3Microsoft Windows Media Audio Ver7,8,9MPEG4-AAC
m4a files created by iTunes (Apple)
Sampling
frequency
[kHz]MPEG-1: 32/44.1/48
MPEG-2: 16/22.05/24
MPEG-2.5: 8/11.025/128/11.025/12/16/22.05/24/ 32/44.1/48
Exceptions not supported by DVD Player:12/24
8/11.025/12/16/22.05/24/
32/44.1/48
Bit rate [kbps]
MPEG1: 32/40/48/56/64/80/96/112/128/160/192/ 224/256/320
MPEG2: 8/16/24/32/40/48/
56/64/80/96/112/128/144/ 160
MPEG2.5: 8/16/24/32/40/
48/56/64/80/96/112/128/ 144/1605/8/16/24/32/40/48/64/80/96/128/160/192/224/256/
320/384
Exceptions not supported by DVD Player: 24/224/3848/16/20/24/28/32/40/48/56/
64/80/96/112/128/160/192/224/256/320/384/448/512/
576
Exceptions not supported by DVD Player: 384/448/512/ 576
File extension.mp3/.MP3.wma/.WMA.m4a/.M4A
1Recommended Discs
Large files may take longer to change audio or fast-
forward/fast-rewind.
Some CD-R/CD-RW/DVD-R/DVD -RW may not be read
due to the discs’ encoding properties. Use discs
recorded with disc-at-once or track-at-once for this
unit.
“AVCHD” and the “AVCHD” logo are trademarks of
Panasonic Corporation and Sony Corporation.
17 PILOT-31TG76100.book 349 ページ ２０１６年９月２０日　火曜日　午後４時９分

350
uuBlu-ray/DVD Rear Entertainment System*uDVD or Blu-rayTM* Player Error Messages
Features

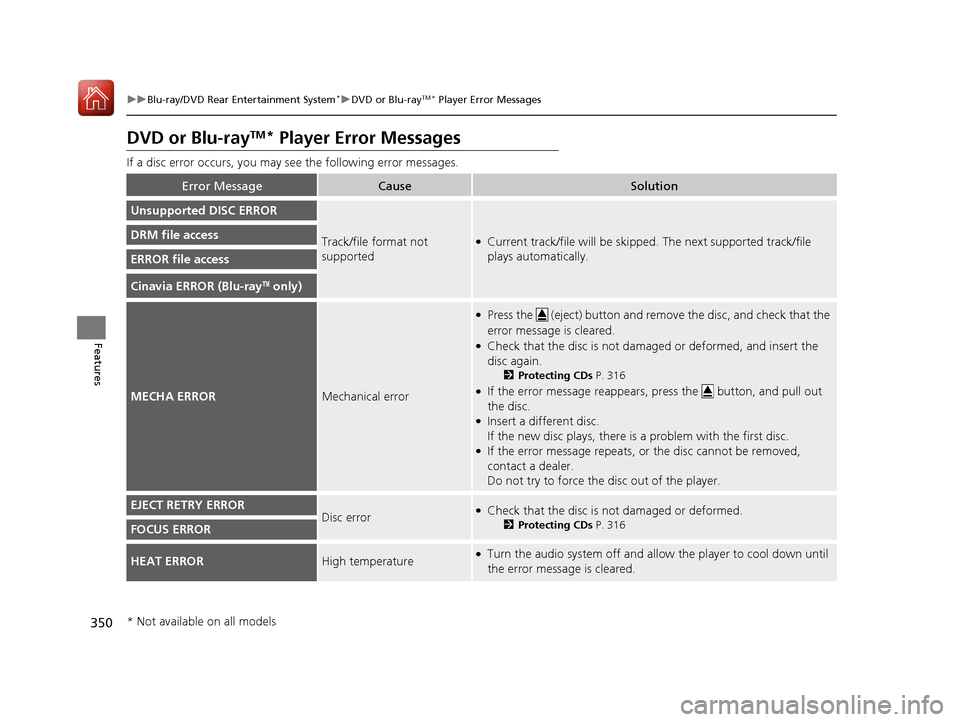

DVD or Blu-rayTM* Player Error Messages
If a disc error occurs, you may see the following error messages.
Error MessageCauseSolution
Unsupported DISC ERROR
Track/file format not
supported●Current track/file will be skipped. The next supported track/file
plays automatically.DRM file access
ERROR file access
Cinavia ERROR (Blu-rayTM only)
MECHA ERRORMechanical error
●Press the (eject) button and remo ve the disc, and check that the
error message is cleared.
●Check that the disc is not dama ged or deformed, and insert the
disc again.
2 Protecting CDs P. 316
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
EJECT RETRY ERRORDisc error●Check that the disc is not damaged or deformed.
2 Protecting CDs P. 316FOCUS ERROR
HEAT ERRORHigh temperature●Turn the audio system off and allo w the player to cool down until
the error message is cleared.
* Not available on all models
17 PILOT-31TG76100.book 350 ページ ２０１６年９月２０日　火曜日　午後４時９分

351Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop with the power ON, press the MENU/CLOCK
button, then select Settings. To customize the phone se ttings, press the button,
then select Phone Setup .
1Customized Features
When you customize settings, make sure that the
vehicle is at a complete stop and shift to
(P.Models with color audio system
1 How to customize
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To customize other features, select Settings, rotate
, then press .
2 List of customizable options P. 355
Audio/Information Screen
MENU/CLOCK Button
Selector Knob
(Phone) Button
17 PILOT-31TG76100.book 351 ページ ２０１６年９月２０日　火曜日　午後４時９分
