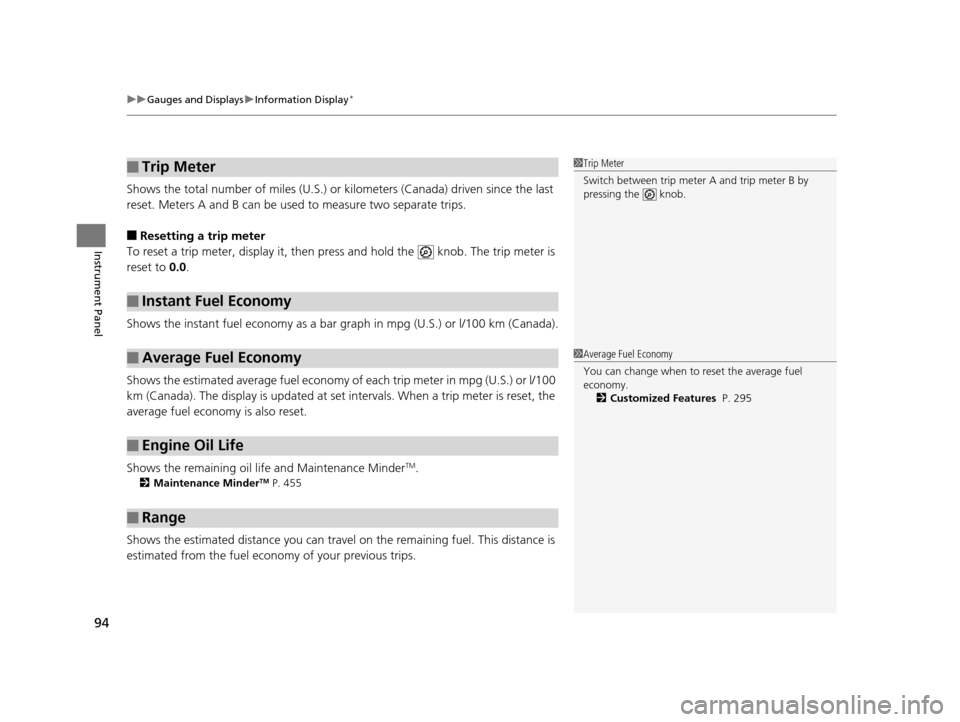

2017 HONDA ODYSSEY Fuel setting

uuGauges and Displays uInformation Display*
94
Instrument Panel
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pres s and hold the knob. The trip meter is
reset to 0.0 .
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 455
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
■Trip Meter
■Instant Fuel Economy
■Average Fuel Economy
■Engine Oil Life
■Range
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 295
17 US ODYSSEY (KA KC)-31TK86600.book 94 ページ ２０１６年１０月２４日　月曜日　午後４時２分

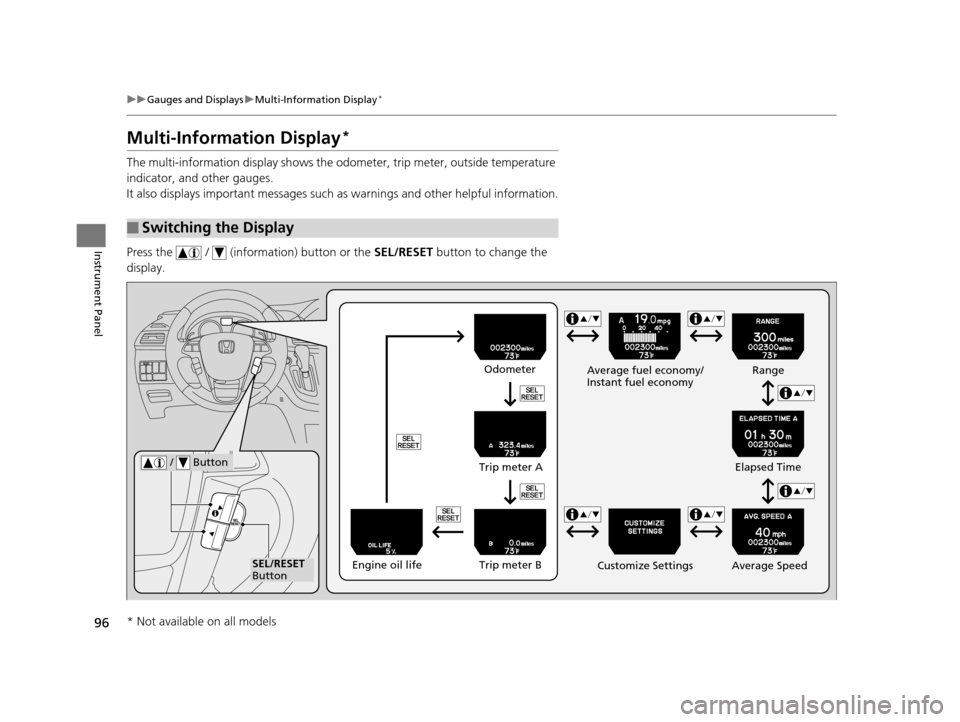

96
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Multi-Information Display*
The multi-information display shows the od ometer, trip meter, outside temperature
indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
Press the / (information) button or the SEL/RESET button to change the
display.
■Switching the Display
SEL/RESET
Button Average fuel economy/
Instant fuel economy
Average Speed
/ Button
Engine oil lifeTrip meter B
Trip meter A
Odometer
Customize Settings Elapsed Time
Range
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 96 ページ ２０１６年１０月２４日　月曜日　午後４時２分

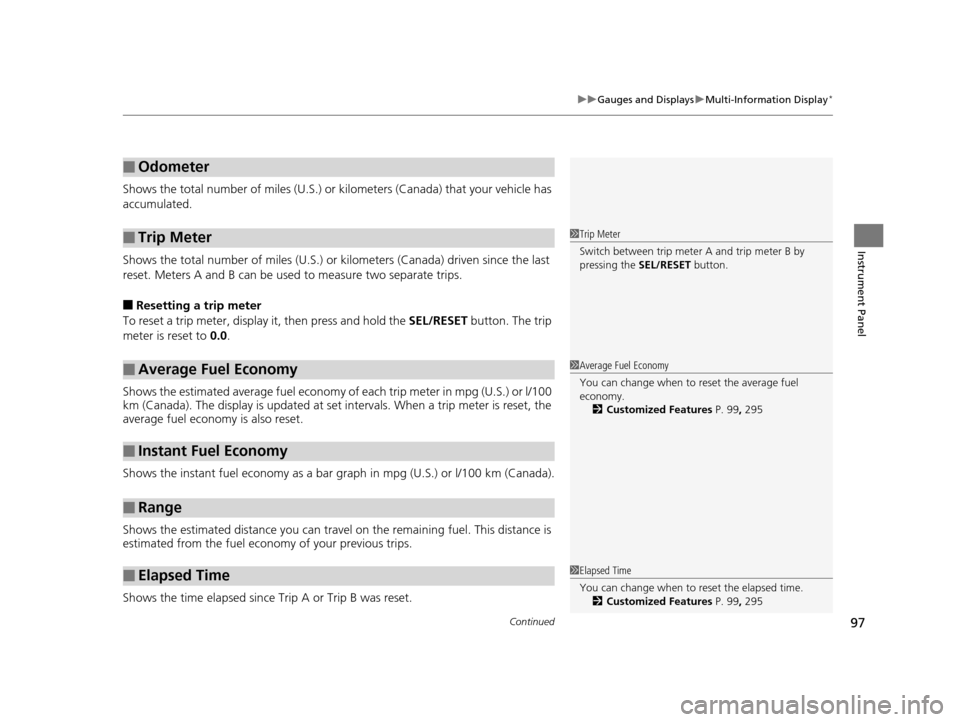

Continued97
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
■Odometer
■Trip Meter
■Average Fuel Economy
■Instant Fuel Economy
■Range
■Elapsed Time
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 99, 295
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 99, 295
17 US ODYSSEY (KA KC)-31TK86600.book 97 ページ ２０１６年１０月２４日　月曜日　午後４時２分

102
uuGauges and Displays uMulti-Information Display*
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizabl
e Features Description Selectable settings
DRIVER
ASSIST
SYSTEM
SETUP FORWARD COLLISION
WARNING DISTANCE
Changes at which distance FCW alerts, or turns FCW
on and off. LONG
/NORMAL
*1/SHORT /
OFF
BLIND SPOT INFO Changes the setting for the blind spot information. AUDIBLE AND VISUAL ALERT
*1/
VISUAL ALERT /OFF
METER
SETUP
LANGUAGE SELECTIONChanges the displayed language.ENGLISH*1/ FRENCH /SPANISH
ADJUST OUTSIDE TEMP.
DISPLAYAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“TRIP A” RESET TIMINGChanges the setting of how to reset trip meter A, average
fuel economy A, average speed A, and elapsed time A.WITH REFUEL /IGN OFF /
MANUALLY RESET*1
”TRIP B” RESET TIMINGChanges the setting of how to reset trip meter B, average
fuel economy B, average speed B, and elapsed time B.WITH REFUEL /IGN OFF /
MANUALLY RESET*1
DRIVING
POSITION
SETUP MEMORY POSITION
LINK
Changes the driver’s seat po
sition to a stored setting.ON*1/OFF
KEYLESS
ACCESS
SYSTEM
SETUPDOOR UNLOCK MODEChanges which doors unlock when you grab the
driver’s door handle.DRIVER DOOR*1/ALL DOORS
KEYLESS ACCESS LIGHT
FLASHCauses some exterior lights to flash when you unlock/
lock the doors.ON*1/OFF
KEYLESS ACCESS BEEPCauses the beeper to sound when you unlock/lock the doors.ON*1/OFF
17 US ODYSSEY (KA KC)-31TK86600.book 102 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

105
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to WITH REFUEL are
shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY
RESET .
1.Press the / button to select
CUSTOMIZE SETTINGS , then press the
SEL/RESET button.
2. Press the / button until METER
SETUP appears on the display.
3. Press the SEL/RESET button.
u LANGUAGE SELECTION appears first
on the display.
4. Press the / button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
u The display swit ches to the
customization setup screen, where you
can select WITH REFUEL , IGN OFF ,
MANUALLY RESET, or EXIT.
17 US ODYSSEY (KA KC)-31TK86600.book 105 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

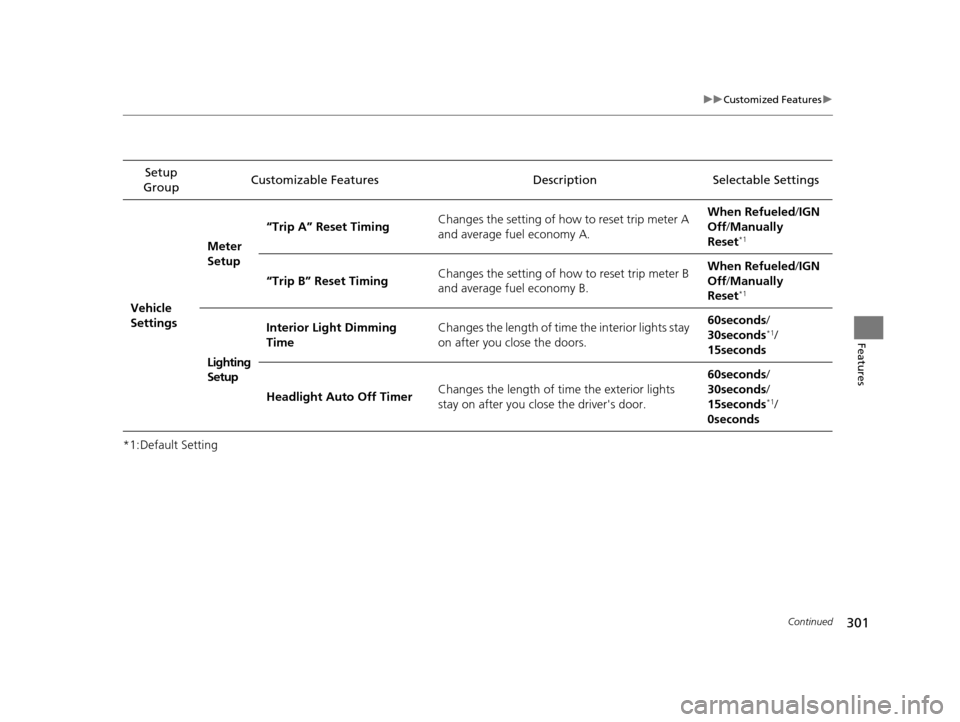

301
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Meter
Setup
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A
and average fuel economy A. When Refueled
/IGN
Off /Manually
Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B
and average fuel economy B. When Refueled
/IGN
Off /Manually
Reset*1
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay
on after you close the doors. 60seconds
/
30seconds
*1/
15seconds
Headlight Auto Off Timer Changes the length of time the exterior lights
stay on after you close the driver's door. 60seconds
/
30seconds /
15seconds
*1/
0seconds
17 US ODYSSEY (KA KC)-31TK86600.book 301 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

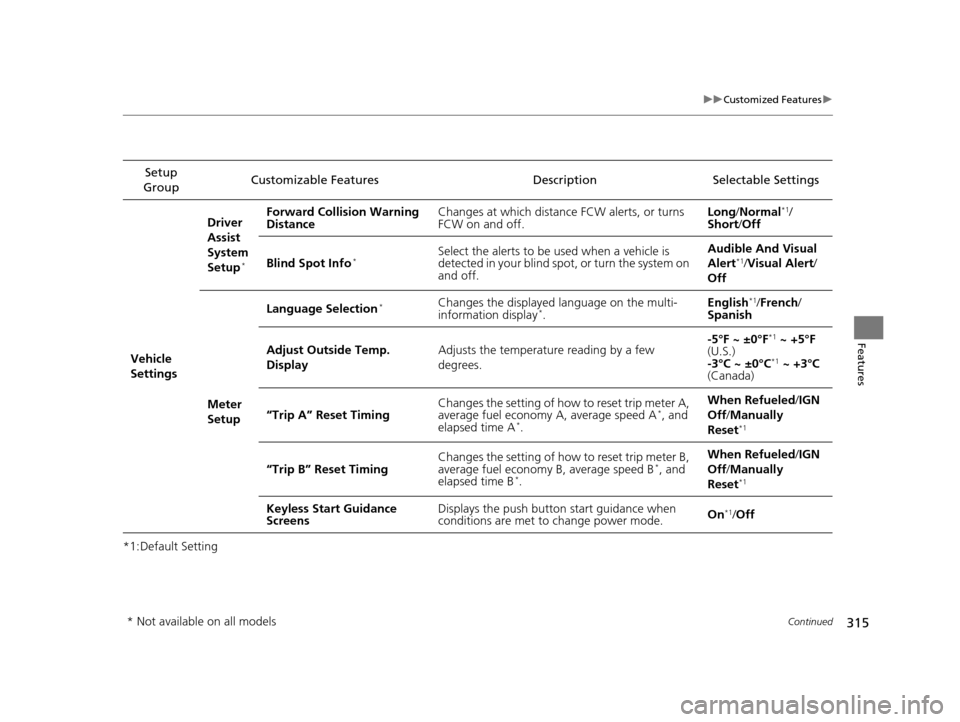

315
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Driver
Assist
System
Setup
*
Forward Collision Warning
Distance
Changes at which distance FCW alerts, or turns
FCW on and off. Long
/Normal*1/
Short/ Off
Blind Spot Info
*Select the alerts to be used when a vehicle is
detected in your blind spot, or turn the system on
and off. Audible And Visual
Alert*1/
Visual Alert /
Off
Meter
Setup Language Selection
*Changes the displayed language on the multi-
information display*.
English
*1/
French /
Spanish
Adjust Outside Temp.
Display Adjusts the temperature reading by a few
degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A
*, and
elapsed time A*. When Refueled
/IGN
Off /Manually
Reset*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B*, and
elapsed time B*. When Refueled
/IGN
Off /Manually
Reset*1
Keyless Start Guidance
Screens Displays the push button
start guidance when
conditions are met to change power mode. On*1/
Off
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 315 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

559
Index
ReplacementBattery ............................................ 500, 502
Bulbs ...................................................... 475
Fuses ...................... 533, 534, 535, 536, 537
Tires........................................................ 496
Wiper Blade Rubber ................................ 486
Reporting Safety Defects ......................... 546
Resetting a Trip Meter ......................... 94, 97
S
Safe Driving................................................ 25
Safety Check ............................................... 29
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat Belts .................................................... 30
Adjusting the Shoulder Anchor ................. 34
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 38
Detachable Anchor ................................... 35
Fastening .................................................. 33
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 37
Reminder .................................................. 31
Warning Indicator ............................... 31, 73
Seat Heaters ............................................. 189
Seats .......................................................... 161
Adjusting ................................................ 161
Front Seats.............................................. 161
Rear Seats ............................................... 169 Seat Heaters ............................................ 189
Security System ......................................... 135
Immobilizer System Indicator ..................... 78
Security System Alarm Indicator ................. 79
SEL/RESET Button ........................................ 96
Select Lever ......................................... 18, 413
Operation .......................................... 18, 414
Releasing ................................................. 525
Won’t Move ............................................ 525
Select/Reset Knob ....................................... 93
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 211
Shift Lever ........................................... 18, 413
Shift Lever Position Indicator ............. 72, 414
Shifting (Transmission) ............................. 413
Shoulder Anchor ......................................... 34
Side Airbags ................................................ 46
Side Curtain Airbags ................................... 48
Sliding Doors ............................................. 127
Power Sliding Doors ................................ 129
Sliding the Second Row Outer Seats
Outward .................................................. 171
Smart Entry with Push Button Start
System ..................................................... 113
Snow Tires ................................................. 498
Spare Tire .......................................... 511, 543
Spark Plugs ................................................ 542
Specifications ............................................ 542
Specified Fuel .................................... 446, 542
Speedometer .............................................. 92
SRS Airbags (Airbags) ................................. 42 Starting the Engine
.......................... 407, 409
Does Not Start......................................... 520
Engine Switch Buzzer .............................. 142
Jump Starting .......................................... 523
Steering Wheel ......................................... 157
Adjusting ................................................ 157
Stopping ................................................... 440
Summer Tires ............................................ 498
Sunglasses Holder ..................................... 188
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering
Wheel) ............................................. 4, 5, 142
System Message Indicator .......................... 77
T
Tachometer................................................. 92
Tailgate ..................................................... 121
Unable to Open....................................... 540
Temperature Gauge ....................................................... 92
Outside Temperature Display ............... 95, 98
Temperature Gauge ................................... 92
Temperature Sensor ..................... 95, 98, 203
Third Row Seat Access .............................. 169
Time (Adjusting) ....................................... 108
Tire Pressure Monitoring System
(TPMS) ..................................................... 428
Indicator.................................... 76, 531, 532
Tires ........................................................... 490
Air Pressure ..................................... 491, 543
17 US ODYSSEY (KA KC)-31TK86600.book 559 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
