2017 HONDA ODYSSEY tailgate

113
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors and open the
tailgate.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the tailgate within
about 32 inches (80 cm) radius from the
tailgate outer handle.
■Locking the doors and the tailgate
Press the door lock button on the front door
or the tailgate.
u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*
Door Lock Button
Lock Button
1Using the Smart Entry with Push Button Start System*
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a door handle wearing gloves, the door
sensor may be slow to respond or may not respond
by unlocking the doors.
•You cannot unlock the door by gripping the handle
after two seconds of unlocking it.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may not
be able to lock/unlock the doors with the smart entry
remote if it is above or below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 500
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 99, 295
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 113 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
114
Controls
■Unlocking the doors and the tailgate
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door or rear door
handle:
u All doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press and hold the tailgate outer handle. u All doors and the tailgate unlock and
open.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Opening/Closing the Tailgate Using the
Tailgate Outer Handle and Inner Handle
P. 122
1Using the Smart Entry with Push Button Start System*
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
The light flash, beep a nd unlock settings can be
customized. 2 Customized Features P. 99, 295
You can also unlock and open with the power
tailgate. 2 Opening/Closing the Tailgate Using the
Tailgate Outer Handle and Inner Handle
P. 122
Tailgate Outer
Handle
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 114 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued115
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and the tailgate lock , and the security
system sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system
* is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 99, 295
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 176
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
LED Unlock
Button
Lock
Button
Unlock
Button LED
Lock
Button
Unlock
Button Lock
Button
LED
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 115 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
116
Controls
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver's door unlocks.
Twice: u The remaining doors and the tailgate unlock.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1Using the Remote Transmitter
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 500
You can customize the door unlock mode setting. 2 Customized Features P. 99, 295
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all of the
other doors and the tailgate lock at the same time.
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 99, 295
LockUnlock
17 US ODYSSEY (KA KC)-31TK86600.book 116 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

117
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the driver’s door
Push the lock tab rearward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger’s doors
Push the lock tab rearward and close the door.
■Lockout prevention system
The doors and tailgate cannot be locked when the key is in the ignition switch*1, or
the smart entry remote is inside the vehicle.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and the tailgate lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
17 US ODYSSEY (KA KC)-31TK86600.book 117 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

118
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

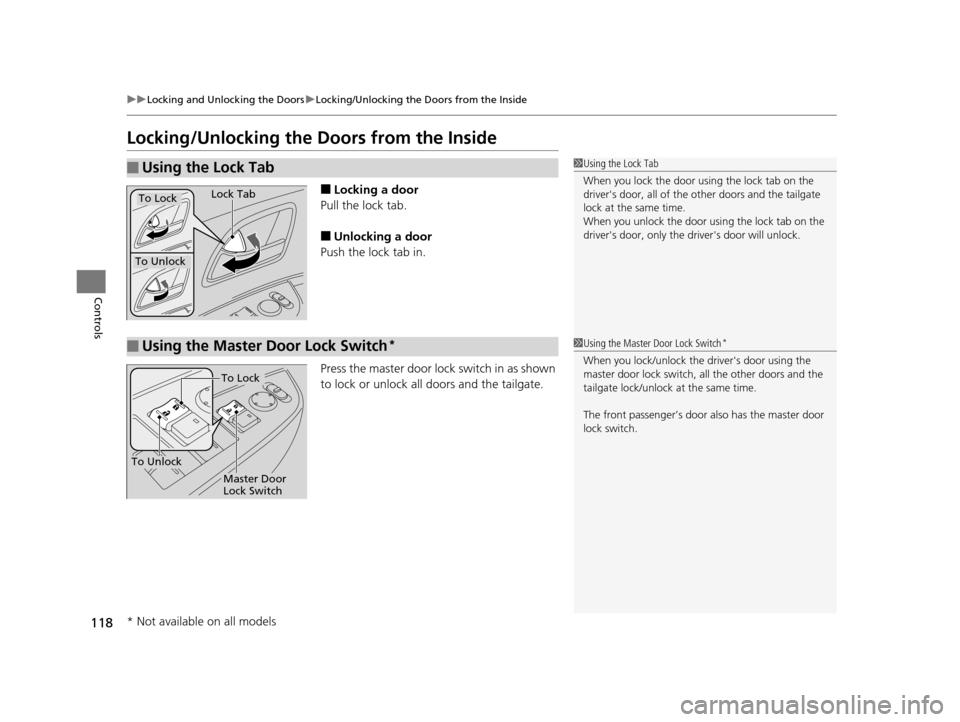

Locking/Unlocking the Doors from the Inside
■Locking a door
Pull the lock tab.
■Unlocking a door
Push the lock tab in.
Press the master door lock switch in as shown
to lock or unlock all doors and the tailgate.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all of the ot her doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To UnlockLock Tab
To Lock
■Using the Master Door Lock Switch*1
Using the Master Door Lock Switch*
When you lock/unlock the driver's door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
The front passenger’s door al so has the master door
lock switch.
To Unlock
Master Door
Lock Switch
To Lock
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 118 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

120
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks all doors and the ta ilgate and unlocks the driver’s door
automatically when a ce rtain condition is met.
■Drive lock mode
All doors and the tailgate lock when the vehicle’s speed reaches about 10 mph (15
km/h).
■Park unlock mode
The driver’s door unlocks when the shift lever is moved into
(P with the brake pedal
depressed.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen or mu lti-information display
*.
2 Customized Features P. 99, 295
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 120 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

121
Controls
Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
■Opening the tailgate
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wi nd may cause the tailgate to close.
■Closing the tailgate
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 66
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits their
head or closes on their head s. Be especially cautious
if children are around.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the tailgate.
Models with power tailgate
