2017 HONDA ODYSSEY mirror controls

uuAdjusting the Mirrors uPower Door Mirrors
160
Controls
If activated, either side door mirror
automatically tilts do wnward when you put
the shift lever in
(R; this improves close-in
visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you shift
out of
(R.
To activate this feature, set the power mode
to ON and slide the selector switch to the left
or right side.
The driver side door mirror has outer and inner
segments.
The outer segment is slig htly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.
■Reverse Tilt Door Mirror*
Slide the selector switch to left or
right to tilt down either side
door mirror.
■Expanded View Driver's Mirror1 Expanded View Driver's Mirror
Objects visible in the outer segment of the driver side
door mirror appear smaller than objects in the rest of
the mirror. But in fact, they are closer than they
appear.
Do not rely on your mirrors. Always look to the side
and behind your vehicle before changing lanes.
Inner Segment
Outer Segment
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 160 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

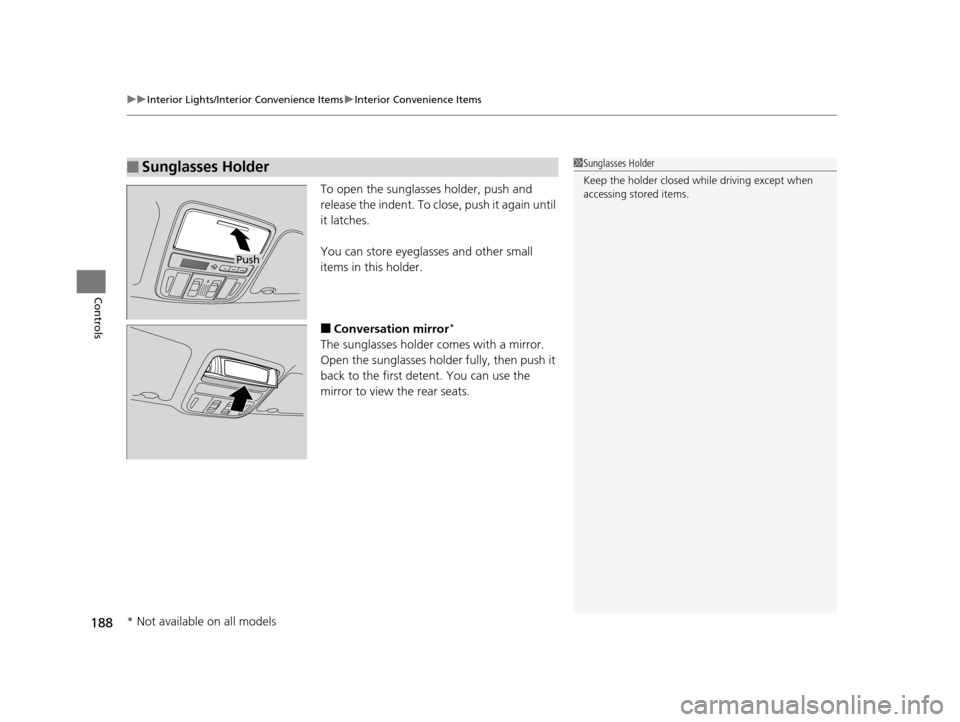

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
188
Controls
To open the sunglasses holder, push and
release the indent. To clos e, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror*
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent. You can use the
mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 188 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Index
553
Index
Index
A
AAC................................... 221, 229, 252, 262
ABS (Anti-lock Brake System) .................. 438
AC Power Outlet ...................................... 185
Accessories and Modifications ................ 450
Accessory Power Sockets ......................... 183
Additives Coolant .................................................. 470
Engine Oil ............................................... 465
Washer ................................................... 474
Additives, Engine Oil ............................... 465
Adjusting Armrest .................................................. 175
Front Seats.............................................. 161
Head Restraints ....................................... 164
Mirrors.................................................... 158
Rear Seats ....................................... 162, 169
Steering Wheel ....................................... 157
Temperature ....................................... 95, 98
Aha
TM Menu ............................................. 261
AhaTM Radio .............................................. 271
Air Conditioning System (Climate Control
System) .................................................... 198
Changing the Mode................................ 198
Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 504
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 203
Using Automatic Climate Control............ 198 Air Conditioning System (Heating and
Cooling System) ...................................... 194
Cooling ................................................... 196
Defrosting the Windshield and Windows ............................................... 196
Dust and Pollen Filter ............................... 504
Heating ................................................... 195
Air Pressure ....................................... 491, 543
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care ............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator .............................................. 49, 74
Passenger Airbag Off Indicator .................. 50
Sensors ...................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 48
AM/FM Radio .................................... 218, 245
Anti-lock Brake System (ABS) .................. 438
Indicator .................................................... 73
Armrest ..................................................... 175
Audio Remote Controls ............................ 210
Audio System ............................................ 206
Adjusting the Sound ................ 216, 237, 243
Auxiliary Input Jack .................................. 207
Error Messages ........................................ 267
General Information ................................ 272
Internet Radio .................................. 227, 259
iPod ................................................. 224, 255
MP3/WMA/AAC .............. 221, 229, 252, 262 Reactivating ............................................ 208
Recommended CDs ................................. 273
Recommended Devices............................ 275
Remote Controls ..................................... 210
Security Code .......................................... 208
Shortcuts................................................. 236
Theft Protection ...................................... 208
Touch Screen .......................................... 235
USB Flash Drives ...................................... 275
USB Port.................................................. 207
Audio with Touch Screen ......................... 235
Authorized Manuals ................................ 551
Auto Door Locking/Unlocking ................. 120
Customize ............................... 103, 302, 317
Automatic Lighting .................................. 148
Automatic Transmission ........................... 412
Creeping ................................................. 412
Fluid ........................................................ 472
Kickdown ................................................ 412
Operating the Shift Lever................... 18, 414
Shift Lever Does Not Move ...................... 525
Shifting ................................................... 413
Auxiliary Input Jack .................................. 207
Average Fuel Economy ........................ 94, 97
Average Speed ........................................... 98
B
Battery...................................................... 499
Charging System Indicator................. 72, 528
Jump Starting .......................................... 523
17 US ODYSSEY (KA KC)-31TK86600.book 553 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

554
Index
Maintenance (Checking the Battery) ........ 499
Maintenance (Replacing).................. 500, 502
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 181
Blind Spot Information (BSI) System ........ 432
Bluetooth ® Audio ............................. 232, 265
Bluetooth ® HandsFreeLink ®............. 327, 360
Booster Seats (For Children) ....................... 65
Brake System ............................................. 436
Anti-lock Brake System (ABS) ................... 438
Brake Assist System ................................. 439
Fluid ........................................................ 473
Foot Brake ............................................... 437
Indicator ............................................ 70, 530
Parking Brake .......................................... 436
Brightness Control (Instrument Panel) .... 153
BSI (Blind Spot Information) System ........ 432
Bulb Replacement ..................................... 475
Back-Up Light/Taillights............................ 483
Brake Light, Rear Turn Signal Light, and Rear
Side Marker/Taill ights ............................. 481
Fog Lights ................................................ 479
Front Turn Signal/Par king/Side Marker
Lights..................................................... 480
Headlights ............................................... 475
High-Mount Brake Light .......................... 485
Rear License Plate Lights .......................... 484
Side Turn Signal/Emergency Indicator
Lights..................................................... 480
Bulb Specifications .................................... 542C
Carbon Monoxide Gas ............................... 66
Cargo Hooks ............................................. 186
Carrying Cargo ................................. 397, 399
CD Player ........................................... 221, 252
Center Pocket ........................................... 180
Certification Label .................................... 544
Changing Bulbs ........................................ 475
Charging System Indicator ................. 72, 528
Child Safety ................................................. 52
Childproof Door Locks............................. 119
Child Seat .................................................... 52
Booster Seats ............................................ 65
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 60
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 62
Childproof Door Locks ............................. 119
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Climate Control System ............................ 198
Changing the Mode ................................ 198
Defrosting the Windshield and Windows ............................................... 199
Dust and Pollen Filter............................... 504
Recirculation/Fresh Air Mode ................... 198
Sensors ................................................... 203 Using Automatic Climate Control............ 198
Clock ......................................................... 108
Coat Hooks ............................................... 186
Compact Spare Tire .......................... 511, 543
Compass .................................................... 392
Controls .................................................... 107
Coolant (Engine) ...................................... 470
Adding to the Radiator ........................... 471
Adding to the Reserve Tank .................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Creeping (Automatic Transmission) ........ 412
Cruise Control .......................................... 415
Indicator ................................................... 82
Cup Holders .............................................. 181
Customer Service Information ................ 552
Customized Features ......................... 99, 295
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 523
Defrosting the Windshield and Windows ......................................... 196, 199
Detachable Anchor .................................... 35
Devices that Emit Radio Waves ............... 545
Dimming
Headlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
17 US ODYSSEY (KA KC)-31TK86600.book 554 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
