2017 HONDA CLARITY ELECTRIC fuse

509
uuFuses uFuse Locations
Continued
Handling the Unexpected

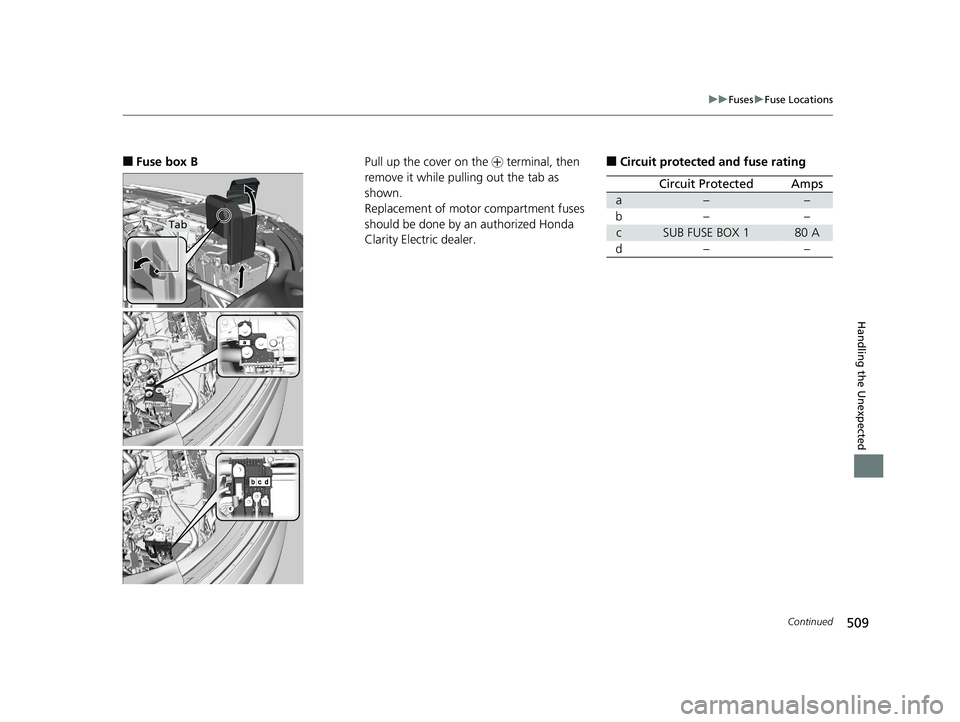

■Fuse box B
Tab
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of motor compartment fuses
should be done by an authorized Honda
Clarity Electric dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
a––
b––
cSUB FUSE BOX 180 A
d– –
17 CLARITY BEV CSS-31TRV6000.book 509 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

510
uuFuses uFuse Locations
Handling the Unexpected

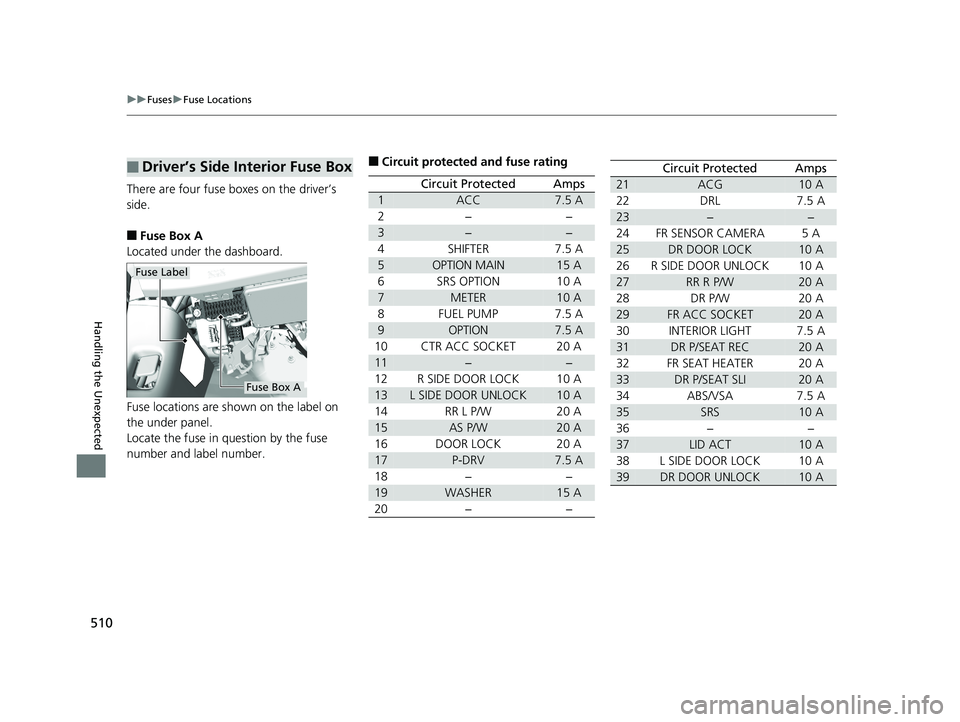

There are four fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box A
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3−−
4SHIFTER7.5 A
5OPTION MAIN15 A
6SRS OPTION10 A
7METER10 A
8FUEL PUMP7.5 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18−−
19WASHER15 A
20−−
Circuit ProtectedAmps
21ACG10 A
22DRL7.5 A
23−−
24FR SENSOR CAMERA5 A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
17 CLARITY BEV CSS-31TRV6000.book 510 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

511
uuFuses uFuse Locations
Continued
Handling the Unexpected

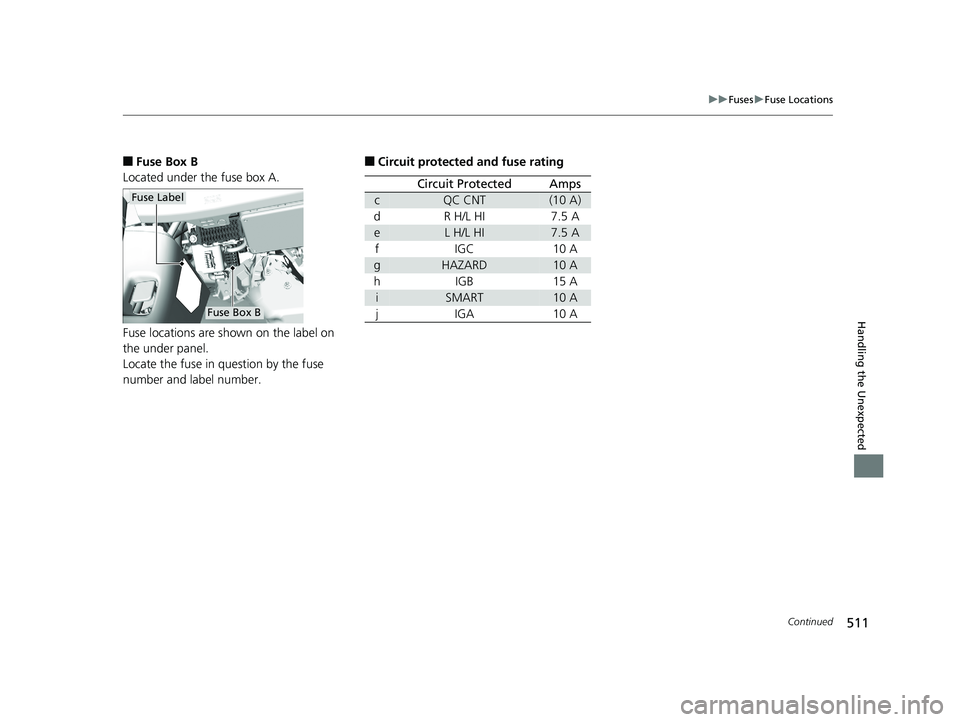

■Fuse Box B
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
Fuse Box B
■Circuit protected and fuse rating
Circuit ProtectedAmps
cQC CNT(10 A)
dR H/L HI7.5 A
eL H/L HI7.5 A
fIGC10 A
gHAZARD10 A
hIGB15 A
iSMART10 A
jIGA10 A
17 CLARITY BEV CSS-31TRV6000.book 511 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

512
uuFuses uFuse Locations
Handling the Unexpected

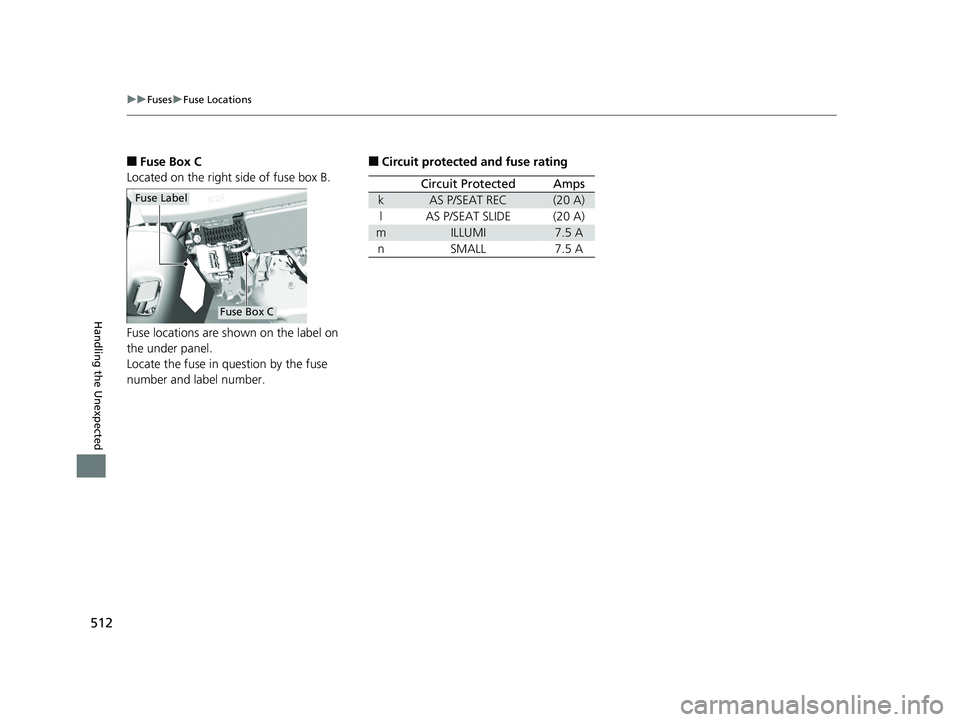

■Fuse Box C
Located on the right side of fuse box B.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
Fuse Box C
■Circuit protected and fuse rating
Circuit ProtectedAmps
kAS P/SEAT REC(20 A)
lAS P/SEAT SLIDE(20 A)
mILLUMI7.5 A
nSMALL7.5 A
17 CLARITY BEV CSS-31TRV6000.book 512 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

513
uuFuses uFuse Locations
Handling the Unexpected

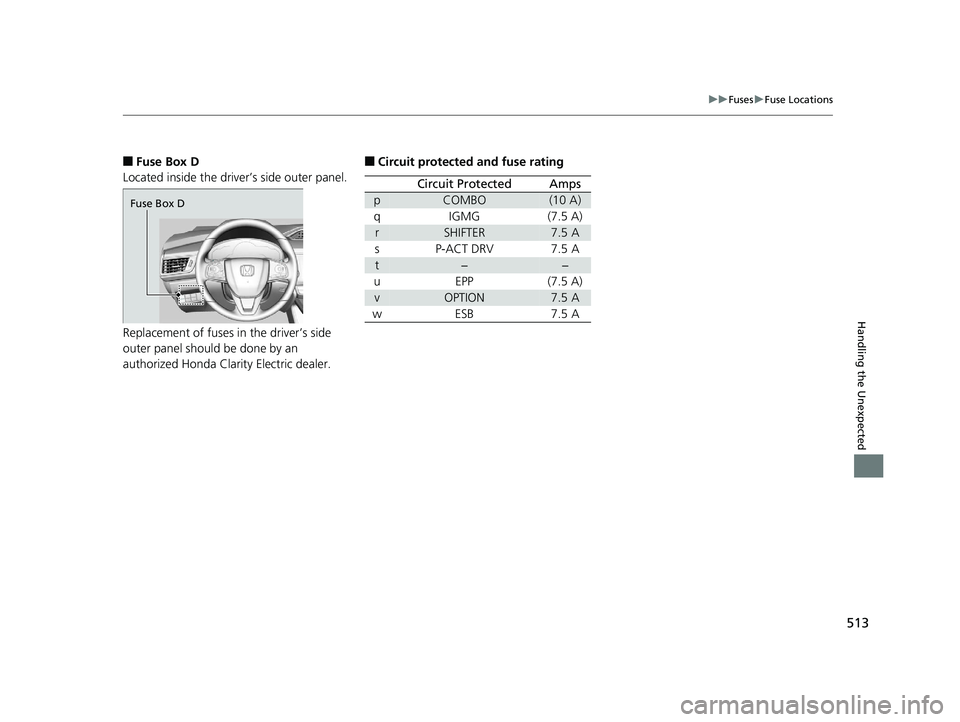

■Fuse Box D
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Honda Clarity Electric dealer.
Fuse Box D
■Circuit protected and fuse rating
Circuit ProtectedAmps
pCOMBO(10 A)
qIGMG(7.5 A)
rSHIFTER7.5 A
sP-ACT DRV7.5 A
t−−
uEPP(7.5 A)
vOPTION7.5 A
wESB7.5 A
17 CLARITY BEV CSS-31TRV6000.book 513 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

514
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Electric
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 508 to 513.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
17 CLARITY BEV CSS-31TRV6000.book 514 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

532
Index
Coolant...................................................... 451
Overheating............................................. 501
Creeping (Transmission) ........................... 354
Cup Holders ............................................... 177
Customer Service Information ................. 528
Customized Features ........................ 126, 280
D
Daytime Running Lights ........................... 156
Dead Battery (12-Volt) ............................. 498
Deceleration Paddle Selector ................... 362
Defrosting the Windshield and
Windows .................................................. 187
Devices that Emit Radio Waves ................ 523
Dimming
Headlights ............................................... 153
Rearview Mirror ....................................... 164
Directional Signals (Turn Signal) .............. 152
Display Button .......................................... 199
Door Mirrors ............................................. 165
Doors ......................................................... 129
Auto Door Locking .................................. 140
Auto Door Unlocking ............................... 140
Door Open Message .................................. 41
Keys ........................................................ 129
Locking/Unlocking the Doors from the
Inside ............................................... 23, 137
Locking/Unlocking the Doors from the Outside .................................................. 131
Lockout Prevention System ...................... 136 DOT Tire Quality Grading
........................ 462
Driver Information Interface ................... 118
Driver’s Knee Airbag .................................. 57
Driving ...................................................... 343
Braking ................................................... 404
Shifting Gear ........................................... 355
Transmission ........................................... 354
Turning on the Power.............................. 350
Driving Position Memory System ............ 161
Dust and Pollen Filter ............................... 471
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 124
ECON Button ............................................ 365
Elapsed Time ............................................. 121
Electric Power Steering (EPS) System Indicator............................................ 88, 504
Electric Vehicle Precautions ....................... 13
Electricity Consumption and Driving Range ........................................................ 17
Electricity Consumption Indicator
(ENERGY USAGE) .................................... 117
Electronic Stability Control (ESC) ............. 395
Emergency ................................................ 515
Energy Instant Energy Economy .......................... 121
Range ..................................................... 114
Energy Economy ....................................... 439 EPS (Electric Power Steering) System
........ 88
Expanded View Driver’s Mirror ............... 165
Exterior Care (Cleaning) .......................... 474
Exterior Mirrors ........................................ 165
F
Features.................................................... 191
Filters Dust and Pollen....................................... 471
Flat Tire ..................................................... 482
Floor Mats ................................................ 473
Fluids
Brake ...................................................... 452
Coolant .................................................. 451
Transmission ........................................... 452
Windshield Washer ................................. 453
FM/AM Radio ........................................... 229
Foot Brake ................................................ 406
Front Airbags (SRS) .................................... 53
Front Seat Heaters ................................... 181
Front Seats ................................................ 166
Adjusting ................................................ 166
Front Sensor Camera ............................... 367
Fuses ......................................................... 508
Inspecting and Changing ........................ 514
Locations ........................................ 508, 510
G
Gauges ...................................................... 114
17 CLARITY BEV CSS-31TRV6000.book 532 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

535
Index
O
Odometer................................................. 120
Open Source Licences .............................. 279
Opening Trunk ...................................................... 518
Opening/Closing Hood ...................................................... 450
Power Windows...................................... 147
Trunk ...................................................... 141
Operating the Switches Around the Steering Wheel ....................................... 149
Outside Temperature Display ................. 120
Overheating ............................................. 501
P
Painting the Vehicle ................................ 477
Pandora ®.................................................. 248
Panic Mode ............................................... 146
Parking ..................................................... 419
Parking Brake ........................................... 404
Parking Brake and Brake System Indicator (Red) ........................................ 505
Passenger Front Airb ag Off Indicator....... 63
Passing Indicators ..................................... 153
Playing Bluetooth ® Audio ....................... 253
POWER Button ......................................... 149
Power System Turning on .............................................. 350
POWER SYSTEM Indicator ......................... 83
Power Windows ....................................... 147 POWER/CHARGE Gauge
........................... 115
Precautions While Driving
Rain ......................................................... 353
Pregnant Women ....................................... 48
Puncture (Tire) .......................................... 482
R
Radio (FM/AM).......................................... 229
Radio (SiriusXM ®) ..................................... 233
Radio Data System (RDS) .......................... 231
Range ........................................................ 114
Range Display ........................................... 123
RDS (Radio Data System) .......................... 231
READY Indicator ......................................... 84
Rear Defogger Button .............................. 160
Rear Seats .................................................. 171
Rearview Mirror ........................................ 164
Regenerative Energy and Regenerative Braking ...................................................... 16
Regulations ....................... 400, 434, 462, 523
Remote Transmitter ................................. 135
Replacement Battery .................................................... 470
Bulbs ....................................................... 454

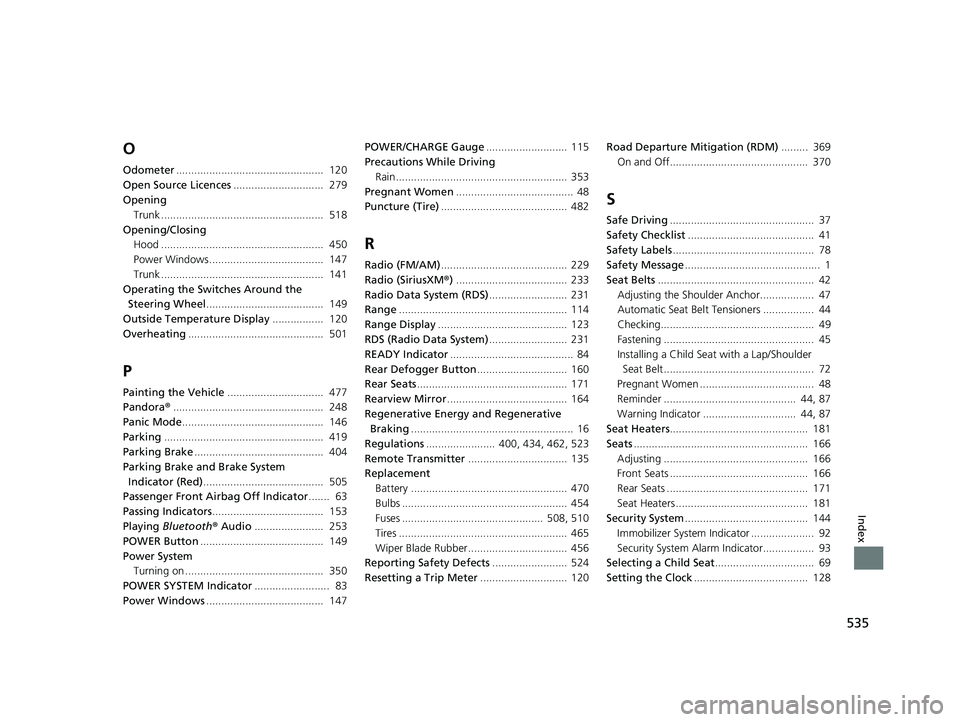

Fuses ............................................... 508, 510
Tires ........................................................ 465
Wiper Blade Rubber ................................. 456
Reporting Safety Defects ......................... 524
Resetting a Trip Meter ............................. 120 Road Departure Mitigation (RDM)
......... 369
On and Off.............................................. 370
S
Safe Driving ................................................ 37
Safety Checklist .......................................... 41
Safety Labels ............................................... 78
Safety Message ............................................. 1
Seat Belts .................................................... 42
Adjusting the Shoulder Anchor.................. 47
Automatic Seat Belt Tensioners ................. 44
Checking................................................... 49
Fastening .................................................. 45
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Pregnant Women ...................................... 48
Reminder ............................................ 44, 87
Warning Indicator ............................... 44, 87
Seat Heaters .............................................. 181
Seats .......................................................... 166
Adjusting ................................................ 166
Front Seats .............................................. 166
Rear Seats ............................................... 171
Seat Heaters ............................................ 181
Security System ......................................... 144
Immobilizer System Indicator ..................... 92
Security System Alarm Indicator................. 93
Selecting a Child Seat ................................. 69
Setting the Clock ...................................... 128
17 CLARITY BEV CSS-31TRV6000.book 535 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分
