2017 FIAT TALENTO Owner handbook (in English)

Combi 5 seats
check the airbag status before settling a passenger in or installing a child seat.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal".
: seat where installing a child seat is prohibited.
191T36605
103

The following table has the same information as the previous diagram to show how to respect current laws.
5-seater combi versions
Child restraint systems The child's weightFront passenger seat
(1) (2)Rear side seat Rear central seat
Central cotGroup 0 < to 10 kg XU (3)
U (3)
U (3)
Child restraint seat
facing backwards
Groups 0 and 0+ Child restraint seat
facing backwards
Groups 0 and 1+ 18 kgU U (4) U (4)
Child seat facing
forwardGroup 1from9to18kg X U(5) U(5)
Booster seatGroups
2 and 3from 15 to 25 kg and
from 22 to 36 kgX U (5) U (5)
X: seat not authorised to install a child restraint of this type.
U: seat allowing fastening with seat belt for an approved child seat like "Universal"; check possible installation.
(2): position the vehicle's seat as far back and as high as possible, then slightly incline the backrest (about 25°).
(3): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(4): move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back
to maximum so it does not come into contact with the child seat.
(5): child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child seat (please see the
paragraph "Rear headrest" in chapter "Knowing your vehicle"). Do not move the seat in front of the child back more than half
the distance and do not incline it more than 25°.
104
SAFETY

Combi 6 seats
check the airbag status before settling a passenger in or installing a child seat.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal";
: seat where installing a child seat is prohibited.
192T36603
105

The following table has the same information as the previous diagram to show how to respect current laws.
6-seater combi versions
Child restraint
systemsThe child's weightPassenger front seat Rear seat
Central - - Central
Central cotGr
oup 0 < to 10 kg X X U (2) U (2)
Child restraint seat
facing backwards
Groups 0 and 0+ Child restraint seat
facing backwards
Groups 0 and 1+ 9to18kgX U U (3) U (3)
Child seat facing
forwardGroup 1from 9 to 18 kg X X U (4) U (4)
Booster seat
Groups 2 and 3from 15 to 25 kg and
from 22 to 36 kgX X U (4) U (4)
X: seat not authorised to install a child restraint of this type.
U: seat allowing fastening with seat belt for an approved child seat like "Universal"; check possible installation.
(2): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(3): move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back
to maximum so it does not come into contact with the child seat.
(4): child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child seat (please see the
paragraph "Rear headrest" in chapter "Knowing your vehicle"). Do not move the seat in front of the child back more than half
the distance and do not incline it more than 25°.
106
SAFETY

Combi/bus 8 seats
check the airbag status before settling a passenger in or installing a child seat.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal".
: seat where installing a child seat is prohibited.
193T36604
107

The following table has the same information as the previous diagram to show how to respect current laws.
Combi/bus version 8 seats
Child restraint
systemsThe child's
weightFront passenger
seat (1) (2)Rear seat
Side 2nd row Centre 2nd row Side 3rd row Centre 3rd row
Transverse cot
Gr
oup 0< to 10 kg X U (3) U (3) U (3) U (3)
Child restraint
seat facing
backwards
Groups 0 and 0+< to 13 kg U U (4) U (4) U (4) U (4)
Child restraint
seat facing
backwards
Groups 0 and 1+ from9to18kgU U (4) U (4) U (4) U (4)
Child seat
facing forward
Group 1from 9 to 18 kg X U (5) U (5) U (5) U (5)
Booster seat
Groups 2 and 3from 15 to 25 kg
and from 22 to
36 kgU U (5) U (5) U (5) U (5)
X: seat not authorised to install a child restraint of this type.
U: seat allowing fastening with seat belt for an approved child seat like "Universal"; check possible installation.
(2): position the vehicle's seat as far back and as high as possible, then slightly incline the backrest (about 25°).
(3): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(4): move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back
to maximum so it does not come into contact with the child seat.
(5): child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child seat (please see the
paragraph "Rear headrest" in chapter "Knowing your vehicle"). Do not move the seat in front of the child back more than half
the distance and do not incline it more than 25°.
108
SAFETY

Combi/bus 9 seats
check the airbag status before settling a passenger in or installing a child seat.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal".
: seat where installing a child seat is prohibited.
194T36602
109

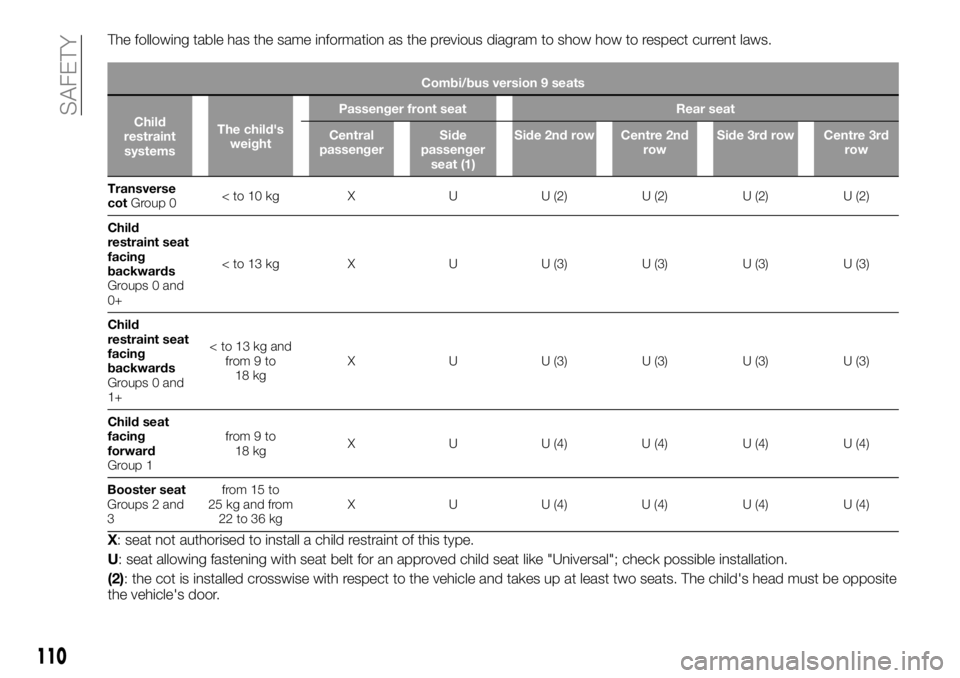

The following table has the same information as the previous diagram to show how to respect current laws.
Combi/bus version 9 seats
Child
restraint
systemsThe child's
weightPassenger front seat Rear seat
Central
passengerSide
passenger
seat (1)Side 2nd row Centre 2nd
rowSide 3rd row Centre 3rd
row
Transverse
cotGroup 0< to 10 kg X U U (2) U (2) U (2) U (2)
Child
restraint seat
facing
backwards
Groups 0 and
0+< to 13 kg X U U (3) U (3) U (3) U (3)
Child
restraint seat
facing
backwards
Groups 0 and
1+ from 9 to
18 kgX U U (3) U (3) U (3) U (3)
Child seat
facing
forward
Group 1from 9 to
18 kgX U U (4) U (4) U (4) U (4)
Booster seat
Groups 2 and
3from 15 to
25 kg and from
22 to 36 kgX U U (4) U (4) U (4) U (4)
X: seat not authorised to install a child restraint of this type.
U: seat allowing fastening with seat belt for an approved child seat like "Universal"; check possible installation.
(2): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
