2017 FIAT TALENTO Owner handbook (in English)

FRONT PASSENGER SIDE
AIR BAG AND CHILD
RESTRAINT
Deactivation of the front passenger
air bags (for vehicles that allow it)
110) 111)
To install a child restraint on the front
passenger seat, you must deactivate
the complements to the front
passenger safety devices.
To deactivate the air bags: with the
vehicle stopped, contact disengaged,
push and turn stop 1 fig. 180 to the
OFF position.
With contact inserted, you must check
that the warning light
on display
panel 2 fig. 181 is on and, depending
on the vehicle version, the appropriate
message appears.This light stays on permanently to
confirm that you can install a child
restraint system on the passenger seat.
The printing on the dashboard and
labels A fig. 182 and fig. 183 on each
side of the passenger’s sun visor 3
fig. 182, remind you of these
instructions.Front passenger air bag activation
When the child restraint is no longer in
use, reactivate the air bag to ensure
front passenger protection in case of an
accident.
Reactivating the airbags: with the
vehicle stopped, contact disengaged,
push and turn stop 1 fig. 184 to the ON
position. With starter switch on, you
must check that the warning light
is
off and that the lighton the display
panel 2 fig. 185 turns on for about
1 minute each time you turn the engine
on.
180T36502
181T36500
182T36505
183T35770
95

The safety devices complementary to
the front passenger seat belt have to be
activated.
Functioning defects
If the activation/deactivation system for
the front passenger air bags is not
functioning, you cannot install the child
restraint on the front seat with the head
facing rear. We advise you also not to
travel with passengers seated there.Contact a Fiat Dealership as soon as
possible.
WARNING
100)The air bag system uses a
pyrotechnical principle, meaning that its
activation produces heat, emits smoke
(that does not mean fire) and generates an
explosive sound. Air bag deployment,
which should be immediate, can cause
skin injuries or other problems.
101)Do not attach any object (pins, logos,
watches, phone support, etc.) to the
steering wheel.
102)The steering wheel must not be
covered in any way.
103)Dismantling the steering wheel is
prohibited (except by a qualified Fiat
Dealership technician).
104)Do not drive to close to the steering
wheel: adopt a driving position with your
arms slightly bent. This position will ensure
a sufficient distance for the air bag to
deploy efficiently.
105)Do not glue anything (pins, logos,
watches, phone supports, etc.) to the
dashboard near the airbag.
106)Do not place anything (animals,
umbrella, cane, boxes, etc.) between the
dashboard and the passenger.
107)Do not rest your feet on the
dashboard or the seat: these positions
could cause serious injuries. In general,
keep all parts of the body (knees, hands,
head, etc.) away from the dashboard.108)The passenger air bag only protects
the side front seat passenger; the centre
front seat passenger is only protected by
the seat belt. We recommend you respect
normal safety regulations (fasten your seat
belt). There may be serious injuries in the
event of an accident.
109)The passenger airbag must be
activated/deactivated when the vehicle is
stationary. If deactivated while driving, the
andwarning lights turn on. To turn
these lights off, you need to deactivate
then reactivate the passenger air bag again
when the vehicle is stopped.
110)When the child restraint is no longer in
use, reactivate the front seat belt
complementary safety devices to ensure
front passenger protection in case of an
accident. Installing a rear-facing child
restraint system on the front passenger is
prohibited until the front seat belt
complementary safety devices have been
deactivated (refer to the "Passenger side
airbag and child restraint systems – how to
deactivate the airbags" paragraph in the
"Knowing your vehicle” chapter).
111)Because of the incompatibility of the
front passenger air bag deployment and
the positioning of a child seat facing
forward, NEVER INSTALL a child restraint
system facing backwards on a seat
equipped with FRONT AIRBAG
ACTIVATION. It could result in a CHILD'S
DEATH or could SERIOUSLY INJURE
him/her.
184T36501
185T36500
96
SAFETY

SIDE AIR BAGS
SIDE AIRBAGS(For versions/markets where provided)
These are air bags that can be installed
in the front seats and inflate to the side
of the seat (door side) in order to
protect the car's occupants in the event
of a violent side collision.
DRIVER'S AIR BAG(For versions/markets where provided)
These are air bags on each upper side
of the vehicle. They inflate along the
front door side windows to protect the
occupants in case of a violent side
collision.
Warnings concerning the side air
bag
112) 113) 114) 115) 116) 117) 118) 119)
21)
4)
WARNING
112)When you lend or re-sell the vehicle,
tell the new owner of these conditions for
use and hand over this owner handbook.
113)Installing seat covers: seats equipped
with airbags require covers specifically
made for the vehicle. Consult a Fiat
Dealership. Using any other liner (or liners
specific to another vehicle) could cause
these airbags to function incorrectly and
jeopardise the occupants' safety.114)Never place an accessory, an object
or an animal between the backrest, the
door and interior coverings. Do not cover
the seat backrest with items like clothing or
accessories. These could cause the airbag
to function incorrectly or cause injury when
the airbag deploys.
115)Any dismantling or changes made to
the seats and their coverings is prohibited,
except if done by qualified Fiat Dealership
personnel.
116)The airbag was conceived to
complement the seat belt. The airbag and
seat belt together constitute inseparable
components to the same protective
system. Therefore, you always need to
fasten your seat belt. Not fastening them
can put the vehicle's occupants at risk of
aggravated injury and can increase injury
risk caused by deployment of the airbag
itself.
117)Seat belt pre-tensioner and airbag
deployment in case the vehicle flips over or
a violent rear collision is not systematic.
Collisions beneath the vehicle, like hitting a
curbstone, road unevenness, stones, etc.,
can cause the system to deploy.
118)Any intervention or modification to the
complete airbag system (airbag,
pre-tensioners, electronic modules, wiring,
etc.) is severely prohibited (except by
qualified Fiat Dealership personnel).
119)For safety reasons, check the airbag
system after the vehicle has undergone an
accident, theft or attempted theft.
IMPORTANT
21)To maintain correct operation and to
prevent accidental deployment, only
qualified Fiat Dealership personnel can
intervene on the airbag system.
IMPORTANT
4)When the vehicle is scrapped, contact a
Fiat Dealership to have the gas generator
removed.
97

CHILD PROTECTION
SYSTEMS
CARRYING CHILDREN
SAFELY
120) 121) 122) 123) 124) 125) 126) 128) 129) 130)
A child, just like any adult, must be
seated properly with their seat belt
attached regardless of the trip. You are
responsible for children while they are
being carried.
A child is not a miniature adult. He/she
is exposed to specific injuries because
his/her muscles and bones are not fully
developed. A seat belt alone is not
sufficient for carrying children. Use an
appropriate child restraint system and
use it correctly.
Using child restraint systems
The level of protection offered by a child
restraint system depends on its ability
to hold the child and on its installation.
Incorrect installation compromises a
child's protection in case of abrupt
braking or collision.
Before buying a child restraint system,
make sure that it conforms to the
regulations of the country where you
are and where it will be installed in the
vehicle. Contact a Fiat Dealership to
know which child seats are
recommended for vehicles.
Before installing the child restraint
system, read the handbook and follow
the instructions in it. If you have anddifficulty during installation, contact the
child restraint system manufacturer.
Keep the instructions with the child
restraint system.
IMPORTANT Teach the child to:
fasten it properly;
get in and out of the vehicle on the
side opposite traffic.
Do not use child seat that are on sale or
do not have a handbook. Make sure no
object, in the seat or nearby, gets in the
way of its installation.
CHOICE OF CHILD RESTRAINT
SEAT
Child seats facing backwards
In proportion, a child's head is heavier
that an adult's and his/her neck is very
fragile.
Transport a child this way as long as
possible (up to at least 2 years old). It
supports the head and neck fig. 186.
Select an encompassing child seat for
better side protection and replace it when
the child's head is higher than the seat.
Child seats facing forwards
A child's head and abdomen are the
main parts of the body that need
protecting. A forward-facing child
restraint system that is solidly fastened
to the vehicle reduces the risk of hitting
the head.
Move the child to a forward-facing child
restraint system as soon as his/her size
allows it. For better side protection,
choose an encompassing child restraint
system fig. 187.
Booster seats
From 15 kg or 4 years up, a child can
travel on a booster seat that adapts the
seat belt to his/her shape fig. 188. The
booster seat must have guides that
position the belt on his/her thighs and
not on the stomach.
186T31235
187T38824
98
SAFETY

The height-adjustable backrest and
seat belt track is recommended to
position the belt at the centre of the
shoulder. It must never rest on the neck
or arm. Choose an encompassing child
seat for better side protection.
INSTALLING A CHILD RESTRAINT
SEAT
Some child seats cannot be installed.

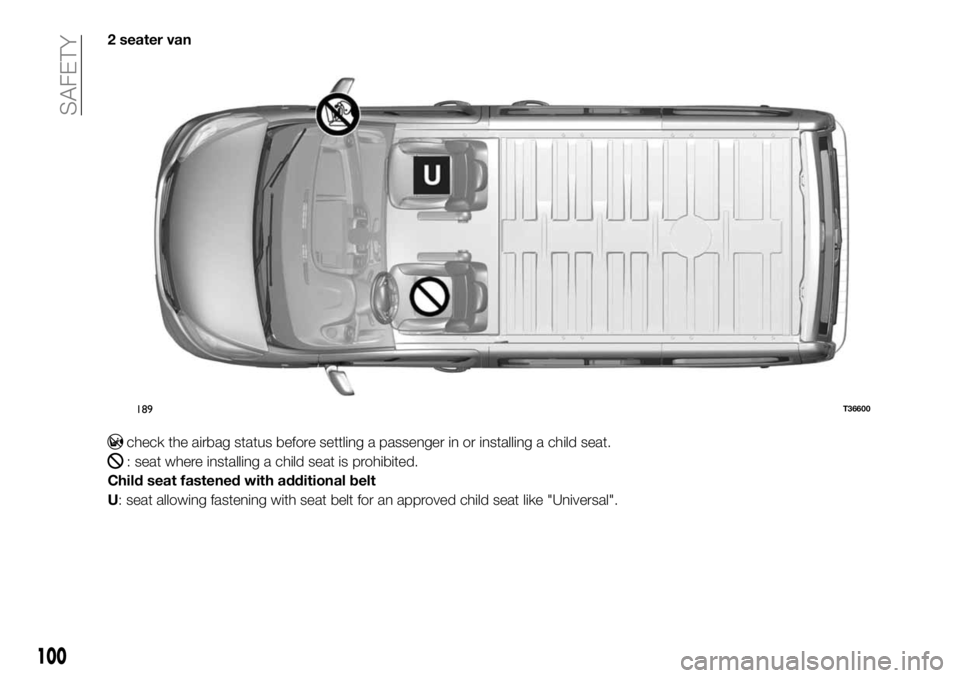

The diagrams on the following pages
show the child seat attachment
position.
Before using a child restraint system,
make sure that it can be fitted.
In the front seat
Carrying children in the front passenger
seat is country-specific. Check with the
current laws and follow the indications
in the following diagram.
Before installing a child seat in this seat
(if authorised):
lower the seat belt completely;
move the seat back completely;
incline the backrest slightly (about
25°);
for vehicles that are able to do so,
raise the seat as high as possible.
Raise headrest as far up as possible so
that it does not interfere with the child
restraint system (refer to the "Front
headrest" paragraph in the "Knowing
your vehicle” chapter).
After installing the child seat, you can
move the seat forwards again (to leave
enough space in the rear for other
passengers or child seats). With a
rear-facing child restraint system, it
should not touch the dashboard or
anything in front of it.
Do not change any other adjustments
after installing the child seat.
In the rear side seat
The cot is installed crosswise with
respect to the vehicle and takes up at
least two seats. Place the child's head
opposite the door. Move the front seat
as far forward as possible to install the
child seat backwards from driving
direction, then move it back to
maximum so it does not come into
contact with the child seat.
For the safety of children who are facing
forward, do not move the seat in front
of the child back farther than the centre
of its travel, do not incline the backrest
excessively (25° at most) and raise the
seat up as far as possible.Remove the headrest from the rear seat
with the child restraint system on it
(refer to the "Rear headrest" paragraph
in the "Knowing your vehicle” chapter).
This must be done before positioning
the child seat.
Make sure that the forward-facing child
restraint system is resting against the
seat backrest.
In the rear central seat
Make sure the seat belt is adapted to
your child seat. Consult a Fiat
Dealership.
127)
FITTING A CHILD
RESTRAINT SYSTEM
WITH SEAT BELTS
128) 129)
The seat belt must be adjusted to
ensure it works in case of abrupt
braking or collision. Comply with the
belt direction indicated by the child
restraint system manufacturer.
Check that the seat belt is fastened
correctly.
Check that the child seat is correctly
locked in place by moving it left/right
and forwards/backwards: the seat
should remain firmly in place. Make sure
that the child restraint system is not
installed crosswise and is not resting
against a window.
188T31234
99

2 seater van
check the airbag status before settling a passenger in or installing a child seat.
: seat where installing a child seat is prohibited.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal".
189T36600
100
SAFETY

3 seater van
check the airbag status before settling a passenger in or installing a child seat.
: seat where installing a child seat is prohibited.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal".
190T36601
101

The following table has the same information as the previous diagrams to show how to respect current laws.
Van version with 2 or 3 seats
Child restraint systems The child's weightFront passenger seat(s) (2)
With single passenger
seat (1)With 2 single seats
Central seat Side seat
Child restraint seat
facing
backwards
Groups 0, 0+ and 1 18 kgUXU
Child seat facing
forwardGroup 1from9to18kg U X U
Booster seatGroups
2 and 3from 15 to 25 kg and
from 22 to 36 kgUXU
X: seat not authorised to install a child restraint of this type.
U: seat allowing fastening with seat belt for an approved child seat like "Universal"; check possible installation.
(1): child seat facing forward: position the child seat backrest in contact with the seat backrest. Remove the headrest. Position
the vehicle's seat as far back and as high as possible, then slightly incline the backrest (about 25°).
(2) RISK OF DEATH OR SERIOUS INJURY.Before installing a rear-facing child restraint system in the front passenger seat,
check that the air bag has been correctly deactivated (refer to the "Passenger side airbag and child restraint systems – how to
deactivate the airbags" paragraph in this chapter).
102
SAFETY
