2017 FIAT QUBO technical data

Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/h
Maximum speed index for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (capacity)
Load index (capacity)
60 = 250 kg 84 = 500 kg
61 = 257 kg 85 = 515 kg
62 = 265 kg 86 = 530 kg
63 = 272 kg 87 = 545 kg
64 = 280 kg 88 = 560 kg
65 = 290 kg 89 = 580 kg
66 = 300 kg 90 = 600 kg
Load index (capacity)
67 = 307 kg 91 = 615 kg
68 = 315 kg 92 = 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94 = 670 kg
71 = 345 kg 95 = 690 kg
72 = 355 kg 96 = 710 kg
73 = 365 kg 97 = 730 kg
74 = 375 kg 98 = 750 kg
75 = 387 kg 99 = 775 kg
76 = 400 kg 100 = 800 kg
77 = 412 kg 101 = 825 kg
78 = 425 kg 102 = 850 kg
79 = 437 kg 103 = 875 kg
80 = 450 kg 104 = 900 kg
81 = 462 kg 105 = 925 kg
82 = 475 kg 106 = 950 kg
83 = 487 kg
218
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

CORRECT READING OF THE RIM CODE
Example: 5 1/2J x 14 H2 ET 44(see fig. 197)
5 1/2rim width in inches (1).
Jprofile of the flange (side projection where the tyre
bead rests) (2).
14rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2shape and number of humps (circumference
measurement which keeps the bead of tubeless
tyres in position on the rim).
ET 44wheel camber (distance between the disc/rim
support plane and the wheel rim centre
line).RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector fig. 198. Use of unsuitable
tyres and wheel caps may cause sudden
decrease of tyre pressure.

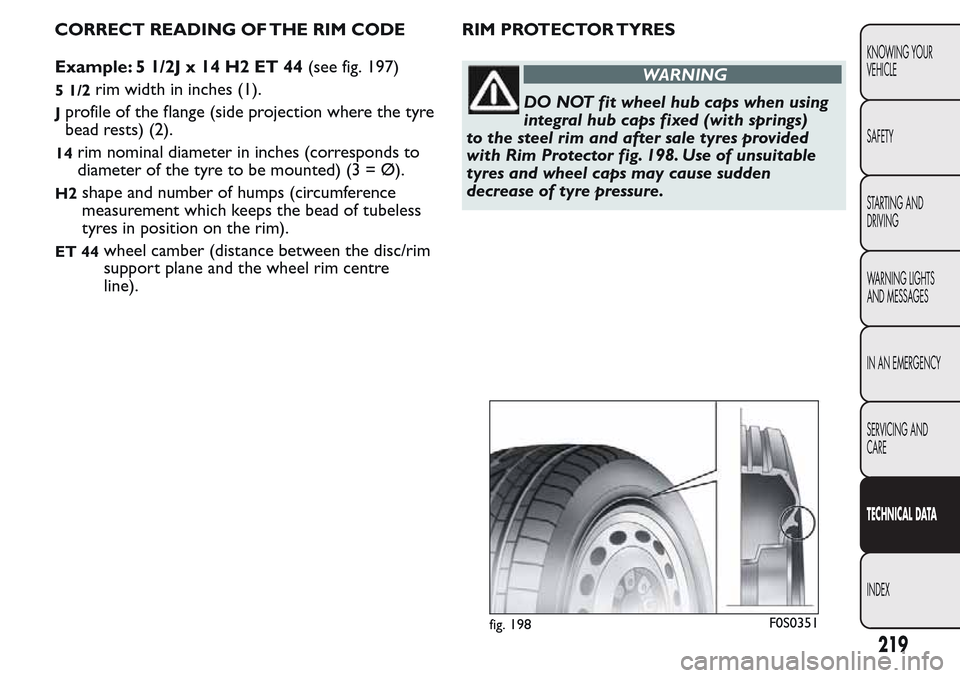

fig. 198F0S0351
219
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

RIMS AND TYRES PROVIDED
Versions Wheels Tyres provided Snow tyres
Spare wheel(*) Rim - Tyre
1.4 Euro 66Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)185/65 R15(**)
1.3 Multijet Euro
66Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
185/65 R15T
(M+S)
(***)6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)185/65 R15(**)
(*) (for versions/markets, where provided)
(**) Follow the IMPORTANT note below for correct use of the space-saver spare wheel.
(***) QUBO Trekking versions
WARNING
Never use the space-saver spare wheel for more than strictly necessar y and never exceed 80
km/h. On the space-saver wheel there is an orange label, summarising the main warnings
regarding usage restrictions. Never remove or cover the label.The label gives the following
information in four languages: Caution! For temporary use only! 80 km/h max.! Replace by standard
wheel as soon as possible. Do not cover this label in use.
220
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

COLD TYRE INFLATION PRESSURE (bar)
MeasurementTYRES PROVIDED
SPARE
WHEEL
(*)No load Medium load Full load
Front Rear Front Rear Front Rear
185/65 R15
88T2.3 2.2 2.3 2.1 2.3 2.5
2.5
195/55 R16
87T2.3 2.1 2.3 2.1 2.4 2.4
(*) (for versions/markets, where provided)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure.
However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
When running at speeds over 160 km/h, inflate tyres at full-load pressures.
221
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Qubo
versions3957 854 2513 5901735/1803
(*)1462 1716 1464
Qubo
Trekking
versions3971 854 2513 6041742/1810
(*)1464 1716 1465
(*)With roof bars (for versions/markets where provided)
fig. 199F0T0301
222
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Small variations in size are possible depending on the dimensions of the rims.
PERFORMANCE
Top speed permitted after initial period of use (km/h).
Versions km/h
1.4 Euro 6155
1.3 16V Multijet 80 HP Euro 6 161
1.3 16V Multijet 95 HP Euro 6 167
223
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

WEIGHTS
Weights (kg)1.4 Euro 6 1.3 16V Multijet 80 HP Euro 6
M1 versions
(5 seats)N1 "Minimum"
versions (4
seats)N1 "Maximum"
versions (4
seats)M1 versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1180 1205 1300 1200
Payload including the driver: 510 550 455 510
Payload excluding the driver: 440 475 380 440
Maximum permitted loads
(**)
- front axle: 950 950 950 950
– rear axle: 950 950 950 950
- total: 1690 1755 1755 1710
Towable loads
- braked trailer: 600 1000 1000 1000
- non-braked trailer: 400 400 400 400
Maximum load on the roof (with roof
rack bars)
(***)70 70 70 70
Maximum load on ball joint (braked
trailer):60 60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NoteTrekking versions have the same capacities as the other versions.
