To put the headrests away, press buttons A
fig. 36fig. 37 and push them down into the backrest.
To extract the headrests, raise them until you hear
the click (which indicates they are in "all extracted"
position).IMPORTANT The headrests must always be in the
"all extracted" position when the rear seats are
in use.
fig. 36F0T0054
fig. 37 - N1 versions (4 seats)F0T0341
42
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

STEERING WHEEL
The height and axial position of the steering wheel
can be adjusted on some versions.
To carry out the adjustment, proceed as follows:
release lever A fig. 38 by pushing it forwards
(position 1);
adjust the steering wheel;
lock lever A by pulling it towards the steering
wheel (position 2).
WARNING
All adjustments must be carried out only
with the vehicle stationary and the
engine off.
WARNING
It is absolutely forbidden to carr y out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could badly affect performance and
safety, invalidate the warranty and also result
in the vehicle failing to comply with regulations.
fig. 38F0T0040
43
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

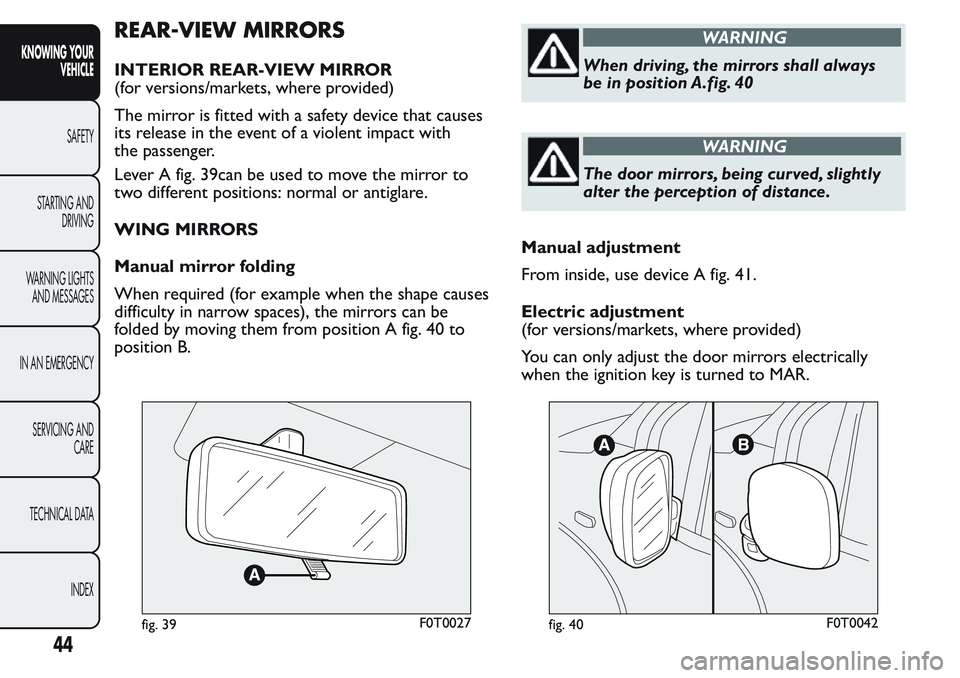

REAR-VIEW MIRRORS
INTERIOR REAR-VIEW MIRROR
(for versions/markets, where provided)
The mirror is fitted with a safety device that causes
its release in the event of a violent impact with
the passenger.
Lever A fig. 39can be used to move the mirror to
two different positions: normal or antiglare.
WING MIRRORS
Manual mirror folding
When required (for example when the shape causes
difficulty in narrow spaces), the mirrors can be
folded by moving them from position A fig. 40 to
position B.
WARNING
When driving, the mirrors shall always
be in position A.fig. 40
WARNING
The door mirrors, being curved, slightly
alter the perception of distance.
Manual adjustment
From inside, use device A fig. 41.
Electric adjustment
(for versions/markets, where provided)
You can only adjust the door mirrors electrically
when the ignition key is turned to MAR.
fig. 39F0T0027fig. 40F0T0042
44
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Proceed as follows:
select the required mirror with switch A fig. 42
(right or left);
move switch A to position B and manipulate it to
adjust the left wing mirror;
move switch A to position D and manipulate it to
adjust the right wing mirror.
Once you have finished the adjustment, return switch
A to intermediate locking position C.
fig. 41F0T0194
fig. 42F0T0041
45
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

HEATING AND VENTILATION
SYSTEM
AIR VENTS
1. Upper fixed vent 2. Adjustable central vents 3. Fixed side vents 4. Adjustable side vents 5. Foot well vents
fig. 43F0T0148
46
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

CENTRAL AND SIDE VENTS
A Adjustable side vent fig. 44
B Side window fixed vent fig. 44
C Adjustable central ventsfig. 45
To use vents A and C, adjust them as required.HEATING AND VENTILATION
COMMANDS
The main heating and ventilation commands are
listed below fig. 46:
Aair temperature adjustment knob (hot/cold air
mixing)
Bair recirculation on/off slider
Cfan activation knob
Dair distribution knob.
TEMPERATURE COMFORT
Knob D enables fresh air to reach all parts of the
passenger compartment through five options:
delivers air from the central and side vents;
warms the feet and keeps the face cool (bi-level
function)
fig. 44F0T0031
fig. 45F0T0030fig. 46F0T0074
47
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

allows the passenger compartment to be
warmed more quickly;
warms up the passenger compartment and
demists the windscreen at the same time;
demists and defrosts the windscreen and front
side windows.
HEATING
Proceed as follows:
turn knob A all to the right (to)
turn knob C to the required speed
turn knob D to:
to warm the feet and demist the windscreen at
the same time
to send air to the feet and introduce fresher
air from the central and dashboard vents
to warm up quickly.
FAST HEATING
Proceed as follows:
close all the vents in the dashboard
turn knob A to
turn knob C to 4
turn knob D to
RAPID WINDSCREEN AND FRONT SIDE
WINDOWS DEMISTING/DEFROSTING
(MAX-DEF function)
Proceed as follows:
turn knob A to
turn knob C to 4
turn knob D to
take the slider B to.
After demisting/defrosting, operate the controls as
normal to restore the required comfort conditions.
Window demisting
In the event of considerable external moisture
and/or rain and/or large differences in the
temperature inside and outside the passenger
compartment, perform the following preventive
window demisting procedure:
take the slider B to
turn knob A to
turn knob C to 2
turn knob D towith the option of moving to
position
if there is no sign of the windows
steaming up.
REGULATING THE FAN SPEED
To ventilate the passenger compartment properly,
proceed as follows:
fully open the central and side air vents
48
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

knob A turned to blue section
take the slider B to
turn knob C to the required speed
turn knob D to
INTERNAL AIR RECIRCULATION
ACTIVATION
Take the slider B to
.
It is advisable to switch the internal air recirculation
on while standing in queues or in tunnels to prevent
the introduction of polluted air.
Do not use the function for a long time, particularly
if there are several passengers on board, to prevent
the windows from steaming up.
IMPORTANT The internal air recirculation system
makes it possible to reach the required heating
or cooling conditions more quickly. Do not use the
internal air recirculation function on rainy/cold
days to avoid the possibility of the windows misting.
DEMISTING/DEFROSTING OF HEATED
REAR WINDSCREEN AND DOOR MIRRORS
(for versions/markets, where provided)
Press button
fig. 47 to activate the function. The
LED on the button comes on to indicate activation.
Press
again to disable the function in advance.IMPORTANT Do not apply stickers on the inside of
the rear window over the heating filaments to avoid
damage that might cause it to stop working properly.
SUPPLEMENTARY HEATER
(for versions/markets, where provided)
This device warms up the passenger compartment
more quickly when it is very cold and the engine
coolant temperature is low.
The additional heater comes on automatically when
the engine is started, if knob A is turned to the
last red sector and the fan (knob C) is at least at the
first speed level.
The additional heater turns off automatically after
reaching the required comfort conditions.
IMPORTANT The heater will not turn on if the
battery voltage is too low.
fig. 47F0T0048
