2017 FIAT DOBLO COMBI Type of bulb

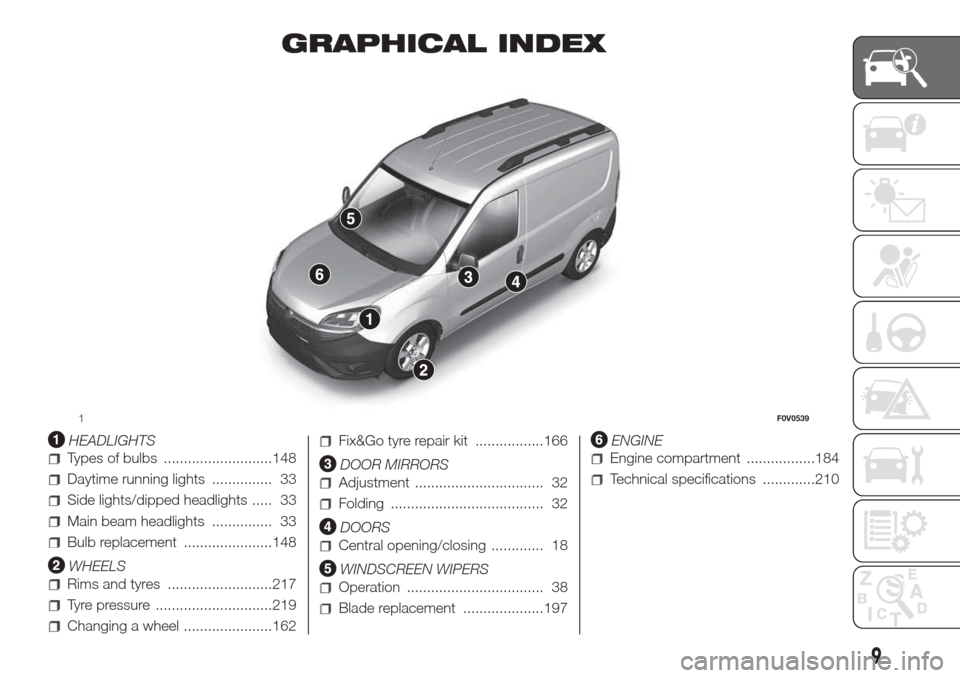

GRAPHICAL INDEX
.
HEADLIGHTS
Types of bulbs ...........................148
Daytime running lights ............... 33
Side lights/dipped headlights ..... 33
Main beam headlights ............... 33
Bulb replacement ......................148
WHEELS
Rims and tyres ..........................217
Tyre pressure .............................219
Changing a wheel ......................162
Fix&Go tyre repair kit .................166
DOOR MIRRORS
Adjustment ................................ 32
Folding ...................................... 32
DOORS
Central opening/closing ............. 18
WINDSCREEN WIPERS
Operation .................................. 38
Blade replacement ....................197
ENGINE
Engine compartment .................184
Technical specifications .............210
1F0V0539
9

.
REAR LIGHTS
Types of bulbs ...........................148
Bulb replacement ......................152
LOAD COMPARTMENT
Opening/closing ........................ 20
THIRD BRAKE LIGHT
Types of bulbs ...........................148
Bulb replacement ......................152
PARKING SENSORS
Operation ..................................139
LUGGAGE CARRIER
Setup ........................................ 64
Longitudinal roof bars ................ 64
.
2F0V0540
10
GRAPHICAL INDEX

HAZARD WARNING
LIGHTS
They are turned on by pressing switch
A fig. 157, regardless of the position
of the ignition key. Warning lights
andare lit up in the instrument
panel when this device is activated.
Press switch A again to turn the lights
off.
IMPORTANT The use of hazard warning
lights is governed by the highway
code of the country you are in. Comply
with legal requirements.Emergency braking
(for versions/markets, where provided)
In the event of emergency braking
the hazard warning lights come on
automatically, as do the
and
warning lights in the panel.
The function switches off automatically
when the nature of the braking
changes. This function complies with
the relevant legislation currently in force.
REPLACING A BULB
GENERAL
INSTRUCTIONS
Before replacing a bulb check the
contacts for oxidation;
burnt bulbs must be replaced by
others of the same type and power;
always check the headlight beam
alignment after replacing a bulb;
when a light is not working, check
that the corresponding fuse is intact
before changing a bulb. For the location
of fuses, refer to the paragraph “If a
fuse blows” in this section.
120) 121)
24) 25)
IMPORTANT The headlight inner
surface might be slightly misted: this
does not indicate a fault, it is a natural
phenomenon due to low temperature
and the air humidity level. Misting
will disappear rapidly when the
headlights are turned on. The presence
of drops inside the headlights indicates
infiltration of water. Contact a Fiat
Dealership.
157F0V0513
148
IN AN EMERGENCY

TYPES OF BULBS
Various types of bulbs are fitted to your
vehicle fig. 158:
AGlass bulbs: they are press-fitted.
Pull to extract.
BBayonet type bulbs: to remove from
its holder, press the bulb, turn it
anticlockwise, then remove.
CTubular bulbs: release them from their
contacts to remove.
DHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place.
EHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place.
WARNING
120)Modifications or repairs to the electric
system that are not carried out properly
or do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
121)Halogen bulbs contain pressurised
gas; in the case of breakage they may
burst.
WARNING
24)Halogen bulbs must be handled by
holding the metallic part only. If the
transparent bulb is touched with the
fingers, its lighting intensity is reduced and
life of the bulb may be compromised. In
the case of accidental contact, rub the
lamp with a cloth and alcohol and leave to
dry.
25)Where possible, it is advisable to have
bulbs changed at a Fiat Dealership. Proper
operation and direction of the external
lights are essential for driving in safety and
comply with law.
158F0V0027
149

Bulbs
Use Type Power Ref. Figure
Main beam headlights H7 55 W E
Dipped headlights H7 55 W E
Daytime running lights / side lights W21W 13 W B
Front direction indicators WY21W 21 W B
Side direction indicators WY5W 5 W A
Rear direction indicators PY21W 21 W B
Rear fog light W16W 16 W A
Reverse W16W 16 W A
Rear side lights P21/5W 5 W B
Brake lights P21W 21 W B
3rd brake light wing W5W 5 W A
3rd brake light swinging W5W 5 W A
3rd brake light swinging (for privacy glass) Xenon 6 W 6 W A
Front fog lights (for versions/markets where provided) H11 55 W E
150
IN AN EMERGENCY

REPLACING AN
EXTERIOR BULB
For the type of bulb and relevant power
rating, see “Changing a bulb”.
FRONT LIGHT CLUSTERS
The front light clusters contain side
light, daytime running light, dipped,
main beam and direction indicator
bulbs fig. 159.
The bulbs are arranged inside the light
cluster as follows:
AMain beam headlights:
BDipped headlights;
CDirection indicators and side
lights/daytime running lights
To access the bulbs, remove the
snap-fitted covers.SIDE LIGHTS/DAYTIME RUNNING
LIGHTS
To replace the bulb, proceed as follows:
remove the protective cover C fig.
159;
turn the bulb holder A fig. 160
anticlockwise and remove it;
extract the bulb and replace it;
refit the new bulb, put the
bulb holder A fig. 160 back into place
and then refit the protective cover C fig.
159 properly.
DIPPED HEADLIGHTS
To replace the bulb, proceed as follows:
remove the protective cover B fig.
159;
disconnect the electrical connector;
release the bulb holder from the
side clips A fig. 161;
extract the bulb and replace it;
fit the new bulb, ensuring that the
outline of the metal part coincides with
the grooves on the curve of the
headlight, pressing to engage it with the
side clips A fig. 161; then reconnect
the electrical connector;
refit the protective cover B fig. 159.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
remove the protective cover C fig.
159;
turn bulb holder A fig. 162
anticlockwise and remove it;
extract the bulb, pushing it gently
and turning it anticlockwise;
replace the bulb and refit the bulb
holder A fig. 162 by turning it clockwise
and locking it properly into place;
refit the protective cover C fig. 159.
159F0V0520
160F0V0521
161F0V0522
151

Side
IMPORTANT Go to a Fiat Dealership to
have bulbs for the side direction
indicators replaced, because they are
located inside the wing mirror.
MAIN BEAM HEADLIGHTS
To replace the bulb, proceed as
follows:
remove the protective cover A fig.
159;
disconnect the electrical connector;
release the bulb holder from the
side clips A fig. 163;
extract the bulb and replace it;
fit the new bulb, ensuring that the
outline of the metal part coincides with
the grooves on the curve of the
headlight, pressing to engage it with the
side clips A fig. 163; then reconnect
the electrical connector;
refit the protective cover A fig. 159.FOG LIGHTS
(for versions/markets, where provided)
IMPORTANT Go to a Fiat Dealership
to have the front fog light bulbs
replaced.
REAR LIGHT CLUSTERS
The rear light clusters contain the bulbs
for the side lights, direction indicators
and reversing/rear fog and brake lights.
To access the light clusters, proceed
as follows:
open the rear doors;
undo the fixing screws A fig. 164;
disconnect the electrical connector
and then remove the light cluster.
The bulbs are arranged inside the light
cluster fig. 165 as follows:
ABrake lights
BDirection indicators
CReverse lights
DSide/rear fog lights;To access the bulbs, undo the 6 fixing
screws E fig. 165 and remove the
bulb holder.
To change the bulb, push it in gently
and turn it anticlockwise (“bayonet”
type), then remove and replace it.
THIRD BRAKE LIGHTS
To replace the bulb proceed as follows:
for versions with tailgate, undo the
two fixing screws A fig. 166 and
remove the unit;
162F0V0523163F0V0524
164F0V0034
152
IN AN EMERGENCY

REPLACING AN
INTERIOR BULB
For the type of bulb and power rating,
see "Changing a bulb".
FRONT ROOF LIGHT
Roof light with movable lens
Proceed as follows to replace the
bulbs:
remove roof light A fig. 172 working
at the points indicated by the arrows;
open the cover B fig. 173 as
indicated;
replace the bulb C fig. 174 releasing
the side contacts, insert the new bulb
and make sure that it is correctly locked
between the contacts;
close the cover and secure the roof
light into its housing, making sure it
locks properly into place.Roof light with spot lights (where
provided)
Proceed as follows to replace the
bulbs:
operate in the points indicated by
the arrows and remove light A fig. 175;
open protective flap B fig. 176;
replace the bulbs C releasing them
from the side contacts making sure that
the new bulbs are correctly secured
between the contacts;
close flap B fig. 176 and fix roof light
A fig. 175 in its housing, making sure
that it locks into place.
REAR ROOF LIGHT
To replace the bulb, proceed as follows:
remove roof light A fig. 177 working
at the points indicated by the arrows;
open the cover B fig. 178 as
indicated;
172F0V0070
173F0V0071
174F0V0072
175F0V0073
176F0V0074
