2017 DODGE GRAND CARAVAN Owners Manual

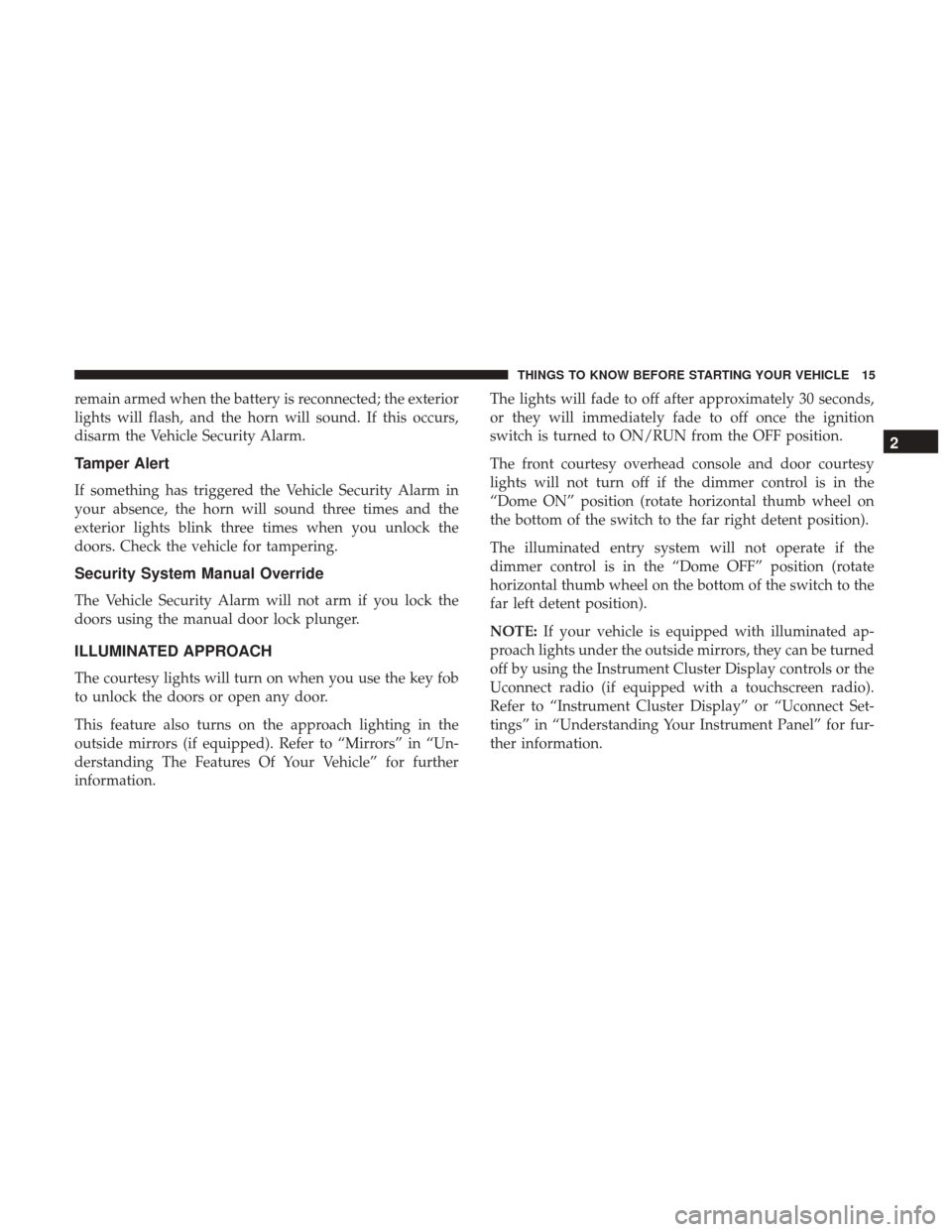

remain armed when the battery is reconnected; the exterior
lights will flash, and the horn will sound. If this occurs,
disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
ILLUMINATED APPROACH
The courtesy lights will turn on when you use the key fob
to unlock the doors or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in “Un-
derstanding The Features Of Your Vehicle” for further
information.The lights will fade to off after approximately 30 seconds,
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.
The front courtesy overhead console and door courtesy
lights will not turn off if the dimmer control is in the
“Dome ON” position (rotate horizontal thumb wheel on
the bottom of the switch to the far right detent position).
The illuminated entry system will not operate if the
dimmer control is in the “Dome OFF” position (rotate
horizontal thumb wheel on the bottom of the switch to the
far left detent position).
NOTE:
If your vehicle is equipped with illuminated ap-
proach lights under the outside mirrors, they can be turned
off by using the Instrument Cluster Display controls or the
Uconnect radio (if equipped with a touchscreen radio).
Refer to “Instrument Cluster Display” or “Uconnect Set-
tings” in “Understanding Your Instrument Panel” for fur-
ther information.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate, and activate the Panic Alarm, optional power
liftgate, left power sliding door, and right power sliding
door from distances up to approximately 66 ft (20 m) using
a handheld Remote Keyless Entry key fob. The key fob
does not need to be pointed at the vehicle to activate the
system.
NOTE:Inserting the key fob into the ignition switch
disables the system from responding to any button pushes
from that key fob. Driving at speeds 5 mph (8 km/h) and
above disables the system from responding to all key fob
buttons for all key fobs.
Two key fobs may be supplied with the vehicle. Vehicles
built without the powered options will be equipped from
the factory with three-button key fobs, and those built with
power options will be equipped with up to seven-button
key fobs.
Using The Key Fob
Three-button key fobs will provide basic UNLOCK, LOCK,
and PANIC functions.
Seven-button key fobs will provide functions that allow the
same basic operation as the three-button, but may also be
used to operate the power liftgate (optional), power sliding
doors, and Remote Start feature (optional). Some features
can be programmed to the customers preferences. For
example, lights flash, or sound horn on lock.
Three-Button Key Fob
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Remote Unlock Doors And Liftgate
Push and release the UNLOCK button on the key fob once
to unlock the driver’s side or twice to unlock all doors and
liftgate. This will also turn on the Illuminated Entry
system.
Remote Key Unlock On First Press
This feature lets you program the system to unlock either
the driver’s side, or all doors, on the first push of the
UNLOCK
button on the key fob.
NOTE:
•For vehicles equipped with an Instrument Cluster Dis-
play, refer to “Instrument Cluster Display/Personal Set-
tings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further
information.
• For vehicles not equipped with the Instrument Cluster
Display, the Remote Unlock feature can be enabled or
disabled by performing the following steps:
1. Perform this operation while standing outside the ve- hicle.
2. Push and hold the LOCK
button on a programmed
key fob for at least 4 seconds, but no longer than 10
seconds. Then, push and hold the UNLOCK
but-
ton while still holding the LOCK button.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle by pushing the LOCK/UNLOCK buttons on the key fob with the
ignition switch in the OFF position and the key fob
removed.
5. Repeat these steps if you want to return this feature to its previous setting.
Seven-Button Key Fob
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

NOTE:Pushing the LOCKbutton on the key fob
while you are inside the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Secu-
rity Alarm activated will cause the alarm to sound. Push
the UNLOCK
button to deactivate the Vehicle Secu-
rity Alarm.
Remote Lock Doors And Liftgate
Push and release the LOCK button on the key fob to lock all
doors and liftgate. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
Sound Horn With Remote Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or
turned off. To change the current setting, proceed as
follows:
• For vehicles equipped with the Instrument Cluster Dis-
play, refer to “Instrument Cluster Display/Personal Set-
tings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further
information. •
For vehicles not equipped with the Instrument Cluster
Display, perform the following steps:
1. Perform this operation while standing outside the ve- hicle.
2. Push the LOCK button on a programmed key fob for at least 4 seconds, but no longer than 10 seconds. Then,
push the PANIC button while still holding the LOCK
button.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle by pushing the LOCK button on the key fob with the ignition switch
in the OFF position and the key fob removed.
5. Repeat these steps if you want to return this feature to its previous setting.
NOTE: Pushing the LOCK button on the key fob while
you are in the vehicle will activate the Vehicle Security
Alarm. Opening a door with the Vehicle Security Alarm
activated will cause the alarm to sound. Push the UN-
LOCK button to deactivate the Vehicle Security Alarm.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC button on the key fob for at least one second

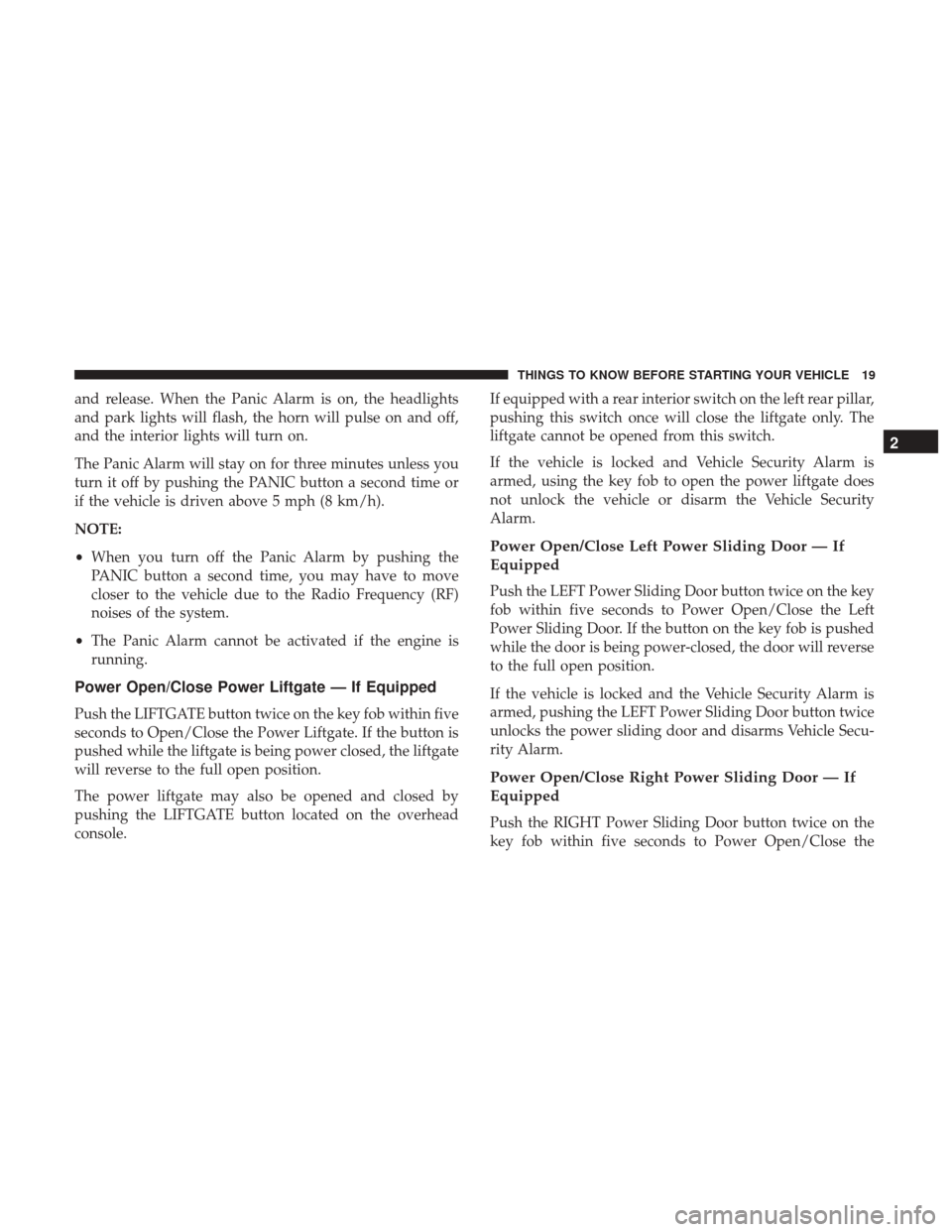

18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

and release. When the Panic Alarm is on, the headlights
and park lights will flash, the horn will pulse on and off,
and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless you
turn it off by pushing the PANIC button a second time or
if the vehicle is driven above 5 mph (8 km/h).
NOTE:
•When you turn off the Panic Alarm by pushing the
PANIC button a second time, you may have to move
closer to the vehicle due to the Radio Frequency (RF)
noises of the system.
• The Panic Alarm cannot be activated if the engine is
running.
Power Open/Close Power Liftgate — If Equipped
Push the LIFTGATE button twice on the key fob within five
seconds to Open/Close the Power Liftgate. If the button is
pushed while the liftgate is being power closed, the liftgate
will reverse to the full open position.
The power liftgate may also be opened and closed by
pushing the LIFTGATE button located on the overhead
console. If equipped with a rear interior switch on the left rear pillar,
pushing this switch once will close the liftgate only. The
liftgate cannot be opened from this switch.
If the vehicle is locked and Vehicle Security Alarm is
armed, using the key fob to open the power liftgate does
not unlock the vehicle or disarm the Vehicle Security
Alarm.
Power Open/Close Left Power Sliding Door — If
Equipped
Push the LEFT Power Sliding Door button twice on the key
fob within five seconds to Power Open/Close the Left
Power Sliding Door. If the button on the key fob is pushed
while the door is being power-closed, the door will reverse
to the full open position.
If the vehicle is locked and the Vehicle Security Alarm is
armed, pushing the LEFT Power Sliding Door button twice
unlocks the power sliding door and disarms Vehicle Secu-
rity Alarm.
Power Open/Close Right Power Sliding Door — If
Equipped
Push the RIGHT Power Sliding Door button twice on the
key fob within five seconds to Power Open/Close the
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

Right Power Sliding Door. If the button on the key fob is
pushed while the door is being power-closed, the door will
reverse to the full open position.
If the vehicle is locked and the Vehicle Security Alarm is
armed, pushing the RIGHT Power Sliding Door button
twice unlocks the power sliding door and disarms the
Vehicle Security Alarm.
Turn Off Flash Lights With Remote Keyless Entry
Lock — If Equipped
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the key fob. This
feature can be turned on or turned off. To change the
current setting, proceed as follows:
•For vehicles equipped with the Instrument Cluster Dis-
play, refer to “Instrument Cluster Display/Personal Set-
tings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further
information.
• For vehicles not equipped with the Instrument Cluster
Display, perform the following steps:
1. Perform this operation while standing outside the ve- hicle. 2. Push and hold the UNLOCK button on a programmed
key fob for at least 4 seconds, but no longer than 10
seconds. Then, push and hold the LOCK button while
still holding the UNLOCK button.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle by Pushing the LOCK/UNLOCK buttons on the key fob with the
ignition switch in the OFF position and the key fob
removed.
5. Repeat these steps if you want to return this feature to its previous setting.
NOTE: Pushing the LOCK button on the key fob while
you are in the vehicle will activate the Vehicle Security
Alarm. Opening a door with the Vehicle Security Alarm
activated will cause the alarm to sound. Push the UN-
LOCK button to deactivate the Vehicle Security Alarm.
Programming Additional Key Fobs
If you do not have a programmed key fob, contact your
authorized dealer for details.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical latch at the top of the key fob sideways with your thumb
and then pull the key out with your other hand.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

2. Insert the tip of the emergency key or a #2 flat bladescrewdriver into the slot and gently pry the two halves
of the key fob apart. Make sure not to damage the seal
during removal.
3. Remove and replace the battery. When replacing thebattery, match the + sign on the battery to the + sign on
the inside of the battery clip, located on the back cover.
Avoid touching the new battery with your fingers. Skin
oils may cause battery deterioration. If you touch a
battery, clean it with rubbing alcohol.
4. To assemble the key fob case, snap the two halves together.
Inserting Key Into Key Fob Case Slot
Separating Key Fob Case
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
