2017 CITROEN RELAY engine

182
GLOSSArY OF LABELS
This section groups together all of the texts that appear on labels present on the vehicle.under the bonnet
A
Original painting
Colour
Code
REFINISHING CODE
B
ONLY FOR JUMP START
c
DANGER
AUT

OMATIC ENGINE RESTART. EXTRACT
THE KEY FROM DASHBOARD WHEN
HOOD IS OPENED
For the vehicle identification labels, refer to the "Technical data" section.
Precautions...

183
d
1 - CAUTION
ORIGINAL LUBRICANTS AND FLUIDS
Engine oil Transmission
Radiater Brake system
Windscreen Washer Power steering
REFER TO OWNER HANDBOOK WEAR EYE PROTECTION
2 - SAFETY
The use of original parts, fluids and original lubrificants and respecting scheduled
maintenance guarantees your cars reliability and safety overtime.
3 - DANGER
KEEP OUT OF
CHILDREN'S REACH KEEP AWAY

FROM FLAMES DO NOT TOUCH
DO NOT OPEN CAP
WITH ENGINE WARM EXPLOSION
CORROSIVE LIQUID
MAY START AUTOMATICALLY EVEN
WITH ENGINE OFF HIGH PRESSURE GAS

DO NOT OPEN
AUTOMATIC ENGINE RESTART. EXTRACT THE KEY
FROM DASHBOARD WHEN BONNET HOOD IS OPENED HIGH VOLTAGE
QuIcK HELP
8
Precautions...

191
EnGInES And GEAr BO x ES
diesel engine
Euro 6 2.0 litre BlueH
d i 110
2.0 litre BlueH d i 110 S&S2.0 litre BlueH
d i 130
2.0 litre BlueH d i 130 S&S2.0 litre BlueH
d i 160
2.0 litre BlueH d i 160 S&S
Gearbox Manual
(6-speed)
Maximum power (hp) 11 0130 160
EU standard maximum power (kW) 8196120
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Maximum power engine speed (rpm) 3 5003 7503 750
EU standard maximum torque (Nm) 300340350
Maximum torque engine speed (rpm) 1 5001 7501 750
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity (in litres)
after draining and replacing the filter 6.6
6.66.6
9
tEcHnIcAL dAtA

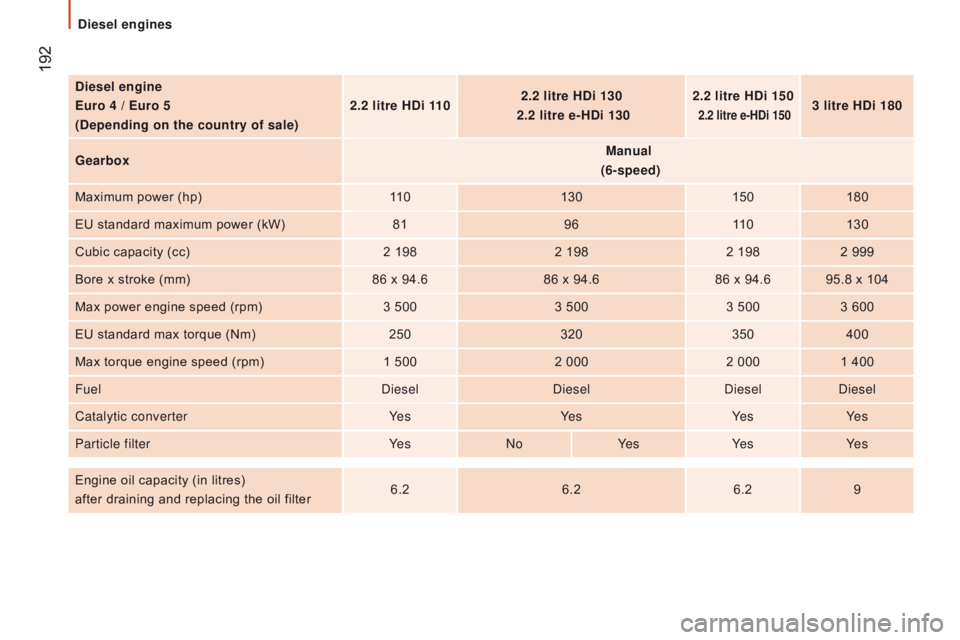

diesel engines

192diesel engine
Euro 4 / Euro 5
(
d epending on the country of sale) 2.2 litre H
d i 1102
.2 litre H
d i 130
2.2 litre e-H
d i 1302
.2 litre H
d i 150
2.2 litre e-H d i 1503 litre Hdi 180
Gearbox Manual

(6-speed)
Maximum power (hp) 11
0 130 150180
EU standard maximum power (kW) 819611 0130
Cubic capacity (cc) 2 1982 1982 1982 999
Bore x stroke (mm) 86 x 94.686 x 94.686 x 94.6 95.8 x 104
Max power engine speed (rpm) 3 5003

500 3

500 3 600
EU standard max torque (Nm) 250320350400
Max torque engine speed (rpm) 1

500 2

000 2

000 1 400
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sNoYe s Ye sYe s
Engine oil capacity (in litres)
after draining and replacing the oil filter 6.2
6.26.29
diesel engines

193WEIGHtS And tOWE d LOA d S
Refer to your registration certificate and the vehicle's chassis plate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a CITROËN dealer.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
In all cases, do not exceed the trailer weight or the maximum weight for the vehicle plus trailer (the Gross Train Weight or GTW) indicated.
Observe the towing limits of your vehicle.
These tables present the type-approved weights (in kg) according to the vehicle model and dimensions.
Minibus
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L3 H2 4404 005 X X
L4 H2 4424 250 X X
c

ombi 5-6 seat
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L1 H1 30
3 000 750 100
33 3 300 750 100
L2 H2 33
3 300 750 100
435 3 500 750 120
c

ombi 7-8-9 seat
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L1 H1 303 150 750 100
L2 H2 333 300 750 100
9
tEcHnIcAL dAtA
Weights

212
WEIGHtS And tOWE d LOA d S ( KG )
For more information, refer to your registration certificate.
In each country, it is imperative that the towed loads authorised by
local legislation are complied with. To find out your vehicle's towing
capacities and its gross train weight, consult a franchised dealer.
The maximum authorised speed is reduced when towing (comply
with the legislation in force in your country).
With load transfer, the braked trailer weight can be increased,
on condition that the equivalent of this load is removed from the
vehicle so that the GTW is not exceeded. Warning: towing with a
lightly loaded towing vehicle may have an adverse effect on its road
holding.
The GTW and towed load values indicated are valid up to a
maximum altitude of 1000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1000 metres.
High ambient temperatures may result in a reduction in the
performance of the vehicle in order to protect the engine; when the
ambient temperature is higher than 37 °C, limit the towed weight.
The kerb weight is equal to the weight without load + driver (75
kg) +
fuel tank filled to 90%. Before towing a trailer, check
that:
-

the nose weight on the

towbar ball does not exceed
the value (S) indicated on
the trailer's weights plate,
-

the maximum trailer weight

is less than the value
indicated on the trailer's
weights plate and the Gross
Vehicle Weight (GVW)
does not exceed the value
indicated on the vehicle's
weights plate.
-

in the case of a self-
supporting trailer

, the Gross
Train Weight must not
exceed the value indicated
on the vehicle's weights
plate.
General points
tipper body

213
HYdrAuLIc SYStEM
these precautions are mandatory for any work on the hydraulic
system.
●

When carrying out maintenance work under the tipper body
,
place the tipper body in the safety position secured with its stay
(position indicated by a red arrow under the back of the tipper
body),
●

Never work under a tipper body that is not supported,
●


Switch of
f the power supply to the electro-hydraulic unit using
the circuit breaker,
●

V
ehicle stationary, engine off.
As a safety measure we strongly advise against doing anything
under the tipper body while it is being operated or while it is
being serviced.
SPEcIAL FEAturES
10
tipper body

219Touch screen Audio-Telematic system
Multimedia audio system - Bluetooth® telephone - GPS navigation
Contents
First steps
2 20
Glossary
2

21
Steering mounted controls

2
22
Menus

2
23
Radio

2
24
DAB (Digital Audio Broadcasting) radio

2
28
Media
23

0
Navigation
2

38
Telephone
2

42
Vehicle information

2
46
Settings
2

48
Voice commands

2
58
The system is protected in such a way that it will only operate in
your vehicle. As as safety measure, the driver must only carry out operations
which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of
the battery, the system switches off following the activation of
the energy economy mode.
touch Screen Audio - telematic System
AudIO and tELEMAtIcS
