2017 CITROEN DISPATCH SPACETOURER DAG Handbook (in English)

55
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Unlocking
F To unlock the vehicle, remote control on your person and in the recognition zone A,
pass your hand behind one of the door
handles (front doors, manual sliding side
doors and side-hinged doors).
F

P
ull the handle to open the corresponding
d o o r.
With electric sliding slide door(s)
F To unlock the vehicle, remote control on your person and in the recognition
zone
A, pull and release the door handle to
trigger the electric powered opening of the
corresponding door.
With a tailgate
F To unlock the vehicle, remote control on your person and in the recognition zone A ,
pull the tailgate handle.
F

Ra
ise the tailgate.
2
Access

56
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
With an opening rear screen in the tailgate
F To unlock the vehicle, remote control on your person and in the recognition zone A ,
press the unlocking button for the tailgate.
The screen partly opens.
Unlocking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
With electric sliding side door(s)Locking
F To totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.
If a door is not properly closed
(except the right-hand door with side-
hinged rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds. F
To totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front door handles.
Access

57
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Ensure that no one might prevent the
correct operation of the windows.
Be particularly aware of children when
operating the windows.
If fitted to your vehicle, pressing and
holding the locking controls allows
the windows to be opened. The
window stops when you release the
button.With side-hinged doors
F To lock the vehicle, with the remote control in the recognition zone A , press the left-
hand door locking control.
With a tailgate
F To lock the vehicle, with the remote control in the recognition zone A , press the
tailgate locking control.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency. If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.
2
Access

58
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
F

To totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.
F

T

o deadlock the vehicle, press the marking
again within five seconds .F
To
totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front door handles.
F

T
o deadlock the vehicle, press the marking
again within five seconds .
With electric sliding side door(s) With side-hinged doors
F To lock the vehicle, with the remote control
in the recognition zone A , press the left-
hand door locking control.
F

T
o deadlock the vehicle, press the control
again within five seconds .

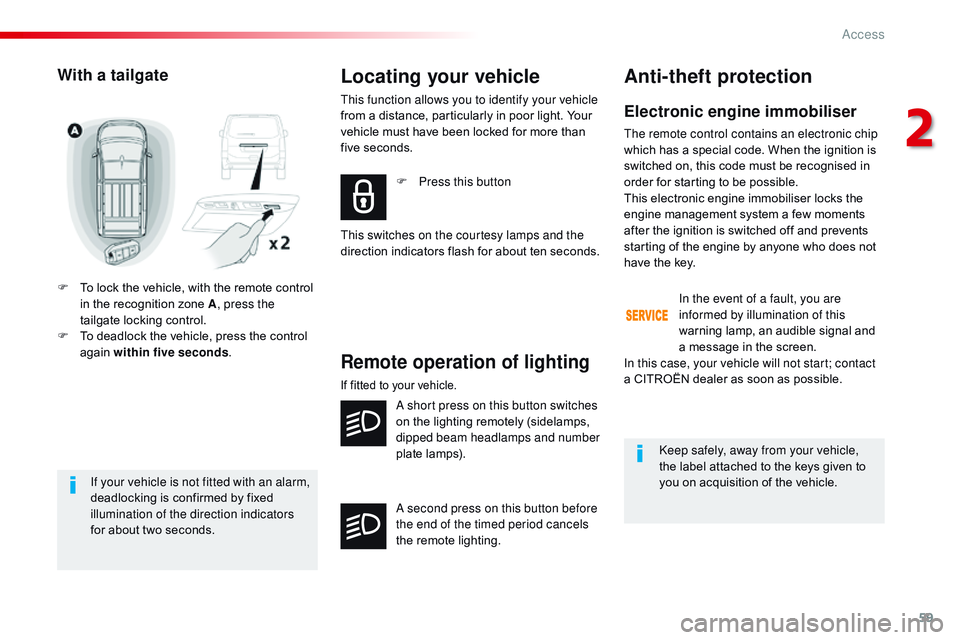

Access

59
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
If your vehicle is not fitted with an alarm,
deadlocking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
With a tailgate
F To lock the vehicle, with the remote control in the recognition zone A , press the
tailgate locking control.
F

T
o deadlock the vehicle, press the control
again within five seconds .
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.
F

P
ress this button
This switches on the courtesy lamps and the
direction indicators flash for about ten seconds.
Remote operation of lighting
If fitted to your vehicle.
A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting.
Anti-theft protection
Electronic engine immobiliser
The remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key. In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
2
Access

60
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Back-up control(s)
If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.
Integral keyLocking the driver's door
Unlocking
F Insert the integral key into the door lock, then turn it to the front.
If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching the
ignition on.
To deadlock the vehicle, turn the key
again within five seconds of locking.
Locking the front passenger door
F Open the door.
Unlocking
F Use the interior door handle.
It is used to lock and unlock the vehicle when
the remote control cannot operate:
-

c

ell battery flat, vehicle battery discharged
or disconnected,

...
-

v

ehicle located in an area with strong
electromagnetic signals.
F

P

ress and hold button 1 to extract the
integral key 2 . F
R
emove the cap on on the edge of the
d o o r.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that the vehicle has locked correctly.
F

I

nsert the integral key into the door lock,
then turn it to the rear.
Access

61
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
For more information on the child lock,
refer to the corresponding section.
Locking a sliding side door
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the door.
Locking the side-hinged doors
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the left-hand side-hinged door.
Unlocking
F Use the interior door handle.
Unlocking
F Use the interior door handle. F
R
emove the cap on the edge of the door.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that the vehicle has locked correctly. F
I
nsert the key (without forcing) into the
latch aperture located on the edge of the
door and slide the assembly upward.
F
R
emove the key.
F
C
lose the door and check from the outside
that the vehicle has locked correctly.
2
Access

62
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Changing the cell battery
Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
CITROËN dealer or a qualified workshop.
A message appears in the instrument panel screen
when replacement of the battery is needed.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
F

P

lace the remote control against the
reader.
F

K

eeping it in place, switch on the ignition
by pressing "START/STOP".
The remote control is fully operational again.
Reinitialisation
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

F
irst, use the integral key in the door lock
to unlock or lock your vehicle.
F

T
hen, reinitialise the remote control.
If the problem persists, contact
a CITROËN dealer or a qualified
workshop as soon as possible.
F

U
nlock the driver's door using the integral
key.
F

P
ress one of the remote control
buttons.
F

P
lace the integral key in the lock to unlock
your vehicle. F

U
nclip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.
Access
