2017 CITROEN BERLINGO ELECTRIC Handbook (in English)

23
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
In practice
It is possible to drive with the right-
hand door open to make it easier to
carry long loads. The left-hand door is
kept closed by the distinctive "yellow"
lock, positioned at the base of the door.
This closed door must not be used as
a load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to warn
other drivers.
HInGED REAR DOORS
From outside
Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
To open, pull the handle towards you. The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
They are fitted with a central lock. With the roof rear flap, the rear
bumper has been reinforced to
serve as a footrest when entering
the vehicle.
Take care when a trailer is
attached to the towball; opening
the side-hinged rear doors may
not be possible. You may have to
detach the trailer.
Access
READY TO GO
3

24
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015

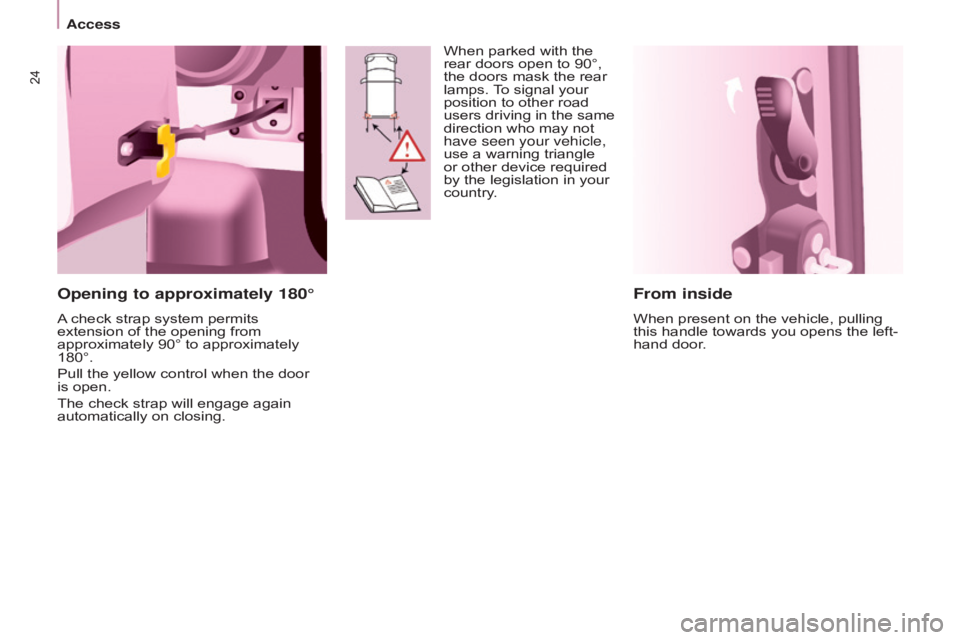

From inside
When present on the vehicle, pulling
this handle towards you opens the left-
hand door.
Opening to approximately 180°
A check strap system permits
extension of the opening from
approximately 90° to approximately
180°.
Pull the yellow control when the door
is open.
The check strap will engage again
automatically on closing. When parked with the
rear doors open to 90°,
the doors mask the rear
lamps. To signal your
position to other road
users driving in the same
direction who may not
have seen your vehicle,
use a warning triangle
or other device required
by the legislation in your
country.
Access

25
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015

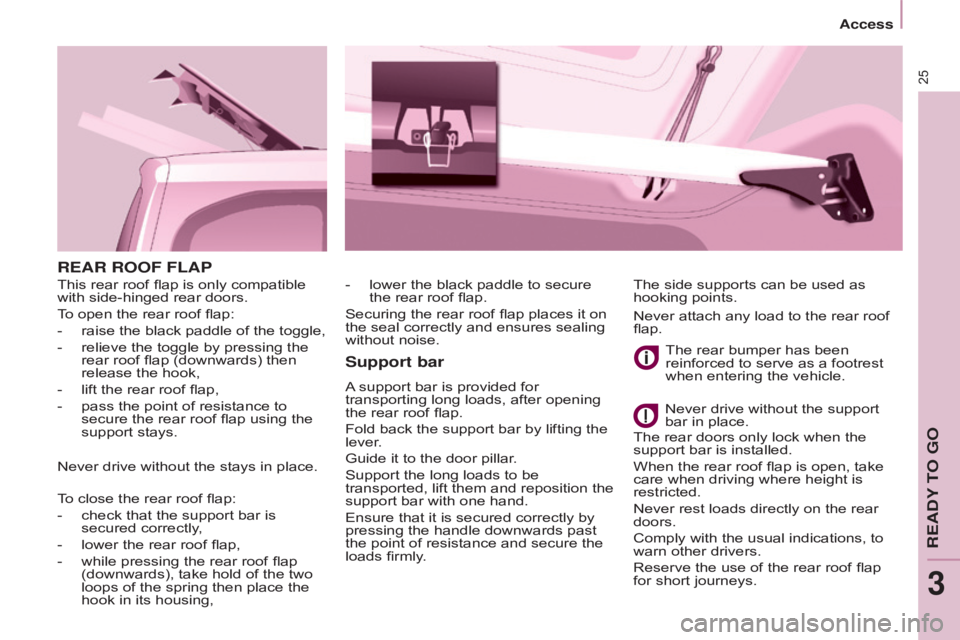

REAR ROOF FLAP
Support bar
A support bar is provided for
transporting long loads, after opening
the rear roof flap.
Fold back the support bar by lifting the
lever.
Guide it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads firmly. The rear bumper has been
reinforced to serve as a footrest
when entering the vehicle.
Never drive without the support
bar in place.
The side supports can be used as
hooking points.
-
lower the black paddle to secure
the rear roof flap.
Securing the rear roof flap places it on
the seal correctly and ensures sealing
without noise.
T

o close the rear roof flap:
-

check that the support bar is
secured correctly

,
-

lower the rear roof flap,
-


while pressing the rear roof flap
(downwards), take hold of the two
loops of the spring then place the
hook in its housing,
This rear roof flap is only compatible
with side-hinged rear doors.
T

o open the rear roof flap:
-

raise the black paddle of the toggle,
-


relieve the toggle by pressing the
rear roof flap (downwards) then
release the hook,
-

lift the rear roof flap,
-

pass the point of resistance to
secure the rear roof flap using the
support stays.
Never drive without the stays in place. Never attach any load to the rear roof
flap.
The rear doors only lock when the
support bar is installed.
When the rear roof flap is open, take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
warn other drivers.
Reserve the use of the rear roof flap
for short journeys.
Access
READY TO GO
3

26
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
TAILGATE
Opening
From inside
(emergency control)
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the tailgate and the
floor. To unlock the lock, move the
catch to the left then push the tailgate.
From outside
Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
a pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply
a final press on the tailgate to close it
fully

.
Access

27
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Driving with the doors locked may
make access to the interior more
difficult in an emergency.
CEnTRAL LOCKI n G
Cab and load space
Load space
Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
The characteristic central locking noise
is heard. The LED in the control switch
on the dashboard central switch panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
Anti-intrusion protection
An initial press locks the front
and rear doors, when they
are closed.
A second press unlocks the
vehicle.
The control switch is inactive when
the vehicle has been locked using
the remote control or the key from the
outside. Activating / deactivating the
function
With the ignition on, press
and hold this switch to
activate or deactivate the
function.
Door open warning lamp If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.
Press to lock/unlock the rear
doors without changing the
locking status of the cab.
The doors can still be opened
from the inside.
The control switch LED:
-

flashes when the doors are locked with
the vehicle stationary and the engine off,
- comes on when the doors are
locked and from the time the
ignition is switched on.
Access
READY TO GO
3

28
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
InSTRUMEnT PAnEL
Dials
1. Distance recorder in kilometres /
miles.
2.

Display screen.
3.


Fuel gauge, coolant temperature.
4.


Rev counter
.
5.

T
rip distance recorder / service
indicator reset.
6.

Instrument panel lighting dimmer
.
Display screens
Level 1
Level 2
with the touch screen tablet
Screens
The format of the information
presented in the screen depends on
the vehicle's equipment.
Instruments and controls

29
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Centre console with screen
Instrument panel without screen
-
T
urn to the left: 24H or 12H is
displayed.
-

T
urn to the right to select 24H or
12H.
-

T
urn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display.
DATE AnD TIME
Centre console without screen
To adjust the time of the
clock, use the left-hand
button on the instrument
panel: The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
-

T

urn to the left: the minutes flash.
-

T

urn to the right to increase the
minutes (hold the button to the right
for rapid scrolling).
-

T

urn to the left: the hours flash.
-

T

urn to the right to increase the
hours (hold the button to the right
for rapid scrolling).
READY TO GO
3
Instruments and controls

30
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
Screen C
Press the ME
n
U button.
Using the arrows, select
PERSO
n
ALISATIO
n

CO
n
FIGURATIO
n
.
Press to confirm the
selection. Using the arrows, select
DISPLAY CO
n
FIGURATIO
n
.
Press to confirm the
selection.
Using the arrows, select
ADJUST DATE A
n
D TIME. Press to confirm the
selection.
Adjust the settings one by
one confirming by pressing
the OK button.
Then select the
ok tab in the
screen and confirm.
Instruments and controls
