SUPPLEMENT FOR ELECTRIC MODE















MOTOR AND TRACTION BATTERY

The range of the vehicle, approved on the NEDC cycle, is 170 km (105 miles). This range can vary according to
various factors, the main ones being the use of the heating and air conditioning, the style of driving, the type of route
taken and ageing of the traction battery.
Ageing of the traction battery also depends on various factors, such as the ambient temperature, the mileage of the vehicle,
the frequency of fast charges…
Electric motor



Technology
Synchronous with permanent magnets
Max. power in kilowatts: EU standard (kW)
49
Max. power speed in revolutions per minute (rpm)
from 4 000 to 9 200
Max. torque in Newton metres: EU standard (Nm)
200
Max. torque speed in revolutions per minute (rpm)
0 to 1 500

Traction battery



Technology
Lithium-Ion

Normal charge

Alternating current power supply in volts: (V) AC
230
Time for a complete charge (from 0% to 100%) according to the power supply
rating in Amps::


- 16 A

- 16 A

- 10 A

- 8 A
Depending on the power supply in the country.
Minimum time measured for ambient temperatures between 0
and 40°C.
7 hours 30 minutes
8 hours 30 minutes
12 hours
15 hours

Fast charge

Charging time (80% charge) from the reserve level
< 30 minutes

32
IDENTIFICATION MARKINGS


A. Manufacturer's plate.
This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Serial number.
This is engraved on the front right
wheelarch.
C. Tyres and paint colour
code.
The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre
pressures must be checked when
the tyres are cold, at least once a
month),

- the paint colour code.

01-15 Printed in the EU
Anglais

CRÉATIVE TECHNOLOGIE
2015 – DOCUMENTATION DE BORD4Dconcept
Diadeis
Seenk
Interak
15BEL.0640
Anglais

HANDBOOK - SUPPLEMENT

1

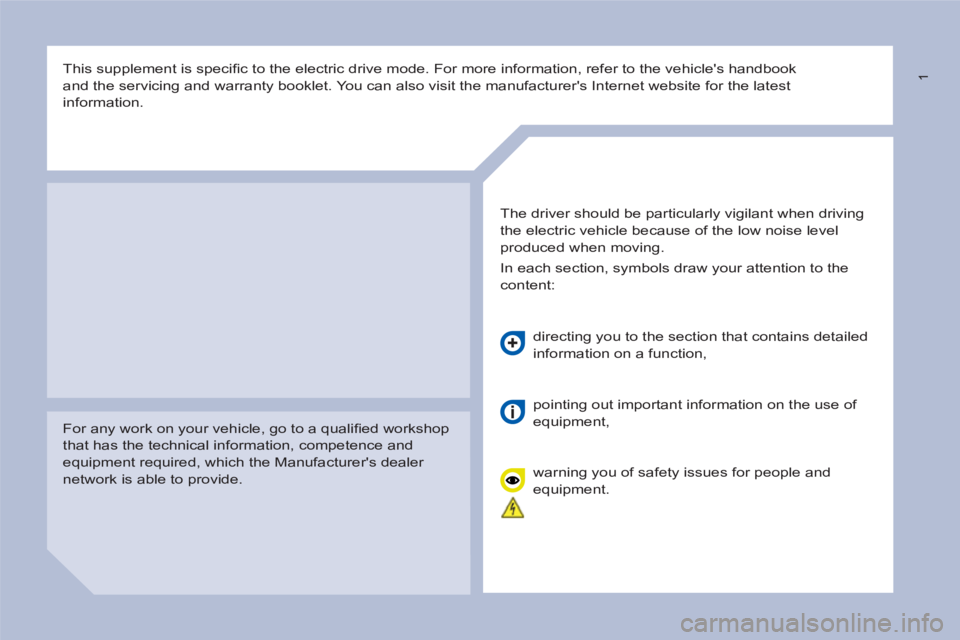

This supplement is specifi c to the electric drive mode. For more information, refer to the vehicle's handbook
