2017 CHEVROLET SONIC Owners Manual

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
56 Seats and Restraints
Do not have a seatback reclined ifthe vehicle is moving.
Front Seat Armrest
There is an armrest on the inboardside of the driver seat. To raise orlower the armrest, push up or pulldown on the armrest.
Heated Front Seats
{Warning
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns. To
reduce the risk of burns, people
with such a condition should use
care when using the seat heater,
especially for long periods of
time. Do not place anything on
the seat that insulates against
heat, such as a blanket, cushion,
cover, or similar item. This may
cause the seat heater to
overheat. An overheated seat
heater may cause a burn or may
damage the seat.
If equipped, the controls are on theclimate control system. To operate,the engine must be running.
PressMorLto heat the driver or
passenger seat. The indicator lighton the control turns on when thisfeature is on. Press the controlagain to turn this feature off.
The passenger seat may takelonger to heat up.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
Seats and Restraints 57
Remote Start Auto Heated
Seats
If equipped, when it is cold outsidethe heated seats can be turned onautomatically during a remotevehicle start. The heated seats willbe canceled when the ignition isturned on. Press the heated seatcontrols to use the heated seatsafter the vehicle is started.
The heated seat indicator lights donot turn on during a remote start.
The temperature performance of anunoccupied seat may be reduced.This is normal.
SeeRemote Vehicle Start037.
Rear Seats
Folding the Seatback
Either side of the seatback can befolded down for more cargo space.Fold a seatback only when thevehicle is not moving.
Caution
Folding a rear seat with the safety
belts still fastened may cause
damage to the seat or the safety
belts. Always unbuckle the safety
belts and return them to their
normal stowed position before
folding a rear seat.
To f o l d t h e s e a t b a c k d o w n :
1. Make sure the safety belt is inthe retainer hook.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
58 Seats and Restraints
Sedan Shown, Hatchback Similar
2. Reach under the belt and pullthe lever on top of the seatbackto unlock the seatback.
Atabneartheseatbackleverraises when the seatback isunlocked.
3. Fold the seatback down.
Repeat Steps 1–3fortheotherseatback, if desired.
Raising the Seatback
{Warning
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
{Warning
Asafetybeltthatisimproperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
To r a i s e a s e a t b a c k :
1. Lift the seatback up and push itrearward to lock it in place.Make sure the safety belt is inthe retainer hook and is nottwisted or caught in theseatback.
Atabneartheseatbackleverretracts when the seatback islocked in place.
The center rear safety belt maylock when you raise theseatback. If this happens, letthe belt go back all the wayand start again.
2. Push and pull the top of theseatback to be sure it is lockedinto position.
3. Repeat Steps 1 and 2 for theother seatback, if necessary.
When the seat is not in use, itshould be kept in the upright, lockedposition.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
Seats and Restraints 59
Safety Belts
This section of the manualdescribes how to use safety beltsproperly. It also describes somethings not to do with safety belts.
{Warning
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, injuries can be much
worse than if you are wearing
safety belts. You can be seriously
injured or killed by hitting things
inside the vehicle harder or by
being ejected from the vehicle. In
addition, anyone who is not
buckled up can strike other
passengers in the vehicle.
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision,
passengers riding in these areas
are more likely to be seriously
injured or killed. Do not allow
(Continued)
Warning (Continued)
passengers to ride in any area of
the vehicle that is not equipped
with seats and safety belts.
Always wear a safety belt, and
check that all passenger(s) are
restrained properly too.
This vehicle has indicators as areminder to buckle the safety belts.SeeSafety Belt Reminders011 0.
Why Safety Belts Work
When riding in a vehicle, you travelas fast as the vehicle does. If thevehicle stops suddenly, you keepgoing until something stops you.It could be the windshield, theinstrument panel, or the safety belts!
When you wear a safety belt, youand the vehicle slow down together.There is more time to stop becauseyou stop over a longer distance and,when worn properly, your strongestbones take the forces from thesafety belts. That is why wearingsafety belts makes such goodsense.
Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicleafter a crash if I am wearing asafety belt?
A:Yo ucouldbe—whether you arewearing a safety belt or not.Yo u r c h a n c e o f b e i n g c o n s c i o u sduring and after a crash, so youcanunbuckle and get out, ismuchgreater if you are belted.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
60 Seats and Restraints
Q: If my vehicle has airbags, whyshould I have to wear safetybelts?
A:Airbags are supplementalsystems only; so they workwithsafety belts—not instead ofthem. Whether or not an airbagis provided, all occupants stillhave to buckle up to get themost protection.
Also, in nearly all states and inall Canadian provinces, the lawrequires wearing safety belts.
How to Wear Safety Belts
Properly
This section is only for people ofadult size.
There are special things to knowabout safety belts and children, andthere are different rules for smallerchildren and infants. If a child will beriding in the vehicle, seeOlderChildren077orInfants and YoungChildren079.Followthoserulesforeveryone's protection.
It is very important for all occupantsto buckle up. Statistics show thatunbelted people are hurt more oftenin crashes than those who arewearing safety belts.
There are important things to knowabout wearing a safety belt properly.
.Sit up straight and always keepyour feet on the floor in frontof you.
.Always use the correct bucklefor your seating position.
.Wear the lap part of the belt lowand snug on the hips, justtouching the thighs. In a crash,this applies force to the strong
pelvic bones and you would beless likely to slide under the lapbelt. If you slid under it, the beltwould apply force on yourabdomen. This could causeserious or even fatal injuries.
.Wear the shoulder belt over theshoulder and across the chest.These parts of the body are bestable to take belt restrainingforces. The shoulder belt locks ifthere is a sudden stop or crash.
{Warning
Yo u c a n b e s e r i o u s l y i n j u r e d ,
or even killed, by not wearing
your safety belt properly.
.Never allow the lap orshoulder belt to becomeloose or twisted.
.Never wear the shoulderbelt under both arms orbehind your back.
.Never route the lap orshoulder belt over anarmrest.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
Seats and Restraints 61
Lap-Shoulder Belt
All seating positions in the vehiclehave a lap-shoulder belt.
The following instructions explainhow to wear a lap-shoulder beltproperly.
1. Adjust the seat, if the seat isadjustable, so you can sit upstraight. To see how, see“Seats”in the Index.
2. Pick up the latch plate and pullthe belt across you. Do not letit get twisted.
The lap-shoulder belt may lockif you pull the belt across youvery quickly. If this happens, letthe belt go back slightly tounlock it. Then pull the beltacross you more slowly.
If the shoulder portion of apassenger belt is pulled out allthe way, the child restraintlocking feature may beengaged. If this happens, letthe belt go back all the wayand start again.
For the driver and frontoutboard passenger belts,if the webbing locks in the latch
plate before it reaches thebuckle, tilt the latch plate to flatto unlock.
3. Push the latch plate into thebuckle until it clicks.
If the latch plate will not go fullyinto the buckle, check if thecorrect buckle is being used.
Pull up on the latch plate tomake sure it is secure. If thebelt is not long enough, seeSafety Belt Extender064.
Position the release button onthe buckle so that the safetybelt could be quickly unbuckledif necessary.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
62 Seats and Restraints
4. If equipped with a shoulder beltheight adjuster, move it to theheight that is right for you. See“Shoulder Belt Height Adjuster”in this section for instructionson use and important safetyinformation.
5. To make the lap part tight, pullup on the shoulder belt.
It may be necessary to pullstitching on the safety beltthrough the latch plate to fullytighten the lap belt on smalleroccupants.

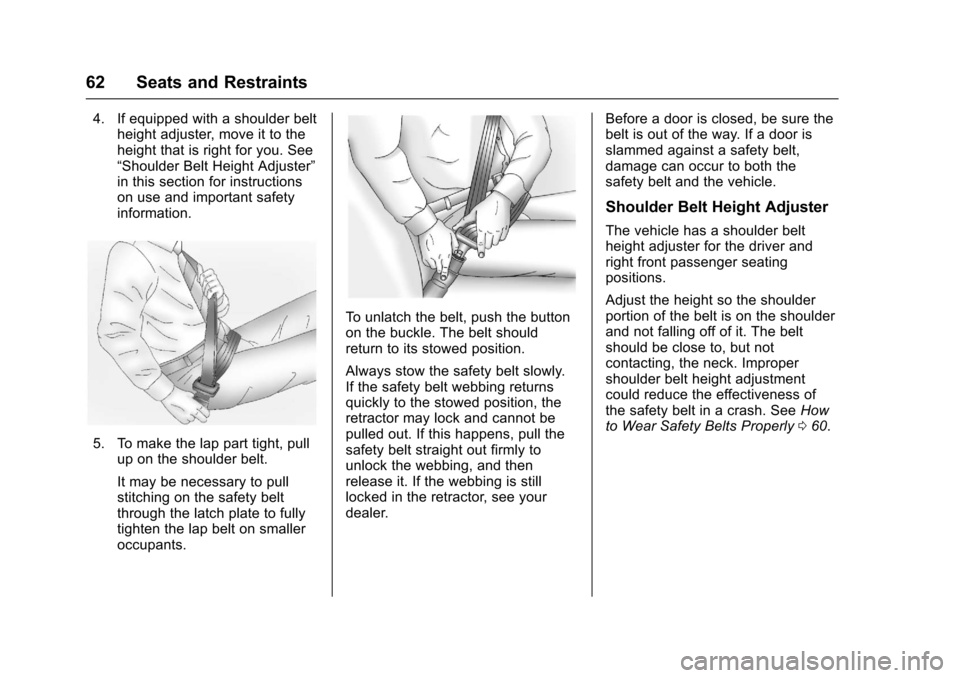

To u n l a t c h t h e b e l t , p u s h t h e b u t t o non the buckle. The belt shouldreturn to its stowed position.
Always stow the safety belt slowly.If the safety belt webbing returnsquickly to the stowed position, theretractor may lock and cannot bepulled out. If this happens, pull thesafety belt straight out firmly tounlock the webbing, and thenrelease it. If the webbing is stilllocked in the retractor, see yourdealer.
Before a door is closed, be sure thebelt is out of the way. If a door isslammed against a safety belt,damage can occur to both thesafety belt and the vehicle.
Shoulder Belt Height Adjuster
The vehicle has a shoulder beltheight adjuster for the driver andright front passenger seatingpositions.
Adjust the height so the shoulderportion of the belt is on the shoulderand not falling off of it. The beltshould be close to, but notcontacting, the neck. Impropershoulder belt height adjustmentcould reduce the effectiveness ofthe safety belt in a crash. SeeHowto Wear Safety Belts Properly060.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
Seats and Restraints 63

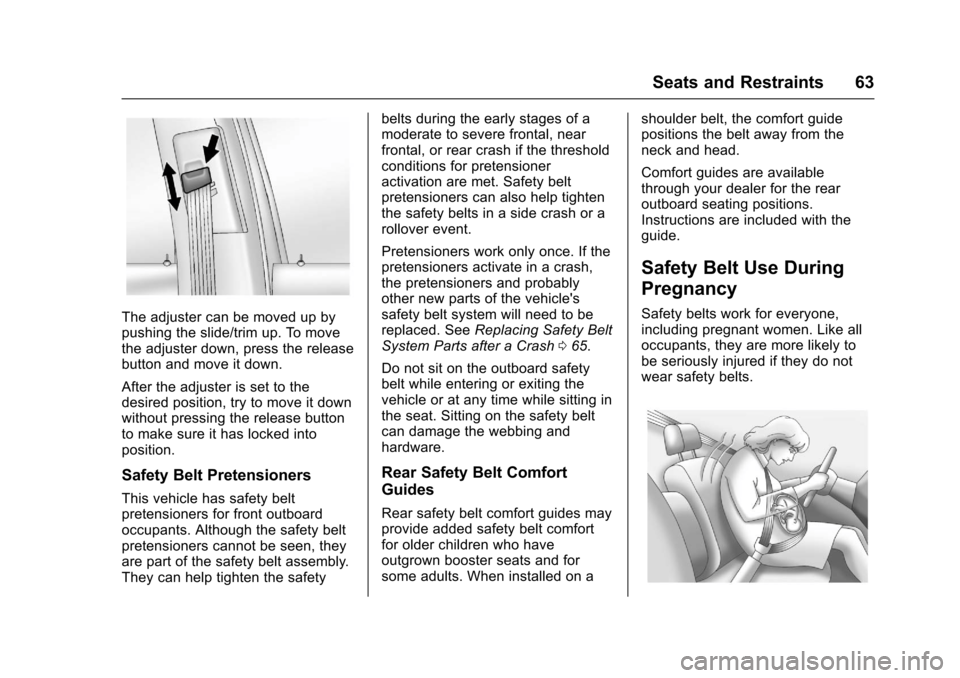

The adjuster can be moved up bypushing the slide/trim up. To movethe adjuster down, press the releasebutton and move it down.
After the adjuster is set to thedesired position, try to move it downwithout pressing the release buttonto make sure it has locked intoposition.
Safety Belt Pretensioners
This vehicle has safety beltpretensioners for front outboardoccupants. Although the safety beltpretensioners cannot be seen, theyare part of the safety belt assembly.They can help tighten the safety
belts during the early stages of amoderate to severe frontal, nearfrontal, or rear crash if the thresholdconditions for pretensioneractivation are met. Safety beltpretensioners can also help tightenthe safety belts in a side crash or arollover event.
Pretensioners work only once. If thepretensioners activate in a crash,the pretensioners and probablyother new parts of the vehicle'ssafety belt system will need to bereplaced. SeeReplacing Safety BeltSystem Parts after a Crash065.
Do not sit on the outboard safetybelt while entering or exiting thevehicle or at any time while sitting inthe seat. Sitting on the safety beltcan damage the webbing andhardware.
Rear Safety Belt Comfort
Guides
Rear safety belt comfort guides mayprovide added safety belt comfortfor older children who haveoutgrown booster seats and forsome adults. When installed on a
shoulder belt, the comfort guidepositions the belt away from theneck and head.
Comfort guides are availablethrough your dealer for the rearoutboard seating positions.Instructions are included with theguide.
Safety Belt Use During
Pregnancy
Safety belts work for everyone,including pregnant women. Like alloccupants, they are more likely tobe seriously injured if they do notwear safety belts.
