2017 CHEVROLET SONIC Owners Manual

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
8 In Brief
Initial Drive
Information
This section provides a briefoverview about some of theimportant features that may or maynot be on your specific vehicle.
For more detailed information, referto each of the features which can befound later in this owner manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)transmitter may work up to 60 m(197 ft) away from the vehicle.
Key Access with Remote Start
Shown
Press the key release button toextend the key blade. The key canbe used for the ignition and alllocks.
Keyless Access with Remote Start
Shown
Press the button to release the key.The key can be used for all locks.
PressKto unlock the driver door or
all doors, liftgate or trunk.
PressQto lock all doors, liftgate or
trunk.
Lock and unlock feedback can bepersonalized. SeeVehiclePersonalization0127.
If equipped, press and holdYfor
key access, or pressXtwice for
keyless access, to release the trunk.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
In Brief 9
Press and release7to initiate
vehicle locator.
Press and hold7for at least
three seconds to sound the panicalarm.
Press7again to cancel the panic
alarm.
SeeKeys026andRemote KeylessEntry (RKE) System Operation(Keyless Access)031orRemoteKeyless Entry (RKE) SystemOperation (Key Access)029.
Remote Vehicle Start
If equipped, the engine can bestarted from outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the
RKE transmitter.
2. Immediately press and hold/
for at least four seconds or untilthe turn signal lamps flash.
Start the vehicle normally afterentering.
When the vehicle starts, the parkinglamps will turn on.
Remote start can be extended.
Canceling a Remote Start
To c a n c e l a r e m o t e s t a r t , d o o n e o fthe following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warningflashers.
.Turn the vehicle on and then off.
SeeRemote Vehicle Start037.
Door Locks
To l o c k o r u n l o c k t h e d o o r s f r o moutside the vehicle:
.Use the key in the driver door tolock all doors or unlock thedriver door only.
.PressQorKon the Remote
Keyless Entry (RKE) transmitter.SeeRemote Keyless Entry(RKE) System Operation(Keyless Access)031or
Remote Keyless Entry (RKE)System Operation (KeyAccess)029.
To l o c k t h e d o o r s f r o m i n s i d e t h evehicle:
.PressQon the central locking
switch or on the driver doorswitch.
.Press the lock knob on the driverdoor to lock all doors and,if equipped, the liftgate.
To u n l o c k t h e d o o r s f r o m i n s i d e t h evehicle:
.PressKon the central locking
switch or on the driver doorswitch.
.Pull the door handle. Pulling thedoor handle again unlatchesthe door.
.Lift the lock knob on the driverdoor to unlock the driver door.
SeeDoor Locks038.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
10 In Brief
Keyless Access
The RKE transmitter must be within1m (3ft) of the door being opened.
Press the button on the door handleto open. See Keyless AccessOperation underRemote KeylessEntry (RKE) System Operation(Keyless Access)031orRemoteKeyless Entry (RKE) SystemOperation (Key Access)029.
Liftgate (Hatchback)
To l o c k o r u n l o c k t h e l i f t g a t e o r t r u n k
from the inside, pressQorKon
the central locking switch or on thedriver door switch.
The vehicle must be in P (Park) forautomatic transmissions. Formanual transmissions the parkingbrake must be engaged.
To o p e n t h e l i f t g a t e f r o m t h e
outside, pressKon the RKE
transmitter to unlock all doors, thenuse the touch pad.
SeeLiftgate (Hatchback)043.
Trunk Release (Sedan)
To l o c k o r u n l o c k t h e t r u n k f r o m t h e
inside, pressQorKon the central
locking switch or on the driver doorswitch.
To o p e n t h e t r u n k f r o m i n s i d e t h e
vehicle pressV.
To l o c k t h e t r u n k f r o m t h e o u t s i d e
pressQon the RKE transmitter.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
In Brief 11
To o p e n t h e t r u n k f r o m o u t s i d e o fthe vehicle:
.PressKon the RKE transmitter
to unlock all doors, then use thetouch pad.
.Press and holdYfor key
access, or pressXtwice for
keyless access, on the RKEtransmitter.
SeeTr u n k ( S e d a n )041andRemote Keyless Entry (RKE)System Operation (Keyless Access)031orRemote Keyless Entry(RKE) System Operation (KeyAccess)029.
Windows
Manual Windows
If equipped, use the window crankto open and close each window.
SeeManual Windows048.
Power Windows
If equipped, press or pull the switchto open or close the window.
The switches work when the vehicleis in ON/RUN or ACC/ACCESSORY, or when RetainedAccessory Power (RAP) is active.SeeRetained Accessory Power(RAP)0187.
SeePower Windows048.
Seat Adjustment
Manual Seats
To a d j u s t a m a n u a l s e a t :
1. Pull the handle at the front ofthe seat.
2. Slide the seat to the desiredposition and release thehandle.
3. Try to move the seat back andforth to be sure it is locked inplace.
SeeSeat Adjustment053.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
12 In Brief
Power Seats
To a d j u s t a p o w e r s e a t :
.Move the seat forward orrearward by sliding the controlforward or rearward.
.Raise or lower the front part ofthe seat cushion by moving thefront of the control up or down.
.Raise or lower the entire seat bymoving the rear of the control upor down.
SeePower Seat Adjustment054.
Lumbar Adjustment
If available, press the front or rear ofthe switch to increase or decreaselumbar support. Release the switchwhen the desired level of support isreached.
SeeLumbar Adjustment054.
Reclining Seatbacks
Manual Seat Shown, Power Seat
Similar
To r e c l i n e t h e s e a t b a c k :
1. Lift the lever.
If necessary, move the safetybelt out of the way to accessthe lever.
2. Move the seatback to thedesired position, then releasethe lever to lock the seatbackin place.
3. Push and pull on the seatbackto make sure it is locked.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
In Brief 13
To r e t u r n t h e s e a t b a c k t o a n u p r i g h tposition:
1. Lift the lever fully withoutapplying pressure to theseatback, and the seatbackreturns to the upright position.
2. Push and pull on the seatbackto make sure it is locked.
SeeReclining Seatbacks055.
Second Row Seats
The rear seatbacks can be foldeddown to increase cargo space.
SeeRear Seats057.
Head Restraint
Adjustment
Do not drive until the head restraintsfor all occupants are installed andadjusted properly.
To a c h i e v e a c o m f o r t a b l e s e a t i n gposition, change the seatbackrecline angle as little as necessarywhile keeping the seat and the headrestraint height in the properposition.
SeeHead Restraints052andSeatAdjustment053.
Safety Belts
Refer to the following sections forimportant information on how to usesafety belts properly:
.Safety Belts059.
.How to Wear Safety BeltsProperly060.
.Lap-Shoulder Belt061.
.Lower Anchors and Tethers forChildren (LATCH System)084.
Passenger Sensing
System
United States
Canada
The passenger sensing systemturns off the front outboardpassenger frontal airbag and kneeairbag under certain conditions. Noother airbag is affected by thepassenger sensing system. SeePassenger Sensing System071.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
14 In Brief
The passenger airbag statusindicator will be visible on theinstrument panel when the vehicle isstarted. SeePassenger AirbagStatus Indicator0111.
Mirror Adjustment
Exterior Mirrors
Manual Outside Mirrors
Move the control up, down, or sideto side to adjust the mirror.
SeeManual Mirrors046.
Power Outside Mirrors
For vehicles with power outsidemirrors:
1. Select the mirror by moving theselector switch to L for thedriver side or R for thepassenger side.
2. Use the control knob to movethe mirror in the desireddirection.
SeePower Mirrors046.
Interior Mirror
Hold the inside rearview mirror inthe center to move it for a clearerview behind your vehicle. Adjust the
mirror to avoid glare from theheadlamps behind you. Push thetab forward for daytime use and pullit for nighttime use.
SeeManual Rearview Mirror047.
Steering Wheel
Adjustment
To a d j u s t t h e s t e e r i n g w h e e l :
1. Pull the lever down.
2. Move the steering wheel up,down, forward, and backward.
3. Pull the lever up to lock thesteering wheel in place.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-10122660) -2017 - crc - 5/13/16
In Brief 15

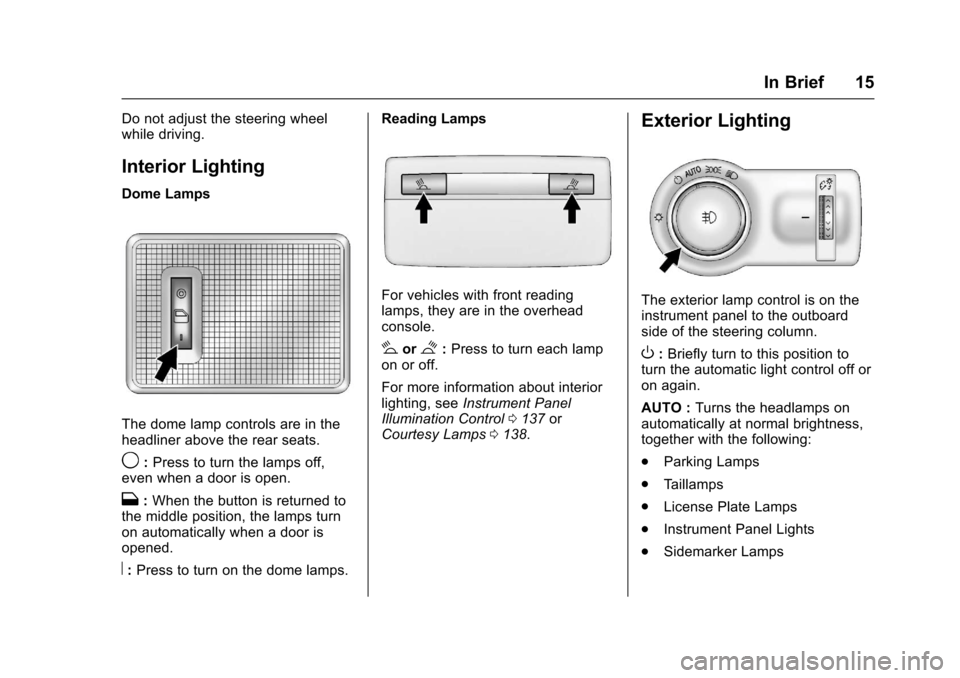

Do not adjust the steering wheelwhile driving.
Interior Lighting
Dome Lamps
The dome lamp controls are in theheadliner above the rear seats.
9:Press to turn the lamps off,even when a door is open.
H:When the button is returned tothe middle position, the lamps turnon automatically when a door isopened.
R:Press to turn on the dome lamps.
Reading Lamps
For vehicles with front readinglamps, they are in the overheadconsole.
#or$:Press to turn each lampon or off.
For more information about interiorlighting, seeInstrument PanelIllumination Control0137orCourtesy Lamps0138.
Exterior Lighting
The exterior lamp control is on theinstrument panel to the outboardside of the steering column.
O:Briefly turn to this position toturn the automatic light control off oron again.
AUTO :Turns the headlamps onautomatically at normal brightness,together with the following:
.Parking Lamps
.Ta i l l a m p s
.License Plate Lamps
.Instrument Panel Lights
.Sidemarker Lamps
