188 Driving and Operating
3. Run the engine at idle. Be surethe accelerator pedal is not
pressed and the PTO switch (if
equipped) is OFF.
4. Press and hold the DPF switch until the amber checking PM
Level indicator light appears on
the DIC.
5. If Selectable regeneration is available, the selectable
(switch) regeneration required
warning light (amber) will
appear on the DIC. If this
indicator light does not appear
on the DIC, the PM level in the DPF filter is OK and DPF
regeneration is not needed at
this time.
6. Press and release the DPF switch to begin regeneration.
7. The selectable (switch) regeneration required warning
light (amber) will change to
regeneration in progress
indicator light.
8. Do not leave the vehicle during the regeneration. Regeneration
normally completes in about
20 minutes, if the engine is at operating temperature.
Regeneration may take longer
if the engine is cold.
9. When the regeneration in progress indicator light goes
out, the Selectable
regeneration is complete.
If the Selectable regeneration is
interrupted, a selectable (switch)
regeneration required warning light
(amber) will appear on the DIC. You
must complete the DPF
regeneration by performing the
Switch regeneration as soon as
possible when Selectable
regeneration is interrupted.
If you continue driving too long with
the selectable (switch) regeneration
required warning light (amber)
displayed on the DIC, the warning
light will change to red. The
selectable (switch) regeneration
required warning light (red) indicates
the DPF filter is nearly full of PM, a
condition which may be damaging
to the filter. DPF regeneration
should be completed immediately if

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 189
the selectable (switch) regeneration
required warning light (red) is
displayed on the DIC.
Continued driving without
performing DPF regeneration will
cause the check engine malfunction
indicator light and reduced engine
power indicator light to come on, an
engine power reduction, and may
cause damage to the DPF filter. See
Vehicle Messages (Diesel Only)
097.
The time needed to complete
regeneration differs depending on
the outside temperature.
The exhaust brake is activated
during DPF regeneration. The
exhaust brake starting to operate or
being disengaged will produce a
sound, but this does not indicate a
failure.
During regeneration, white smoke
may be temporarily produced from
the exhaust pipe. This results from
combustion of PM, it does not
indicate a failure. Regeneration is finished earlier
immediately after driving than when
the engine is cold.
The engine coolant temperature
may rise during regeneration.
DPF Regeneration during
Prolonged Idling
DPF regeneration may be initiated
automatically during prolonged
idling. If regeneration is initiated, the
regeneration in progress indicator
light (amber) comes on but this is
normal and does not indicate a
failure.
If driving is started or the PTO is
connected during DPF regeneration
by prolonged idling, the selectable
(switch) regeneration required
warning light (amber) comes on and
regeneration is suspended. Perform
Switch regeneration procedure in
order to complete the DPF
regeneration.
Prolonged idling may require more
frequent DPF regeneration.
See
Driver Information Center (DIC)
(Diesel Only) 093.Diesel Exhaust Fluid
Diesel exhaust fluid (DEF) is used
exclusively for the selective catalytic
reduction (SCR) system. Be sure to
use only API certified DEF. When
the SCR system detects DEF level
is nearly empty or incorrect fluids
(such as water or low concentrated
DEF.) are added, the SCR system
will turn on warning and indicator
lights and reduce engine power in
progressive stages to encourage
you to have the condition corrected.
Continuing to drive for too long after
these lights come on will eventually
result in a severe vehicle speed
limitation. See Vehicle Messages
(Diesel Only) 097
The DEF freezes below −11 °C (12 °
F). The SCR system is equipped
with a heating function which utilizes
the engine coolant, so the engine
can be started even when DEF is
frozen.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 195
DEF Tank Level is Low/Empty
StageStage 1 Stage 2Stage 3Stage 4
DIC main display
DEF gauge (DIC sub
display 2)
Solid (amber)Blinking (amber)Solid (red)Solid (red)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 199
Incorrect DEF/SCR System Malfunction (Type A) Warnings
Stage Stage 1Stage 2Stage 3Stage 4
DIC main display
DEF gauge (DIC sub
display 2) Various Various Various Various
Indicator light(s)
Slow blinkingFast blinkingFast blinking

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
202 Driving and Operating
SCR System Malfunction (Type B) Warning
StageStage 1
Trigger SCR system malfunction detected
DIC main display
DEF gauge (DIC sub display 2) Various

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 207
Sit in the correct driving position,
and use your right foot to operate
the brake and accelerator pedals.
To avoid accidentally pressing the
wrong pedal, check the pedal
positions and practice putting your
foot on the desired pedal.
To start your vehicle:1. Firmly press the brake pedal. After making sure the selector
lever is placed into P or N, that
P or N is shown in the shift
indicator and that the parking
brake lever is fully pulled up,
place the engine control switch
into the ON position.
2. Start the engine and move the selector lever into D (diesel
engine) or D6/D4 (gasoline
engine) for forward movement,
or R for backward movement
while firmly pressing the brake
pedal with your right foot.
3. Make sure that the shift indicator indicates the correct
gear (D (diesel engine) or D6/
D4 (gasoline engine) for
forward movement, or R for
backward movement), release the parking brake, release the
brake pedal, and then
gradually press the accelerator
pedal. The vehicles starts
moving as you press the
accelerator pedal further.
On a steep slope:
Make sure that the shift indicator
indicates the correct gear (D (diesel
engine) or D6/D4 (gasoline engine)
for forward movement, or R for
backward movement), check the
area around the vehicle is clear,
release the brake pedal with your
right foot, and then slowly press the
accelerator pedal.
After you feel the vehicle start
moving, gradually release the
parking brake lever and start driving
the vehicle.
When the brake pedal is not
pressed, the shift lock system
operates and the selector lever
cannot be shifted from P to any
other position. See
Driver Information Center (DIC)
(Diesel Only) 093, Starting and
Stopping the Vehicle (Gasoline
Only) 0165 orStarting and
Stopping the Vehicle (Diesel Only)
0 168, Selector Lever 0214, and
Automatic Transmission Shift Lock
Control Function Check (Diesel
Only) 0285.
Normal Driving
When you move the selector lever
from P into D (diesel engine) or
D6 (gasoline engine), shifting takes
place in the automatic mode. Check
that D (diesel engine) or
D6 (gasoline engine) is displayed in
the shift indicator.
If the automatic transmission fluid
temperature is too low, the
transmission may not initially make
automatic shift to the 4th, 5th, and
6th gear. This condition is normal
and will be resolved as the fluid
temperature rises.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
246 Vehicle Care
Warning (Continued)
vehicle or its equipment. If you
have any questions about
carrying out some service, have
the work done by a skilled
technician.
To prevent personal injury, keep
hands, tools and clothing clear of
the engine cooling fan when the
engine is running.
The engine, exhaust pipe and
radiator will be hot immediately
after the vehicle is driven. Be
careful around these parts to
prevent burns. Perform all checks
when the engine is cold.
Do not perform work near an
open flame or other heat sources.
Do not let the engine run in poorly
ventilated garages or sheds. This
could cause carbon monoxide
poisoning.(Continued)
Warning (Continued)
Performing maintenance work on
a truck or chassis can be
dangerous. In trying to do some
jobs, you can be seriously injured.
Do your own maintenance work
only if you have the required
know-how and the proper tools
and equipment for the job. If you
have any doubts, contact your
dealer.
You and others could be seriously
injured.
For gasoline vehicles, pull firmly on
the parking brake lever and put the
transmission in neutral. Move the
selector lever to “P”and make sure
the shift indicator displays "P".
For diesel vehicles, pull firmly on the
parking brake lever and move the
selector lever to "P" and make sure
the shift indicator displays "P".
Make sure to turn off the engine and
remove the key from the engine
control switch before performing any
checks. Select a place with a solid and level
surface to perform the checking and
maintenance work. Make sure to
chock the wheels. It would be very
dangerous if the vehicle started
to move.
For gasoline vehicles, when
performing work on the electrical
system, be sure to remove the cable
from the negative terminal on the
battery.
For diesel vehicles, when
performing work on the electrical
system, begin by turning the engine
control switch to the "LOCK"
position, wait at least 3 minutes, and
then disconnect the negative cable
from the negative terminal on
battery. If the negative cable is
disconnected within 3 minutes, the
engine control module may
malfunction.
For gasoline vehicles, when working
on the fuel line or fuel pump,
remove the fuel tank filler cap. The
fuel system is under pressure and
the fuel will overspill unless the
pressure is relieved, possibly
leading to combustion or a fire.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
270 Vehicle Care
is overheating. The engine overheat
warning light will come on and on a
diesel vehicle, the warning buzzer
will sound. Either steam or boiling
engine coolant will squirt out of the
radiator. The diesel vehicle will also
have an“OVER HEAT” message
displayed. Take the following
corrective actions immediately.
{Warning
To help avoid being burned:
Do not tilt the cab or open the
engine access cover if you see or
hear steam or engine coolant
escaping from the engine
compartment. Wait until no steam
or engine coolant can be seen or
heard before tilting the cab or
opening the engine cover.
Do not remove the radiator cap or
engine coolant reserve tank cap if
the engine coolant in the tank is
boiling. Also do not remove the
radiator cap while the engine and
radiator are still hot. Scalding fluid
(Continued)
Warning (Continued)
and steam can be blown out
under pressure if either cap is
taken off too soon.
You and others could be seriously
injured.

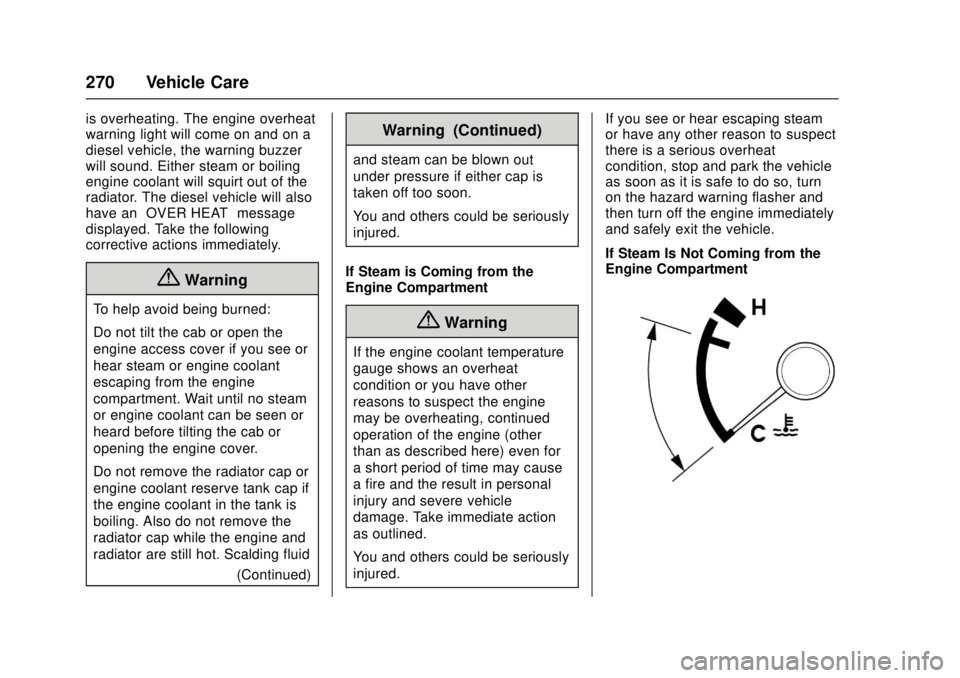

If Steam is Coming from the
Engine Compartment
{Warning
If the engine coolant temperature
gauge shows an overheat
condition or you have other
reasons to suspect the engine
may be overheating, continued
operation of the engine (other
than as described here) even for
a short period of time may cause
a fire and the result in personal
injury and severe vehicle
damage. Take immediate action
as outlined.
You and others could be seriously
injured. If you see or hear escaping steam
or have any other reason to suspect
there is a serious overheat
condition, stop and park the vehicle
as soon as it is safe to do so, turn
on the hazard warning flasher and
then turn off the engine immediately
and safely exit the vehicle.
If Steam Is Not Coming from the
Engine Compartment
