2017 CHEVROLET LOW CAB FORWARD headlamp

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
92 Instruments and Controls
After driving in the overheated
engine protection mode, allow the
engine to cool before attempting
any repair to avoid engine damage.
The engine oil will be severely
degraded. Repair the cause of
coolant loss and change the oil. See
Engine Overheating0269.

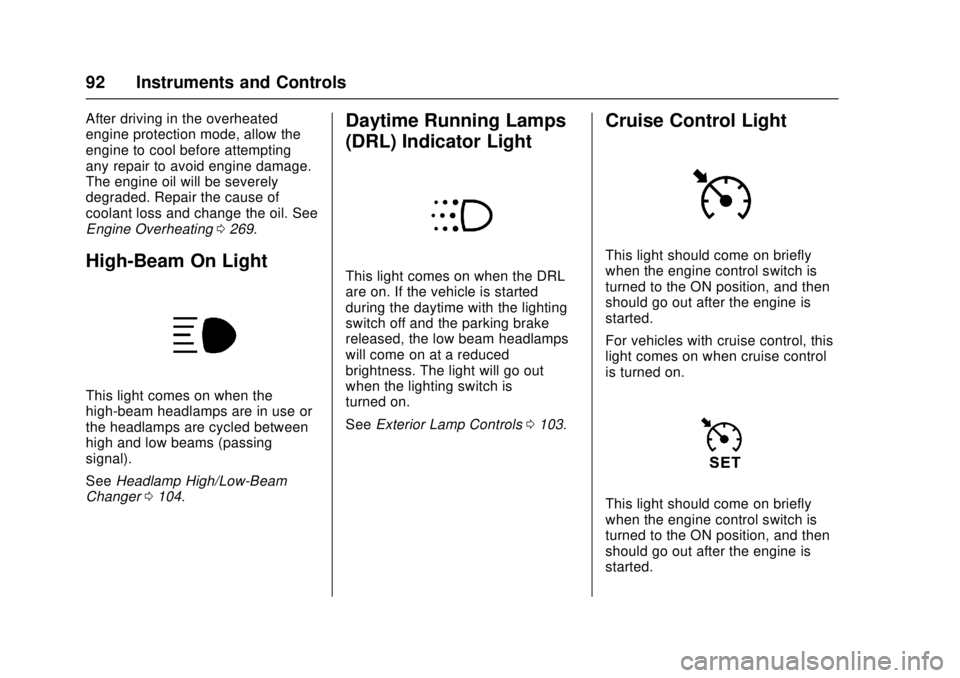

High-Beam On Light
This light comes on when the
high-beam headlamps are in use or
the headlamps are cycled between
high and low beams (passing
signal).
See Headlamp High/Low-Beam
Changer 0104.
Daytime Running Lamps
(DRL) Indicator Light
This light comes on when the DRL
are on. If the vehicle is started
during the daytime with the lighting
switch off and the parking brake
released, the low beam headlamps
will come on at a reduced
brightness. The light will go out
when the lighting switch is
turned on.
See Exterior Lamp Controls 0103.
Cruise Control Light
This light should come on briefly
when the engine control switch is
turned to the ON position, and then
should go out after the engine is
started.
For vehicles with cruise control, this
light comes on when cruise control
is turned on.
This light should come on briefly
when the engine control switch is
turned to the ON position, and then
should go out after the engine is
started.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Lighting 103
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . 103
Headlamp High/Low-BeamChanger . . . . . . . . . . . . . . . . . . . . 104
Flash-to-Pass . . . . . . . . . . . . . . . . 104
Hazard Warning Flashers . . . . . 105
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . 105
Cornering Lamps . . . . . . . . . . . . . 106
Interior Lighting
Instrument Panel Illumination Control . . . . . . . . . . . . . . . . . . . . . . 106
Cargo Lamp . . . . . . . . . . . . . . . . . . 107
Dome Lamps . . . . . . . . . . . . . . . . . 107
Exterior Lighting
Exterior Lamp Controls
Turning the light control switch to
the following positions will cause the
relevant lights to illuminate.
The light control switch can be used
when the engine control switch is
placed in the LOCK or ACC
position. Do not operate the
combination lights for an extended
time period with the engine stopped.
Otherwise, the battery may go dead,
making it impossible to restart the
engine.
9: Turns off all exterior lights.
;:Turns on the parking lights
including all exterior lights, except
the headlights.
2: Turns on the headlights
together with the parking lights,
sidemarker lights, roofmarker lights,
taillights, license plate light, and
instrument panel lights.
When you start the engine in
daytime, with the lighting switch off,
and release the parking brake, the
daytime running lights will come on.
See Daytime Running Lamps (DRL)
Indicator Light 092 and Turn and
Lane-Change Signals 0105.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
104 Lighting
Headlamp High/
Low-Beam Changer
With the headlights on, move the
lever forward and backward to
switch between the high beam and
low beam.
Moving the lever forward selects
high beam; moving the lever
backward selects low beam.
While the headlights are on high
beam, the headlights high beam
indicator light on the instrument
panel remains on.
This indicator light comes on when
high beam is selected or the
headlights are cycled between high
and low beams.
Use low beam whenever there are
vehicles ahead in the same lane or
oncoming vehicles in the
opposite lane.
SeeBulb Replacement 0288.
Flash-to-Pass
By lightly pulling the light control
switch lever and releasing it, the
high beam comes on and off. At the
same time, the headlights high
beam indicator light on the
instrument panel comes on and off.
Use this function as a signal for
flash-to-pass a vehicle or other
purposes.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
244 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 245
California Proposition65 Warning . . . . . . . . . . . . . . . . . 245
California Perchlorate Materials Requirements . . . . . 245
Accessories and Modifications . . . . . . . . . . . . . . . . 245
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 245
Cab Tilting . . . . . . . . . . . . . . . . . . . . 247
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 249
Engine Cover . . . . . . . . . . . . . . . . . 250
Engine Oil (Diesel) . . . . . . . . . . . 251
Engine Oil (Gasoline) . . . . . . . . . 257
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 260
Engine Air Cleaner/Filter . . . . . . 263
Engine Coolant . . . . . . . . . . . . . . . 263
Engine Overheating . . . . . . . . . . 269
Power Steering Fluid . . . . . . . . . 273
Washer Fluid . . . . . . . . . . . . . . . . . 274
Brakes . . . . . . . . . . . . . . . . . . . . . . . 275
Brake Fluid . . . . . . . . . . . . . . . . . . . 280
Battery . . . . . . . . . . . . . . . . . . . . . . . . 281 Fuel Filter . . . . . . . . . . . . . . . . . . . . 282
Rear Axle (Gear Oil Viscosity
Chart) . . . . . . . . . . . . . . . . . . . . . . . 283
Rear Axle (Oil Level Check) . . . . . . . . . . . . . . . . . . . . . . 283
Noise Control System . . . . . . . . 284
Automatic Transmission Shift Lock Control Function Check
(Diesel Only) . . . . . . . . . . . . . . . . 285
Wiper Blade Replacement . . . . 286
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 288
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 288
Headlamps and Front Turn Signal . . . . . . . . . . . . . . . . . . . . . . . 291
Roofmarker Lamps . . . . . . . . . . . 295
Sidemarker Lamps (Including Turn Signal and Cornering
Lamps) . . . . . . . . . . . . . . . . . . . . . . 295
Taillamps, Turn Signal, Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 297
License Plate Lamp . . . . . . . . . . 297
Interior Lamps . . . . . . . . . . . . . . . . 298
Electrical System
Electrical System Overload . . . 298
Wheels and Tires
Wheels and Tires . . . . . . . . . . . . . 308
Tire Pressure . . . . . . . . . . . . . . . . . 322
Tire Rotation . . . . . . . . . . . . . . . . . 323
If a Tire Goes Flat . . . . . . . . . . . . 326
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 326
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 332
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 334
Interior Care . . . . . . . . . . . . . . . . . . 340

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
288 Vehicle Care
2. Continue pushing in the wiperrubber insert until the wiper
blade's hook engages with the
hole in it, and then confirm that
the rubber insert is securely
held in place.
3. Attach the wiper blade to the wiper arm.Headlamp Aiming
For vertical aiming, turn the two
screws indicated by arrows in the
diagram.
1. Remove the rubber beneath the headlight.
2. Two screws should be turned in the same direction at the
same time to adjust aiming.
3. When the headlamp aiming is out of position, contact your
dealer.
Bulb Replacement
Bulbs
1. Check each bulb for blowout.
2. If a bulb has blown out, replaceit. Always place the engine
control switch in the “LOCK”
position and place all the other
switches in the “OFF”position
before replacing the blown
bulbs.
3. If you need assistance replacing any bulbs, contact
your dealer.
Turn Signals
The flasher unit activates both the
turn signal circuits and the hazard
circuit. Should a lamp burn out, the
flasher unit will continue to operate.
Check the turn signal lamps visually
before the vehicle is used.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 289
Bulb Wattage
{Warning
Using bulbs with a wattage other
than that specified could cause
the bulb or the wiring to become
hot. This could result in the
warping of the lens and case, and
it could also lead to the outbreak
of fire.
Bulbs are hot immediately after
they go out. When replacing the
bulbs, avoid being burned by
making sure they are fully cooled.
Never drive the vehicle with the
bulbs not working. This could
result in an accident.
You and others could be seriously
injured.
When one bulb of a pair of lamps,
such as a headlamp blows out, the
other bulb is approaching the end of
its useful life. We recommend that
both be changed at the same time. For the lamps (lighting equipment)
such as headlamps, inside of the
lens can mist up momentarily when
driving in the rain or during the car
wash. Also, the temperature
difference between inside and
outside of the lamps can sometimes
cause the water condensation
inside the lens. This is not abnormal
because this is the same
phenomenon as the windshield or
door glass fogs up when it rains. If it
is demisted minutes after the lamp
is turned on, things are normal.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 291
Contact your dealer when replacing
lights that are not listed here.
Headlamps and Front
Turn Signal
Replacing the Headlamps
When the bulb has blown out,
replace it with a bulb of the
specified wattage. Be careful not to
excessively tighten the mounting
screws when replacing the
headlamp bulbs.
Do not replace a bulb with other
than the specified wattage.
Proper aiming of the headlamps is
important to ensure sufficient
illumination of the highway without
blinding other motorists. When
replacing headlamp bulbs, have the
headlamp aim adjusted at your
dealer.
When replacing a bulb, make sure
the light switch is“OFF”.
See Bulb Replacement 0288.
1. Remove the front grille (3).
Remove the screw (4) from the
center of the grille. Push up on
the tabs of the five clips (1) on
the upper side of the grille and
pull the grille toward you to
remove it. Loosen the nuts (2)
for the turn signal light.2. Remove the turn signal lamp.Open the front door. Use a
phillips head screwdriver to
remove the two screws
between the door and the cab.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
292 Vehicle Care
3. Tilt the turn signal lamp unitdown toward the front of the
vehicle and remove it.
4. Disconnect the connector (1)for the turn signal lamp from
the socket (2) and then remove
the lamp.
5. Remove the headlamp. Remove the headlamp
connectors and parking lamp
connectors, followed by
removing the headlamp
assembly.
6. Disengage the rubber seals (2)from the two projections (3) at
the bottom of the headlamp.
Remove the four bolts (1).
7. Disconnect the headlamp
connector (5) and the parking
lamp socket (3). Remove the
headlamp assembly.
When removing the headlamp
connector, pull out the
connector while holding the
center portion of the rubber
boot. Otherwise, the headlamp
bulb will be broken.
