2017 CADILLAC ATS Owners Manual

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
232 VEHICLE CARE
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . . . . . . 298
Interior Care . . . . . . . . . . . . . . . . . . . . . . 302
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . 304General Information
For service and parts needs, visit your
dealer. You will receive genuine parts
and trained and supported service
people.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered by
the vehicle warranty.
Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.Damage to vehicle components
resulting from modifications or the
installation or use of non-GM certified
parts, including control module or
software modifications, is not covered
under the terms of the vehicle
warranty and may affect remaining
warranty coverage for affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle using
genuine GM Accessories installed by a
dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 077.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
VEHICLE CARE 233
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have the
proper knowledge, service manual,
tools, or parts. Always follow
owner’s manual procedures and
consult the service manual for your
vehicle before doing any
service work.
If doing some of your own service
work, use the proper service manual.
It tells you much more about how to
service the vehicle than this
manual can.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Airbag System
Check 078.
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed.
Caution
Even small amounts of
contamination can cause damage to
vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To open the hood:
1. Pull the hood release handle inside the vehicle. It is on the
lower left side of the instrument
panel.
2. Go to the front of the vehicle andmove the secondary hood release
lever toward the right side of the
vehicle.
3. Lift the hood.
To close the hood:
Before closing the hood, be sure all
filler caps are on properly. Then, bring
the hood from full open to within
152 mm (6 in) of the closed position.
Pause, then push the front center of
the hood with a swift, firm motion to
fully close the hood.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
234 VEHICLE CARE
Engine Compartment Overview
2.0L L4 Engine (LTG)

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
VEHICLE CARE 235
1. Windshield Washer FluidReservoir. See Washer
Fluid 0253.
2. Remote Positive (+) Battery Terminal. See Jump
Starting 0292.
3. Remote Negative (-) Battery Terminal. See Jump
Starting 0292.
4. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
(Engine) 0246 orCooling System
(Intercooler) 0248.
5. Engine Compartment Fuse
Block 0262.
6. Engine Oil Fill Cap. See Engine
Oil 0241.
7. Engine Cooling Fan (Out of View). See Cooling System
(Engine) 0246 orCooling System
(Intercooler) 0248.
8. Engine Oil Dipstick. See Engine
Oil 0241.
9. Brake Fluid Reservoir. See Brake
Fluid 0254.
10. Engine Air Cleaner/Filter 0245.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
236 VEHICLE CARE
2.5L L4 Engine (LCV)

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
VEHICLE CARE 237
1. Windshield Washer FluidReservoir. See Washer
Fluid 0253.
2. Remote Positive (+) Battery Terminal. See Jump
Starting 0292.
3. Remote Negative (-) Battery Terminal. See Jump
Starting 0292.
4. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
(Engine) 0246 orCooling System
(Intercooler) 0248.
5. Engine Compartment Fuse
Block 0262.
6. Engine Oil Fill Cap. See Engine
Oil 0241.
7. Engine Cooling Fan (Out of View). See Cooling System
(Engine) 0246 orCooling System
(Intercooler) 0248.
8. Engine Oil Dipstick. See Engine
Oil 0241.
9. Brake Fluid Reservoir. See Brake
Fluid 0254.
10. Engine Air Cleaner/Filter 0245.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
238 VEHICLE CARE

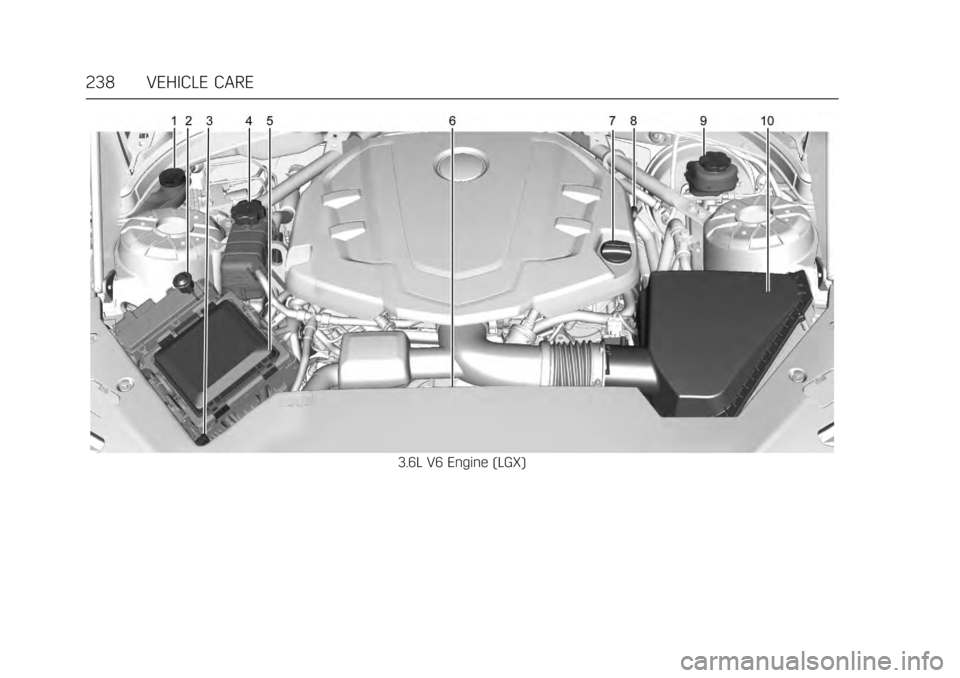

3.6L V6 Engine (LGX)

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
VEHICLE CARE 239
1. Windshield Washer FluidReservoir. See Washer
Fluid 0253.
2. Remote Positive (+) Battery Terminal. See Jump
Starting 0292.
3. Remote Negative (-) Battery Terminal. See Jump
Starting 0292.
4. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
(Engine) 0246 orCooling System
(Intercooler) 0248.
5. Engine Compartment Fuse
Block 0262.
6. Engine Cooling Fan (Out of View). See Cooling System
(Engine) 0246 orCooling System
(Intercooler) 0248.
7. Engine Oil Fill Cap. See Engine
Oil 0241.
8. Engine Oil Dipstick. See Engine
Oil 0241.
9. Brake Fluid Reservoir. See Brake
Fluid 0254.
10. Engine Air Cleaner/Filter 0245.
