2017 CADILLAC ATS Owners Manual

2017 ATS/ATS-V
AT S/AT S -V
Owner’s Manual
23228871_US (ATS/ATS-V - MID EAST - English)
C
M
Y
CM
MY
CY
CMY
K
2k17_Cadillac_ATS_23228871_US.ai 1 6/9/2016 11:16:17 AM

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . . . . . 27
Seats and Restraints . . . . . . . . . . . . . . . 49
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Instruments and Controls . . . . . . . . . . 99
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Infotainment System . . . . . . . . . . . . . 153
Climate Controls . . . . . . . . . . . . . . . . . . 160
Driving and Operating . . . . . . . . . . . . 170
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 231
Service and Maintenance . . . . . . . . . 306
Technical Data . . . . . . . . . . . . . . . . . . . . 318
Customer Information . . . . . . . . . . . . 323
Index . . . . . . . . . . . . . . . . . . . . . . . . 325

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
2 INTRODUCTION
Introduction
The names, logos, emblems, slogans,
vehicle model names, and vehicle
body designs appearing in this manual
including, but not limited to, GM, the
GM logo, the CADILLAC Emblem, and
CADILLAC ATS are trademarks and/or
service marks of General Motors LLC,
its subsidiaries, affiliates, or licensors.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country specifications,
features/applications that may not be
available in your region, or changes
subsequent to the printing of this
owner manual.Refer to the purchase documentation
relating to your specific vehicle to
confirm the features.
Keep this manual in the vehicle for
quick reference.
Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means
“Do Not,”
“Do not do this,” or“Do not let this
happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message, gauge,
or indicator.
Litho in U.S.A.
Part No. 23228871_US©2016 General Motors LLC. All Rights Reserved.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
INTRODUCTION 3
M:Shown when the owner manual
has additional instructions or
information.
*: Shown when the service manual
has additional instructions or
information.
0: Shown when there is more
information on another page —
“see page.”
Vehicle Symbol Chart
Here are some additional symbols that
may be found on the vehicle and what
they mean. For more information on
the symbol, refer to the Index.
9: Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g: Audio Steering Wheel Controls
$:Brake System Warning Light
":Charging System
I: Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_:Flame/Fire Prohibited
.:Fuel Gauge
+: Fuses
3:Headlamp High/Low-Beam
Changer
(: Heated Steering Wheel
H:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7: Tire Pressure Monitor
d:Traction Control/StabiliTrak®
a:Under Pressure
M: Windshield Washer Fluid

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
4 INTRODUCTION
2NOTES

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 5
In Brief
Instrument Panel
Instrument Panel Overview . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . . 8
Stop/Start System . . . . . . . . . . . . . . . . . . . 8
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . . . . . 8
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Seat Adjustment . . . . . . . . . . . . . . . . . . . 10
Memory Features . . . . . . . . . . . . . . . . . . 13
Second Row Seats . . . . . . . . . . . . . . . . . 14
Heated and Ventilated Seats . . . . . . 14
Head Restraint Adjustment . . . . . . . 14
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . 15
Passenger Sensing System . . . . . . . . 15
Mirror Adjustment . . . . . . . . . . . . . . . . 15
Steering Wheel Adjustment . . . . . . . 16
Interior Lighting . . . . . . . . . . . . . . . . . . . 16
Exterior Lighting . . . . . . . . . . . . . . . . . . . 17
Windshield Wiper/Washer . . . . . . . . 18
Climate Controls . . . . . . . . . . . . . . . . . . . 18
Transmission . . . . . . . . . . . . . . . . . . . . . . . 20
Vehicle Features
Infotainment System . . . . . . . . . . . . . . 20
Steering Wheel Controls . . . . . . . . . . 20
Cruise Control . . . . . . . . . . . . . . . . . . . . . 21
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . 21
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Forward Automatic Braking (FAB) . . . . . . . . . . . . . . . . . . . . 22
Lane Keep Assist (LKA) . . . . . . . . . . . 22

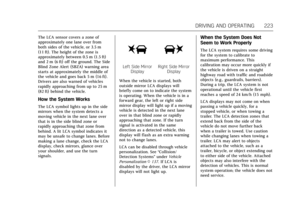

Lane Change Alert (LCA) . . . . . . . . . . 22
Rear Vision Camera (RVC) . . . . . . . . 22
Rear Cross Traffic Alert (RCTA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Parking Assist . . . . . . . . . . . . . . . . . . . . . . 23
Reverse Automatic Braking (RAB) . . . . . . . . . . . . . . . . . . . . 23
Power Outlets . . . . . . . . . . . . . . . . . . . . . . 23
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Performance and Maintenance
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . 24
Tire Pressure Monitor . . . . . . . . . . . . . 24

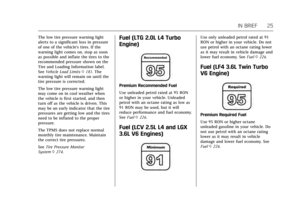

Fuel (LTG 2.0L L4 Turbo Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fuel (LCV 2.5L L4 and LGX 3.6L V6 Engines) . . . . . . . . . . . . . . . . . . . . . . 25
Fuel (LF4 3.6L Twin Turbo V6 Engine) . . . . . . . . . . . . . . . . . . . . . . . . 25 Engine Oil Life System . . . . . . . . . . . . 26
Driving for Better Fuel
Economy . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
6 IN BRIEF
Instrument Panel
Instrument Panel Overview

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 7
1.Air Vents 0168.
2. Exterior Lamp Controls 0145.
Turn Signal Lever. See Turn and
Lane-Change Signals 0149.
3. Tap Shift Controls (If Equipped). See Manual Mode 0193.
4. Cruise Control 0204.
Adaptive Cruise Control 0207 (If
Equipped).
Forward Collision Alert (FCA)
System 0218 (If Equipped).
Heated Steering Wheel 0100 (If
Equipped).
Traction Control/Electronic
Stability Control 0198 (ATS-V).
Steering Wheel Controls 0100.
5. Instrument Cluster 0107.
Driver Information Center (DIC)
Display. See Driver Information
Center (DIC) 0122.
6. Steering Wheel Controls 0100 (If
Equipped).
7. Windshield Wiper/Washer 0101.
8. Infotainment 0153. 9. Light Sensor. See
Automatic
Headlamp System 0147.
10. Dual Automatic Climate Control
System 0160 orDual Automatic
Climate Control System 0163.
11. Hazard Warning Flashers 0148.
12. Heated and Ventilated Front Seats
058 (If Equipped).
13. Instrument Panel Storage 096 (If
Equipped).
Wireless Charging Pad (If
Equipped) (Out of View). See
Wireless Charging 0104.
14. Traction Control/Electronic
Stability Control 0198 (ATS).
Stop/Start Disable Switch (If
Equipped). See Starting the
Engine 0186.
MODE Button (ATS) or
«/ª
Button (ATS-V). See Driver Mode
Control 0199.
15. Shift Lever. See Automatic
Transmission 0191.
16. Storage Bin. See Instrument Panel
Storage 096. 17. ENGINE START/STOP Button.
SeeIgnition Positions 0185.
18. Horn 0100.
19. Steering Wheel Adjustment 0100.
20. Head-Up Display (HUD) 0124 (If
Equipped).
21. Parking Assist Button. See Driver
Assistance Systems 0214.
Lane Keep Assist (LKA) 0224 (If
Equipped).
22. Electric Parking Brake (If Equipped). See Parking Brake
(Manual) 0195 orParking Brake
(Electric) 0196.
23. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0114.
24. Hood Release (Out of View). See Hood 0233.
25. Instrument Panel Illumination
Control 0149.
