2017 BMW X5M Owners Manual

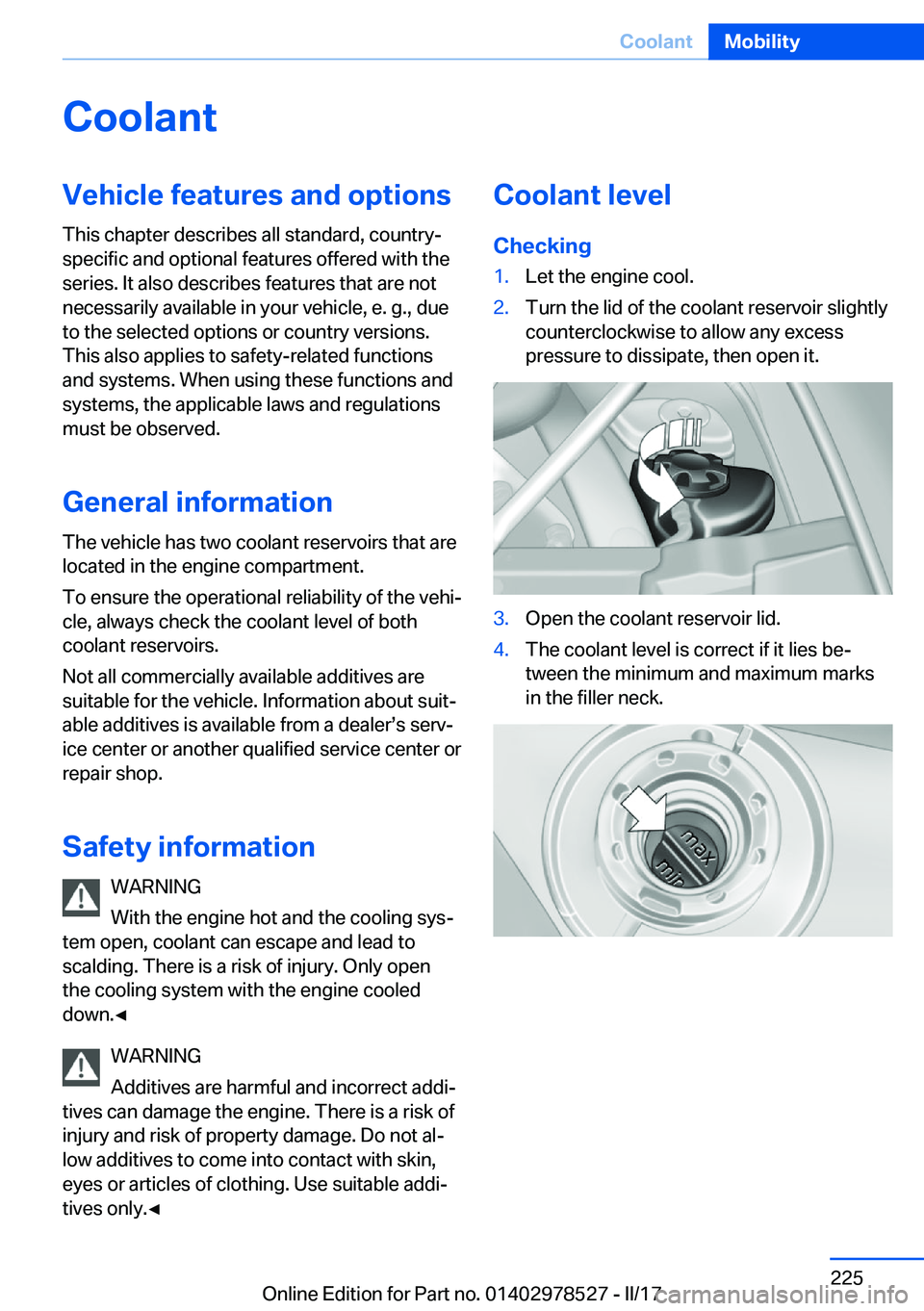

CoolantVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
General
information
The vehicle has two coolant reservoirs that are
located in the engine compartment.
To ensure the operational reliability of the vehij
cle, always check the coolant level of both
coolant reservoirs.
Not all commercially available additives are suitable for the vehicle. Information about suitjable additives is available from a dealerss servjice center or another qualified service center or
repair shop.
Safety
information WARNING
With the engine hot and the cooling sysj
tem open, coolant can escape and lead to
scalding. There is a risk of injury. Only open the cooling system with the engine cooleddown.'

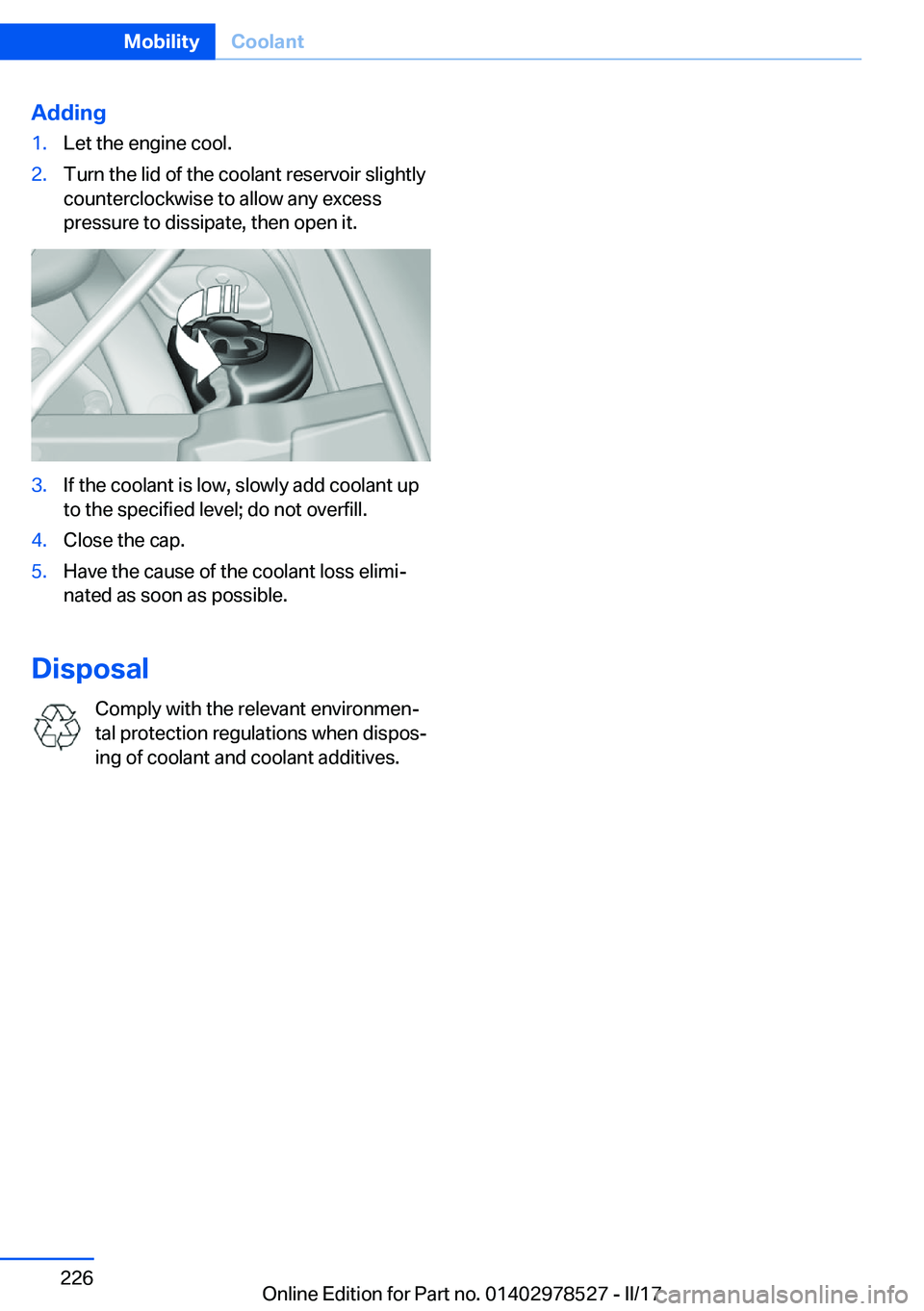

Adding1.Let the engine cool.2.Turn the lid of the coolant reservoir slightlycounterclockwise to allow any excess
pressure to dissipate, then open it.3.If the coolant is low, slowly add coolant up to the specified level; do not overfill.4.Close the cap.5.Have the cause of the coolant loss elimijnated as soon as possible.
Disposal
Comply with the relevant environmenj
tal protection regulations when disposj
ing of coolant and coolant additives.
Seite 226MobilityCoolant226
Online Edition for Part no. 01402978527 - II/17

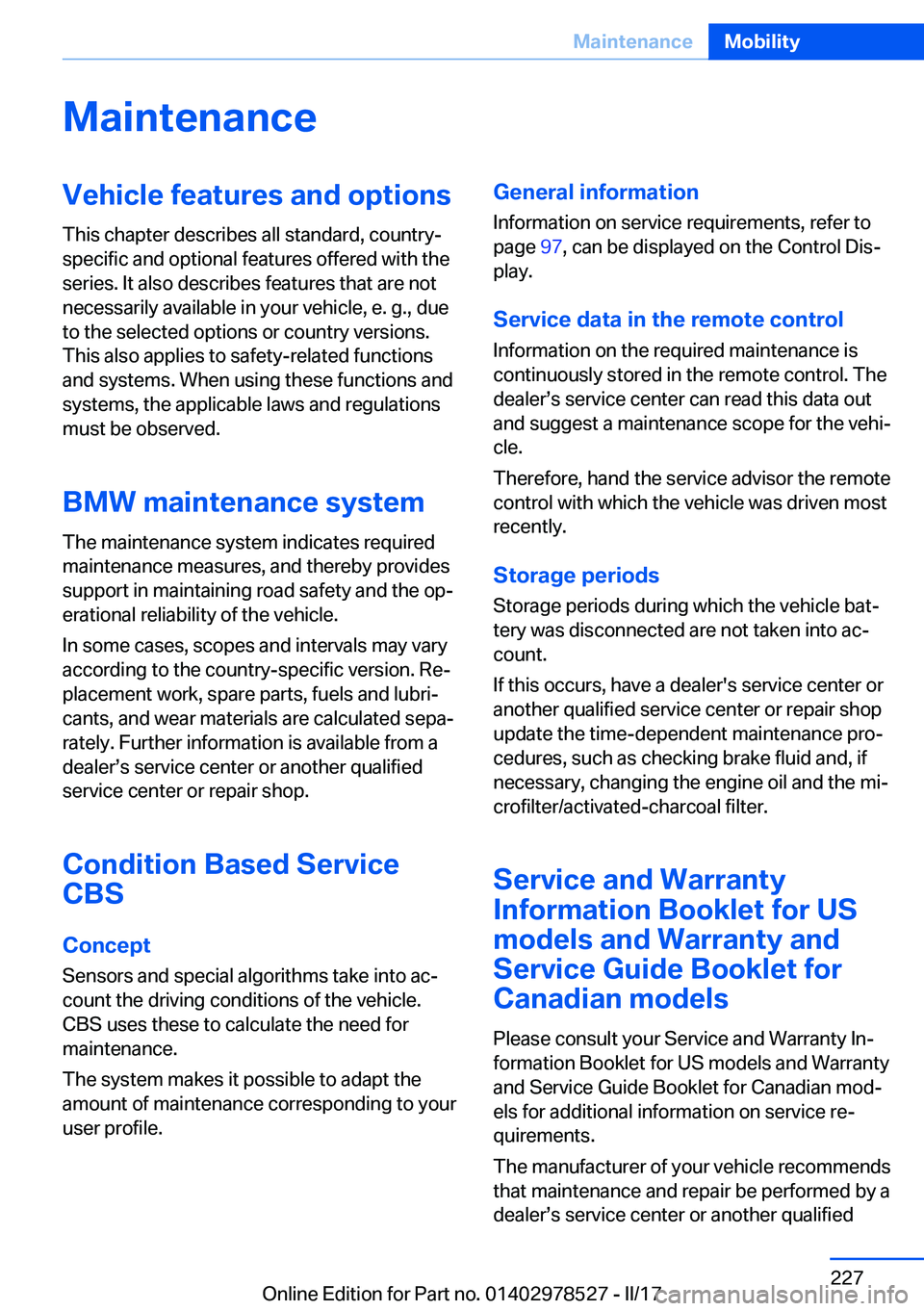

MaintenanceVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
BMW
maintenance
system The maintenance system indicates requiredmaintenance measures, and thereby provides
support in maintaining road safety and the opj erational reliability of the vehicle.
In some cases, scopes and intervals may vary
according to the country-specific version. Rej
placement work, spare parts, fuels and lubrij
cants, and wear materials are calculated sepaj rately. Further information is available from a
dealerss service center or another qualified service center or repair shop.
Condition
Based
Service
CBS
Concept
Sensors and special algorithms take into acj
count the driving conditions of the vehicle.
CBS uses these to calculate the need for
maintenance.
The system makes it possible to adapt the amount of maintenance corresponding to your user profile.General
information
Information on service requirements, refer to page 97, can be displayed on the Control Disj
play.
Service
data
in
the
remote
control Information on the required maintenance iscontinuously stored in the remote control. Thedealerss service center can read this data outand suggest a maintenance scope for the vehijcle.
Therefore, hand the service advisor the remote
control with which the vehicle was driven most
recently.
Storage
periods Storage periods during which the vehicle batj
tery was disconnected are not taken into acj count.
If this occurs, have a dealer's service center or another qualified service center or repair shop update the time-dependent maintenance projcedures, such as checking brake fluid and, if
necessary, changing the engine oil and the mij
crofilter/activated-charcoal filter.
Service
and
Warranty
Information
Booklet
for
US
models
and
Warranty
and
Service
Guide
Booklet
for
Canadian
models
Please consult your Service and Warranty Inj
formation Booklet for US models and Warranty
and Service Guide Booklet for Canadian modj els for additional information on service rejquirements.
The manufacturer of your vehicle recommends that maintenance and repair be performed by a
dealerss service center or another qualifiedSeite 227MaintenanceMobility227
Online Edition for Part no. 01402978527 - II/17

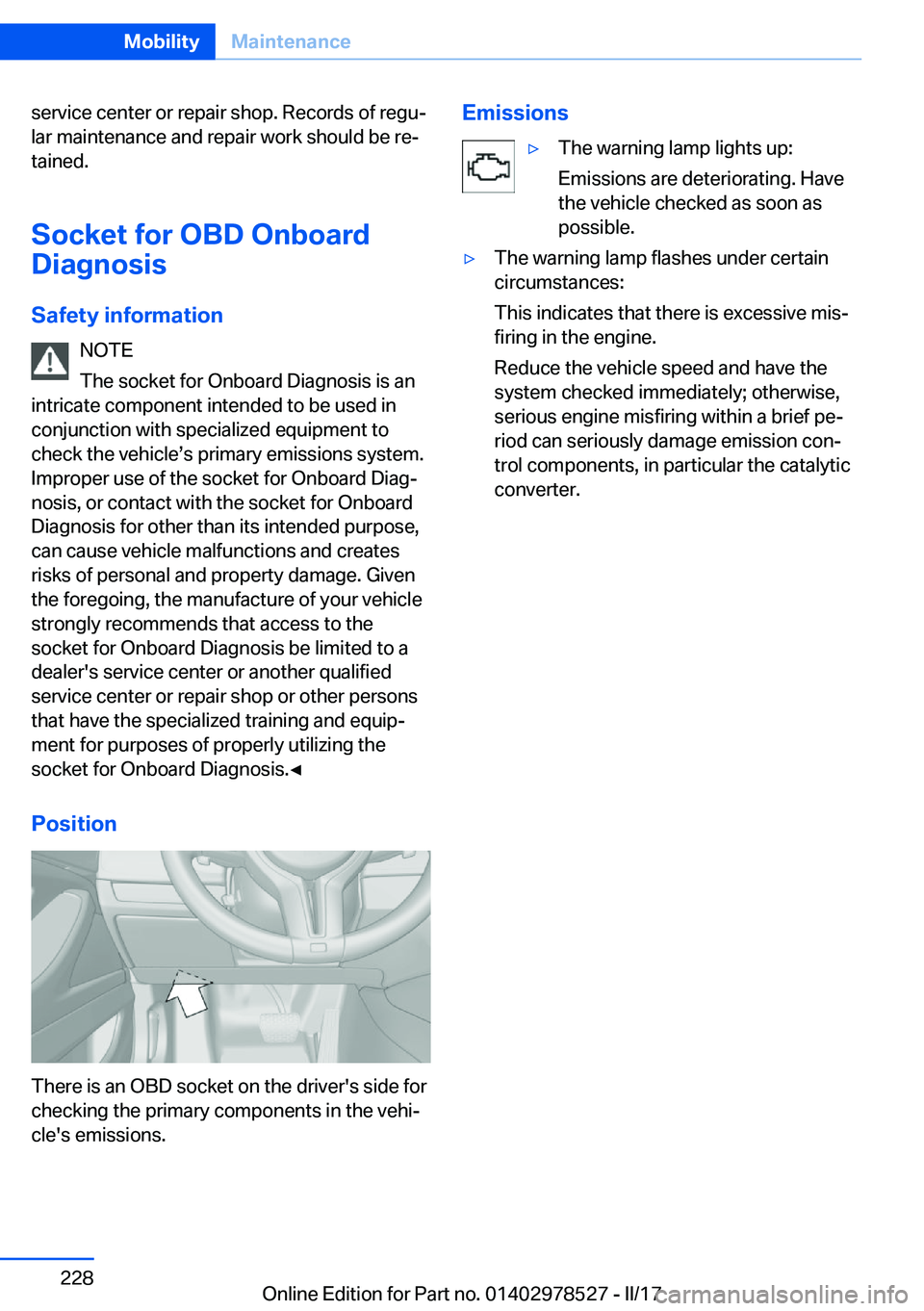

service center or repair shop. Records of reguj
lar maintenance and repair work should be rej
tained.
Socket
for
OBD
Onboard
Diagnosis
Safety
information NOTE
The socket for Onboard Diagnosis is an
intricate component intended to be used in
conjunction with specialized equipment to check the vehicless primary emissions system.Improper use of the socket for Onboard Diagjnosis, or contact with the socket for Onboard
Diagnosis for other than its intended purpose,
can cause vehicle malfunctions and creates risks of personal and property damage. Given
the foregoing, the manufacture of your vehicle
strongly recommends that access to the socket for Onboard Diagnosis be limited to a
dealer's service center or another qualified service center or repair shop or other persons
that have the specialized training and equipj
ment for purposes of properly utilizing the
socket for Onboard Diagnosis.'

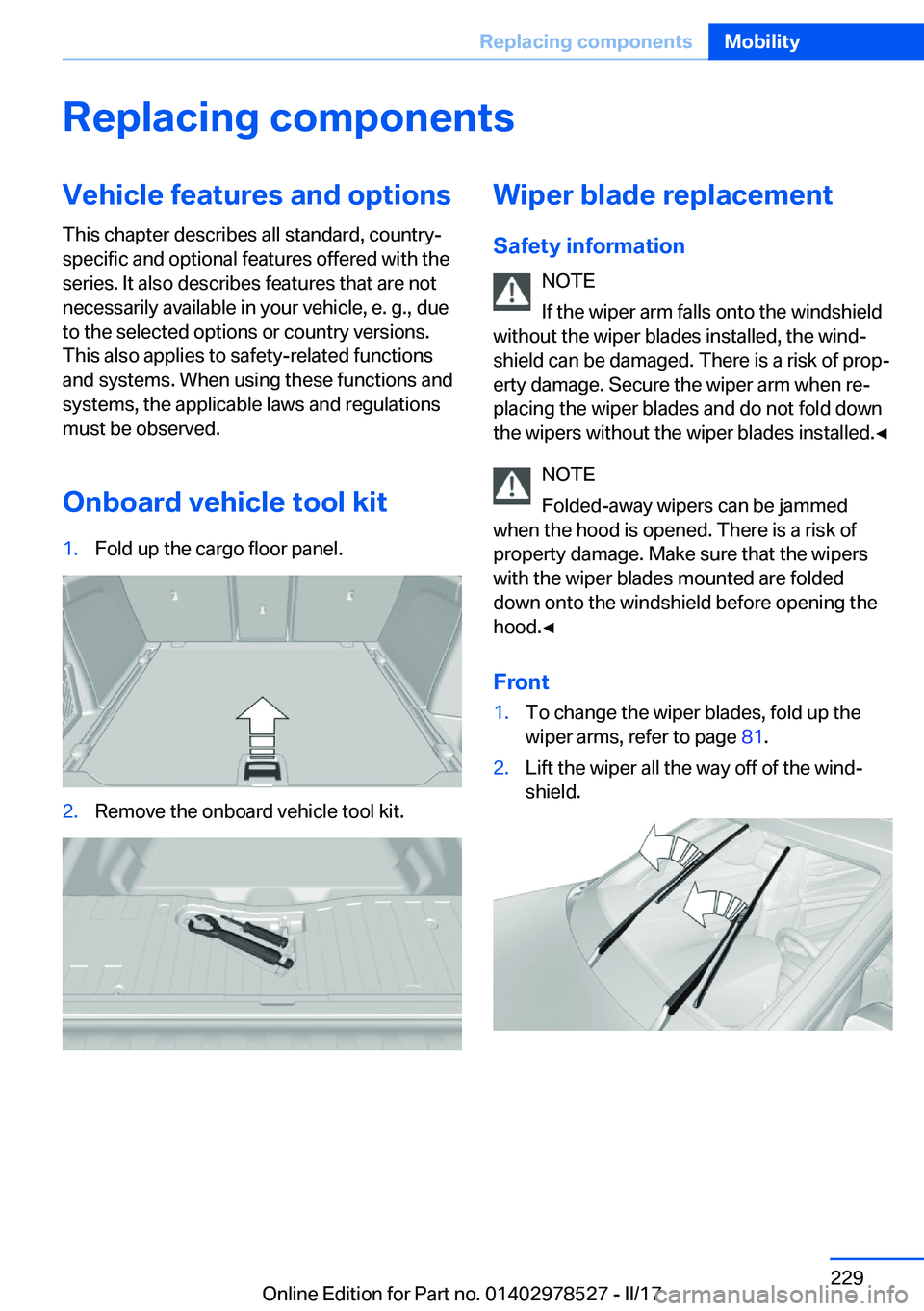

Replacing
componentsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Onboard
vehicle
tool
kit1.Fold up the cargo floor panel.2.Remove the onboard vehicle tool kit.Wiper
blade
replacementSafety
information NOTE
If the wiper arm falls onto the windshield
without the wiper blades installed, the windj shield can be damaged. There is a risk of propjerty damage. Secure the wiper arm when rejplacing the wiper blades and do not fold downthe wipers without the wiper blades installed.'

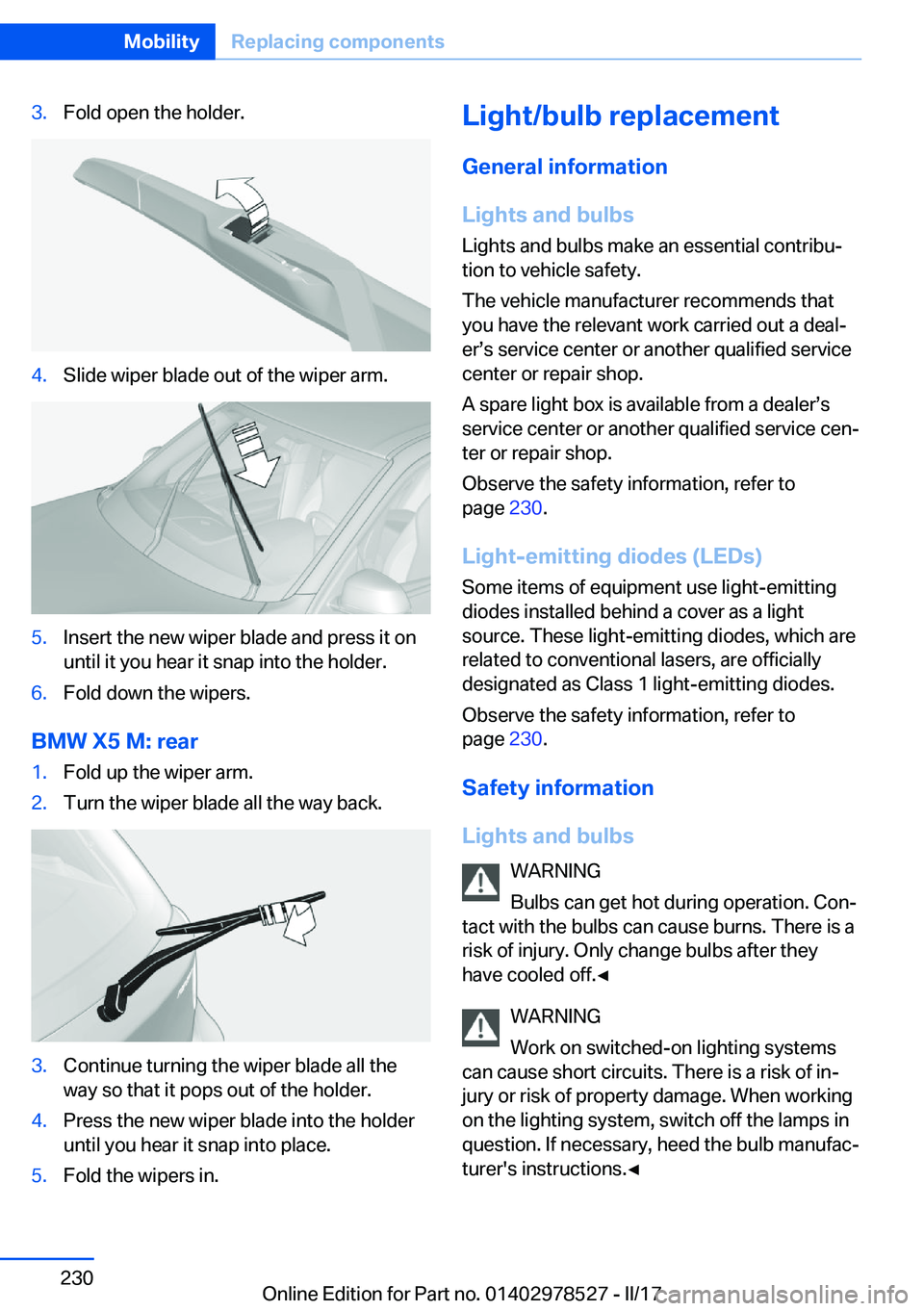

3.Fold open the holder.4.Slide wiper blade out of the wiper arm.5.Insert the new wiper blade and press it on
until it you hear it snap into the holder.6.Fold down the wipers.
BMW
X5
M:
rear
1.Fold up the wiper arm.2.Turn the wiper blade all the way back.3.Continue turning the wiper blade all the way so that it pops out of the holder.4.Press the new wiper blade into the holderuntil you hear it snap into place.5.Fold the wipers in.Light/bulb
replacement
General
information
Lights
and
bulbs
Lights and bulbs make an essential contribuj
tion to vehicle safety.
The vehicle manufacturer recommends that
you have the relevant work carried out a dealj erss service center or another qualified servicecenter or repair shop.
A spare light box is available from a dealerss
service center or another qualified service cenj
ter or repair shop.
Observe the safety information, refer to
page 230.
Light-emitting
diodes
(LEDs)
Some items of equipment use light-emitting
diodes installed behind a cover as a light source. These light-emitting diodes, which arerelated to conventional lasers, are officially
designated as Class 1 light-emitting diodes.
Observe the safety information, refer topage 230.
Safety
information
Lights
and
bulbs WARNING
Bulbs can get hot during operation. Conj
tact with the bulbs can cause burns. There is a
risk of injury. Only change bulbs after they
have cooled off.'

NOTE
Dirty bulbs have a reduced service life.
There is a risk of property damage. Do not hold
new bulbs with your bare hands. Use a clean
cloth or something similar, or hold the bulb by
its base.'

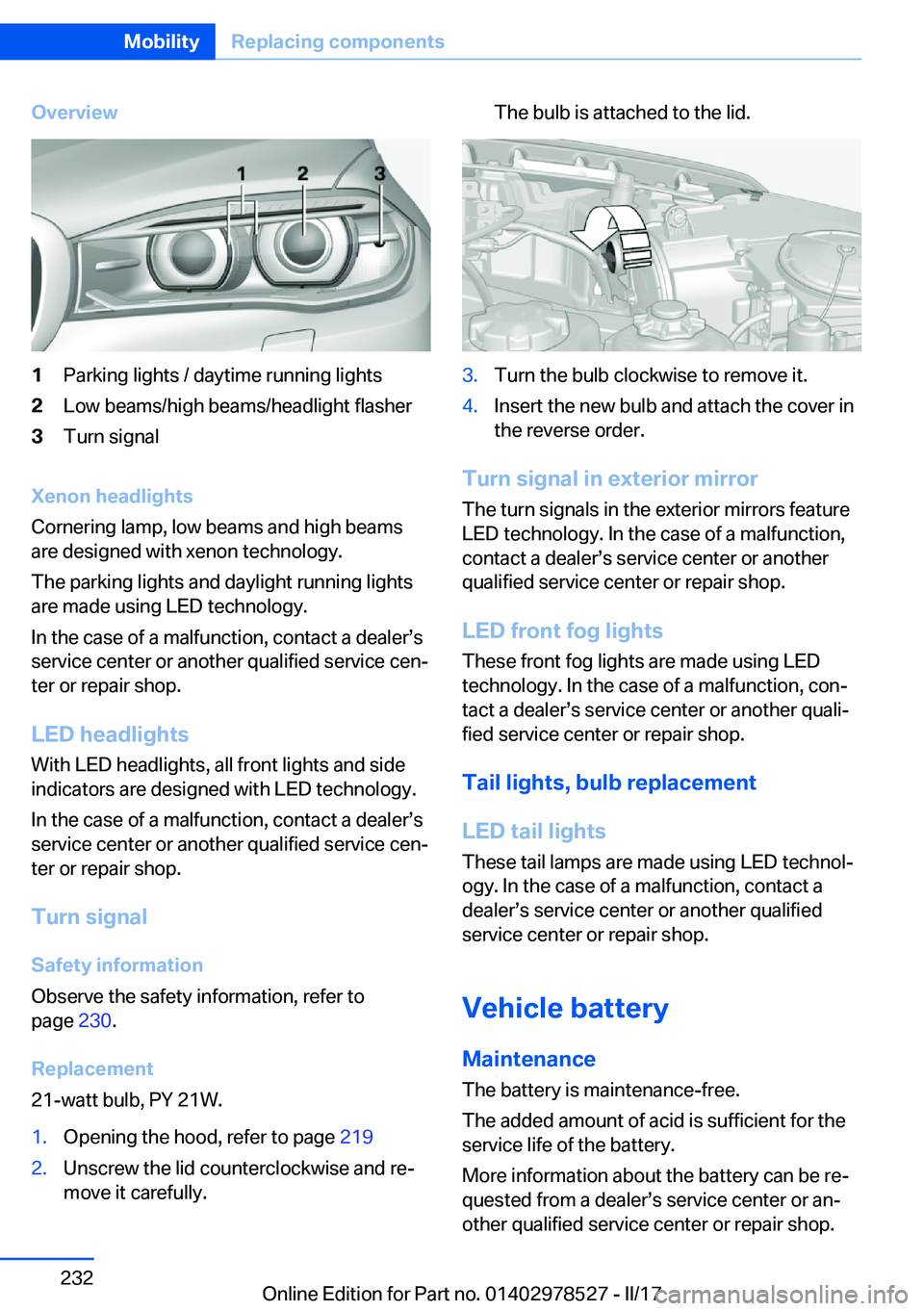

Overview1Parking lights / daytime running lights2Low beams/high beams/headlight flasher3Turn signal
Xenon
headlights
Cornering lamp, low beams and high beams
are designed with xenon technology.
The parking lights and daylight running lights are made using LED technology.
In the case of a malfunction, contact a dealerss
service center or another qualified service cenj
ter or repair shop.
LED
headlightsWith LED headlights, all front lights and side
indicators are designed with LED technology.
In the case of a malfunction, contact a dealerssservice center or another qualified service cenj
ter or repair shop.
Turn
signal Safety
information
Observe the safety information, refer to
page 230.
Replacement
21-watt bulb, PY 21W.
1.Opening the hood, refer to page 2192.Unscrew the lid counterclockwise and rej
move it carefully.The bulb is attached to the lid.3.Turn the bulb clockwise to remove it.4.Insert the new bulb and attach the cover in the reverse order.
Turn
signal
in
exterior
mirror
The turn signals in the exterior mirrors feature
LED technology. In the case of a malfunction, contact a dealerss service center or another
qualified service center or repair shop.
LED
front
fog
lights
These front fog lights are made using LED
technology. In the case of a malfunction, conj
tact a dealerss service center or another qualij
fied service center or repair shop.
Tail
lights,
bulb
replacement
LED
tail
lights
These tail lamps are made using LED technolj ogy. In the case of a malfunction, contact a
dealerss service center or another qualified
service center or repair shop.
Vehicle
battery Maintenance
The battery is maintenance-free.
The added amount of acid is sufficient for the service life of the battery.
More information about the battery can be rej quested from a dealerss service center or anjother qualified service center or repair shop.
Seite 232MobilityReplacing
components232
Online Edition for Part no. 01402978527 - II/17
