4.Turn the crank on the vehicle jack counterj
clockwise to retract the jack and lower the vehicle.5.Remove the vehicle jack.

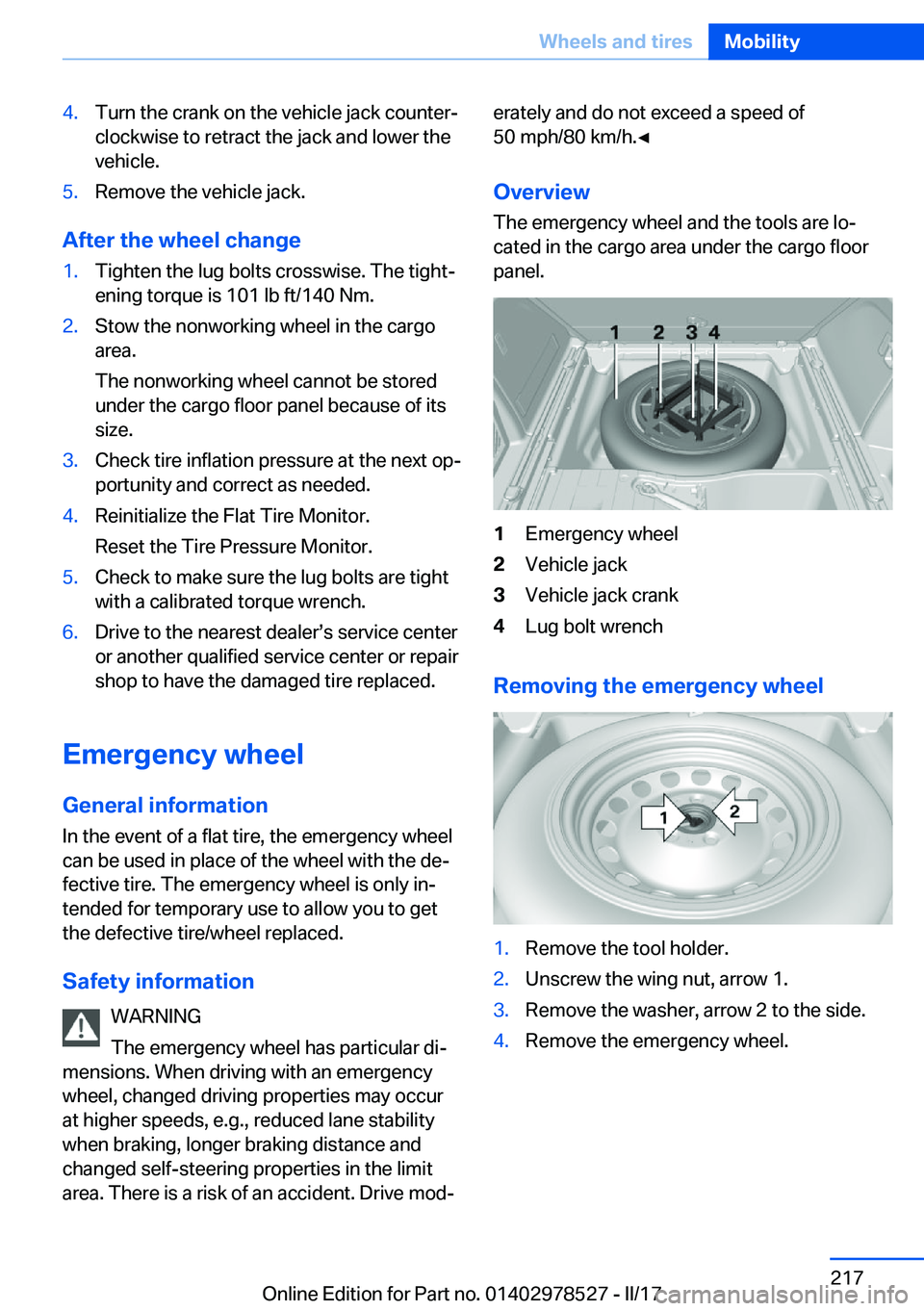

After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightjening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the Flat Tire Monitor.
Reset the Tire Pressure Monitor.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Drive to the nearest dealerss service center
or another qualified service center or repair
shop to have the damaged tire replaced.
Emergency
wheel
General
information
In the event of a flat tire, the emergency wheel
can be used in place of the wheel with the dej
fective tire. The emergency wheel is only inj
tended for temporary use to allow you to get
the defective tire/wheel replaced.
Safety
information WARNING
The emergency wheel has particular dij
mensions. When driving with an emergency wheel, changed driving properties may occurat higher speeds, e.g., reduced lane stability
when braking, longer braking distance and changed self-steering properties in the limit
area. There is a risk of an accident. Drive modj
erately and do not exceed a speed of
50 mph/80 km/h.'

Engine
compartmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.

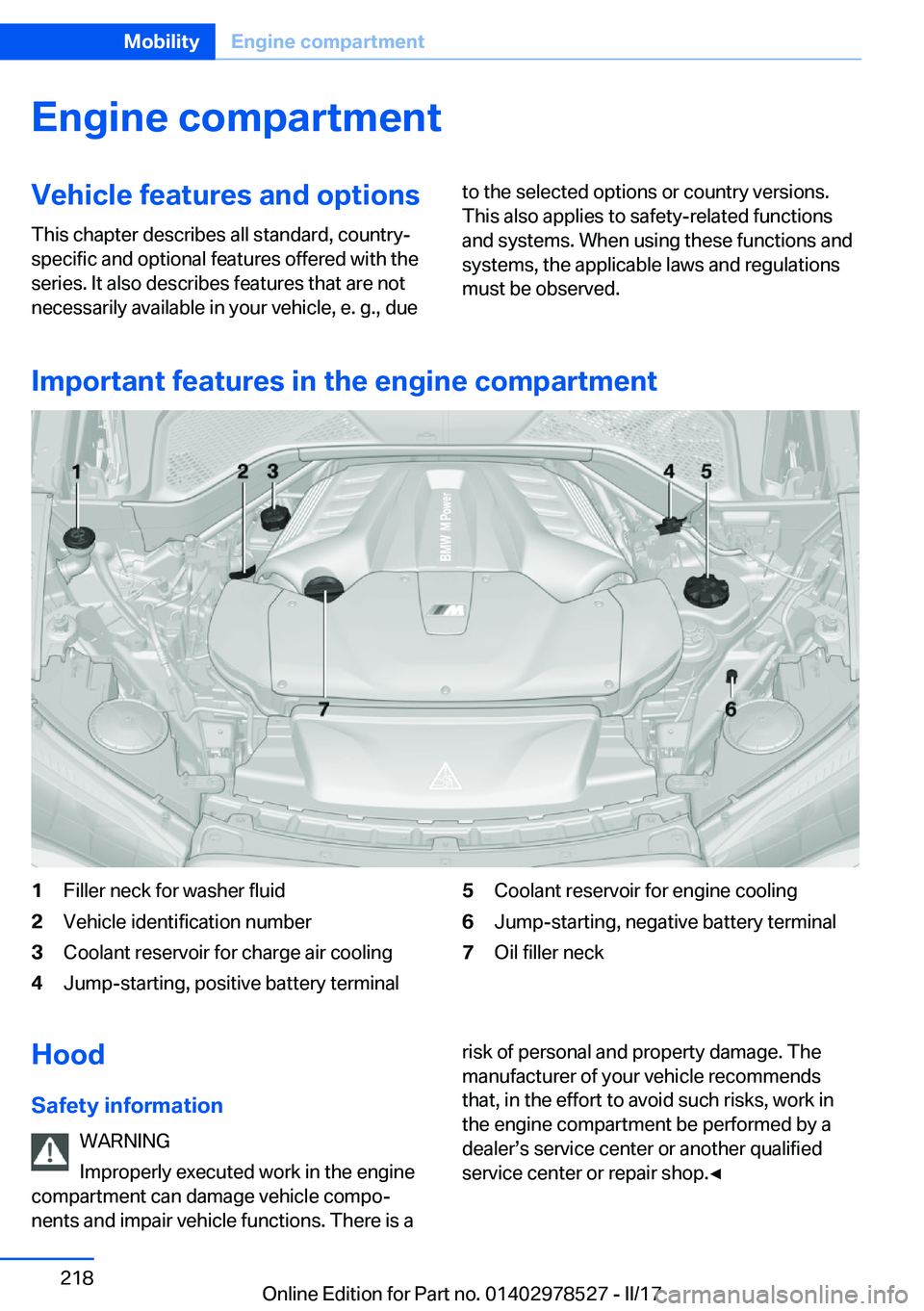

Important
features
in
the
engine
compartment
1Filler neck for washer fluid2Vehicle identification number3Coolant reservoir for charge air cooling4Jump-starting, positive battery terminal5Coolant reservoir for engine cooling6Jump-starting, negative battery terminal7Oil filler neckHood
Safety
information WARNING
Improperly executed work in the engine
compartment can damage vehicle compoj nents and impair vehicle functions. There is arisk of personal and property damage. Themanufacturer of your vehicle recommendsthat, in the effort to avoid such risks, work inthe engine compartment be performed by adealerss service center or another qualified
service center or repair shop.'

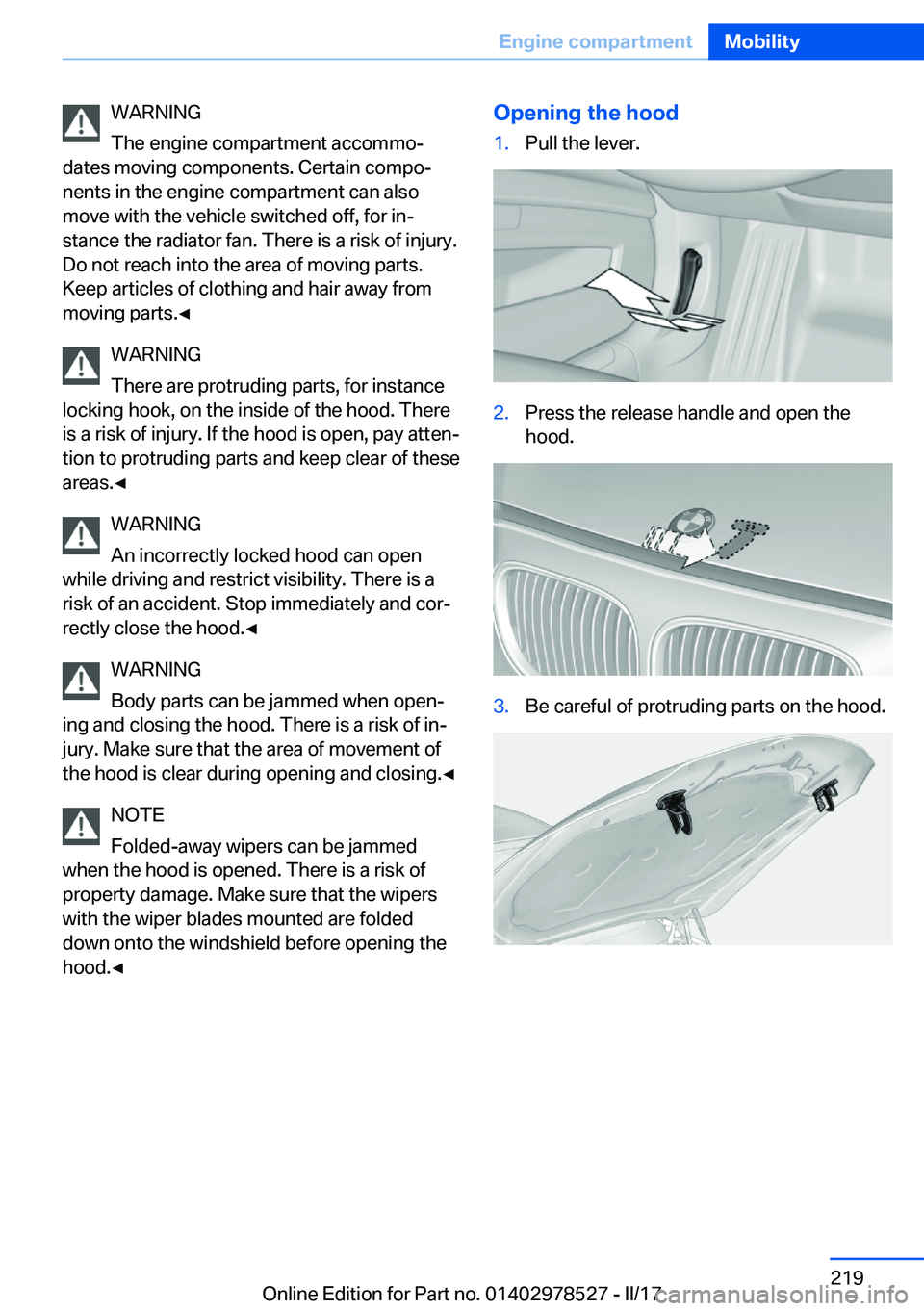

WARNING
The engine compartment accommoj
dates moving components. Certain compoj nents in the engine compartment can also
move with the vehicle switched off, for inj
stance the radiator fan. There is a risk of injury. Do not reach into the area of moving parts.
Keep articles of clothing and hair away from
moving parts.'

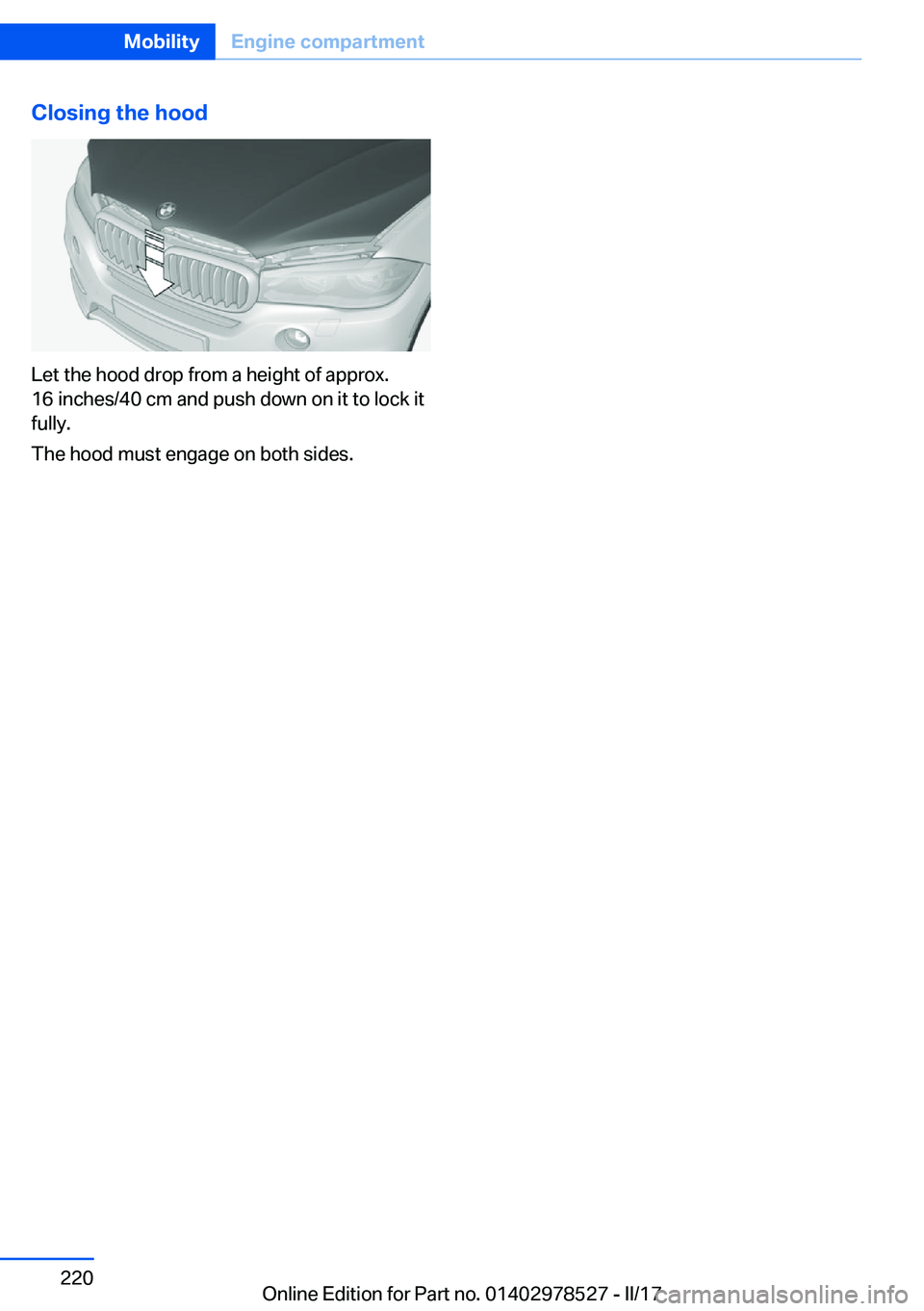

Closing
the
hood
Let the hood drop from a height of approx.
16 inches/40 cm and push down on it to lock it
fully.
The hood must engage on both sides.
Seite 220MobilityEngine
compartment220
Online Edition for Part no. 01402978527 - II/17

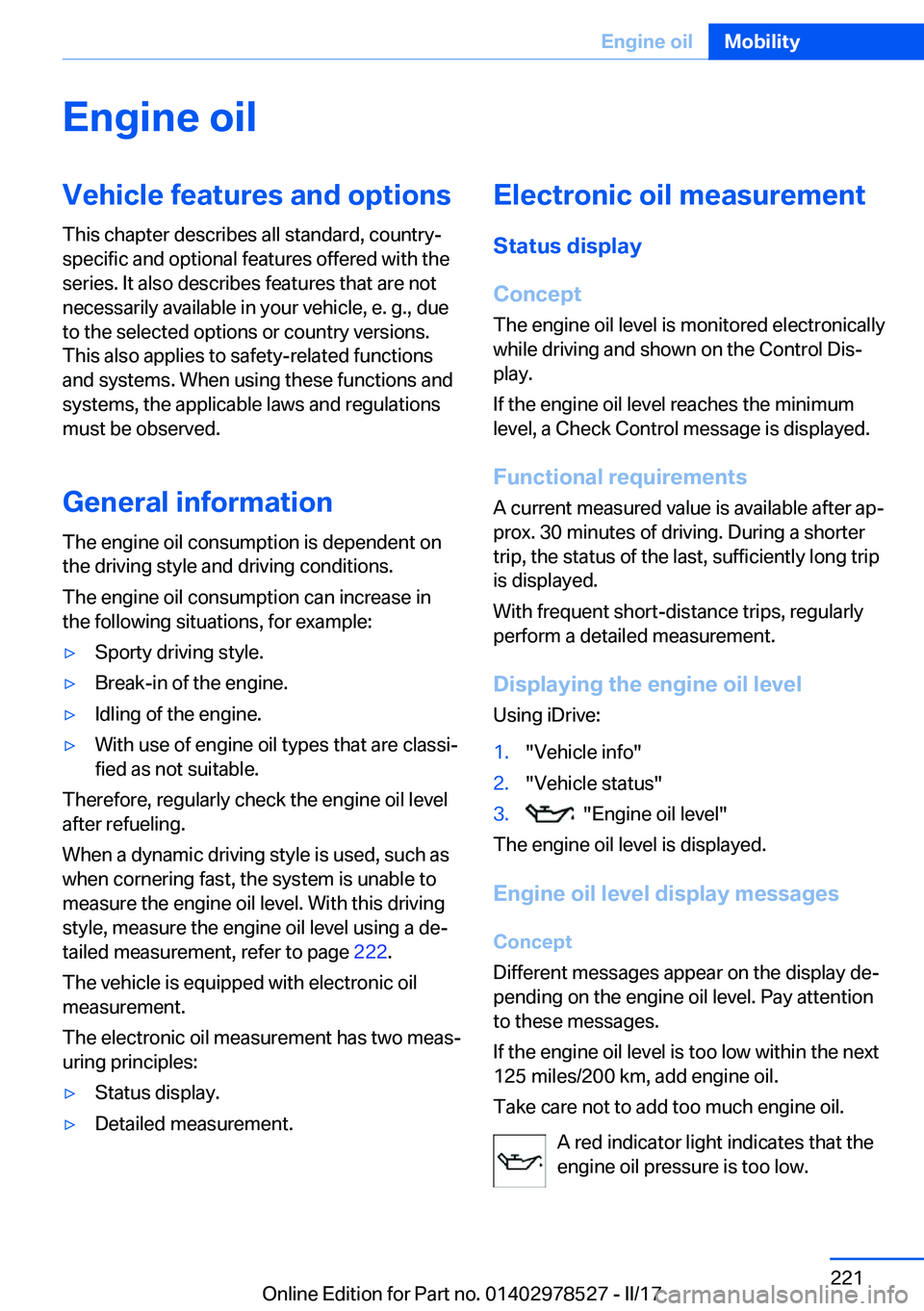

Engine
oilVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
General
information
The engine oil consumption is dependent on
the driving style and driving conditions.
The engine oil consumption can increase in
the following situations, for example:'ySporty driving style.'yBreak-in of the engine.'yIdling of the engine.'yWith use of engine oil types that are classij
fied as not suitable.
Therefore, regularly check the engine oil level
after refueling.
When a dynamic driving style is used, such as when cornering fast, the system is unable tomeasure the engine oil level. With this driving
style, measure the engine oil level using a dej tailed measurement, refer to page 222.
The vehicle is equipped with electronic oil
measurement.
The electronic oil measurement has two measj uring principles:
'yStatus display.'yDetailed measurement.Electronic
oil
measurement
Status
display
Concept
The engine oil level is monitored electronically
while driving and shown on the Control Disj play.
If the engine oil level reaches the minimum
level, a Check Control message is displayed.
Functional
requirements A current measured value is available after apj
prox. 30 minutes of driving. During a shorter
trip, the status of the last, sufficiently long trip
is displayed.
With frequent short-distance trips, regularly perform a detailed measurement.
Displaying
the
engine
oil
level
Using iDrive:1."Vehicle info"2."Vehicle status"3. "Engine oil level"
The engine oil level is displayed.
Engine
oil
level
display
messages
Concept
Different messages appear on the display dej pending on the engine oil level. Pay attention
to these messages.
If the engine oil level is too low within the next
125 miles/200 km, add engine oil.
Take care not to add too much engine oil.
A red indicator light indicates that theengine oil pressure is too low.
Seite 221Engine
oilMobility221
Online Edition for Part no. 01402978527 - II/17

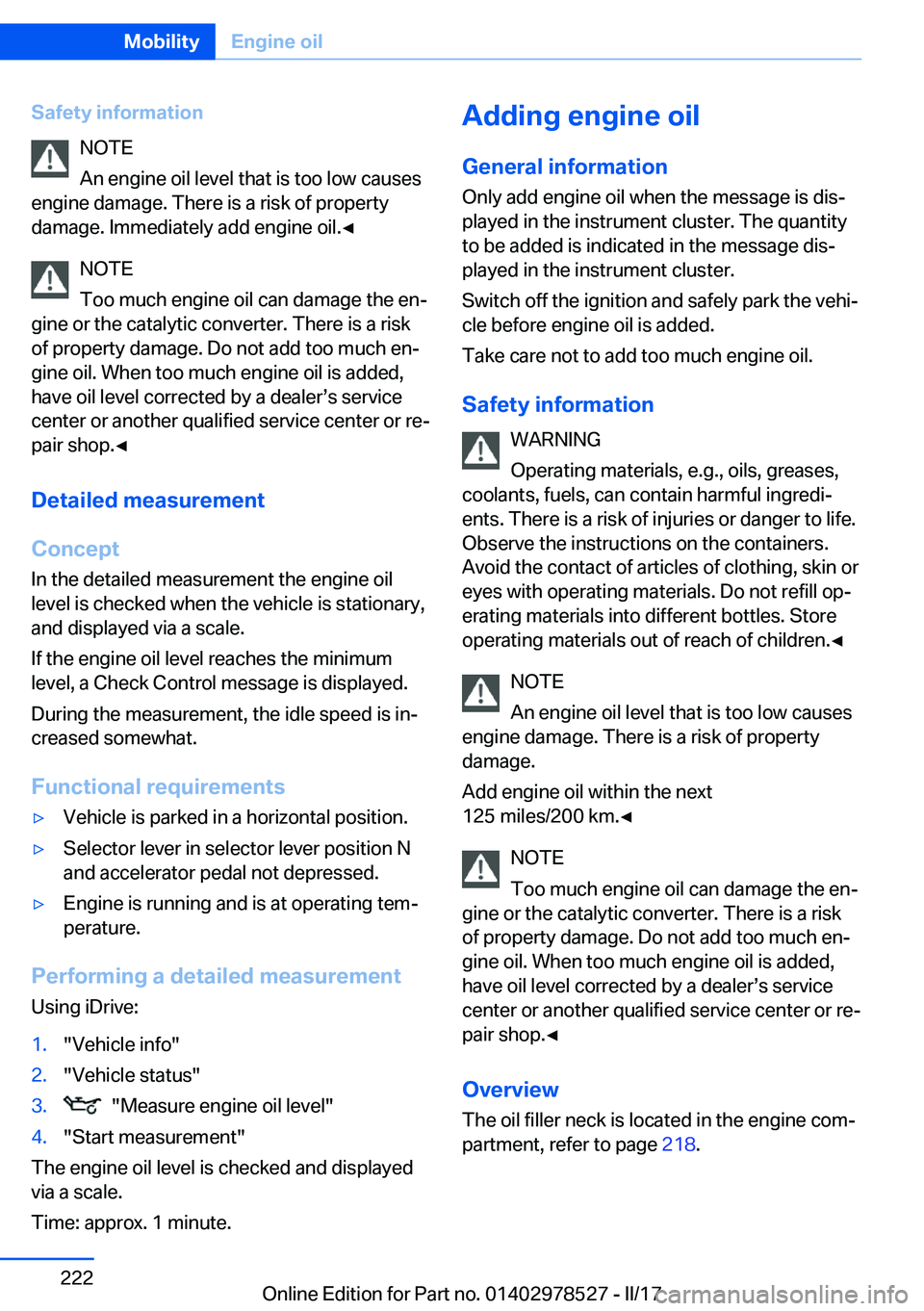

Safety
informationNOTE
An engine oil level that is too low causes
engine damage. There is a risk of property
damage. Immediately add engine oil.'

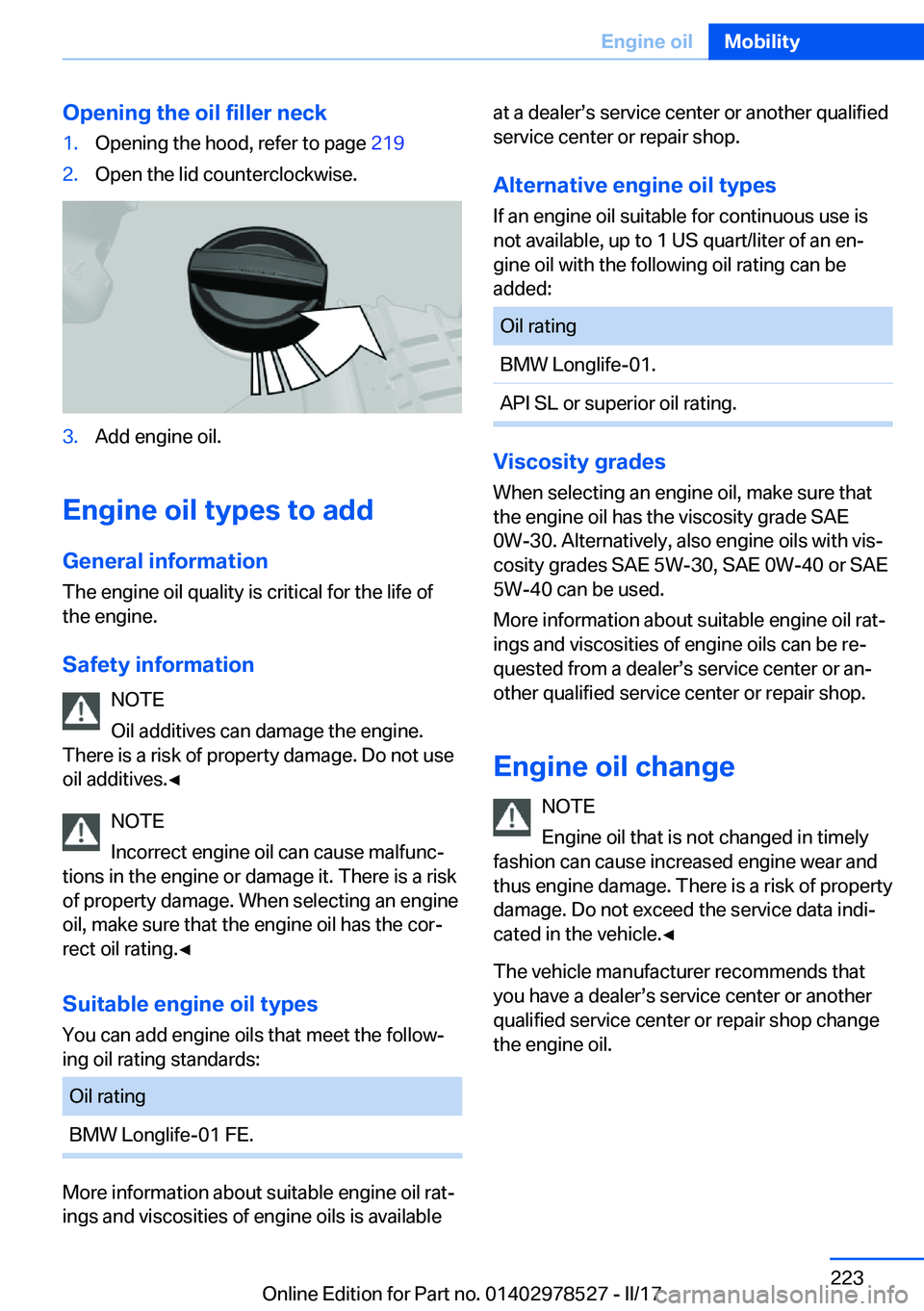

Opening
the
oil
filler
neck1.Opening the hood, refer to page 2192.Open the lid counterclockwise.3.Add engine oil.
Engine
oil
types
to
add
General
information
The engine oil quality is critical for the life of
the engine.
Safety
information NOTE
Oil additives can damage the engine.
There is a risk of property damage. Do not use oil additives.'

Seite 224MobilityEngine
oil224
