2017 BMW X5 Owners Manual

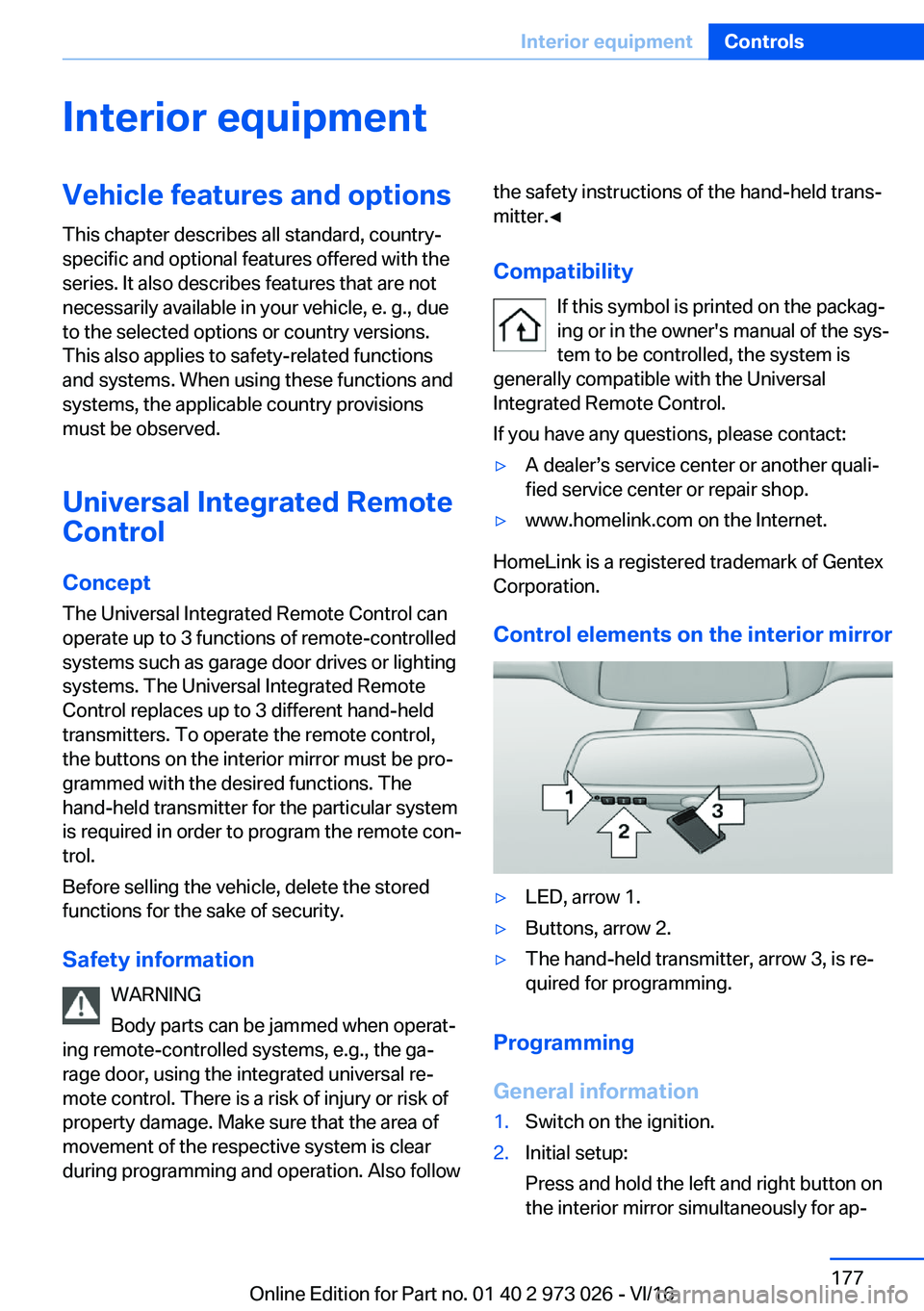

Interior
equipmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Universal
Integrated
Remote
Control
Concept
The Universal Integrated Remote Control can
operate up to 3 functions of remote-controlled
systems such as garage door drives or lighting
systems. The Universal Integrated Remote
Control replaces up to 3 different hand-held
transmitters. To operate the remote control,
the buttons on the interior mirror must be pro#j
grammed with the desired functions. The
hand-held transmitter for the particular system
is required in order to program the remote con#j
trol.
Before selling the vehicle, delete the stored
functions for the sake of security.
Safety
information WARNING
Body parts can be jammed when operat#j
ing remote-controlled systems, e.g., the ga#j
rage door, using the integrated universal re#j mote control. There is a risk of injury or risk ofproperty damage. Make sure that the area ofmovement of the respective system is clear
during programming and operation. Also followthe safety instructions of the hand-held trans#j
mitter.'

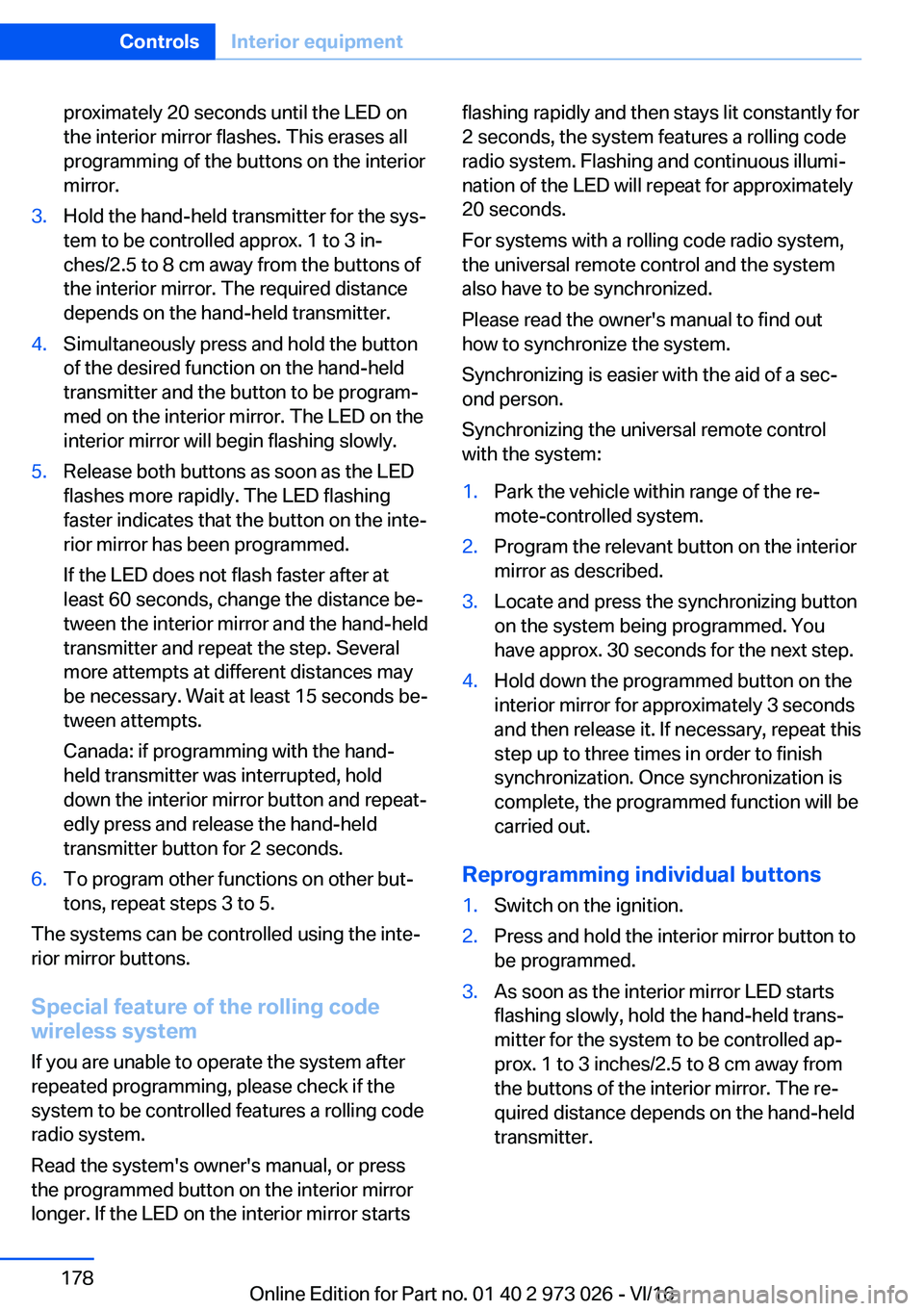

proximately 20 seconds until the LED on
the interior mirror flashes. This erases all
programming of the buttons on the interior mirror.3.Hold the hand-held transmitter for the sys#jtem to be controlled approx. 1 to 3 in#j
ches/2.5 to 8 cm away from the buttons of
the interior mirror. The required distance
depends on the hand-held transmitter.4.Simultaneously press and hold the button
of the desired function on the hand-held transmitter and the button to be program#j
med on the interior mirror. The LED on the
interior mirror will begin flashing slowly.5.Release both buttons as soon as the LED flashes more rapidly. The LED flashing
faster indicates that the button on the inte#j
rior mirror has been programmed.
If the LED does not flash faster after at
least 60 seconds, change the distance be#j
tween the interior mirror and the hand-held transmitter and repeat the step. Several
more attempts at different distances may be necessary. Wait at least 15 seconds be#j
tween attempts.
Canada: if programming with the hand- held transmitter was interrupted, hold
down the interior mirror button and repeat#j
edly press and release the hand-held
transmitter button for 2 seconds.6.To program other functions on other but#j
tons, repeat steps 3 to 5.
The systems can be controlled using the inte#j
rior mirror buttons.
Special
feature
of
the
rolling
code
wireless
system
If you are unable to operate the system after
repeated programming, please check if the system to be controlled features a rolling coderadio system.
Read the system's owner's manual, or press the programmed button on the interior mirror longer. If the LED on the interior mirror starts
flashing rapidly and then stays lit constantly for
2 seconds, the system features a rolling code
radio system. Flashing and continuous illumi#j
nation of the LED will repeat for approximately
20 seconds.
For systems with a rolling code radio system,
the universal remote control and the system also have to be synchronized.
Please read the owner's manual to find out
how to synchronize the system.
Synchronizing is easier with the aid of a sec#j
ond person.
Synchronizing the universal remote control
with the system:1.Park the vehicle within range of the re#j mote-controlled system.2.Program the relevant button on the interior
mirror as described.3.Locate and press the synchronizing button
on the system being programmed. You
have approx. 30 seconds for the next step.4.Hold down the programmed button on the
interior mirror for approximately 3 seconds
and then release it. If necessary, repeat this step up to three times in order to finish
synchronization. Once synchronization is
complete, the programmed function will be carried out.
Reprogramming
individual
buttons
1.Switch on the ignition.2.Press and hold the interior mirror button tobe programmed.3.As soon as the interior mirror LED starts
flashing slowly, hold the hand-held trans#j
mitter for the system to be controlled ap#j prox. 1 to 3 inches/2.5 to 8 cm away from
the buttons of the interior mirror. The re#j
quired distance depends on the hand-held transmitter.Seite 178ControlsInterior
equipment178
Online Edition for Part no. 01 40 2 973 026 - VI/16

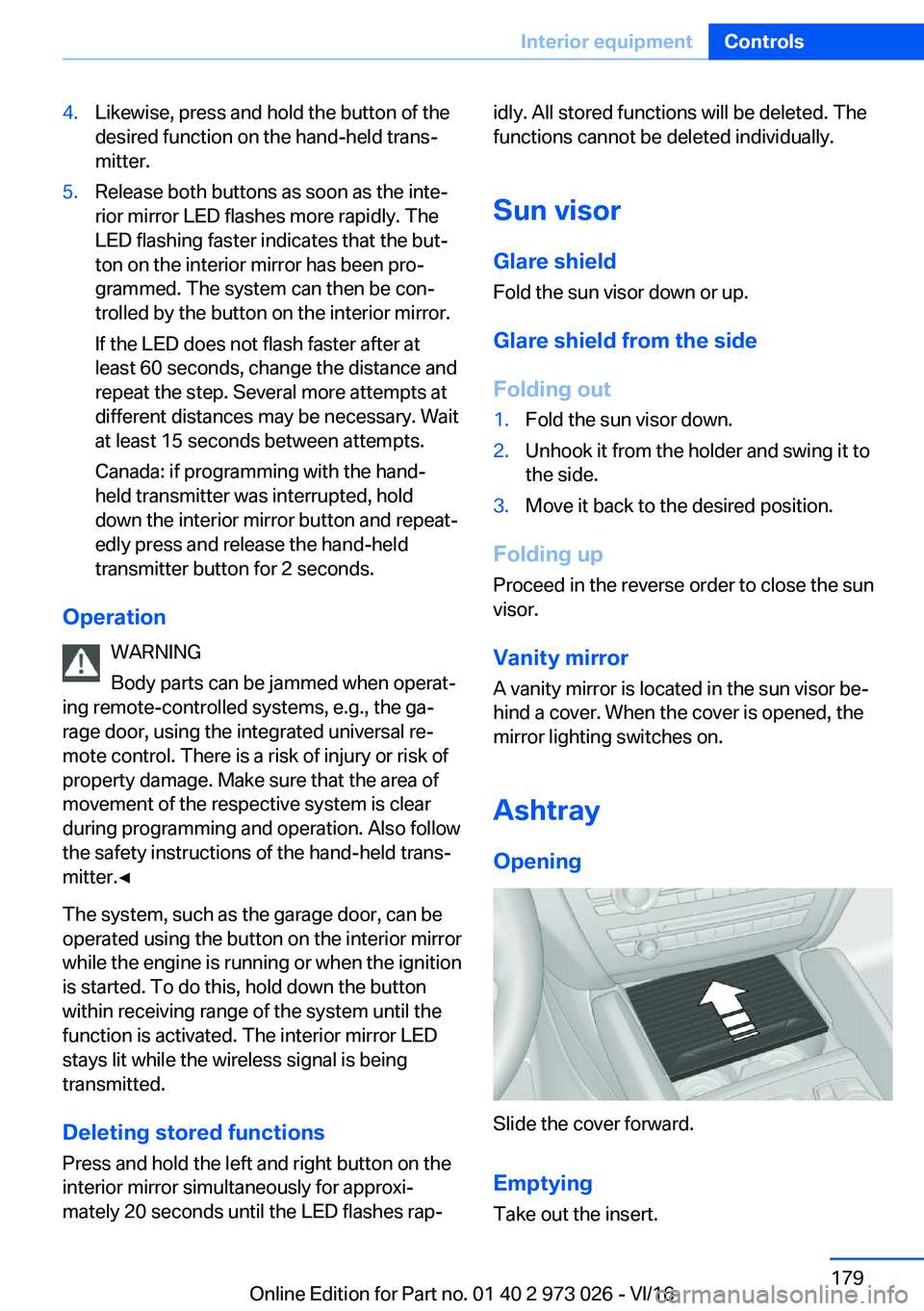

4.Likewise, press and hold the button of the
desired function on the hand-held trans#j mitter.5.Release both buttons as soon as the inte#j
rior mirror LED flashes more rapidly. The LED flashing faster indicates that the but#j
ton on the interior mirror has been pro#j
grammed. The system can then be con#j
trolled by the button on the interior mirror.
If the LED does not flash faster after at
least 60 seconds, change the distance and
repeat the step. Several more attempts at different distances may be necessary. Wait
at least 15 seconds between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior mirror button and repeat#j
edly press and release the hand-held
transmitter button for 2 seconds.
Operation
WARNING
Body parts can be jammed when operat#j
ing remote-controlled systems, e.g., the ga#j
rage door, using the integrated universal re#j
mote control. There is a risk of injury or risk of
property damage. Make sure that the area of movement of the respective system is clear
during programming and operation. Also follow
the safety instructions of the hand-held trans#j
mitter.'

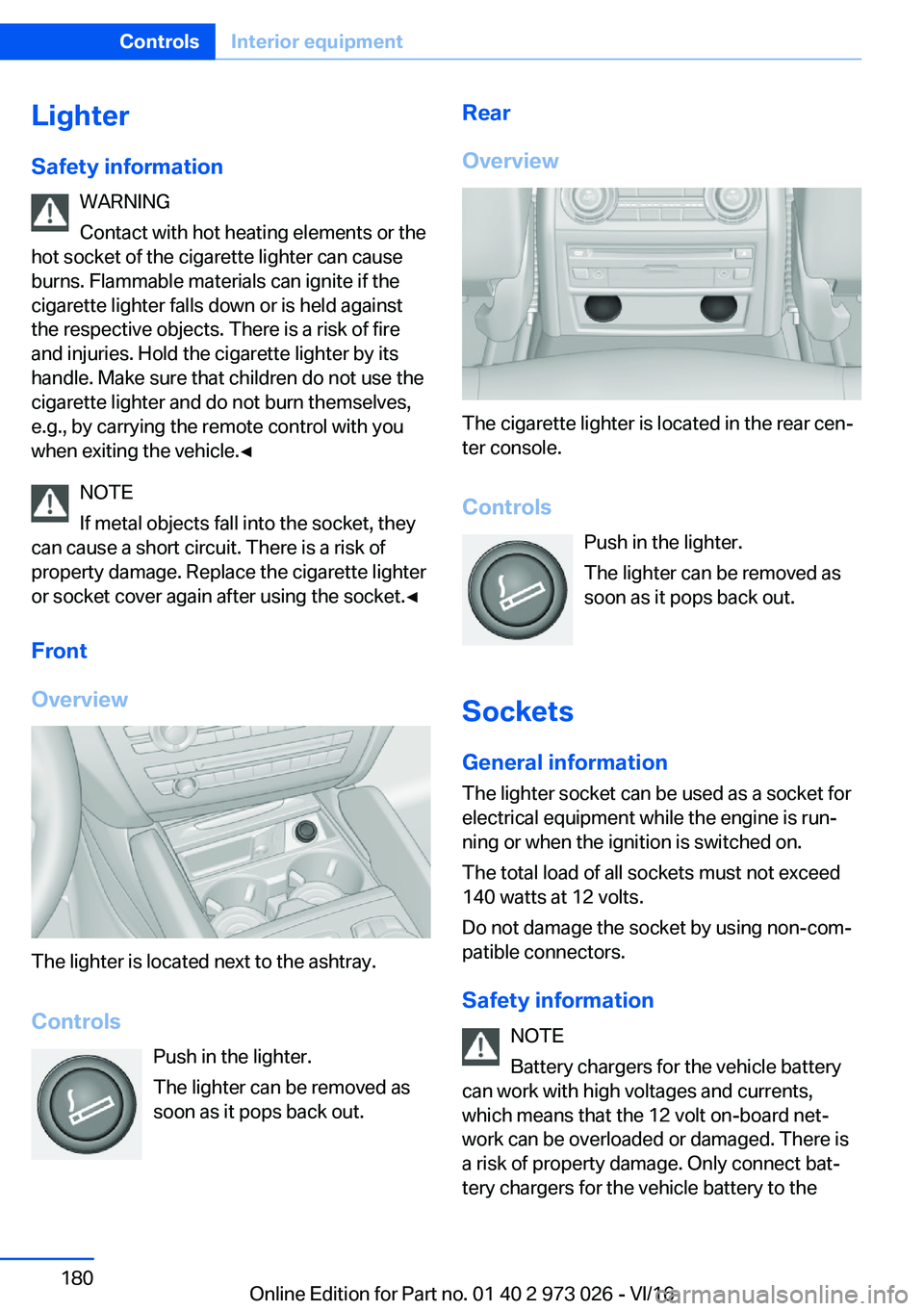

Lighter
Safety
information WARNING
Contact with hot heating elements or the
hot socket of the cigarette lighter can cause burns. Flammable materials can ignite if thecigarette lighter falls down or is held againstthe respective objects. There is a risk of fireand injuries. Hold the cigarette lighter by itshandle. Make sure that children do not use thecigarette lighter and do not burn themselves,
e.g., by carrying the remote control with you
when exiting the vehicle.'

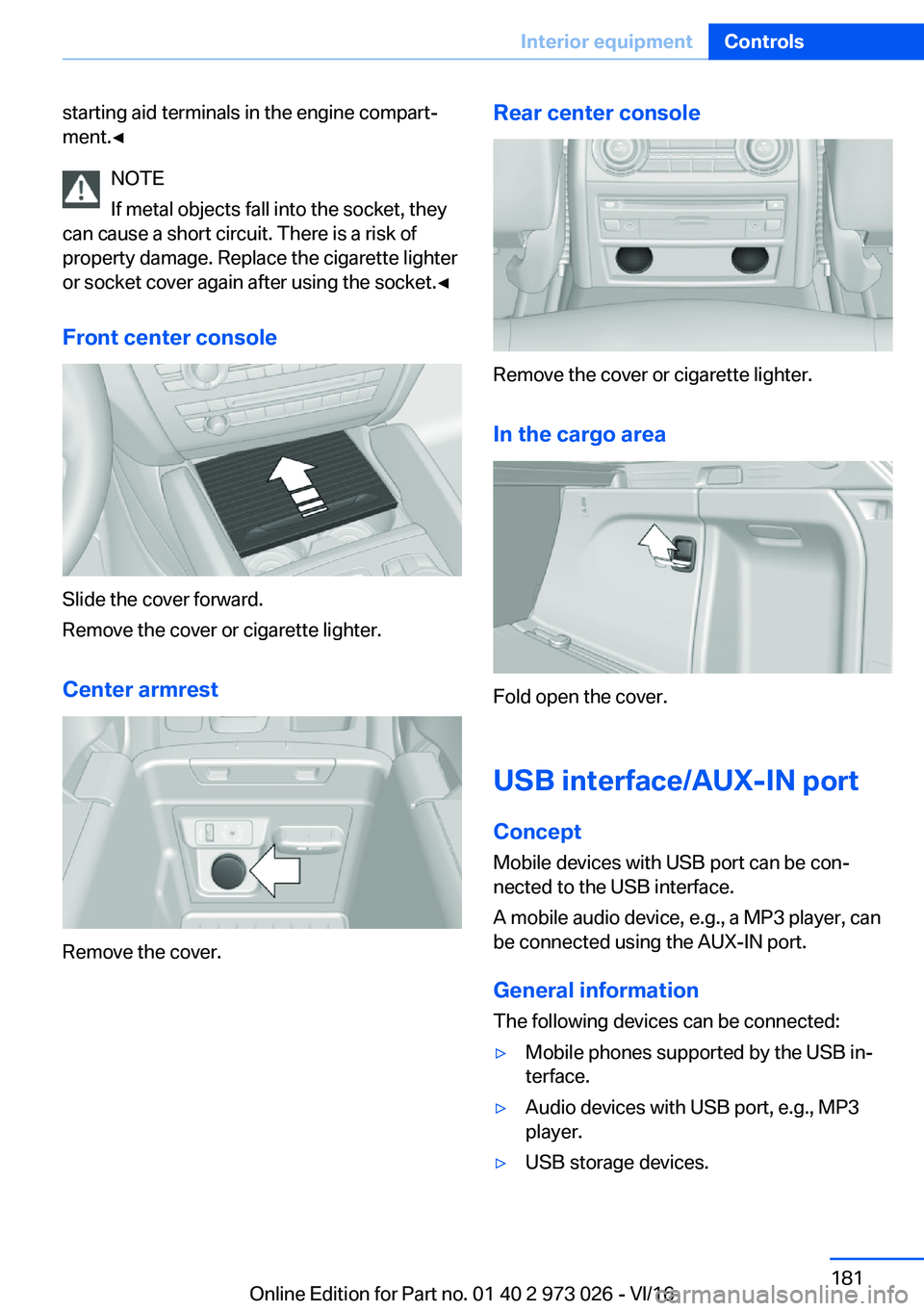

starting aid terminals in the engine compart#j
ment.'

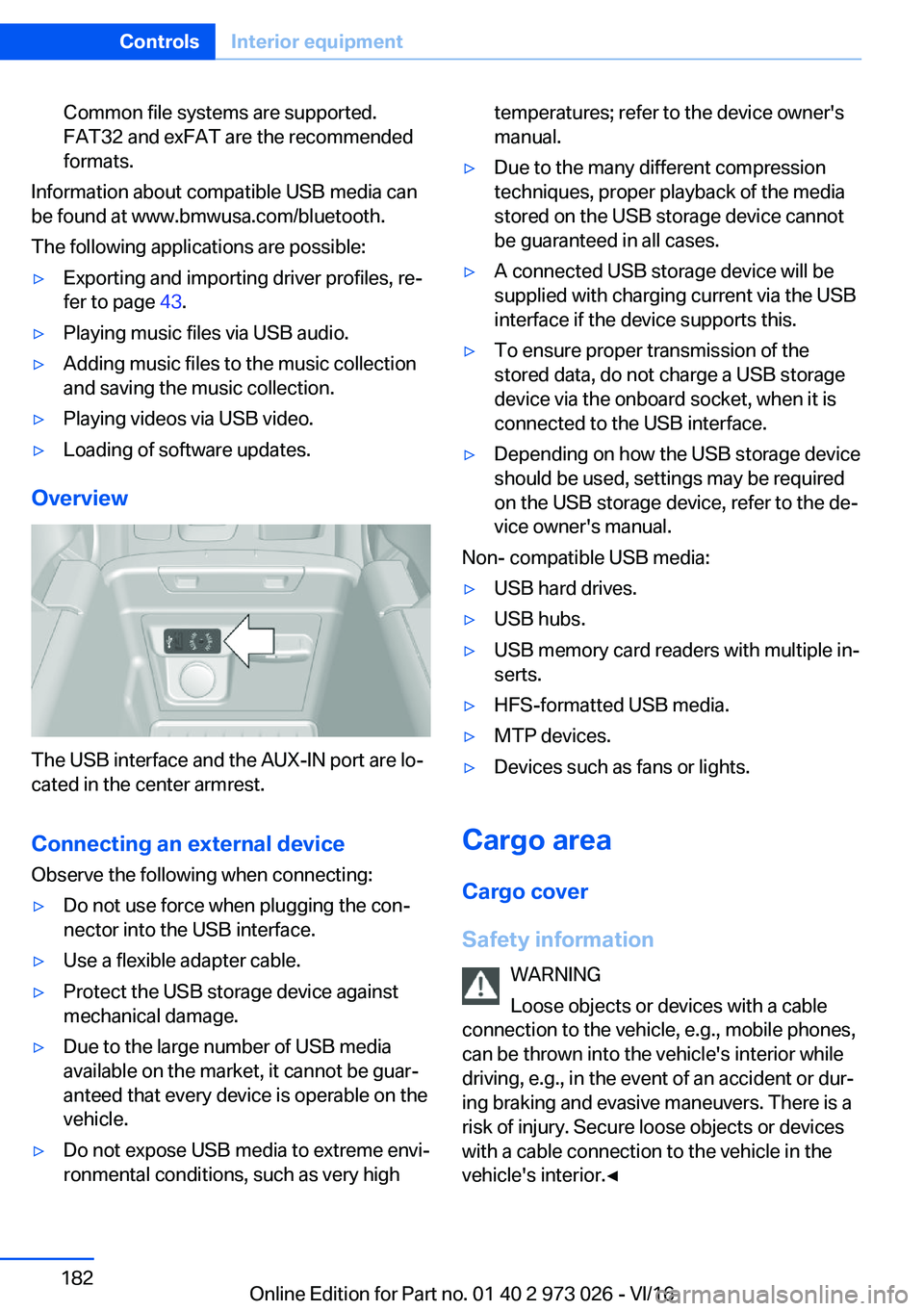

Common file systems are supported.FAT32 and exFAT are the recommendedformats.
Information about compatible USB media can
be found at www.bmwusa.com/bluetooth.
The following applications are possible:
'yExporting and importing driver profiles, re#j fer to page 43.'yPlaying music files via USB audio.'yAdding music files to the music collection
and saving the music collection.'yPlaying videos via USB video.'yLoading of software updates.
Overview
The USB interface and the AUX-IN port are lo#j cated in the center armrest.
Connecting
an
external
device Observe the following when connecting:
'yDo not use force when plugging the con#jnector into the USB interface.'yUse a flexible adapter cable.'yProtect the USB storage device againstmechanical damage.'yDue to the large number of USB mediaavailable on the market, it cannot be guar#j
anteed that every device is operable on the
vehicle.'yDo not expose USB media to extreme envi#j
ronmental conditions, such as very hightemperatures; refer to the device owner's manual.'yDue to the many different compressiontechniques, proper playback of the media
stored on the USB storage device cannot
be guaranteed in all cases.'yA connected USB storage device will be
supplied with charging current via the USB interface if the device supports this.'yTo ensure proper transmission of thestored data, do not charge a USB storage
device via the onboard socket, when it is
connected to the USB interface.'yDepending on how the USB storage device should be used, settings may be required
on the USB storage device, refer to the de#j
vice owner's manual.
Non- compatible USB media:
'yUSB hard drives.'yUSB hubs.'yUSB memory card readers with multiple in#j
serts.'yHFS-formatted USB media.'yMTP devices.'yDevices such as fans or lights.
Cargo
area
Cargo
cover
Safety
information WARNING
Loose objects or devices with a cable
connection to the vehicle, e.g., mobile phones, can be thrown into the vehicle's interior while
driving, e.g., in the event of an accident or dur#j
ing braking and evasive maneuvers. There is a risk of injury. Secure loose objects or devices
with a cable connection to the vehicle in the vehicle's interior.'

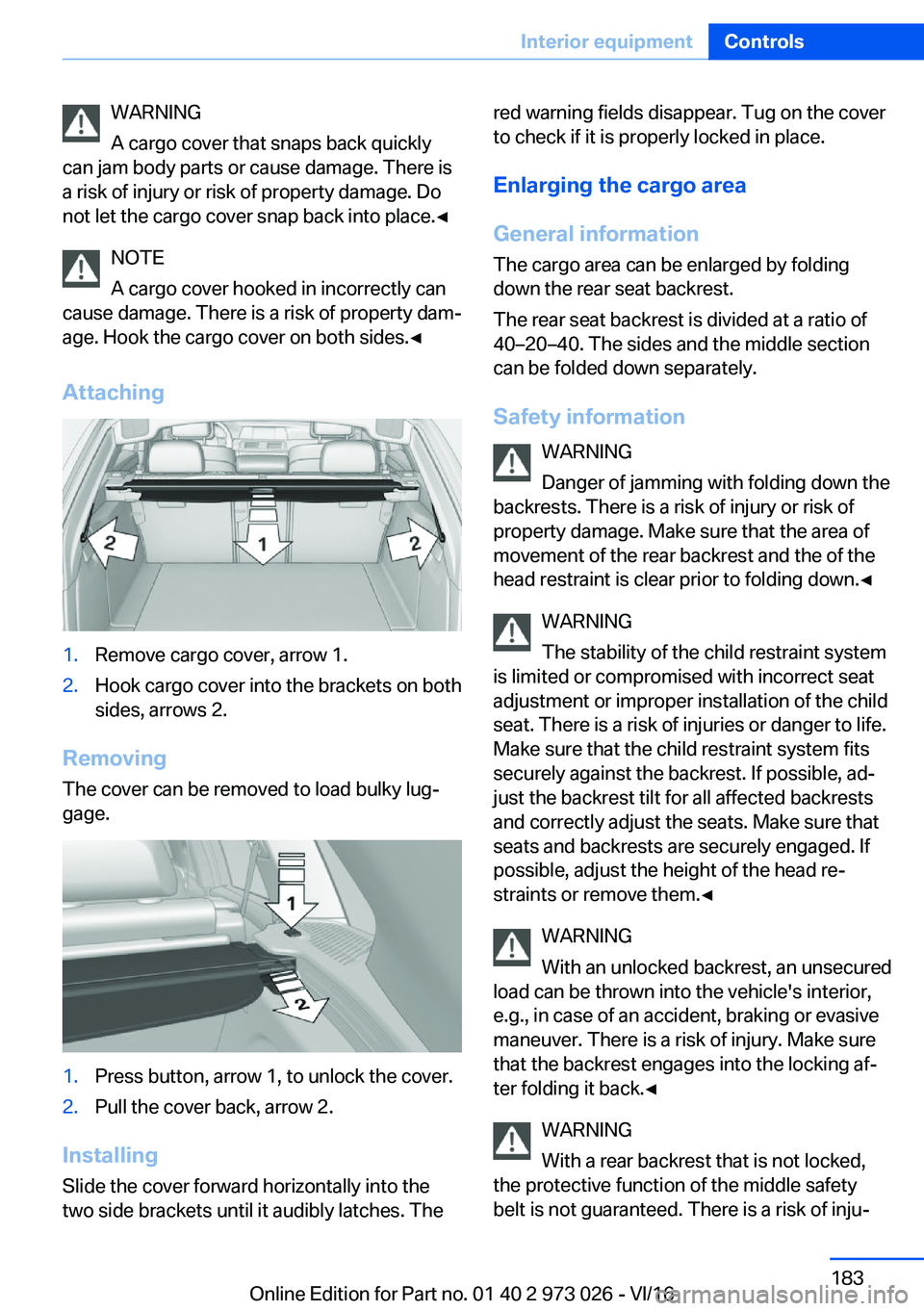

WARNING
A cargo cover that snaps back quickly
can jam body parts or cause damage. There is
a risk of injury or risk of property damage. Do not let the cargo cover snap back into place.'

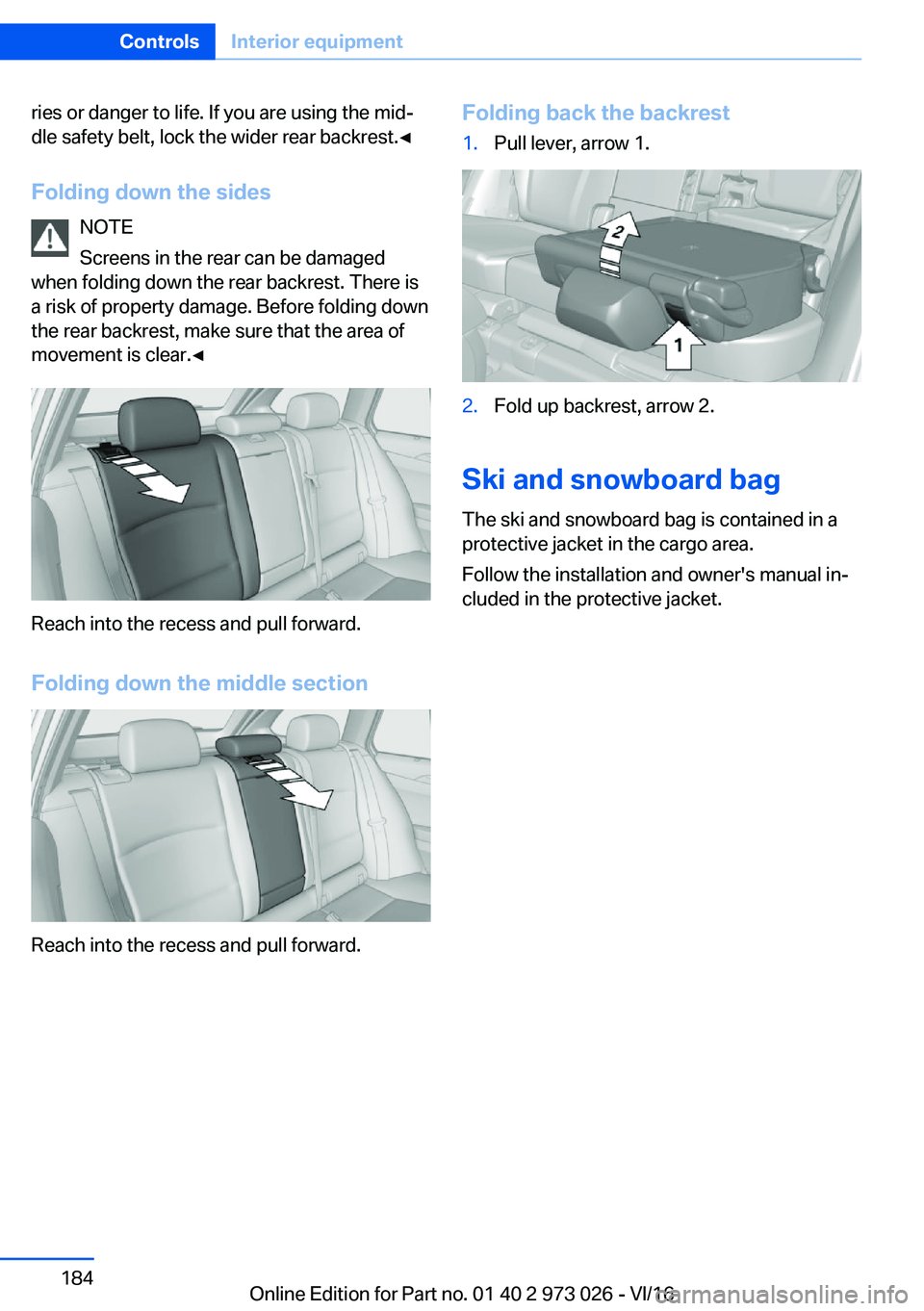

ries or danger to life. If you are using the mid#jdle safety belt, lock the wider rear backrest.'
