2017 BMW X4 Owners Manual

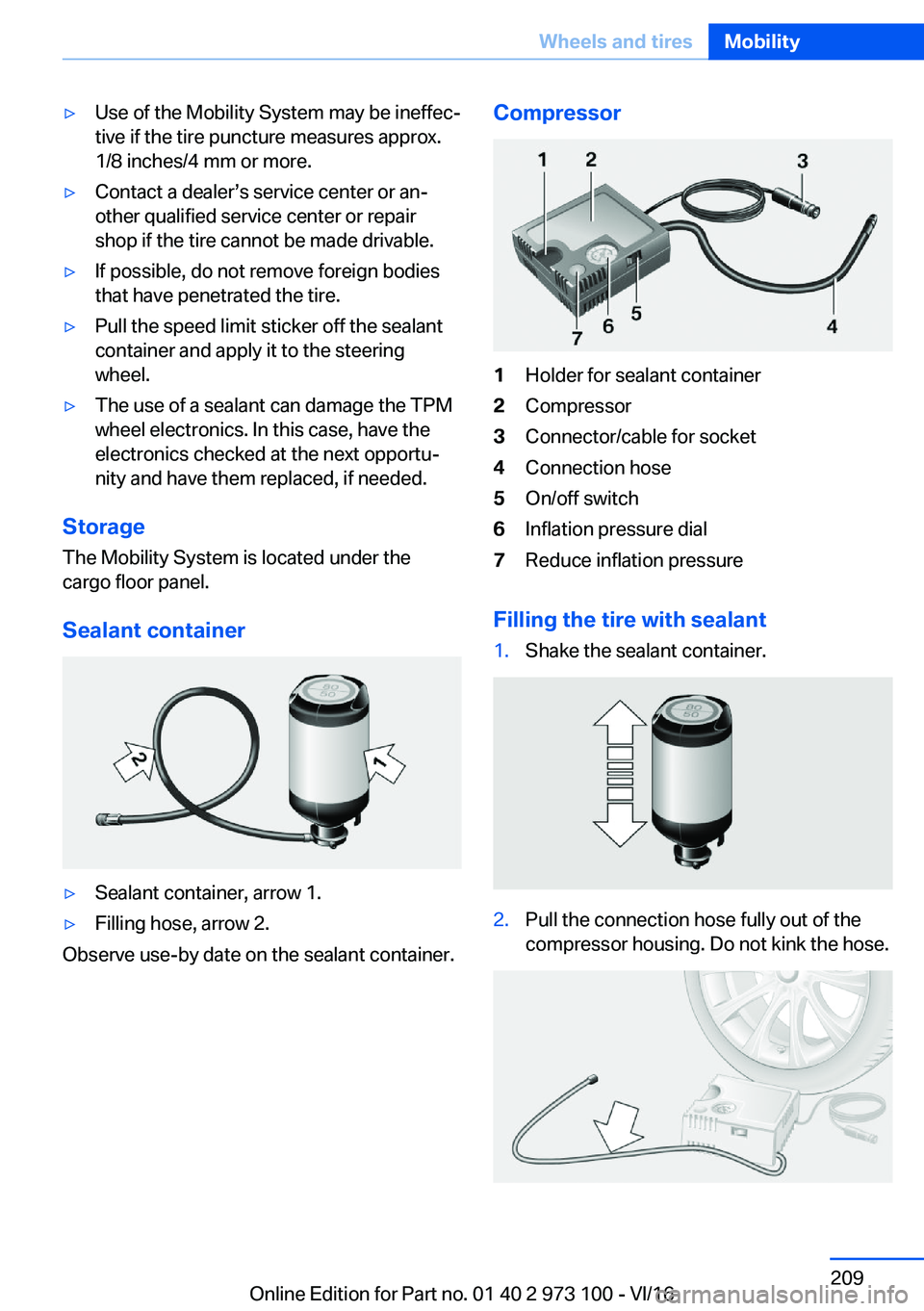

'yUse of the Mobility System may be ineffecj
tive if the tire puncture measures approx.
1/8 inches/4 mm or more.'yContact a dealerss service center or anj other qualified service center or repair
shop if the tire cannot be made drivable.'yIf possible, do not remove foreign bodies that have penetrated the tire.'yPull the speed limit sticker off the sealant
container and apply it to the steering
wheel.'yThe use of a sealant can damage the TPM wheel electronics. In this case, have theelectronics checked at the next opportujnity and have them replaced, if needed.
Storage
The Mobility System is located under thecargo floor panel.
Sealant
container
'ySealant container, arrow 1.'yFilling hose, arrow 2.
Observe use-by date on the sealant container.
Compressor1Holder for sealant container2Compressor3Connector/cable for socket4Connection hose5On/off switch6Inflation pressure dial7Reduce inflation pressure
Filling
the
tire
with
sealant
1.Shake the sealant container.2.Pull the connection hose fully out of the compressor housing. Do not kink the hose.Seite 209Wheels
and
tiresMobility209
Online Edition for Part no. 01 40 2 973 100 - VI/16

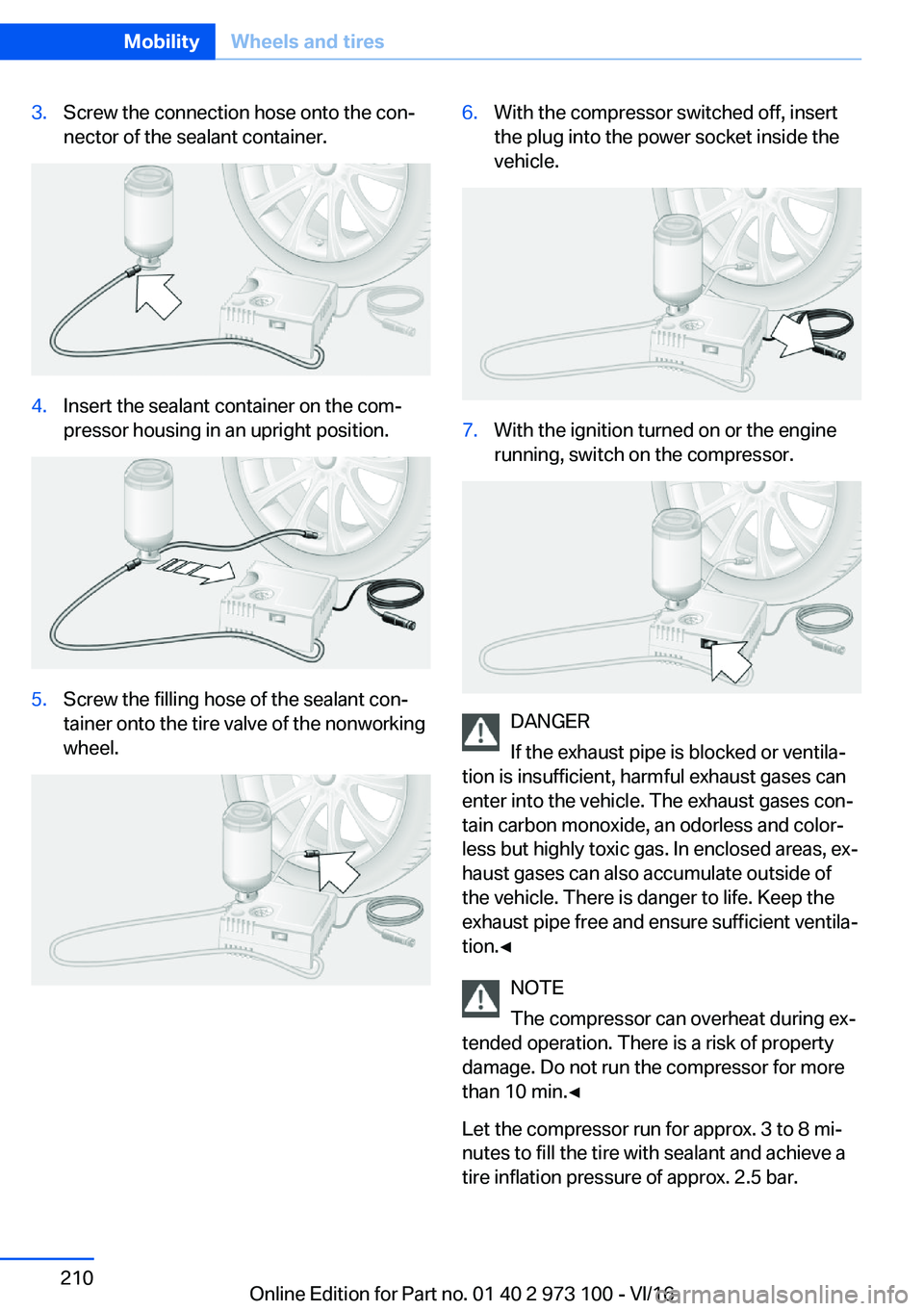

3.Screw the connection hose onto the conjnector of the sealant container.4.Insert the sealant container on the comjpressor housing in an upright position.5.Screw the filling hose of the sealant conjtainer onto the tire valve of the nonworking
wheel.6.With the compressor switched off, insert
the plug into the power socket inside the
vehicle.7.With the ignition turned on or the engine
running, switch on the compressor.
DANGER
If the exhaust pipe is blocked or ventilaj
tion is insufficient, harmful exhaust gases can
enter into the vehicle. The exhaust gases conj tain carbon monoxide, an odorless and colorjless but highly toxic gas. In enclosed areas, exj
haust gases can also accumulate outside of
the vehicle. There is danger to life. Keep the
exhaust pipe free and ensure sufficient ventilaj tion.'

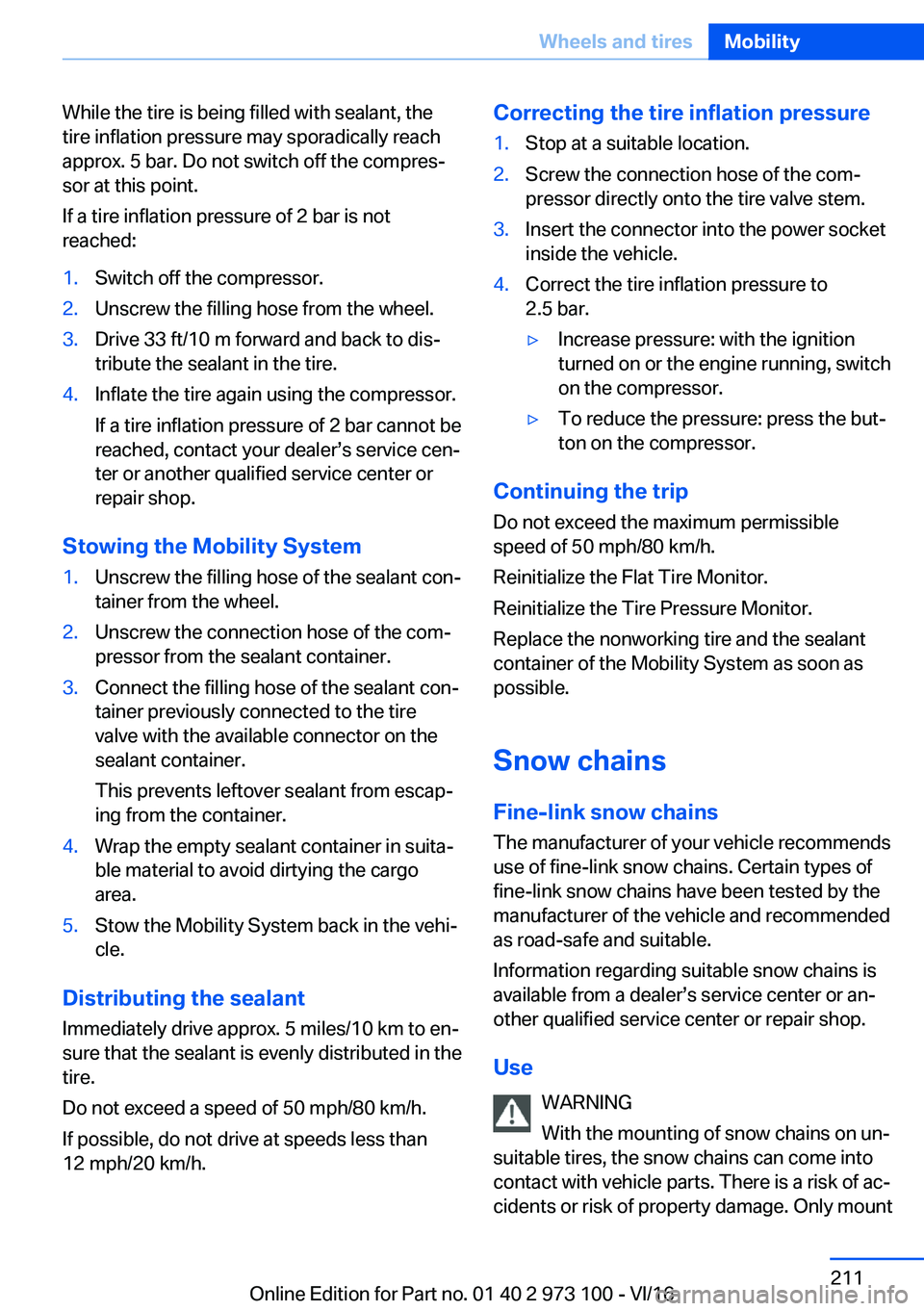

While the tire is being filled with sealant, thetire inflation pressure may sporadically reach
approx. 5 bar. Do not switch off the compresj
sor at this point.
If a tire inflation pressure of 2 bar is not
reached:1.Switch off the compressor.2.Unscrew the filling hose from the wheel.3.Drive 33 ft/10 m forward and back to disj tribute the sealant in the tire.4.Inflate the tire again using the compressor.
If a tire inflation pressure of 2 bar cannot be
reached, contact your dealerss service cenj
ter or another qualified service center or repair shop.
Stowing
the
Mobility
System
1.Unscrew the filling hose of the sealant conj
tainer from the wheel.2.Unscrew the connection hose of the comj pressor from the sealant container.3.Connect the filling hose of the sealant conj
tainer previously connected to the tire
valve with the available connector on the
sealant container.
This prevents leftover sealant from escapj
ing from the container.4.Wrap the empty sealant container in suitaj ble material to avoid dirtying the cargoarea.5.Stow the Mobility System back in the vehijcle.
Distributing
the
sealant
Immediately drive approx. 5 miles/10 km to enjsure that the sealant is evenly distributed in thetire.
Do not exceed a speed of 50 mph/80 km/h. If possible, do not drive at speeds less than
12 mph/20 km/h.
Correcting
the
tire
inflation
pressure1.Stop at a suitable location.2.Screw the connection hose of the comj pressor directly onto the tire valve stem.3.Insert the connector into the power socket
inside the vehicle.4.Correct the tire inflation pressure to
2.5 bar.'yIncrease pressure: with the ignition
turned on or the engine running, switch
on the compressor.'yTo reduce the pressure: press the butj ton on the compressor.
Continuing
the
trip
Do not exceed the maximum permissible
speed of 50 mph/80 km/h.
Reinitialize the Flat Tire Monitor.
Reinitialize the Tire Pressure Monitor.
Replace the nonworking tire and the sealant
container of the Mobility System as soon as
possible.
Snow
chains
Fine-link
snow
chains
The manufacturer of your vehicle recommends use of fine-link snow chains. Certain types of
fine-link snow chains have been tested by the
manufacturer of the vehicle and recommended
as road-safe and suitable.
Information regarding suitable snow chains is
available from a dealerss service center or anj
other qualified service center or repair shop.
Use WARNING
With the mounting of snow chains on unj
suitable tires, the snow chains can come into contact with vehicle parts. There is a risk of acj
cidents or risk of property damage. Only mount
Seite 211Wheels
and
tiresMobility211
Online Edition for Part no. 01 40 2 973 100 - VI/16

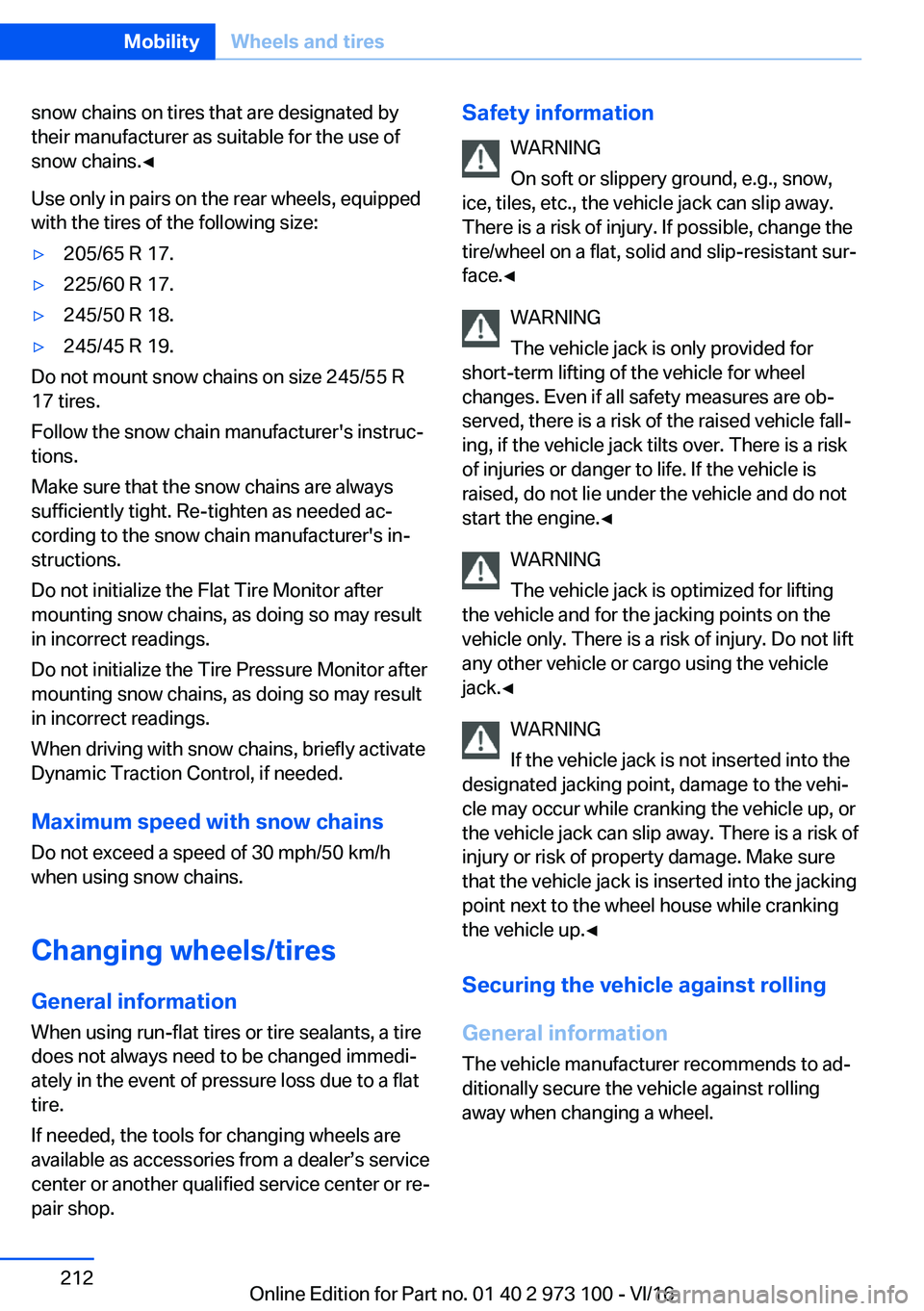

snow chains on tires that are designated by
their manufacturer as suitable for the use of
snow chains.'

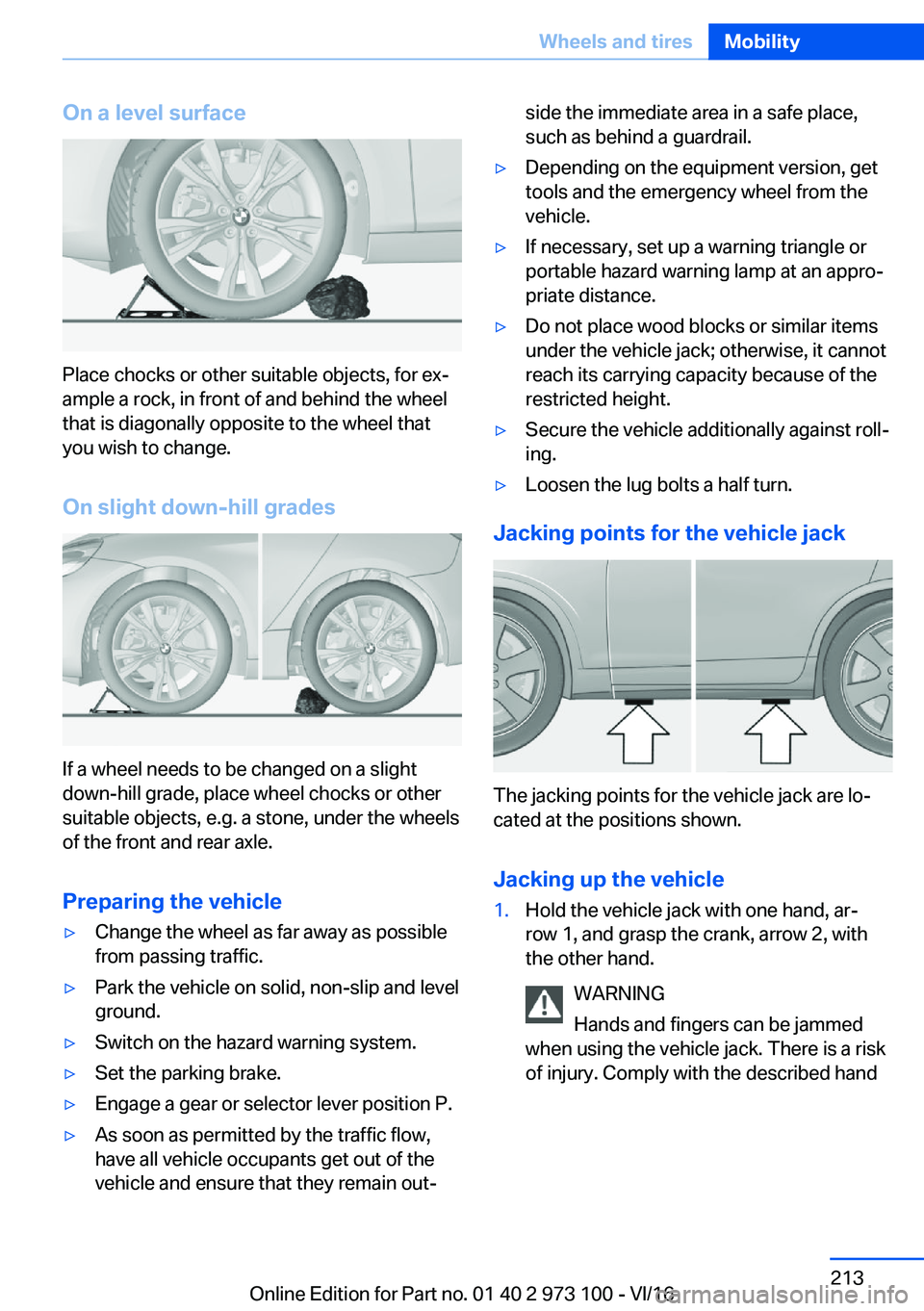

On
a
level
surface
Place chocks or other suitable objects, for exjample a rock, in front of and behind the wheel
that is diagonally opposite to the wheel that you wish to change.
On
slight
down-hill
grades
If a wheel needs to be changed on a slight
down-hill grade, place wheel chocks or other
suitable objects, e.g. a stone, under the wheels of the front and rear axle.
Preparing
the
vehicle
'yChange the wheel as far away as possible
from passing traffic.'yPark the vehicle on solid, non-slip and level ground.'ySwitch on the hazard warning system.'ySet the parking brake.'yEngage a gear or selector lever position P.'yAs soon as permitted by the traffic flow,have all vehicle occupants get out of the
vehicle and ensure that they remain outjside the immediate area in a safe place,
such as behind a guardrail.'yDepending on the equipment version, get tools and the emergency wheel from the
vehicle.'yIf necessary, set up a warning triangle or
portable hazard warning lamp at an approj priate distance.'yDo not place wood blocks or similar itemsunder the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'ySecure the vehicle additionally against rollj
ing.'yLoosen the lug bolts a half turn.
Jacking
points
for
the
vehicle
jack
The jacking points for the vehicle jack are loj cated at the positions shown.
Jacking
up
the
vehicle
1.Hold the vehicle jack with one hand, arj
row 1, and grasp the crank, arrow 2, with
the other hand.
WARNING
Hands and fingers can be jammed
when using the vehicle jack. There is a risk
of injury. Comply with the described handSeite 213Wheels
and
tiresMobility213
Online Edition for Part no. 01 40 2 973 100 - VI/16

position and do not change this position
while using the vehicle jack.'

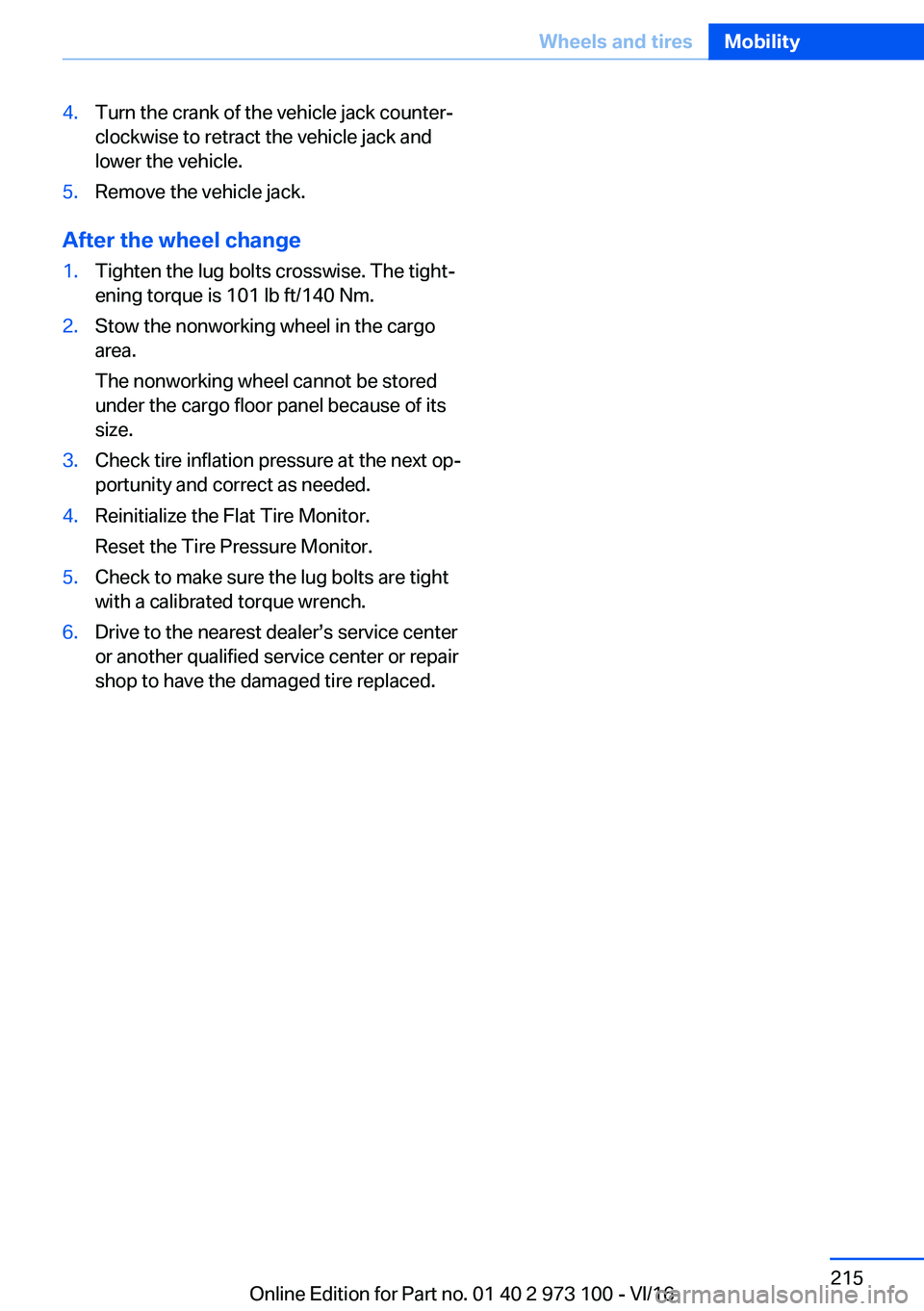

4.Turn the crank of the vehicle jack counterj
clockwise to retract the vehicle jack and
lower the vehicle.5.Remove the vehicle jack.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightj ening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the Flat Tire Monitor.
Reset the Tire Pressure Monitor.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Drive to the nearest dealerss service center
or another qualified service center or repair
shop to have the damaged tire replaced.Seite 215Wheels
and
tiresMobility215
Online Edition for Part no. 01 40 2 973 100 - VI/16

Engine
compartmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Important
features
in
the
engine
compartment
1Washer fluid reservoir2Vehicle identification number3Jump-starting, negative battery terminal4Jump-starting, positive battery terminal5Coolant reservoir6Oil filler neckHood
Safety
information WARNING
Improperly executed work in the engine
compartment can damage vehicle compoj nents and impair vehicle functions. There is a
risk of personal and property damage. Themanufacturer of your vehicle recommends that, in the effort to avoid such risks, work inthe engine compartment be performed by adealerss service center or another qualifiedservice center or repair shop.'
