2017 BMW X4 Owners Manual

System
limits
Safety
information WARNING
The system can react incorrectly or not
at all due to the system limits. There is a risk of
accidents or risk of property damage. Observe the information regarding the system limits
and actively intervene, if needed.'

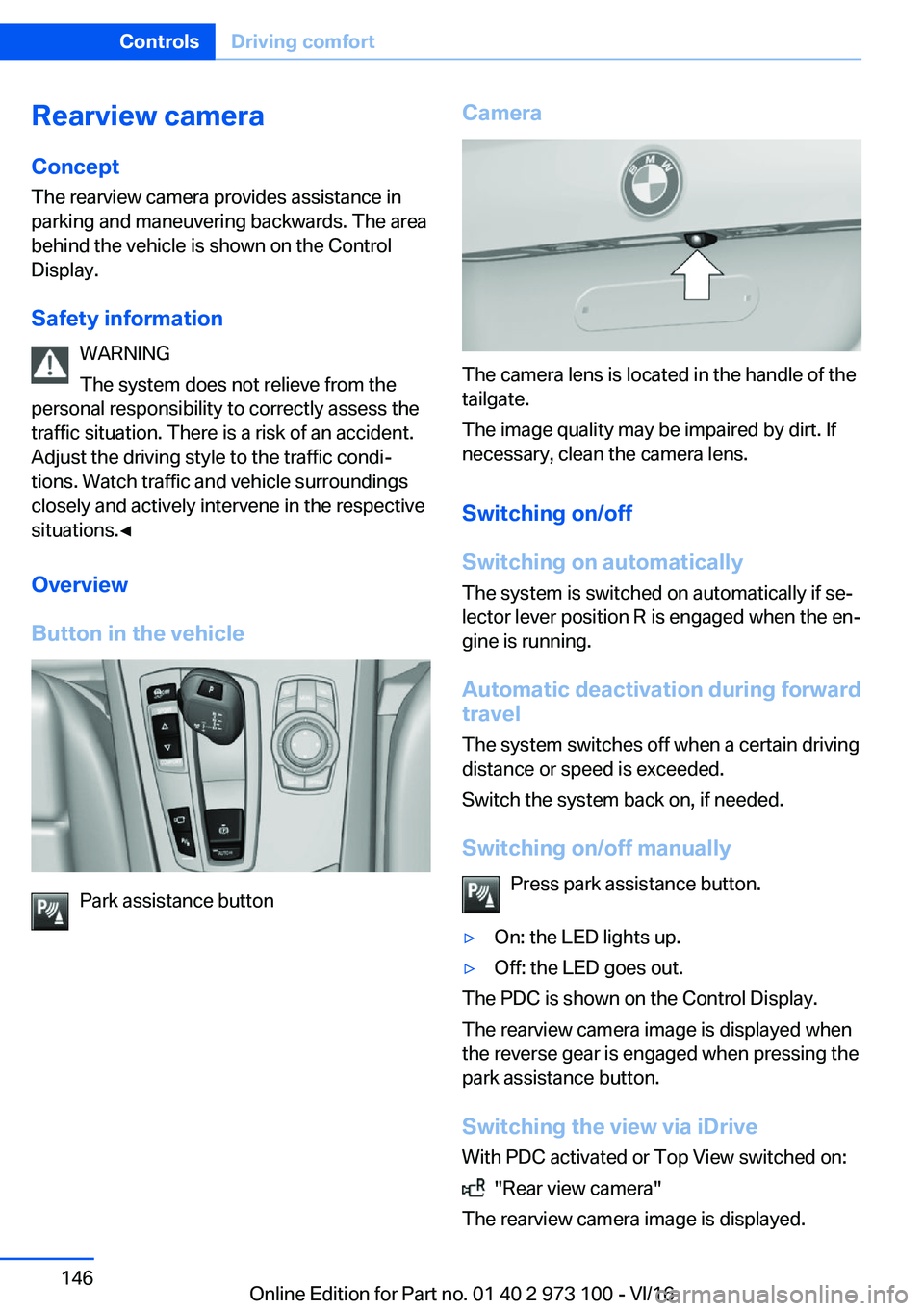

Rearview
cameraConcept
The rearview camera provides assistance in parking and maneuvering backwards. The area
behind the vehicle is shown on the Control
Display.
Safety
information WARNING
The system does not relieve from the
personal responsibility to correctly assess the
traffic situation. There is a risk of an accident. Adjust the driving style to the traffic condijtions. Watch traffic and vehicle surroundingsclosely and actively intervene in the respective
situations.'

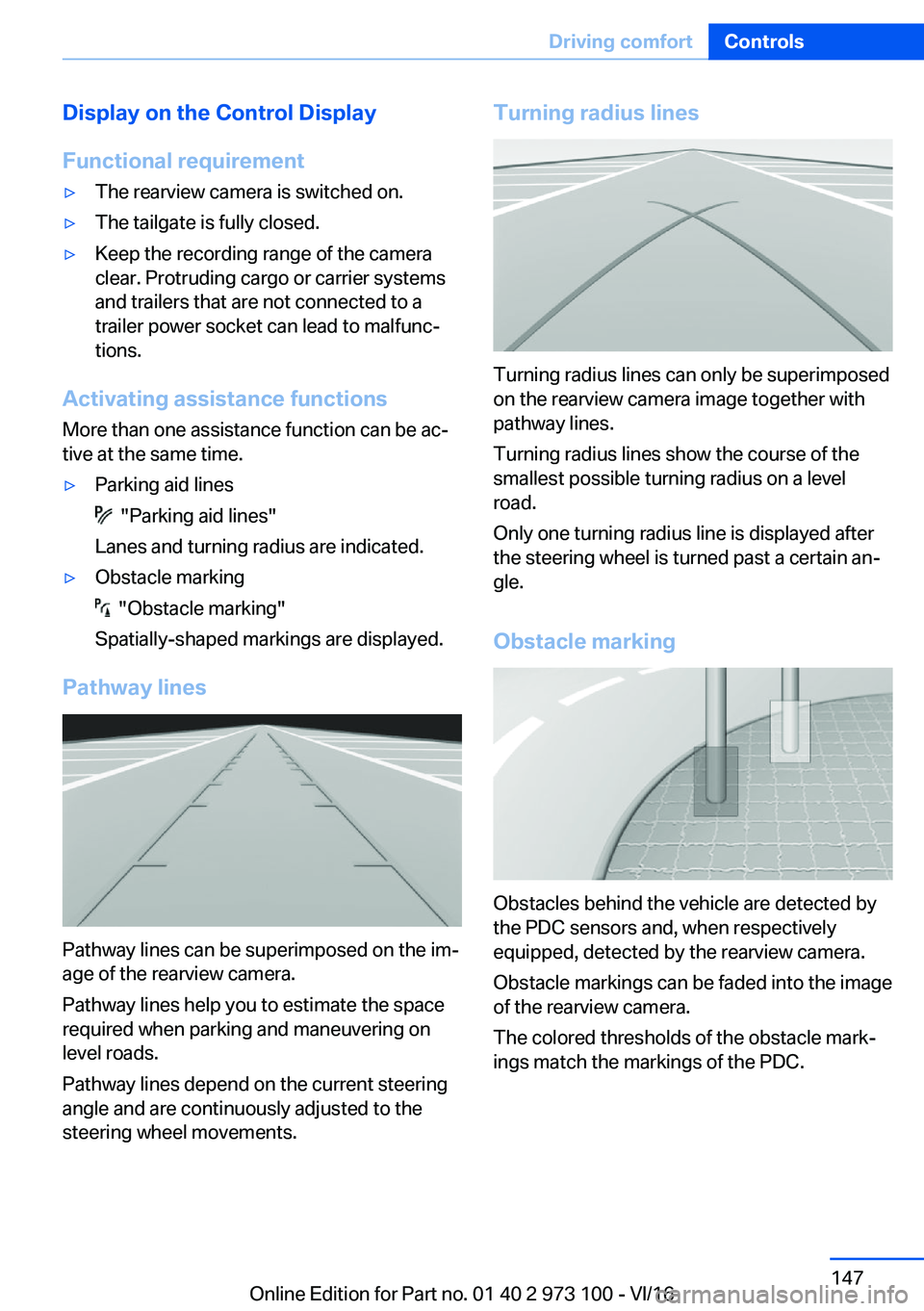

Display
on
the
Control
Display
Functional
requirement'yThe rearview camera is switched on.'yThe tailgate is fully closed.'yKeep the recording range of the camera
clear. Protruding cargo or carrier systems
and trailers that are not connected to a trailer power socket can lead to malfuncjtions.
Activating
assistance
functions
More than one assistance function can be acj
tive at the same time.
'yParking aid lines
"Parking aid lines"
Lanes and turning radius are indicated.
'yObstacle marking
"Obstacle marking"
Spatially-shaped markings are displayed.
Pathway
lines
Pathway lines can be superimposed on the imj
age of the rearview camera.
Pathway lines help you to estimate the space
required when parking and maneuvering on level roads.
Pathway lines depend on the current steering angle and are continuously adjusted to the
steering wheel movements.
Turning
radius
lines
Turning radius lines can only be superimposed
on the rearview camera image together with pathway lines.
Turning radius lines show the course of the
smallest possible turning radius on a level road.
Only one turning radius line is displayed after
the steering wheel is turned past a certain anj
gle.
Obstacle
marking
Obstacles behind the vehicle are detected bythe PDC sensors and, when respectively
equipped, detected by the rearview camera.
Obstacle markings can be faded into the image
of the rearview camera.
The colored thresholds of the obstacle markj
ings match the markings of the PDC.
Seite 147Driving
comfortControls147
Online Edition for Part no. 01 40 2 973 100 - VI/16

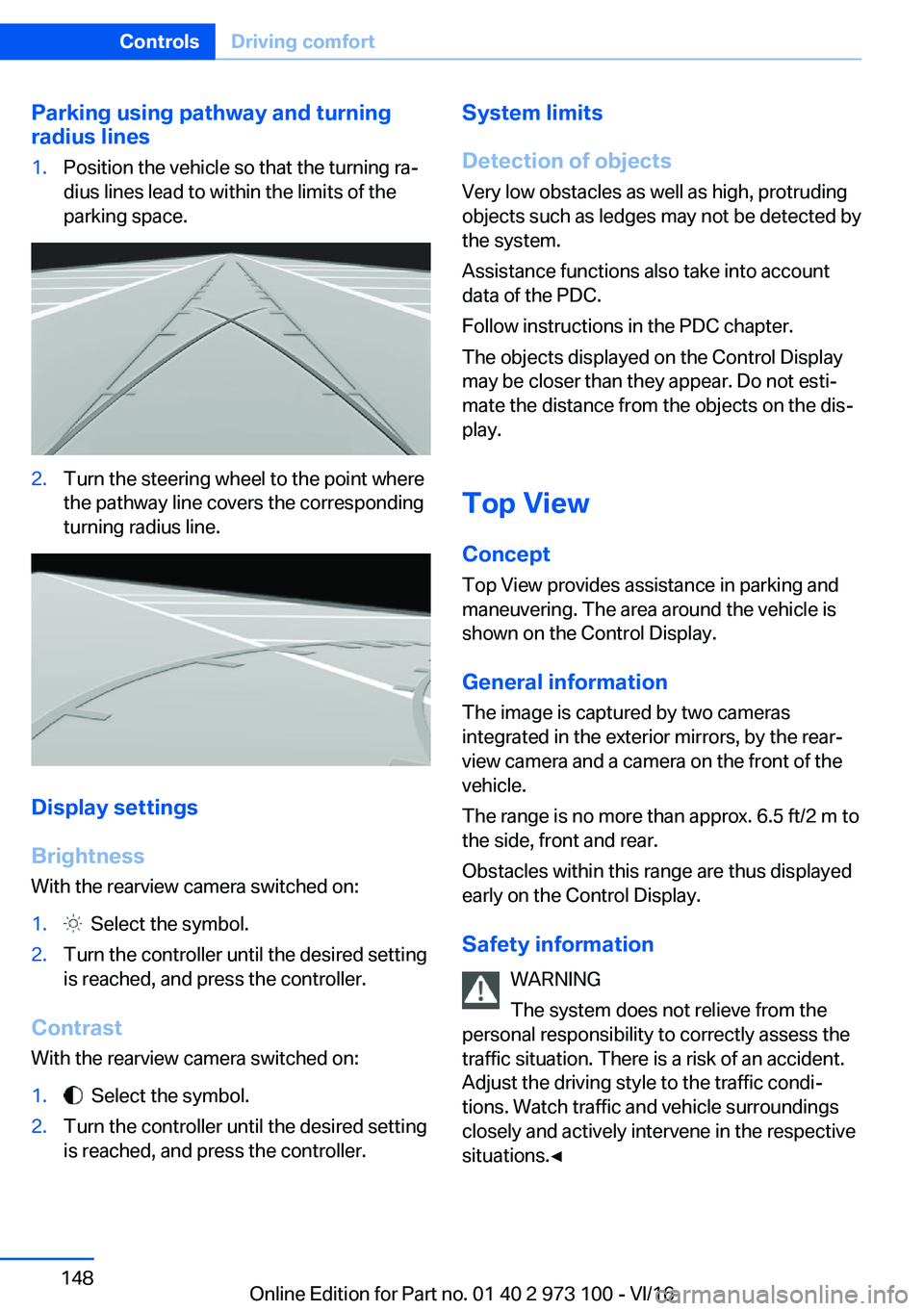

Parking
using
pathway
and
turning
radius
lines1.Position the vehicle so that the turning raj dius lines lead to within the limits of the
parking space.2.Turn the steering wheel to the point where
the pathway line covers the corresponding
turning radius line.
Display
settings
Brightness
With the rearview camera switched on:
1. Select the symbol.2.Turn the controller until the desired setting
is reached, and press the controller.
Contrast
With the rearview camera switched on:
1. Select the symbol.2.Turn the controller until the desired setting
is reached, and press the controller.System
limits
Detection
of
objects
Very low obstacles as well as high, protruding objects such as ledges may not be detected by
the system.
Assistance functions also take into account
data of the PDC.
Follow instructions in the PDC chapter.
The objects displayed on the Control Display may be closer than they appear. Do not estij
mate the distance from the objects on the disj
play.
Top
View
Concept
Top View provides assistance in parking and
maneuvering. The area around the vehicle is
shown on the Control Display.
General
information
The image is captured by two cameras
integrated in the exterior mirrors, by the rearj
view camera and a camera on the front of the vehicle.
The range is no more than approx. 6.5 ft/2 m to
the side, front and rear.
Obstacles within this range are thus displayed early on the Control Display.
Safety
information WARNING
The system does not relieve from the
personal responsibility to correctly assess the
traffic situation. There is a risk of an accident. Adjust the driving style to the traffic condijtions. Watch traffic and vehicle surroundingsclosely and actively intervene in the respective
situations.'

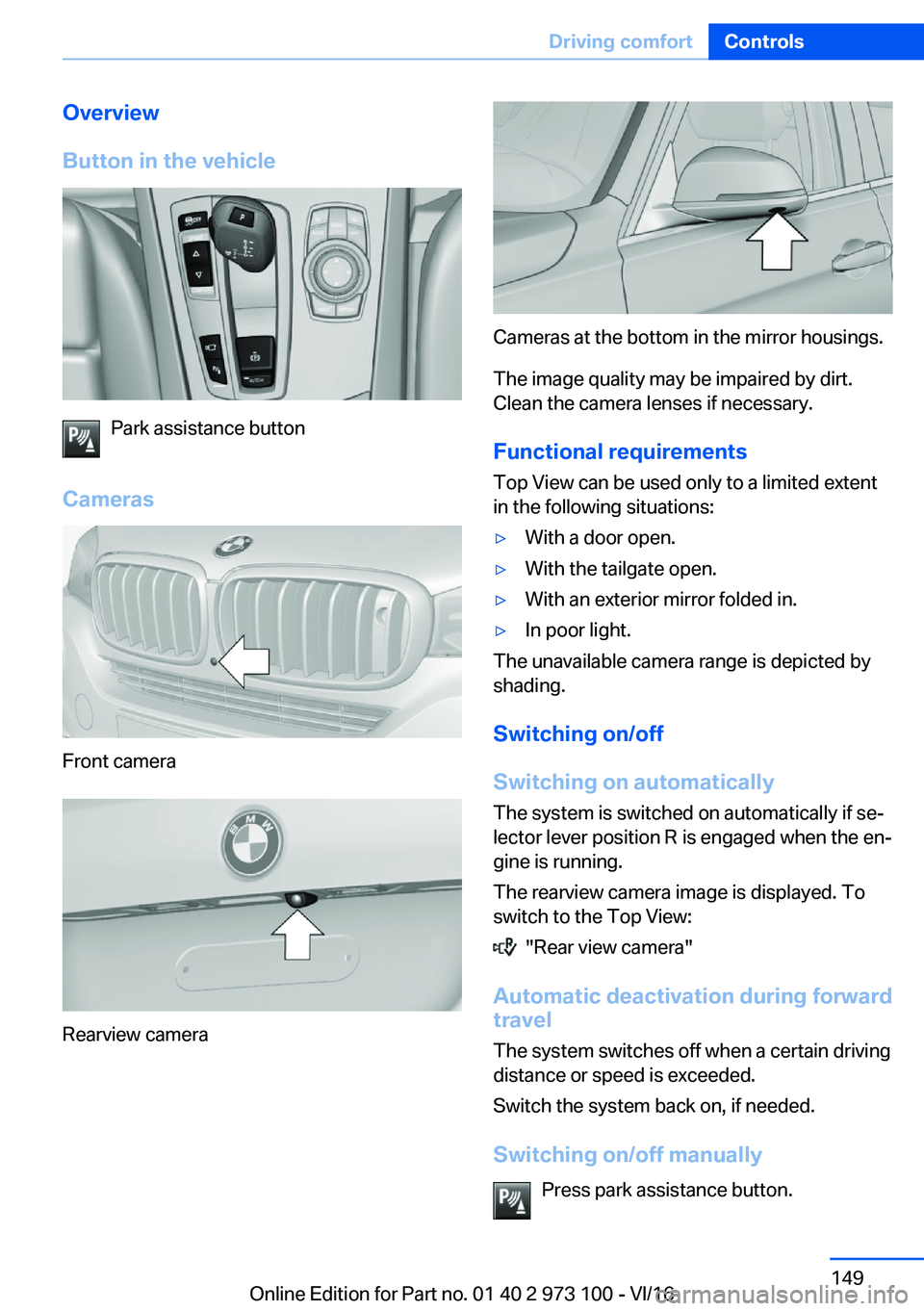

Overview
Button
in
the
vehicle
Park assistance button
Cameras
Front camera
Rearview camera
Cameras at the bottom in the mirror housings.
The image quality may be impaired by dirt.
Clean the camera lenses if necessary.
Functional
requirements
Top View can be used only to a limited extent
in the following situations:
'yWith a door open.'yWith the tailgate open.'yWith an exterior mirror folded in.'yIn poor light.
The unavailable camera range is depicted by
shading.
Switching
on/off
Switching
on
automatically The system is switched on automatically if sej
lector lever position R is engaged when the enj
gine is running.
The rearview camera image is displayed. To
switch to the Top View:
"Rear view camera"
Automatic
deactivation
during
forward
travel
The system switches off when a certain driving
distance or speed is exceeded.
Switch the system back on, if needed.
Switching
on/off
manually Press park assistance button.
Seite 149Driving
comfortControls149
Online Edition for Part no. 01 40 2 973 100 - VI/16

'yOn: the LED lights up.'yOff: the LED goes out.
Top View is displayed.
The rearview camera image is displayed when
the reverse gear is engaged when pressing the
park assistance button.

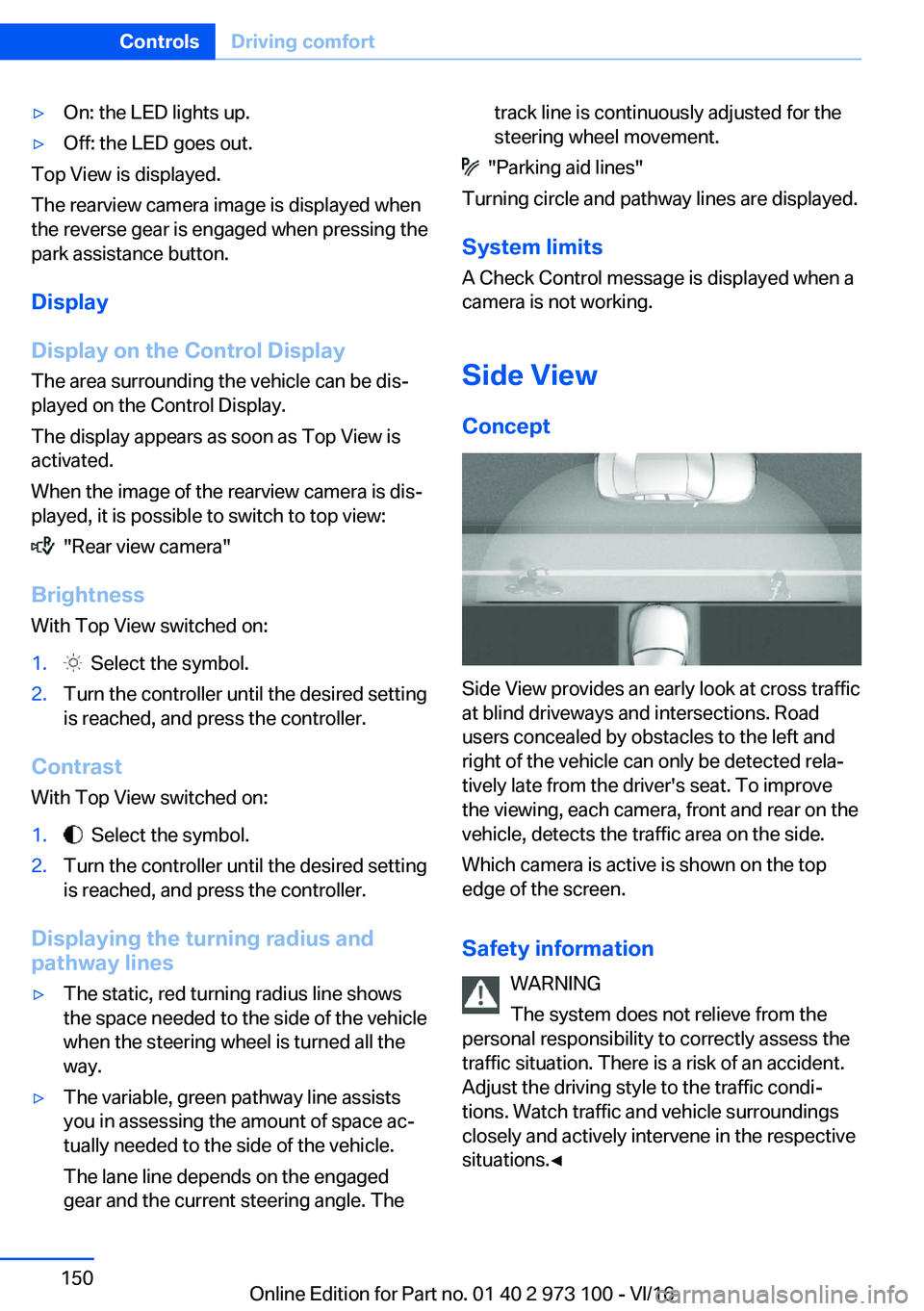

Display
Display
on
the
Control
Display The area surrounding the vehicle can be disjplayed on the Control Display.
The display appears as soon as Top View is
activated.
When the image of the rearview camera is disj played, it is possible to switch to top view:
"Rear view camera"
Brightness
With Top View switched on:
1. Select the symbol.2.Turn the controller until the desired setting
is reached, and press the controller.
Contrast
With Top View switched on:
1. Select the symbol.2.Turn the controller until the desired setting
is reached, and press the controller.
Displaying
the
turning
radius
and
pathway
lines
'yThe static, red turning radius line shows the space needed to the side of the vehicle
when the steering wheel is turned all the
way.'yThe variable, green pathway line assists you in assessing the amount of space acjtually needed to the side of the vehicle.
The lane line depends on the engaged
gear and the current steering angle. Thetrack line is continuously adjusted for the
steering wheel movement.
"Parking aid lines"
Turning circle and pathway lines are displayed.
System
limits
A Check Control message is displayed when a camera is not working.
Side
View Concept
Side View provides an early look at cross trafficat blind driveways and intersections. Road
users concealed by obstacles to the left and right of the vehicle can only be detected relaj
tively late from the driver's seat. To improve
the viewing, each camera, front and rear on the
vehicle, detects the traffic area on the side.
Which camera is active is shown on the top
edge of the screen.
Safety
information WARNING
The system does not relieve from the
personal responsibility to correctly assess the traffic situation. There is a risk of an accident.Adjust the driving style to the traffic condijtions. Watch traffic and vehicle surroundingsclosely and actively intervene in the respective
situations.'

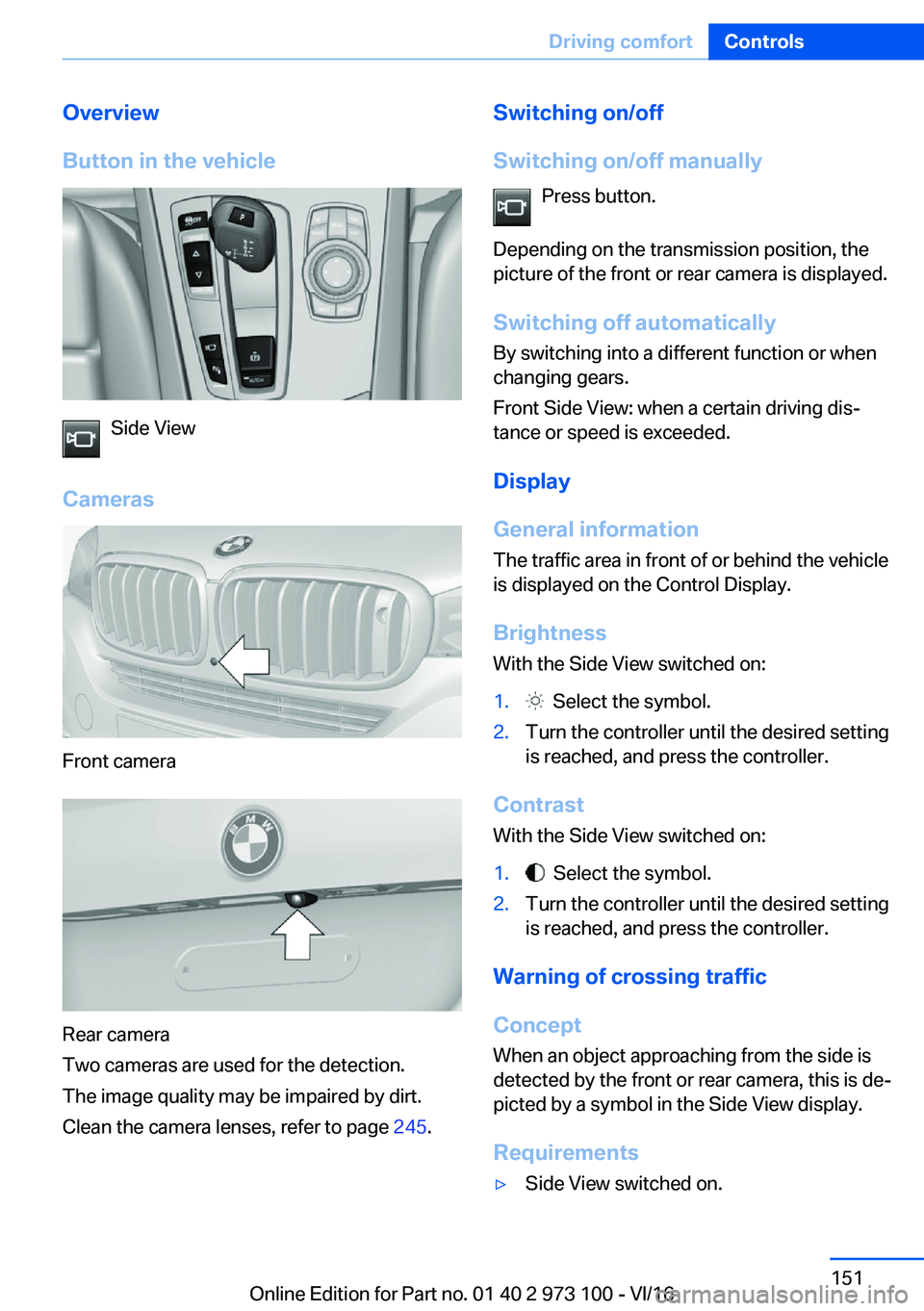

Overview
Button
in
the
vehicle
Side View
Cameras
Front camera
Rear camera
Two cameras are used for the detection.
The image quality may be impaired by dirt.
Clean the camera lenses, refer to page 245.
Switching
on/off
Switching
on/off
manually Press button.
Depending on the transmission position, the
picture of the front or rear camera is displayed.
Switching
off
automaticallyBy switching into a different function or when
changing gears.
Front Side View: when a certain driving disj tance or speed is exceeded.
Display
General
information The traffic area in front of or behind the vehicle
is displayed on the Control Display.
Brightness
With the Side View switched on:1. Select the symbol.2.Turn the controller until the desired setting
is reached, and press the controller.
Contrast
With the Side View switched on:
1. Select the symbol.2.Turn the controller until the desired setting
is reached, and press the controller.
Warning
of
crossing
traffic
Concept
When an object approaching from the side is
detected by the front or rear camera, this is dej
picted by a symbol in the Side View display.
Requirements
'ySide View switched on.Seite 151Driving
comfortControls151
Online Edition for Part no. 01 40 2 973 100 - VI/16

'yYour vehicle moves no faster than walkingspeed.'yTo detect approaching objects, sufficient
brightness, e.g., daylight is necessary.
Display
The yellow symbol is displayed if anapproaching vehicle is detected by thecamera.
A gray symbol is displayed if crossing
traffic cannot be detected.
System
limits
In the following situations, the warning about crossing traffic may be limited:
'yIn poor lighting or visibility conditions.'yIf the camera is soiled or covered.
System
limits
The objects displayed on the Control Display
under certain circumstances are closer than
they appear. Therefore, do not estimate the distance from the objects on the display.
The viewing angle is approx. 180p.

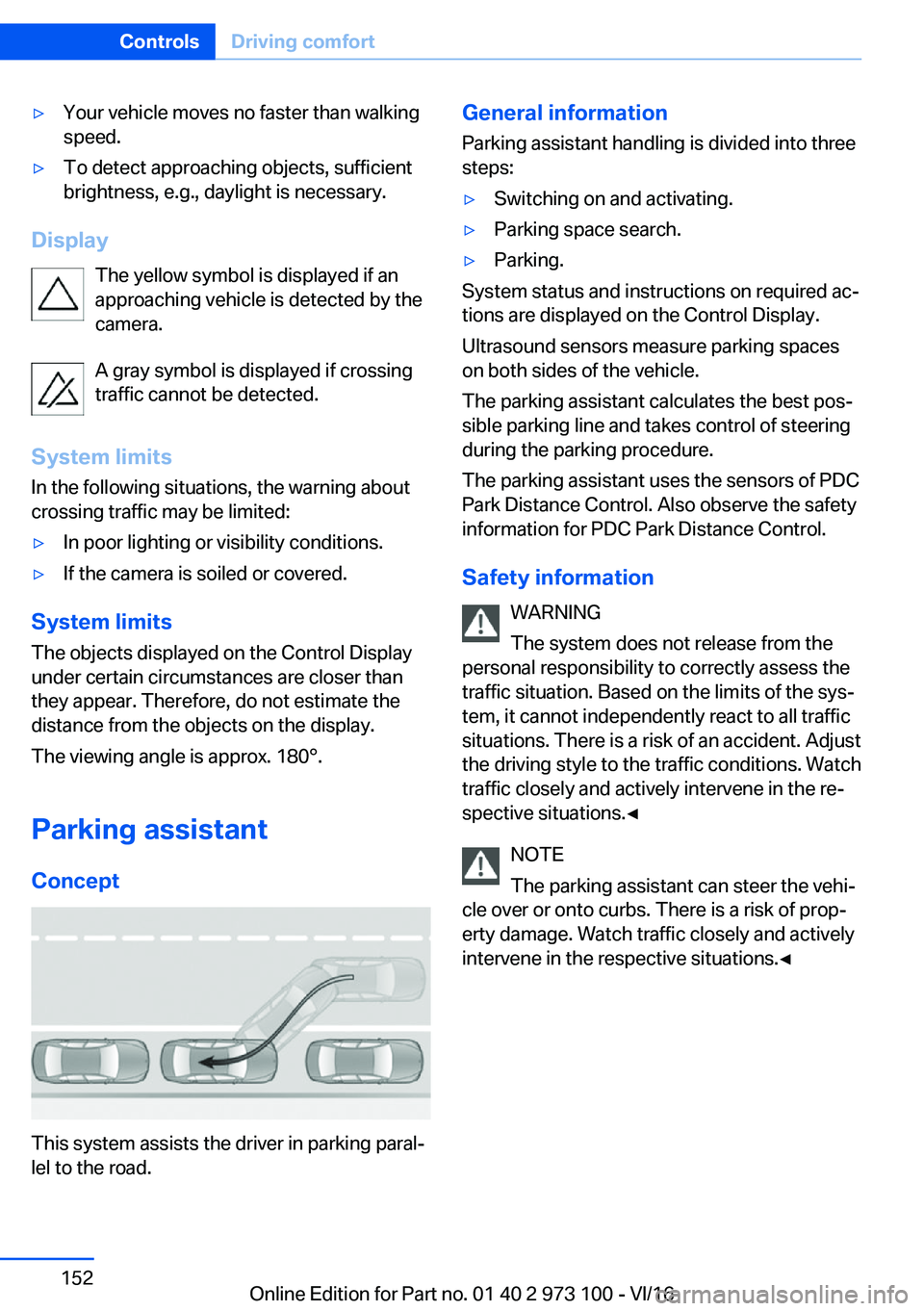

Parking
assistantConcept
This system assists the driver in parking paraljlel to the road.
General
information
Parking assistant handling is divided into three
steps:'ySwitching on and activating.'yParking space search.'yParking.
System status and instructions on required acj tions are displayed on the Control Display.
Ultrasound sensors measure parking spaces on both sides of the vehicle.
The parking assistant calculates the best posj
sible parking line and takes control of steering
during the parking procedure.
The parking assistant uses the sensors of PDC
Park Distance Control. Also observe the safety
information for PDC Park Distance Control.
Safety
information WARNING
The system does not release from the
personal responsibility to correctly assess the
traffic situation. Based on the limits of the sysj
tem, it cannot independently react to all traffic situations. There is a risk of an accident. Adjust
the driving style to the traffic conditions. Watch
traffic closely and actively intervene in the rej
spective situations.'
