Airbag syste m
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cupho lders, te lephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause in ju ry
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this posit ion.
- Always use the built-in coat hooks only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w it h side airbag deployment
and can cause personal i njury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an author ized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
orig inal seat covers or to the seam in the
area of the side a irbag mod ule m ust always
be repa ired immed iate ly by an authorized
Audi dealer .
- If children are sea ted improperly, their r is k
of injury increases in the ca se of an ac ciden t
~ page 13 7, Child safety .
-Never attempt to modify any components of
the a irbag sys tem in any way.
- In a side collision, side a irbags w il l not fu nc­
t ion properly if sensors cannot correct ly
measure increasi ng air pressure ins ide the
doo rs when air escapes through larger, un­
closed openings in the door panel.
- Never drive w ith inter io r door tr im panels
removed .
- Never drive when parts have been re­
moved from the inside doo r panel and the
open ings they leave have not been proper­
ly closed.
134
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
other equipment is installed i n the inside
door panels.
- Always have work on the doors done by an
authorized Aud i dealer or q ualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants.
Fig. 121 S id e curt ain system, drive r's s ide : side curtain air­
bag locatio n
The side curtain airbags are located on both sides
of the inter ior above the fro nt and rear side win­
dows~
fig. 121. T hey are identified by the word
"AIRBAG" on the windshie ld frame and the cen­
ter roof p illar .
The side curtain airbags contain features that provide ejection mitigation to help prevent veh i­
cle occupants or parts of their bodies from being
completely or part ially ejected from the vehicle
interior in certain side impacts and vehicle roll­
overs .
The side c urtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso on the
side of the vehicle that is struck in a side coll i­
sion. The side curta in a irbag inflates in side im-
pacts and only whe n the vehicle acce lerat ion .,.

a:,
a:,
...... N r--. N
'"' 0 0 ::, a:,
registered by the control unit is high enough . If
this rate is below the referenc e va lue program­
med into the contro l unit, the side curtain airbag
will not be triggered, even though the car may be
badly damaged as a result of the collision. It is
not possible to define an airbag triggering range
that will cover every poss ible a ngle of impact,
since the circumstances will vary considerab ly be­
tween one coll is ion and another. Impo rtant fac­
tors incl ude , fo r example , the nature (ha rd or
soft) of the impacting object , the ang le of im­
pact, vehicle speed, etc .
¢ page 135, How side
curtain airbags work.
Aside from their normal s afety function, safe ty
be lts work to help keep the driver or front pas ­
senger in position in the event of a collision so
that the side curtain airbags can provide protec­
tion .
The airbag system is not a s ubstitute for yo ur
safety be lt. Rather, it is part of the overa ll occu ­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wear ing it properly . Th is is another reason
why you should always wear your safety belts ,
n ot j ust because the law requires you to do so
¢ page 109, General information .
It is important to remember that while the s ide
curta in a irbag system is des igned to he lp reduce
the likelihood of ser ious injuries, other i njuries,
for example, swel ling, b ruising, and m ino r abra­
sions can a lso be associated w ith these airbags.
Remember too, these a irbags w ill dep loy only
once and only in certa in kinds of acc iden ts -your
safety be lts are always there to offer protection .
The side curtain airbag system basically
con sists of:
- T he elec tronic contro l module and external side
impact sensors
- T he side c urtain airbags above the front and
rea r side windows with ejection mitigation fea ­
tures
- T he airbag indicator light in the instrument
panel
The airbag system is monitored e lectronically to
make certain it is f unct ion ing properly at all
Airb ag sys tem
times. Each time you turn on the ignition, the air­
bag system indicato r light wi ll come on for a few
seconds (self diagnostics) .
The side curtain airbag is not activated :
- if the ignition is turned off,
- in side co ll isions when the accele ration meas-
ured by the sensor is too low,
- in rear-end collisions.
A WARNING
- Safety belts an d the airbag system will only
p rovide protec tion when occupants are in
the proper seat ing position
¢ page 44,
Front seats.
- If the ai rbag ind ic a tor light~ page 14
comes when the veh icle is being used, have
the system inspected immediately by your
authorized Audi dealer . It is possib le that
the airbag will inflate when it is not sup­
posed to, or w ill not inf late when it should.
How side curtain airbags work
Side curtain airbags con work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who ore properly re­
strained .
Fig. 122 Illust ration of pr incip le: Inflated s ide curta in air­
bags o n the le ft s ide
The side curtain airbags inflate between the oc­
cupant and the w indows on the side of the veh i-
cle that is struck in a side collision
¢ fig . 122.
When the system is triggered, the side curtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In order
liJ,
135

00
00
......
"' ,....
"' ...... 0 0 :::,
00

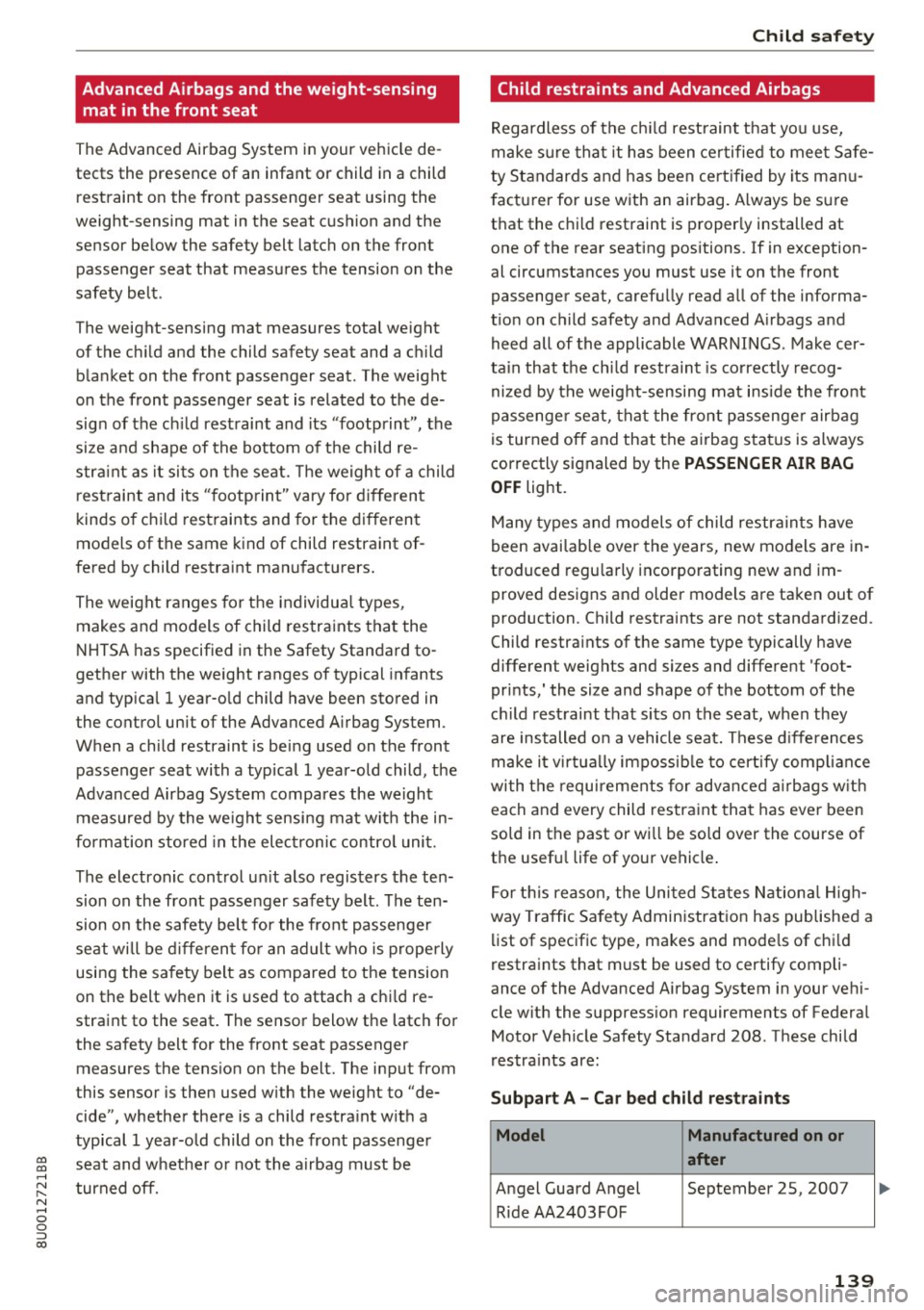

Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle de ­
tects the presence of an infant or child in a child
restraint on the front passenger seat using the
weight-sensing mat in the seat cushion and the
sensor below the safety belt latch on the front passenger seat that measures the tension on the
safety belt .
The weight-sensing mat measures total weight
of the child and the child safety seat and a child blanket on the front passenger seat. The weight
on the front passenger seat is related to the de­
sign of the chi ld restraint and its "footprint", the
size and shape of the bottom of the chi ld re­
stra int as it sits on the seat. The weight of a child
restraint and its "footp rint" vary for different
kinds o f child restraints and for the different
models of the same kind of child restraint of­
fered by child restraint manufacturers.
The weight ranges for the individual types,
makes and models of child restraints that the
NHTSA has specified in the Safety Standard to­
gether with the weight ranges of typical infants
and typical 1 year-old child have been stored in
the control unit of the Advanced Airbag System .
When a child restraint is be ing used on the front
passenger seat with a typical 1 year-old child, the
Advanced Airbag System compares the weight measured by the weight sensing mat with the in­
formation stored in the electronic contro l unit.
The electronic control un it also registers the ten­
sion on the front passenger safety belt . The ten­
sion on the safety belt for the front passenger
seat will be d ifferent fo r an ad ult who is properly
using the safety belt as compared to the tension
on the belt when it is used to attach a chi ld re­
straint to the seat. The sensor below the latch for
the safety belt for the front seat passenger measures the tens ion on the belt. The input from
this sensor is then used with the weight to "de­
cide", whether there is a child restraint w ith a
typical 1 year-old child on the front passenger
seat and whet her o r not the a irbag must be
turned off.
Ch ild safety
Child restraints and Advanced Airbags
Regardless of the ch ild restraint that you use,
make s ure tha t it has been cer tified to mee t Safe­
ty Standards and has been cert ified by its manu­
facturer for use with an airbag. Always be sure
that the c hild restraint is properly installed at
one of the rear seating positions. If in exception­
al circumstances you must use it on the front
passenger seat, carefully read all of the informa­
t ion on child safety and Advanced A irbags and
heed all of the applicable WARNINGS . Make cer­
ta in that the ch ild restraint is correctly recog­
nized by the weight-sensing mat ins ide the front
passenge r seat, that the front passenge r airbag
is turned off and that the airbag status is always
correctly signaled by the
PASSENGER AIR BAG
OFF
light .
Many types and models of child restra ints have
been avai lab le over the years, new models are in­
t roduced regu larly incorporating new and im­
proved designs and older models are taken out of
production. Child restraints are not standardized.
Child restra ints of the same type typically have
different weights and sizes and different 'foot­
pr ints,' the size and shape of the bottom of the
ch ild rest raint that sits on the seat, when they
are installed on a vehicle seat. These d ifferences
make it virt ua lly impossib le to certify comp liance
wi th the requi rements for advanced a irbags w it h
each and every child restraint tha t has ever been
sold in the past or wi ll be so ld over the course of
the usefu l life of your vehicle .
For t his reason, the Uni ted States N ation al High­
way Traffic Sa fety Administration has published a
list of specific type, makes and mode ls of chi ld
restraints that must be used to certify compli­
ance of the Advanced Airbag System in your vehi­
cle w ith the suppress ion requirements of Federal
Motor Vehicle Safety Standard 208 . These child
restra ints are:
Subpart A - C ar b ed child r estra int s
Model Manufactured on or
after
Angel Guard Angel September 2S, 2007 R ide AA2403FOF
139

00
00
......
"' ,....
"' ...... 0 0 :::,
00
also reduces fuel e fficiency and tire tread life,
and may affect the vehicle's handling and stop­ p ing ability .
Pl ease no te that the TPMS is not a substi tute for
p roper tire maintenance, and it is the drive r's re ­
sponsib ility to maintain cor rect tire pressure,
even if under-inflation has not reached the leve l
to tr igger illum inat ion of the TPMS low tire pres ­
sure telltale.
Your vehicle has also been eq uipped with a TPMS
mal funct ion indicator to indicate when the sys ­
tem is not operating properly. The TPMS mal­
function indicator is combined w ith the low tire
pressure tellta le. Whe n the system detects a
malfunct ion, the telltale will flash for approx i­
mately one min ute and then remai n cont inuo usly
i llum inated. This sequence will continue upon
s ubseq uen t ve hicl e start- ups as long as the m al­
f u nction ex ists.
When the malfunct io n in dicator is ill uminated,
the system may not be ab le to detect or signa l
l ow tire press ure as intended . TPM S malfu nctions
may oc cur for a var iety of reasons, incl uding the
installation of replacement or alternate ti res o r
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after rep lacing one or
more t ires or whee ls on your ve hicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to cont inue to funct ion
p roperly.
If the Tire Pressure Monitoring System
ind icator appears
A ppl ies to: ve hicles with Tir e Pressure Moni toring System in­
di cato r
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if th ere is a system malfunction .
Using the ABS sensors, the tire p ressure mo nitor­
i ng system compa res the tire tread circumfer ­
e n ce and vib ra tion characteristics of the individ u­
a l tir es .
If the pressure c hanges in o ne or more
wheels , th is is indica ted in the instrument clus ter
d is p la y with a n
[I] indica to r li ght and a message.
Wh eel s
If only one tire is affected, the location of tha t
t ir e will be indicated.
T he tire press ures mus t be store d in the Infot ain­
ment system again each t ime the pressures
c h ange (switching between partia l and full load
pressure) or after changing or replacing a tire on
yo ur vehicle
r::!;> page 190 . The tire pressure mon i­
toring system on ly monitors the tire pressure you
have stored . Refer to the t ire pressure label for
the recommended t ire press ure fo r yo ur vehicle
r::!;>page 181, fig . 150 .
Tire tread c ircumfe rence and vibration cha racter ­
istics can change and cause a tire pressu re warn­
i ng if :
- the t ire pressure in one or more tires is too low.
- the t ire has str uctural damage .
- t he t ire w as rep lace d or the t ire pressu re was
changed and it was no t store d
r::!;> page 190.
- t he spare tire* is i nstalled.
Indicator lights
[I] -Loss of pressu re in at leas t one tire r::!;> & .
Check the tires and replace or repair if necessary .
Check/correct the pressures of all fou r tires and
store the pressu re again in the menu disp lay
r::!;>page 190.
ffim (T ire Pressure Moni tor ing Sys tem) Tire
pre ssure: Syst em malfunction!. Ifm appears
after sw itching the ignition on or while d riv in g
and the
[I] i ndic ator ligh t in the i nstru men t clus­
te r blinks for approx imately one minute and then
stays on, the re is system ma lf u nction . Try to
store the co rrect tire pressures
r::!;> page 190 . If
the indicator light does turn off or turns on again
after a short period of time, drive to an author­
ized Audi dealer or author ized Audi Se rvice Facili­
ty immediate ly to have the ma lfunction correct ­
ed.
_&. WARNING
- I f the tire p ressure in dicator appears in the
d isp lay, redu ce you r speed immedi ately and
a void any h ard stee ring or bra king m aneu­
vers . S to p as soon as poss ible and check the
tires an d their pressure .
~
189

00
00
......
"' ,....
"' ...... 0 0 :::,
00
Care and cleaning
General information
Regular, proper care helps to maintain your vehi ­
cle's value. It can a lso be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The necessary care products can be obtained
from an authorized Audi dealer or authorized
Audi Service Facility . Read and follow the instruc­
tions for use on the packaging.
A WARNING
- Us ing clean ing and care products incorrectly
can be dangerous to your health.
- Always store clean ing and care products out
of reach of children to reduce the r isk of po i­
son ing .
@ For the sake of the environment
- Preferably purchase env ironmenta lly-friend­
l y cleaning products.
- Do not d ispose of leftover cleaning and care
products with household trash.
Car washes
T he longer that deposits remain on the vehicle,
the more the surface may be damaged. High
temperatures such as those caused by sunlight increase the damag ing effect.
Befor e washing, rinse
off heavy depos its with
p lenty of water.
S tubborn depos its such as bird droppings or tree
sap are best removed with plenty of water and a
microfiber cloth.
A lso, wash t he un derside of yo ur vehicle once
road sa lt stops being used for the season .
Pressure washers
When washing your ve hicle w ith a pressure wash­
e r, a lways fo llow the operating instructions pro­
vided wi th the p ressure washer. This is especially
i mportant in rega rd to the pressure and sp raying
d istance . Do not aim the spray directly at seals on
side windows, doors, the hood, the luggage com-
Ca re and cleaning
partment lid or the panorama glass roof* or at
tires, rubber hoses, insulating material, sensors *
o r camera lenses* . Keep a distance of at least 16
in
(40 cm).
Do not remove snow and ice with a pressure
washer.
Never use cone nozz les o r high press ure nozzles .
T he water temperatu re must not be above
140 °F
(60 °().
Automatic car washes
Spray off the vehicle before washing.
Make s ure that the windows and roo f* are closed
and the windshie ld wipers are
off . Follow instruc ­
tions from the car wash ope rator, especially if
there are accessories attached to your vehicle.
If possible, use car washes that do not have
brushes .
Washing by hand
Clean the ve hicl e starting from the top and wor k­
i ng down using a soft sponge o r cleaning br ush.
U se solven t-free cleaning produ cts.
Washing vehicles with matte finish paint by
hand
T o avo id damag ing the pa int w hen washi ng, fi rst
remove dust and large pa rticl es from you r vehi­
cle . Insects, grease spots and fingerprints are
best removed w ith a special cleaner for matte
finish paint.
Apply t he product using a microf iber cloth . To
avoid damaging the paint surface, do not use too
much pressure.
Rinse the ve hicl e thoroug hly w ith wate r. Then
cl ean usi ng a neutral shampoo and a soft micro­
fiber cloth .
Rinse the ve hicl e thorough ly aga in and let it air
dry. Remove any wate r residue using a chamois.
WARNING
-On ly wash the vehicle when the ign ition is
off and follow the instr uctions from the car
191

Care and cleaning
wash operator to reduce the risk of acci­
dents.
- To reduce the risk of cuts, protect yourself
from sharp metal components when wash­ ing the underbody or the inside of the wheel
housings.
- After washing the vehicle, the braking effect
may be delayed due to moisture on the
brake rotors or ice in the winter. This in­
creases the risk of an accident. The brakes
must be dried first with a few careful brake
applications.
(D Note
- If you wash the vehicle in an automatic car
wash, you must fold the exterior mirrors in
to reduce the risk of damage to the mirrors.
Power folding exterior mirrors* must only
be folded in and out using the power folding
function.
- To reduce the risk of paint damage, do not
wash the vehicle in direct sunlight. -
To reduce the risk of damage to the surface,
do not use insect removing sponges, kitchen
sponges or similar items.
- Matte finish painted vehicle components:
- To reduce the risk of damage to the sur-
face, do not use polishing agents or hard
wax.
- Never use protective wax. It can destroy
the matte finish effect.
- Do not place any stickers or magnetic
signs on vehicle parts painted with matte
finish paint. The paint could be damaged
when the stickers or magnets are re­
moved.
@ For the sake of the environment
Only wash the veh icle in facilities spec ially de­
signed for that purpose. This will reduce the
risk of dirty water contaminated with oil from
entering the sewer system.
Cleaning and care information
When clean ing and caring for individual vehicle
components, refer to the following tables. The
information contained there is simply recom­
mendations. For quest ions or for components that are
not listed, consult an authorized Aud i
dealer or authorized Audi Service Facility. Also
follow the information found in¢&..
Exterior cleaning
Component Situation Solution
Windshield wiper
Deposits ¢ page 41, Cleaning windshield wiper blades
blades
Headlights/
Deposits Soft sponge with a mi ld soap solutiona >
Tail lights
Sensors/
Deposits Sensors: soft cloth with solvent-free cleaning solution
Camera lenses Camera lenses: soft cloth with alcohol-free cleaning solu-
tion
Snow/ice Hand brush/so
lvent-free de -icing spray
Wheels Road salt Water
Brake dust Acid-free special cleaning solution
Exhaust tail pipes Road salt Water, cleaning solution suitable for stainless steel, if
necessary
Decorative parts/ Deposits Mild soap solution al, a cleaning solution suitable for
Trim stainless steel, if necessary
192

Care and cleaning
Component Situation Solution
Te xtil es
Deposits adhering to Vacuum cleaner
artifi cial le ather , the surface
Alcan tara Water-based depos- Absorbent cloth and mild soap
solutional
its such as coffee,
tea, blood, etc.
O il-based deposits Apply a mild soap solution a), blot away the dissolved oil o r
such as oil, make-up, dye, treat afterward with water, if necessary
etc.
Special deposits such Special sta ,in remover, blot with absorbent material, treat
as ink, na il polish, la- afterward with mild soap solution, if necessary al
tex paint, shoe pol-
ish, etc.
Natural leather Fresh stains Wool cloth with a m
ild soap solutional
Water-based depos- Fresh stains: absorbent cloth its such as coffee, dried sta ins: stain remover suitable fo r leather
tea, blood, etc.
Oil-based deposits Fresh stains: absorbent cloth and stain remover suitable for
such as oil, make-up, leather
etc. dried sta
ins: oil clean ing sp ray
Special deposits such Spot remover suitable for leather
as ink, nai l polish, la -
tex paint, shoe pol-
ish, etc.
Ca re Regularly apply cond itioning cream tha t protects from light
a nd penetr ates into the ma ter ial. Use spec ia lly-co lored con -
ditioning cream, i f necessary.
Carbon parts Deposits clean the same way as plastic parts
a) Mild soap sol ution: maxim um two tablesp oons of neutral soap in 1 quart (l liter) of water
_& WARNING
The windshie ld may not be trea ted with w a­
ter-repelling windshield coating agents. Un­
favorable conditions s uch as wetness, dark­
ness, or low sun can result in increased glare .
Wiper blade chatter is also possib le.
(D Note
- Headlights/tail light s
-Never clean headlights or ta il lights with a
dry cloth or sponge.
- Do not use any cleaning p roduct that con­
tains alcohol, because they cou ld cause
cracks to form.
- Wheels
194
-
- Never use any paint polish or other abra­
sive materials.
- Damage to the protect ive layer on the
rims such as stone chips or scratches must
be repaired immediately.
- Sensors /camera lenses
- N ever use wa rm or ho t wa ter to remove
snow or ice from the camera lens . This
could ca use the lens to crack .
- N eve r use abrasive cleaning m aterials or
a lcohol to clea n the camera lens . This
could cause scratches and c racks .
-Door windows
- Remove snow and ice on windows and ex-
terior mirrors with a plast ic scraper. To

a:,
a:,
.... N r--. N .... 0 0 ::, a:,
-Ha ve the wheel b olt tightening torque
ch ecked wit h a to rque wr ench a s soon a s po s­
s ible b y your auth orized Audi dealer or qu ali·
fied works hop.
- With steel and allo y wheel rims , the wheel
bolts a re correctl y tight ened at a to rque of
105
ft lbs (140 Nm ).
- If you n oti ce th at the wheel bolts are cor roded
a nd d iff icult to tu rn w hile c hang ing a t ire ,
they should be replaced be fore you check th e
t ighte nin g torqu e.
- Repla ce the flat t ire with a new one and h ave
i t insta lled on you r veh icle as so on a s possi­
ble . Remo unt the whee l co ver .
Until then, d riv e with extra ca re and at redu ced
spee ds.
A WARNING
- If you are going to equ ip your vehicle w ith
t ir es or rims which differ from those which
were factory installed, then be sure to read
the informat io n
¢ page 178, N ew tires or
wheels.
- Always make sure the damaged wheel or
even a flat tire and the jack and tool kit a re
properly secured in the luggage compart ­
ment and are not loose in the passenger
compartmen t.
- In an accident o r sudden maneuver they
cou ld fly forward, injuring anyone in the ve ­
hicle.
- Always store damaged whee l, ja ck a nd too ls
sec urely in the luggage compartment . Oth ­
erwise, in an accident or sudden maneuver
they could fly forward, ca using injury to pas­
sengers in the vehicle .
(D Note
Do not use commercia lly available tire seal­
ants . Otherwise, the electrical components of
the t ire pressure monitoring system* will no
longer work properly and the sensor for the
tire pressure mon itor ing system" will have to
be replaced by qualified workshop.
.
Em ergen cy a ssis tanc e
Spare tire
Space-saving spare tire (compact spare
tire)
Applies to: veh icles with spare tir e/space-saving spare tire
(compact spare tire)
F ig. 160 Lugg age compar tme nt: space -s a ving s pare tire
( c ompact spa re
tir e)
The spare tire is intended fo r sh ort -term use on­
ly. Have the damaged tire checked and replaced ,
i f necessary, by an authorized Aud i dea ler or au­
thorized Aud i Service Facility as soon as possible.
T here are some restr ictions on the use of the
compact spare tire . The compac t spa re t ire has
been designed specifically for your type of vehi­
cle . Do not rep lac e it with the spare tire from an­
other type of vehicle .
Removing the spare tire
.,. Remove the cargo floo r.
.,. Remove the w ing bo lt
¢ fig. 160 an d then re-
move the retaine r underneath it .
.,. Remov e the subwoofer*
¢ page 204.
.,. Remov e the spar e tir e.
Snow chains
For technical reasons, the use of snow chains on
the compact spare tire is not pe rmitted .
If you have to drive with snow chains and a front
tire fails , mo unt the spare wheel in place of a
rear tire. Install the snow chains o n the rear t ire
that you removed, and install that in place of the
front t ire that fai led .
A WARNING
-Never use the spare tire if it is damaged or if
it is worn down to the tread wear indicators . .,.
203
