EAU10431

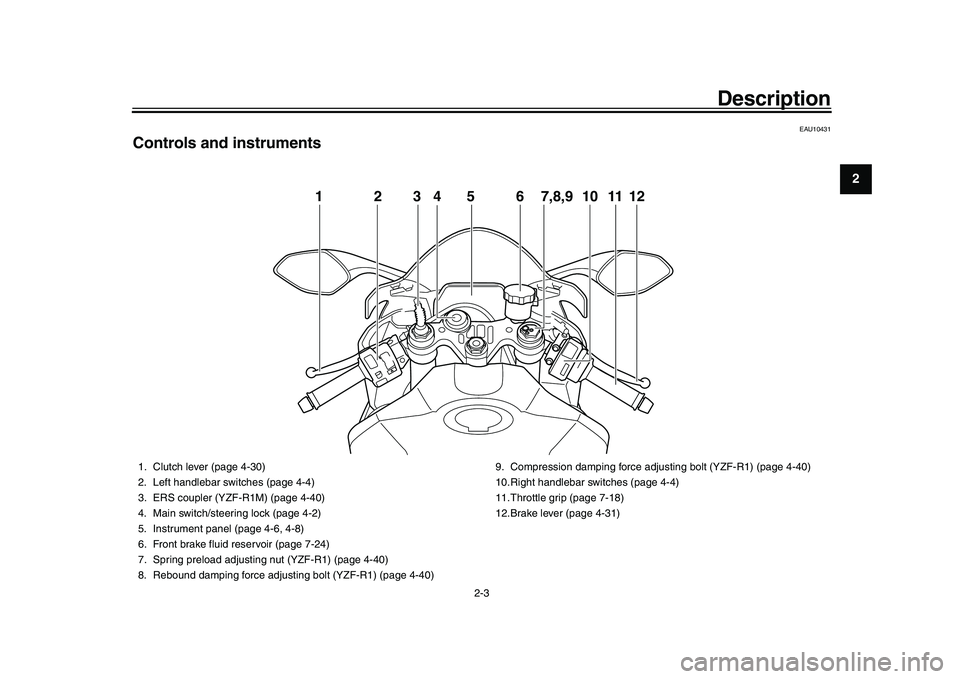

Controls and instruments
12456 101112
3
7,8,9
1. Clutch lever (page 4-30)
2. Left handlebar switches (page 4-4)
3. ERS coupler (YZF-R1M) (page 4-40)
4. Main switch/steering lock (page 4-2)
5. Instrument panel (page 4-6, 4-8)
6. Front brake fluid reservoir (page 7-24)
7. Spring preload adjusting nut (YZF-R1) (page 4-40)
8. Rebound damping force adjusting bolt (YZF-R1) (page 4-40) 9. Compression damping force adjus
ting bolt (YZF-R1) (page 4-40)
10.Right handlebar switches (page 4-4)
11.Throttle grip (page 7-18)
12.Brake lever (page 4-31)
2CR-9-E1.book 3 ページ 2015年8月20日 木曜日 午後4時46分
Page 18 of 128

3-1
1
23
4
5
6
7
8
9
10
11
12
Special features
EAU66291
YRC (Yamaha Ride Control)Yamaha Ride Control is a system that
incorporates numerous sensors and
controls to support an improved riding
experience. The vehicle senses and
can react to forces along the longitudi-
nal (front-to-back), lateral (left-to-right),
and vertical (up-and-down) axes. Lean
angle and G-force accelerations are
also detected. This information is pro-
cessed multiple times a second and the
related physical systems are automati-
cally adjusted as necessary. The func-
tions listed below represent individual
YRC items which can be turned on/off
or adjusted to suit various riders and
riding conditions. For setting details see
“MENU” on page 4-15.
WARNING
EWA18220
The Yamaha Ride Control (YRC) sys-
tem is not a substitute for the use of
proper riding techniques or the ex-
pertise of the operator. This system
cannot prevent loss of control
caused by rider errors such as trav-
eling faster than warranted by road
and traffic condition s, including lossof traction due to excessive speed
when entering turns, when acceler-
ating hard at a sharp lean angle, or
while braking, and it cannot prevent
front wheel slipping or lift (“wheel-
ies”). As with any motorcycle, al-
ways ride within in your limits, be
aware of surrounding conditions,
and ride appropriately for those con-
ditions. Become thoroughly familiar
with the way the motorcycle handles
with various YRC settings before at-
tempting more advanced maneu-
vers.
PWR
The power delivery mode system con-
sists of four different control maps
which regulate throttle valve opening in
relation to the degree of throttle grip op-
eration, thus providing you with a selec-
tion of modes to fit your preferences
and the riding environment.
TCS
The traction control system helps main-
tain traction when accelerating. If sen-
sors detect that the rear wheel is
starting to slip (uncontrolled spinning),
the traction control system assists by
regulating engine power as needed un-
til traction is restored. The traction con-
trol system indicator/warning light
flashes to let the rider know that traction
control has engaged.
This traction control system automati-
1. PWR 1
2. PWR 2
3. PWR 3
4. PWR 4
5. Throttle valve opening
6. Throttle grip operation
5
64
3 2
1
2CR-9-E1.book 1 ページ 2015年8月20日 木曜日 午後4時46分
Page 19 of 128

Special features
3-2
1
234
5
6
7
8
9
10
11
12
cally adjusts accordin
g to the vehicle’s
lean angle. To maximize acceleration,
when the vehicle is upright a less
amount of traction control is applied.
When cornering, a greater amount of
traction control is applied.
TIP
The traction control system may
engage when the vehicle travels
over a bump.
You may notice slight changes in
engine and exhaust sounds when
the traction control or other YRC
systems engage.
When TCS is turned off, SCS,
LCS, and LIF are also turned offautomatically.
WARNING
EWA15432
The traction control system is not a
substitute for riding appropriately
for the conditions. Traction control
cannot prevent loss of traction due
to excessive speed when entering
turns, when accelerating hard at a
sharp lean angle, or while braking,
and cannot prevent front wheel slip-
ping. As with any motorcycle, ap-
proach surfaces that may be
slippery with caution and avoid es-pecially slippery surfaces.
When the key is turned to “ON”, the
traction control system automatically
turns on. The traction control system
can be turned on or off manually only
when the key is in the “ON” position and
the motorcycle is stopped.TIPTurn the traction control system off to
help free the rear wheel if the motorcy-
cle gets stuck in mud, sand, or othersoft surfaces.
NOTICE
ECA16801
Use only the specified tires. (See
page 7-18.) Using different sized
tires will prevent the traction control
system from controlling tire rotationaccurately.
SCS
The slide control system regulates en-
gine power output when a sideward
slide is detected in the rear wheel. It ad-
justs power output based on data from
the IMU. This system supports the TCS
to contribute to a smoother ride.
LCS
The launch control system helps the
rider achieve smooth and swift launch-
es from the starting grid. It keeps en-
gine speed from rising above 10,000
r/min even when the throttle grip is fully
turned. The LCS regulates engine pow-
er output in conjunction with the TCS
and LIF systems for optimal traction
and reduced wheel lift.
TCS
2CR-9-E1.book 2 ページ 2015年8月20日 木曜日 午後4時46分
Page 20 of 128

Special features
3-3
1
23
4
5
6
7
8
9
10
11
12
NOTICE
ECA22950
Even when using LCS, the clutch le-
ver must be released gradually toavoid clutch damage.TIPLCS is intended for track use only.
QSS
The quick shift system allows for
full-throttle, clutch lever-less, electroni-
cally-assisted upshifts. When the
switch positioned on the shift lever rod
detects motion in the shift lever, engine
power output is adjusted and drive
torque is momentarily cancelled out to
allow for the gear change to occur.TIP
QSS operates when traveling at
least 20 km/h with an engine
speed of 2000 r/min or higher and
only when accelerating.
QSS does not operate when theclutch lever is pulled. LIF
The lift control system reduces the rate
at which the front wheel will continue to
rise during extreme acceleration, such
as during starts or out-of-corner exits.
When front-wheel lift is detected, en-
gine power is regulated to slow
front-wheel lift while still providing good
acceleration.
ERS (YZF-R1M)
The Electronic Racing Suspension by
Öhlins features electrically-controlled
suspension damping. The system is
controlled by the SCU which makes in-
dependent adjustments of both the
front and rear suspension’s compres-
sion stroke and rebound stroke damp-
ing forces. There are two modes,
automatic and manual. Automatic
mode is an active suspension control
system which actively adjusts suspen-
sion damping forces based on running
conditions. Manual mode is a finely-tu-
neable traditional suspension set-up.
EAU66311
GlossaryABS - Anti-lock Brake System
ABS ECU - Anti-l
ock Brake System
Electronic Control Unit
CCU - Communication Control Unit
ECU - Engine Control Unit
ERS - Electronic Racing Suspension
GPS - Global Positioning System
IMU - Inertial Measurement Unit
LCS - Launch Control System
LIF - Lift Control System
PWR - Power delivery mode
QSS - Quick Shift System
SC - Stability Control
SCS - Slide Control System
SCU - Suspension Control Unit
TCS - Traction Control System
UBS - Unified Brake System
YRC - Yamaha Ride Control
