2016 VAUXHALL MOVANO_B Owner's Manual

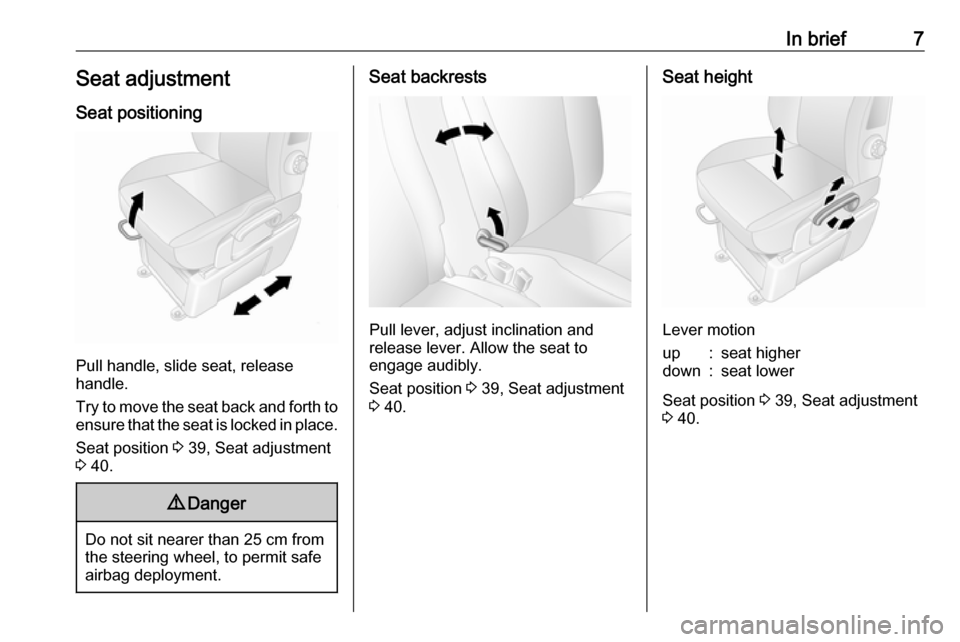

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat position 3 39, Seat adjustment
3 40.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 39, Seat adjustment
3 40.
Seat height
Lever motion
up:seat higherdown:seat lower
Seat position 3 39, Seat adjustment
3 40.

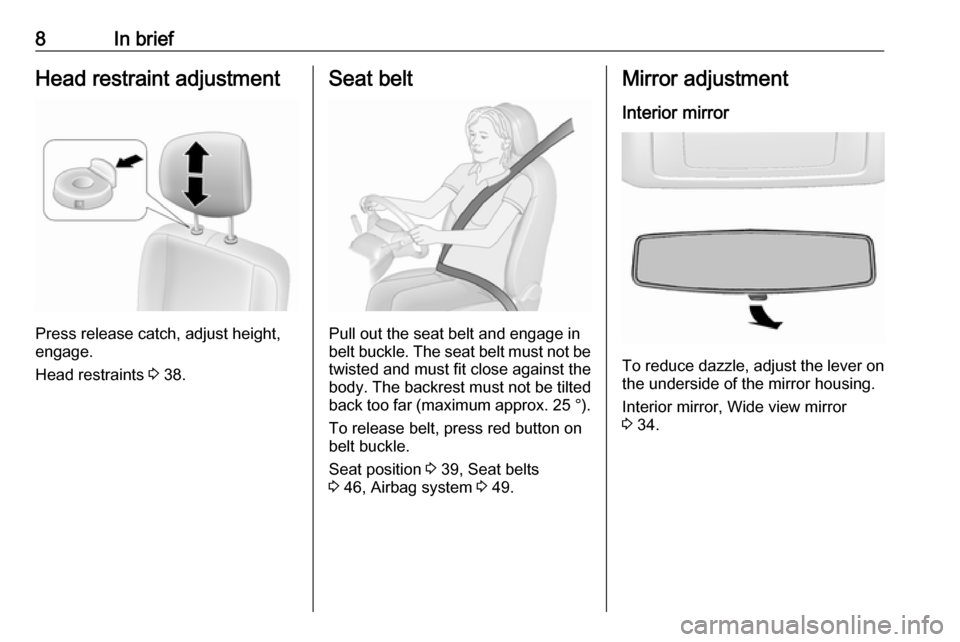

8In briefHead restraint adjustment
Press release catch, adjust height,
engage.
Head restraints 3 38.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).
To release belt, press red button on
belt buckle.
Seat position 3 39, Seat belts
3 46, Airbag system 3 49.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror, Wide view mirror
3 34.

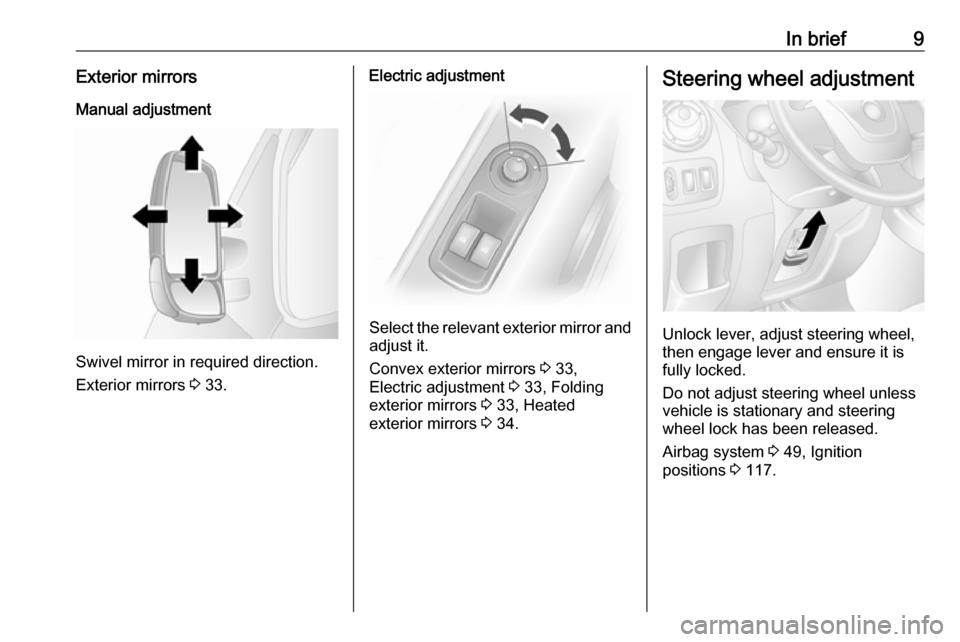

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 33.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 33,
Electric adjustment 3 33, Folding
exterior mirrors 3 33, Heated
exterior mirrors 3 34.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 49, Ignition
positions 3 117.

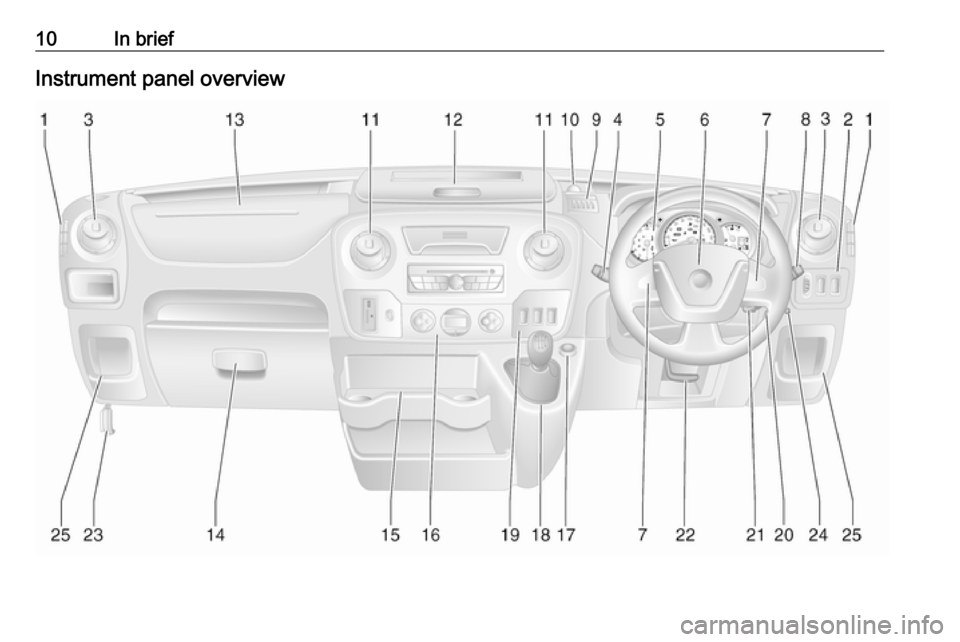

10In briefInstrument panel overview

In brief111Fixed air vents .................... 114
2 Headlight range
adjustment ........................... 97
Ultrasonic parking assist .....142
Traction control system ......136
Electronic Stability
Program ............................. 137
3 Side air vents .....................113
4 Light switch .......................... 95
Turn and lane-change
signals .................................. 98
High beam and low beam,
headlight flash ......................96
Sidelights .............................. 95
Automatic light control .......... 95
Exit lighting ......................... 101
Front fog lights .....................98
Rear fog light ........................ 99
High beam assist ..................965Instruments .......................... 77
Transmission display ............81
Driver Information Centre
(DIC) ..................................... 89
6 Horn ..................................... 73
Driver airbag ........................ 52
7 Remote control on
steering wheel .......................73
Cruise control .....................139
8 Windscreen wiper,
windscreen washer system ..74
Trip computer ........................ 92
9 Coin tray ............................... 64
10 Power outlet, USB slot .........76
11 Centre air vents .................. 113
12 Storage compartment ...........64
13 Front passenger airbag .........52
Storage compartment ..........64
14 Glovebox .............................. 65
15 Cupholders ........................... 6516Climate control system ....... 103
Electronic climate control
system ................................. 105
Seat belt reminder ................. 84
Front passenger airbag
deactivation ........................... 53
17 Cigarette lighter .................... 77
Power outlet ......................... 76
18 Gear lever, Manual
transmission ........................ 130
Manual transmission
automated ........................... 130
19 Cruise control and speed
limiter ................................. 139
Manual transmission
automated,
Winter and Laden modes ....132
Idle speed control ...............118
Stop-start system ................119
ECO mode .......................... 116
20 Ignition switch with
steering wheel lock ............117
21 Steering column controls .....73

12In brief22Steering wheel adjustment ..73
23 Bonnet release lever ..........155
24 Auxiliary heater ...................109
25 Storage compartment ..........64
Fuse box ............................ 171Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 95, Automatic light
control 3 95, Headlight warning
device 3 91, Adaptive forward
lighting 3 98.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsr:rear fog lights
Front and rear fog lights 3 98,
3 99.

In brief13Headlight flash, high beam and
low beam
Pull lever.
High beam 3 96, Headlight flash
3 97.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 98.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 98.

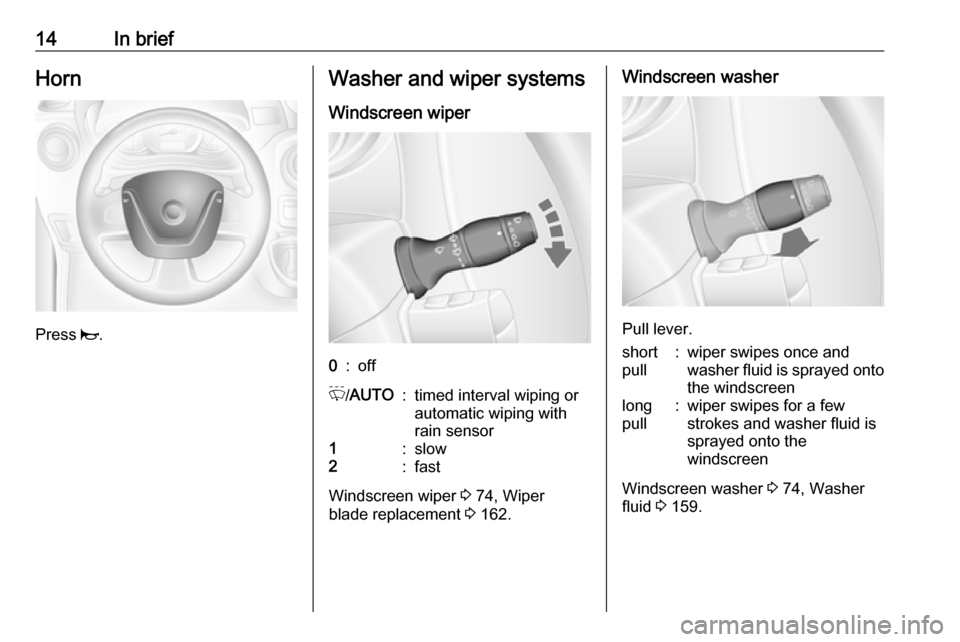

14In briefHorn
Press j.
Washer and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 74, Wiper
blade replacement 3 162.
Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 74, Washer
fluid 3 159.
