2016 VAUXHALL MOVANO_B Owner's Manual

Seats, restraints63ISOFIX child restraintsystems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets.
When using ISOFIX mounting
brackets for seat mounting,
universally approved child restraint
systems for ISOFIX may be used.
Permissible mounting location
positions for ISOFIX child restraint
systems are marked in the tables by
< , IL and IUF.

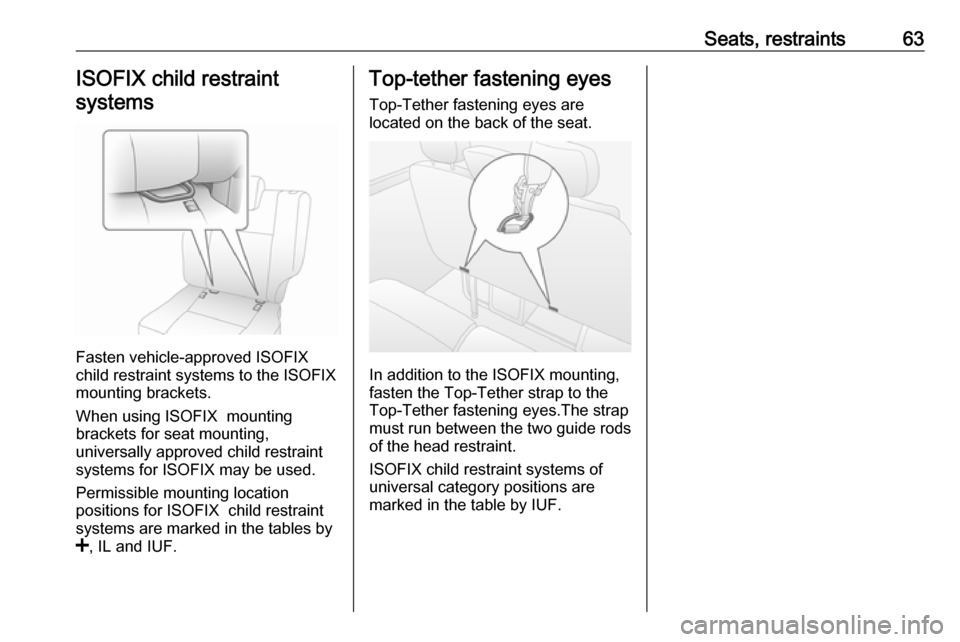

Top-tether fastening eyes
Top-Tether fastening eyes are
located on the back of the seat.
In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes.The strap must run between the two guide rods of the head restraint.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

64StorageStorageStorage compartments................64
Instrument panel storage ...........64
Glovebox ................................... 65
Cupholders ................................ 65
Front storage ............................. 65
Sunglasses storage ...................65
Overhead console .....................66
Underseat storage .....................66
Overcab storage ........................67
Load compartment .......................67
Lashing eyes ............................. 67
Cargo management system ......67
Safety net .................................. 69
Warning triangle ........................69
First aid kit ................................. 69
Fire extinguisher ........................70
Roof rack system .........................70
Roof rack ................................... 70
Loading information .....................71Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.

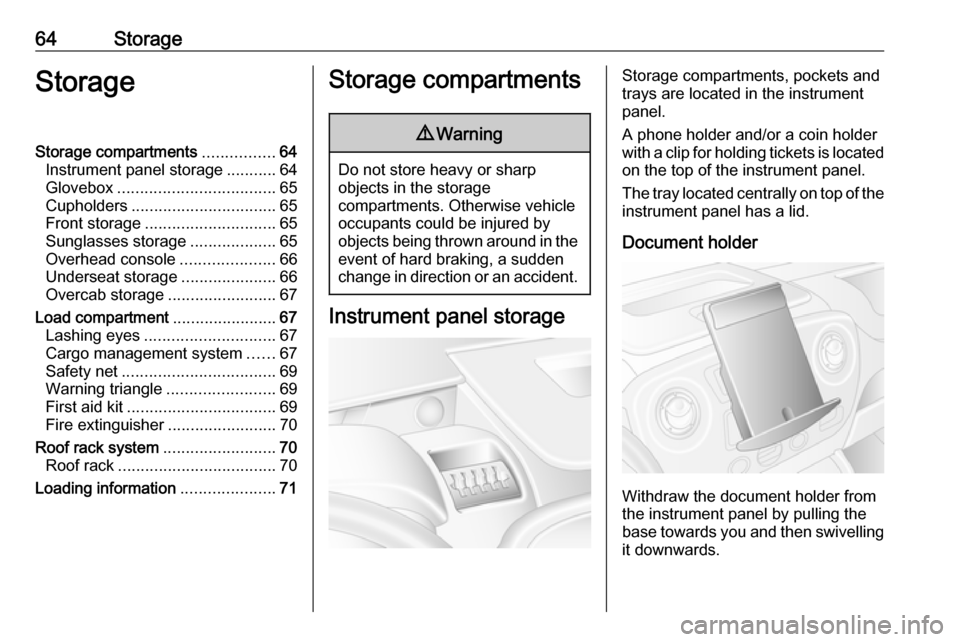

Instrument panel storage
Storage compartments, pockets and
trays are located in the instrument
panel.
A phone holder and/or a coin holder
with a clip for holding tickets is located on the top of the instrument panel.
The tray located centrally on top of the instrument panel has a lid.
Document holder
Withdraw the document holder from
the instrument panel by pulling the
base towards you and then swivelling it downwards.

Storage65To fold away, raise the base until the
document holder is horizontal, then push fully in.

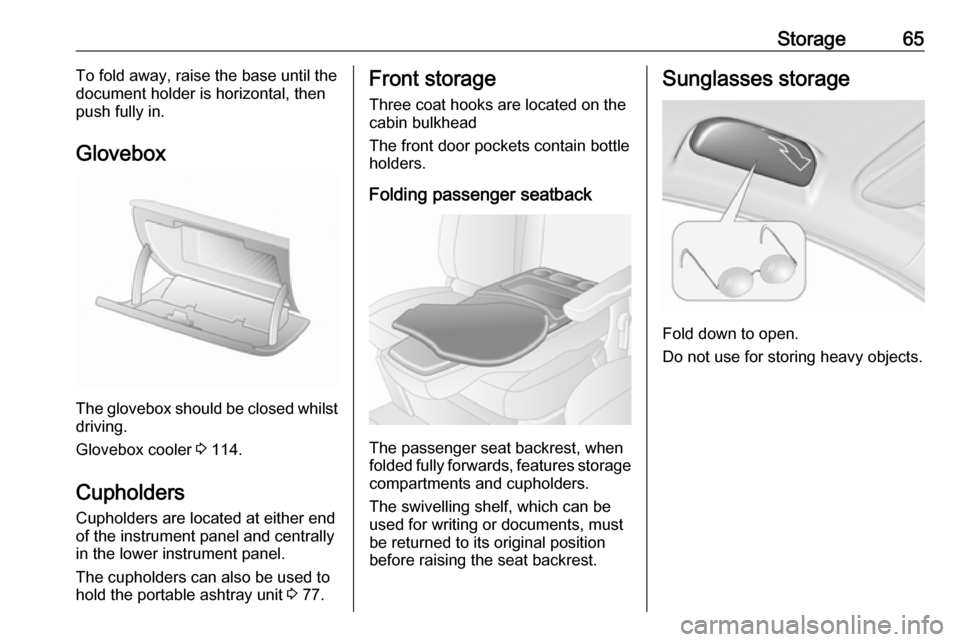

Glovebox
The glovebox should be closed whilst driving.
Glovebox cooler 3 114.
Cupholders Cupholders are located at either end
of the instrument panel and centrally
in the lower instrument panel.
The cupholders can also be used to
hold the portable ashtray unit 3 77.
Front storage
Three coat hooks are located on the
cabin bulkhead
The front door pockets contain bottle
holders.
Folding passenger seatback
The passenger seat backrest, when
folded fully forwards, features storage
compartments and cupholders.
The swivelling shelf, which can be
used for writing or documents, must
be returned to its original position
before raising the seat backrest.
Sunglasses storage
Fold down to open.
Do not use for storing heavy objects.

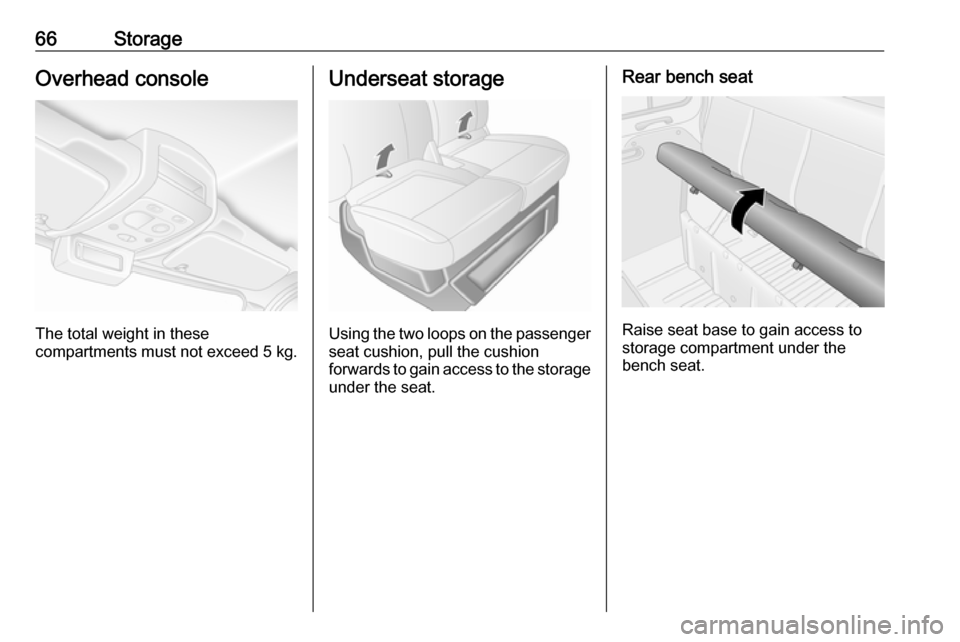

66StorageOverhead console
The total weight in these
compartments must not exceed 5 kg.
Underseat storage
Using the two loops on the passenger
seat cushion, pull the cushion
forwards to gain access to the storage
under the seat.
Rear bench seat
Raise seat base to gain access to
storage compartment under the
bench seat.

Storage67Overcab storage
The total weight in this compartment
must not exceed 35 kg.
Rear storage
Combi, Bus
Objects can be stored in the overhead
storage compartments above the rear passenger seats.
The total weight must not exceed
20 kg evenly distributed.
Load compartment

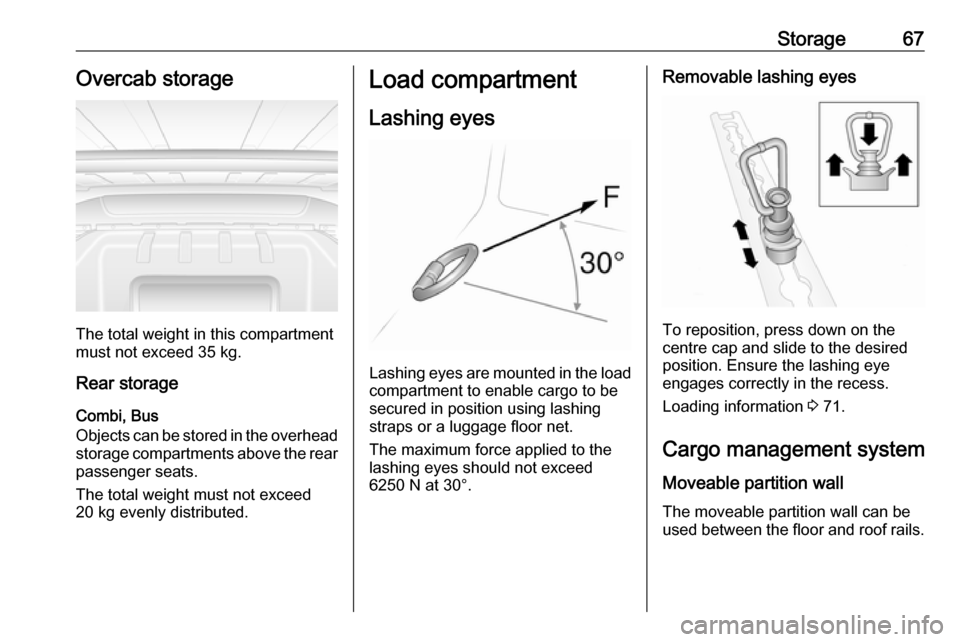

Lashing eyes
Lashing eyes are mounted in the load
compartment to enable cargo to be
secured in position using lashing
straps or a luggage floor net.
The maximum force applied to the
lashing eyes should not exceed
6250 N at 30°.
Removable lashing eyes
To reposition, press down on the
centre cap and slide to the desired position. Ensure the lashing eye
engages correctly in the recess.
Loading information 3 71.
Cargo management system
Moveable partition wall
The moveable partition wall can be
used between the floor and roof rails.

68Storage
To move, pull down on the latch to
release and position the wall as
required. Ensure the latch engages fully and the partition wall is upright.
Store the partition wall to one side of
the load compartment when not in
use.

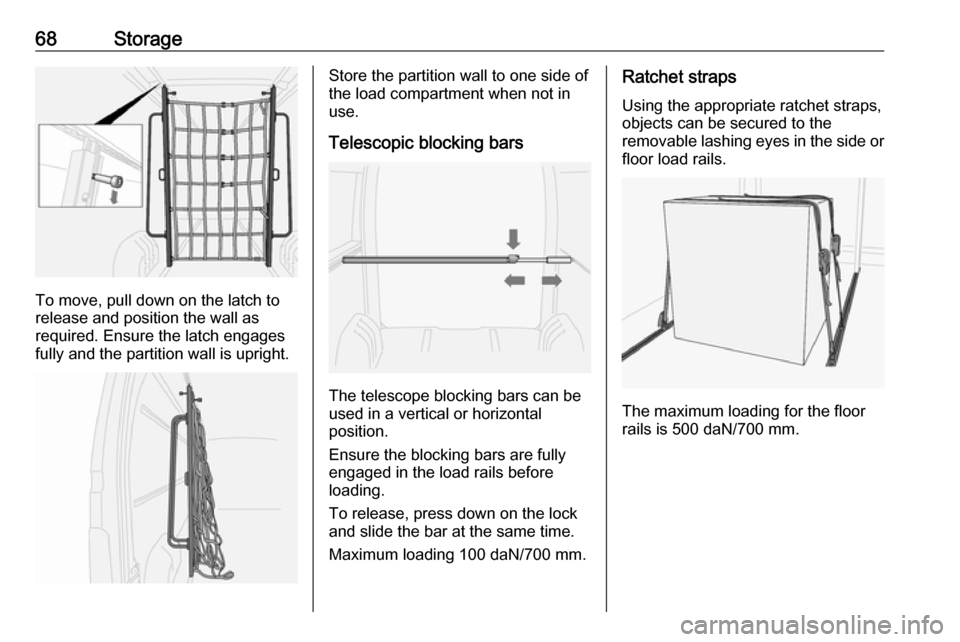

Telescopic blocking bars
The telescope blocking bars can be
used in a vertical or horizontal
position.
Ensure the blocking bars are fully
engaged in the load rails before
loading.
To release, press down on the lock
and slide the bar at the same time.
Maximum loading 100 daN/700 mm.
Ratchet straps
Using the appropriate ratchet straps,
objects can be secured to the
removable lashing eyes in the side or
floor load rails.
The maximum loading for the floor
rails is 500 daN/700 mm.

Storage69
The maximum loading for the side
rails is 100 daN/700 mm.
Removable lashing eyes 3 67,
Loading information 3 71.

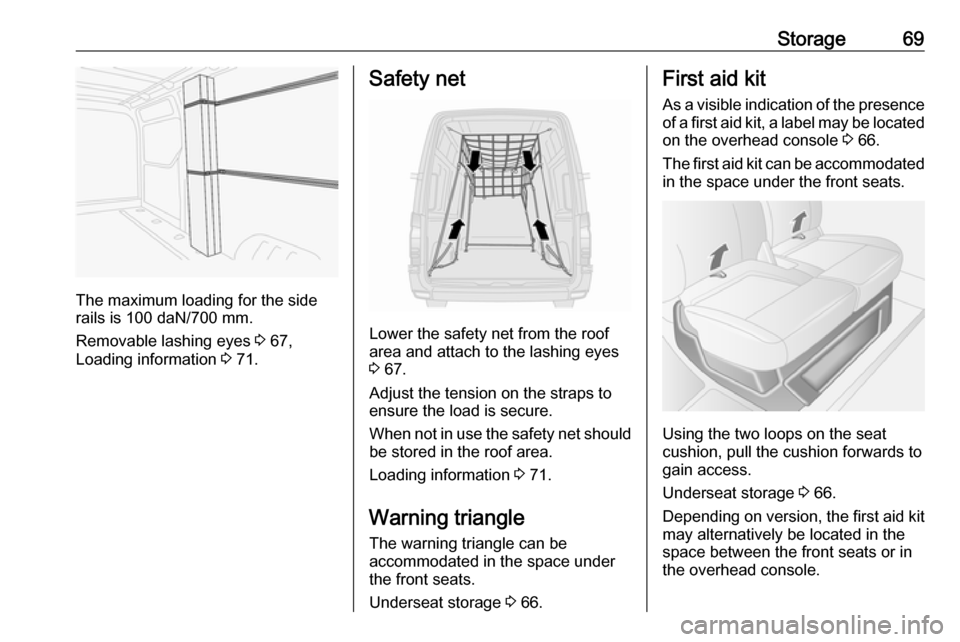

Safety net
Lower the safety net from the roof
area and attach to the lashing eyes
3 67.
Adjust the tension on the straps to
ensure the load is secure.
When not in use the safety net should be stored in the roof area.
Loading information 3 71.
Warning triangle
The warning triangle can be
accommodated in the space under
the front seats.
Underseat storage 3 66.
First aid kit
As a visible indication of the presence
of a first aid kit, a label may be located on the overhead console 3 66.
The first aid kit can be accommodated
in the space under the front seats.
Using the two loops on the seat
cushion, pull the cushion forwards to
gain access.
Underseat storage 3 66.
Depending on version, the first aid kit may alternatively be located in the
space between the front seats or in
the overhead console.

70StorageFire extinguisher
As a visible indication of the presence
of a fire extinguisher, a label may be
located on the overhead console
3 66.
The fire extinguisher can be
accommodated in the space under
the front seats. Using the two loops on the seat cushion, pull the cushion
forwards to gain access.
Underseat storage 3 66.
Depending on version, the fire
extinguisher may alternatively be
located in the space between the front

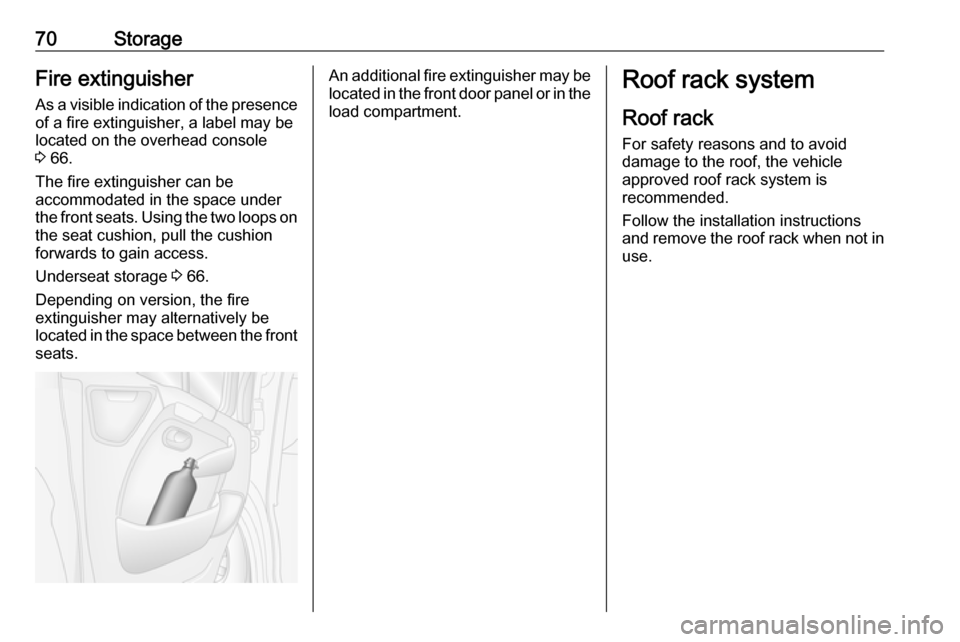

seats.An additional fire extinguisher may be
located in the front door panel or in the load compartment.Roof rack system
Roof rackFor safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended.
Follow the installation instructions
and remove the roof rack when not in
use.
