2016 TOYOTA VERSO tire type

5
589
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E

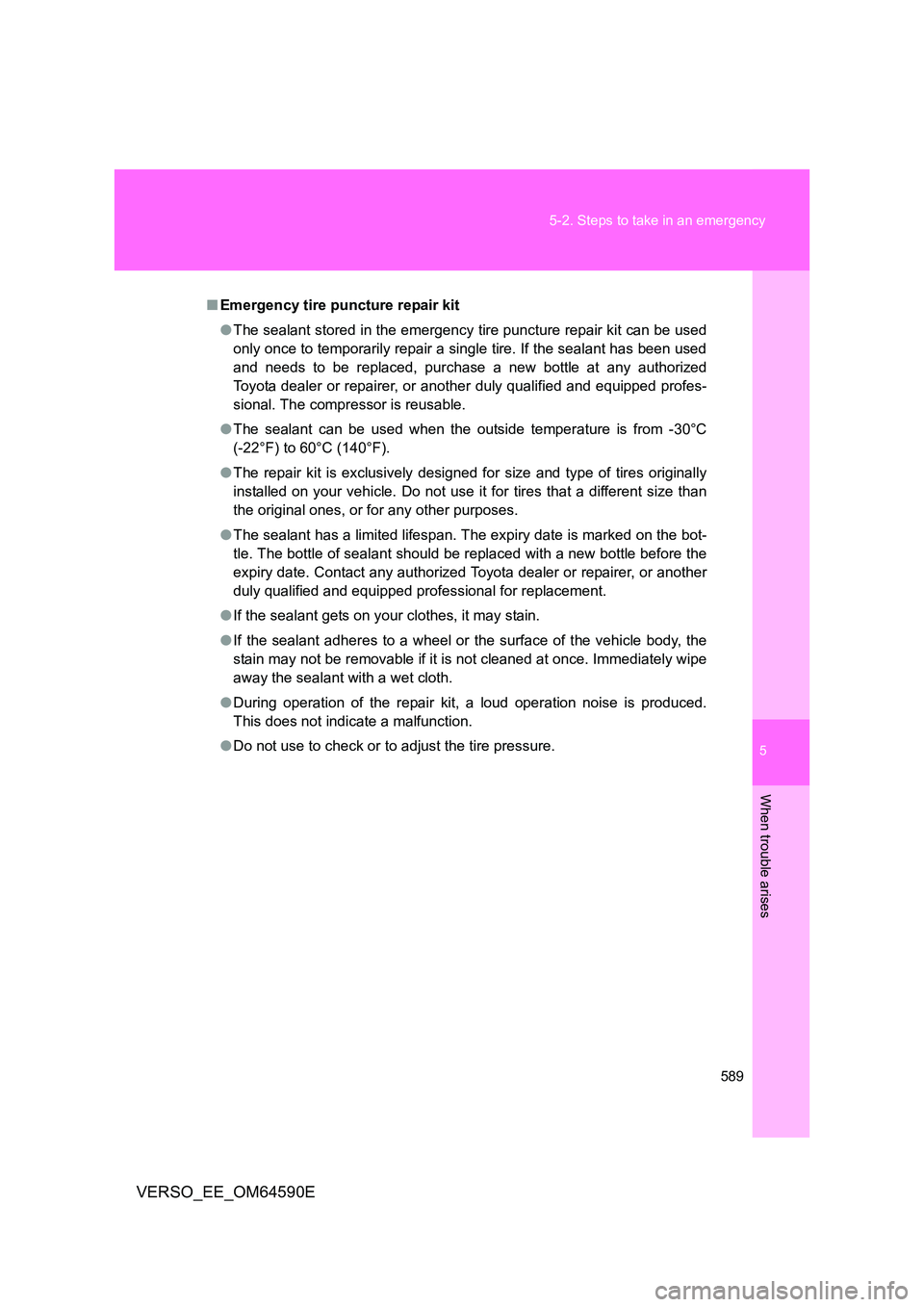

■ Emergency tire puncture repair kit
● The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The compressor is reusable.
● The sealant can be used when the outside temperature is from -30°C
(-22°F) to 60°C (140°F).
● The repair kit is exclusively designed for size and type of tires originally
installed on your vehicle. Do not use it for tires that a different size than
the original ones, or for any other purposes.
● The sealant has a limited lifespan. The expiry date is marked on the bot-
tle. The bottle of sealant should be replaced with a new bottle before the
expiry date. Contact any authorized To yota dealer or repairer, or another
duly qualified and equipped professional for replacement.
● If the sealant gets on your clothes, it may stain.
● If the sealant adheres to a wheel or the surface of the vehicle body, the
stain may not be removable if it is not cleaned at once. Immediately wipe
away the sealant with a wet cloth.
● During operation of the repair kit, a loud operation noise is produced.
This does not indicate a malfunction.
● Do not use to check or to adjust the tire pressure.

590
5-2. Steps to take in an emergency
VERSO_EE_OM64590E

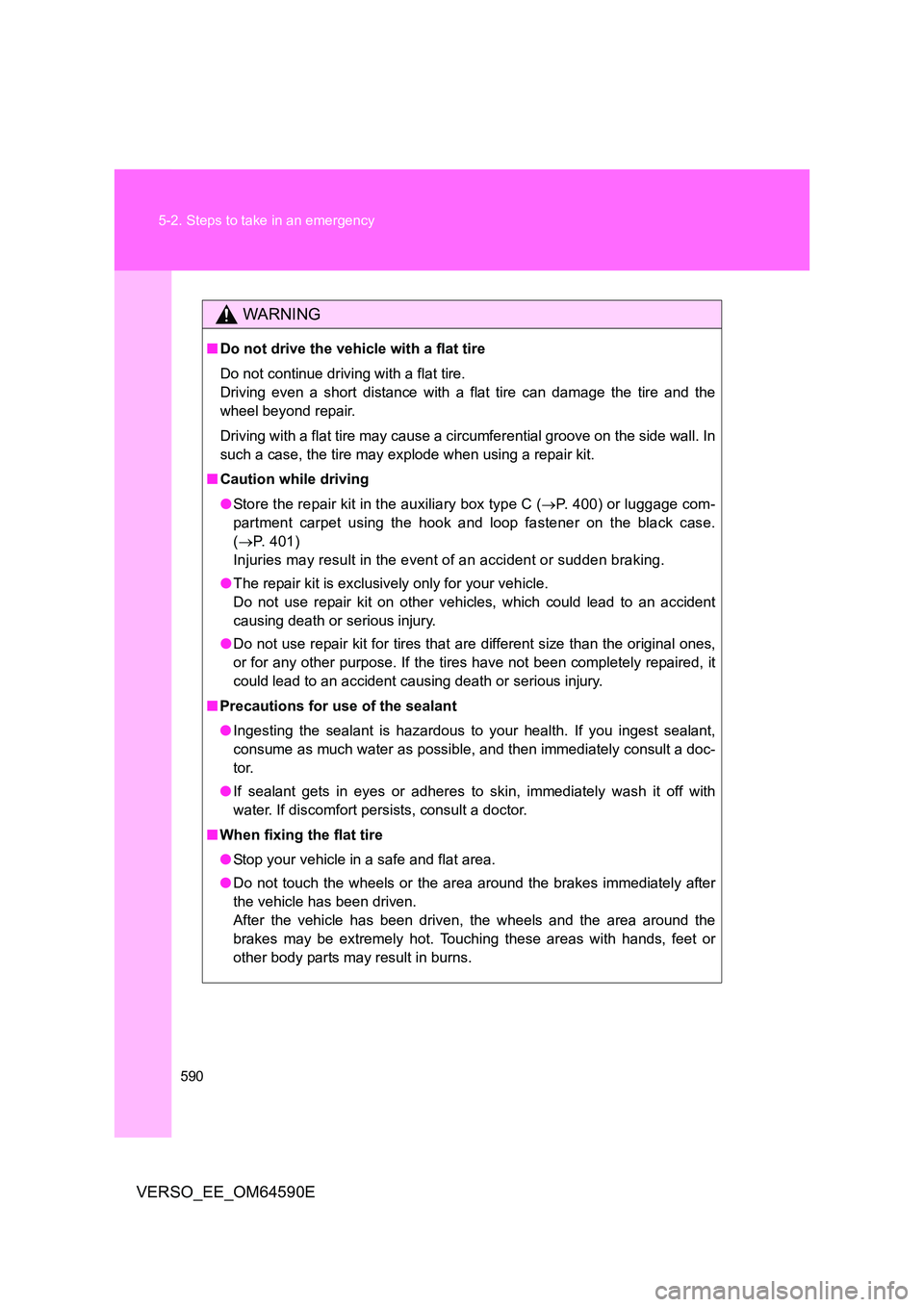

WARNING
■ Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side wall. In
such a case, the tire may explode when using a repair kit.
■ Caution while driving
● Store the repair kit in the auxiliary box type C (P. 400) or luggage com-
partment carpet using the hook and loop fastener on the black case.
( P. 401)
Injuries may result in the event of an accident or sudden braking.
● The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.
● Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident causing death or serious injury.
■ Precautions for use of the sealant
● Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.
● If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
■ When fixing the flat tire
● Stop your vehicle in a safe and flat area.
● Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area around the
brakes may be extremely hot. Touching these areas with hands, feet or
other body parts may result in burns.

5
593
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
NOTICE
■ Precautions for the emergency tire puncture repair kit
● The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
● If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
● Place the repair kit in storage, using the black case to prevent it from being
exposed to dirt or water.
● Store the repair kit in the auxiliary box type C (P. 400) with the lid closed,
using the black case and closing the zipper, keep out of reach of children.
● Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.
■ To avoid damage to the tire pressure warning valves and transmitters
(vehicles with the tire pressure warning system)
When a tire is repaired with liquid seal ants, the tire pressure warning valve
and transmitter may not oper ate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
After use of liquid sealant, make sure to replace the tire pressure warning
valve and transmitter when repairing or replacing the tire. ( P. 462)

664
VERSO_EE_OM64590E
GAS STATION INFORMATION
Fuel filler door
P. 1 1 9
Auxiliary catch lever
P. 440
Tire inflation pressure
P. 6 3 3
Fuel filler door opener
P. 1 1 9
Hood lock release lever
P. 440
Fuel tank capacity (reference)
Gasoline engine:
60 L (15.9 gal., 13.2 Imp.gal.) Diesel engine:55 L (14.5 gal., 12.1 Imp.gal.)
Fuel type P. 621, 637
Cold tire inflation pressure P. 633
Engine oil capacity
(drain and refill - reference) P. 6 2 2
Engine oil type P. 623
