972. Instrument cluster
2
Instrument cluster
WARNING
■Caution for use while driving
For safety, avoid operating the meter control switches while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switches. Fail-
ure to do so may cause a steering wheel operation error, resulting in an
unexpected accident.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

98
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
Fuel consumption information
Vehicles with Entune Audio
Press the “CAR” button.
Vehicles with Entune Premium Audio with Navigation and Entune
Audio Plus
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Trip Information” screen does not appear, select “Trip Informa-
tion”. Reset the trip information data
Previous fuel consumption per
minute
Current fuel consumption
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages at tained since the engine switch was
last turned to the “ON” position (vehicles without smart key system) or
IGNITION ON mode (vehicles with smart key system). Use the dis-
played average fuel consumption as a reference.
These images are examples only, an d may vary slightly from actual
conditions.
The fuel consumption informat ion can be displayed on Entune
Premium Audio with Navigation and Entune Audio screen.
Display the trip information or past record screen
Trip information
1
2
3
4
5
6
7

RAV4_OM_OM42A41U_(U)
992. Instrument cluster
2
Instrument cluster
If the “Past Record” screen does not appear, select “Past Record”.
Reset the past record data
Best recorded fuel consumption
Average fuel consumption (if
equipped)
Previous fuel consumption
record
Current fuel consumption
Update the past record data
“Trip Information” screen appears
These images are examples only, an d may vary slightly from actual
conditions.
■ Resetting the data
●Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.
● Selecting “Clear” on the “Past Record” screen will reset the past record
data.
■ Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.
Also, the average fuel consumption displa yed in the multi-information display
will be reset at the same time.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
Past record
1
2
3
4
5
6
7

100
RAV4_OM_OM42A41U_(U)
2. Instrument cluster

101
RAV4_OM_OM42A41U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................. 102
3-2. Opening, closing and locking the doors
Side doors ......................... 111
Back door .......................... 117
Smart key system ............. 130
3-3. Adjusting the seats Front seats ........................ 139
Rear seats......................... 141
Driving position memory ... 144
Head restraints.................. 146
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 149
Inside rear view mirror ...... 151
Outside rear view mirrors ............................. 153
3-5. Opening, closing the windows and moon roof
Power windows ................. 156
Moon roof .......................... 160

102
RAV4_OM_OM42A41U_(U)
3-1. Key information
Keys

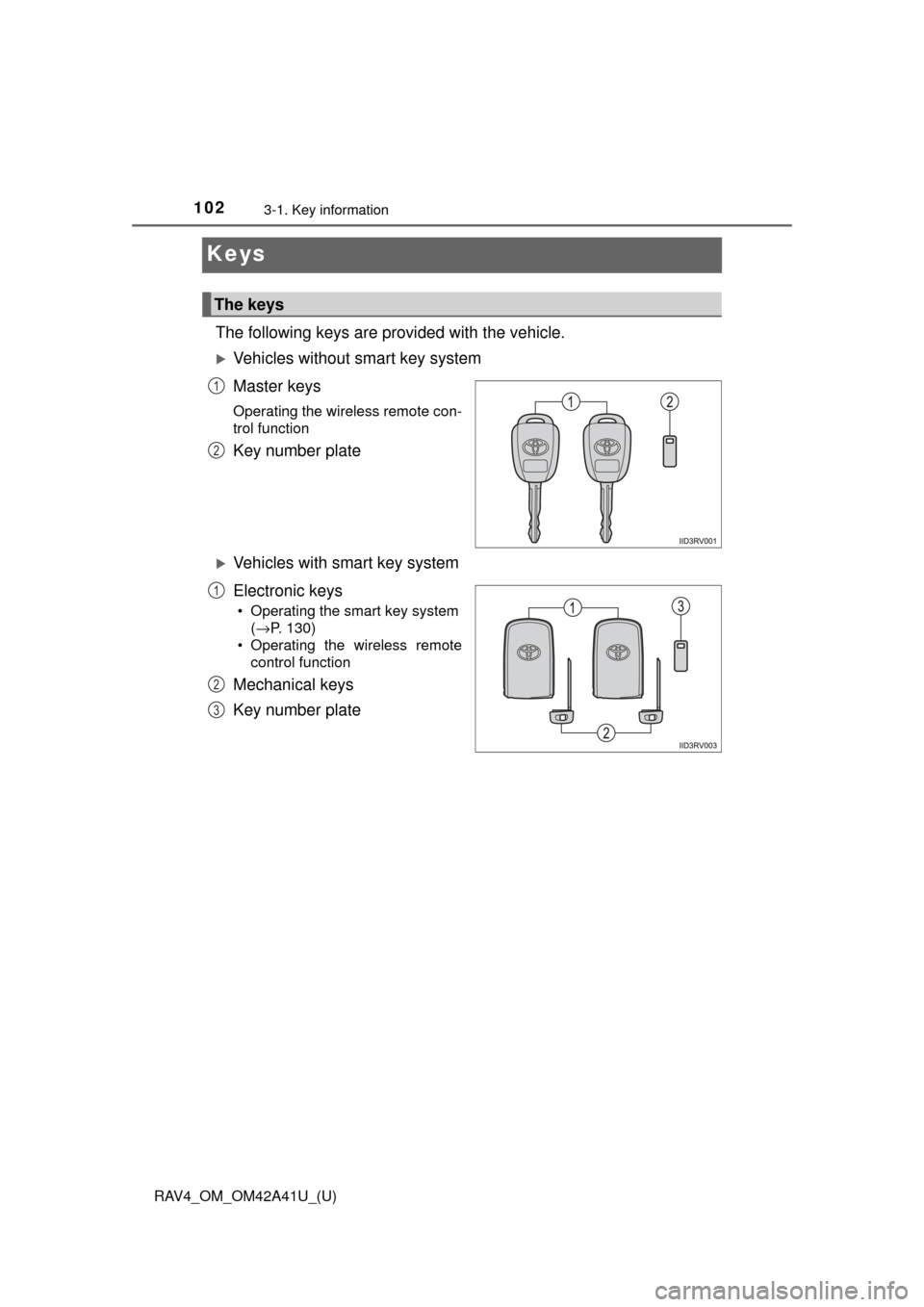

The following keys are provided with the vehicle.
Vehicles without smart key system
Master keys
Operating the wireless remote con-
trol function
Key number plate
Vehicles with smart key system
Electronic keys
• Operating the smart key system(→P. 130)
• Operating the wireless remote control function
Mechanical keys
Key number plate
The keys
1
2
1
2
3

RAV4_OM_OM42A41U_(U)
1033-1. Key information
3
Operation of each component
Locks all the doors (→P. 103)
Check that the door is securely locked.
Unlocks all the doors ( →P. 103)
Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.
Opens and closes the power back door* (→ P. 11 8 )
Sounds the alarm ( →P. 104)
*: If equipped
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. ( →P. 658)
Wireless remote control
Vehicles without smart key sys-
temVehicles with smart key sys-
tem
Using the mechanical key (veh icles with smart key system)
1
2
3
4

104
RAV4_OM_OM42A41U_(U)
3-1. Key information
■Panic mode
Vehicles without smart key system
Vehicles with smart key system
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using a master key
(vehicles without smart key system) or the other mechanical key (vehicles
with smart key system) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft. When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
