2. Instrument cluster

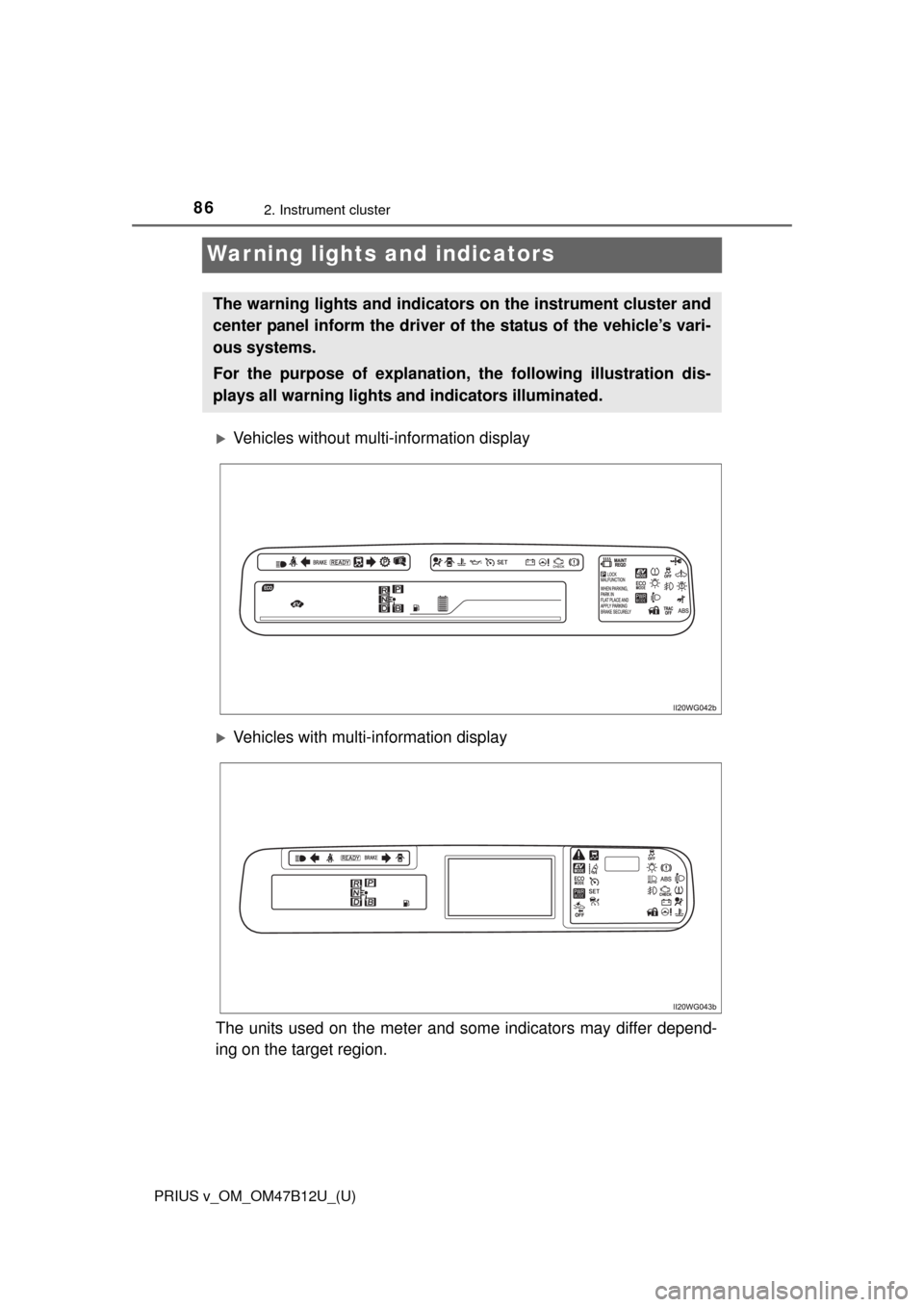

Warning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display
The units used on the meter and some indicators may differ depend-
ing on the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

91
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
2
Instrument cluster

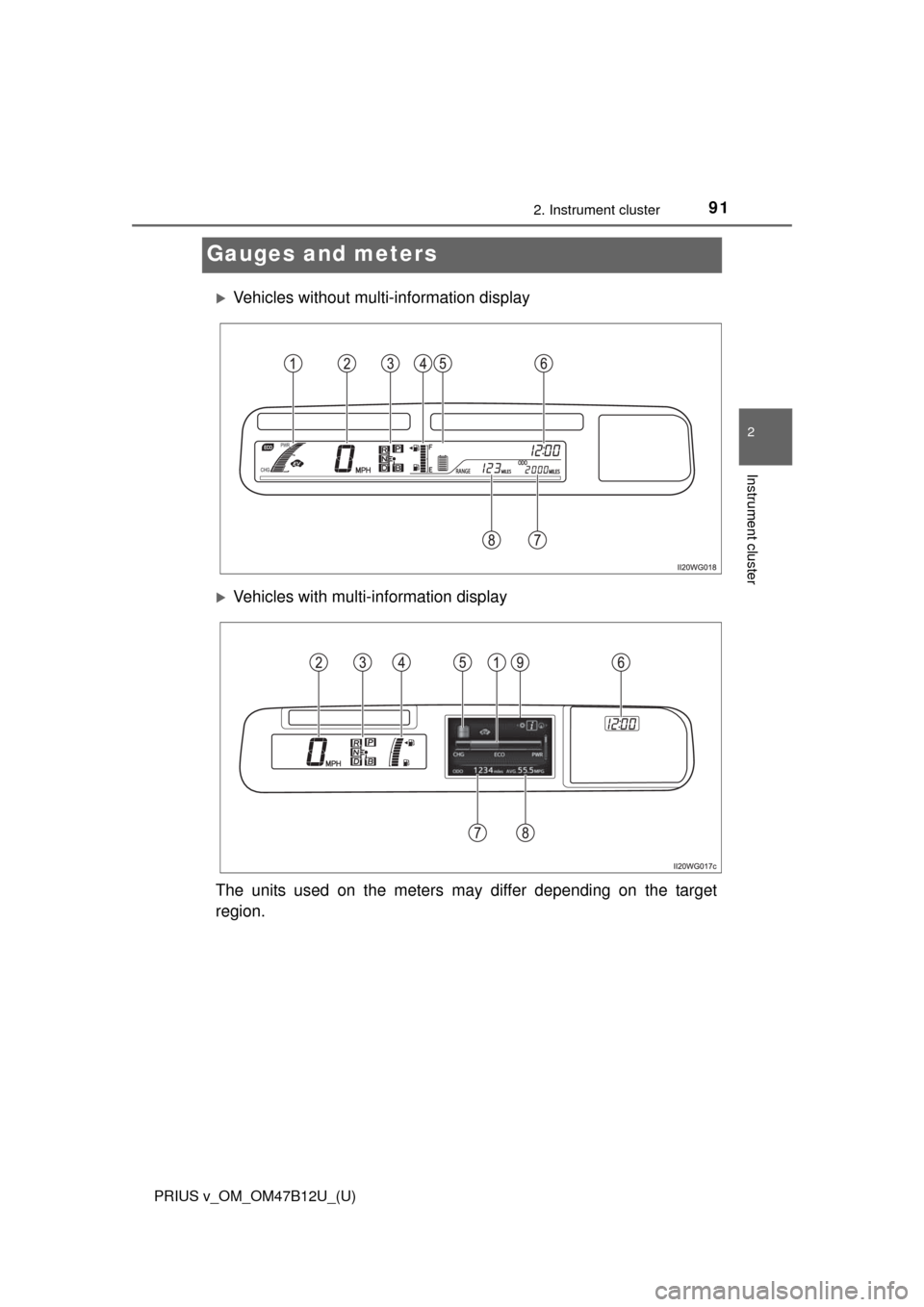

Gauges and meters
Vehicles without multi-information display
Vehicles with multi-information display
The units used on the meters may differ depending on the target
region.

92
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
Hybrid System Indicator
Displays hybrid system output or regeneration level
Speedometer
Displays the vehicle speed
Shift position indicators
Displays the selected shift position. (P. 181)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery) is
shown by 8 bars.
Clock
Displays the time. (Adjustment procedure: P. 386)
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Trip information display
Displays fuel consumption, etc.
Multi-information display
Presents the driver with a variety of driving-related data (P. 100)
Displays warning messages in case of a malfunction (P. 503)
1
2
3
4
5
6
7
8
9

PRIUS v_OM_OM47B12U_(U)
932. Instrument cluster
2
Instrument cluster
The speed units can be selected.
Press the button to switch the dis-
play between MPH and km/h.
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-
played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being dis-
played, the average fuel con-
sumption will be displayed in
accordance with the trip meter
distance from the last reset.
• The function can be reset by pressing the TRIP button for longer than 1
second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
MPH or km/h button
Changing the display

94
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster

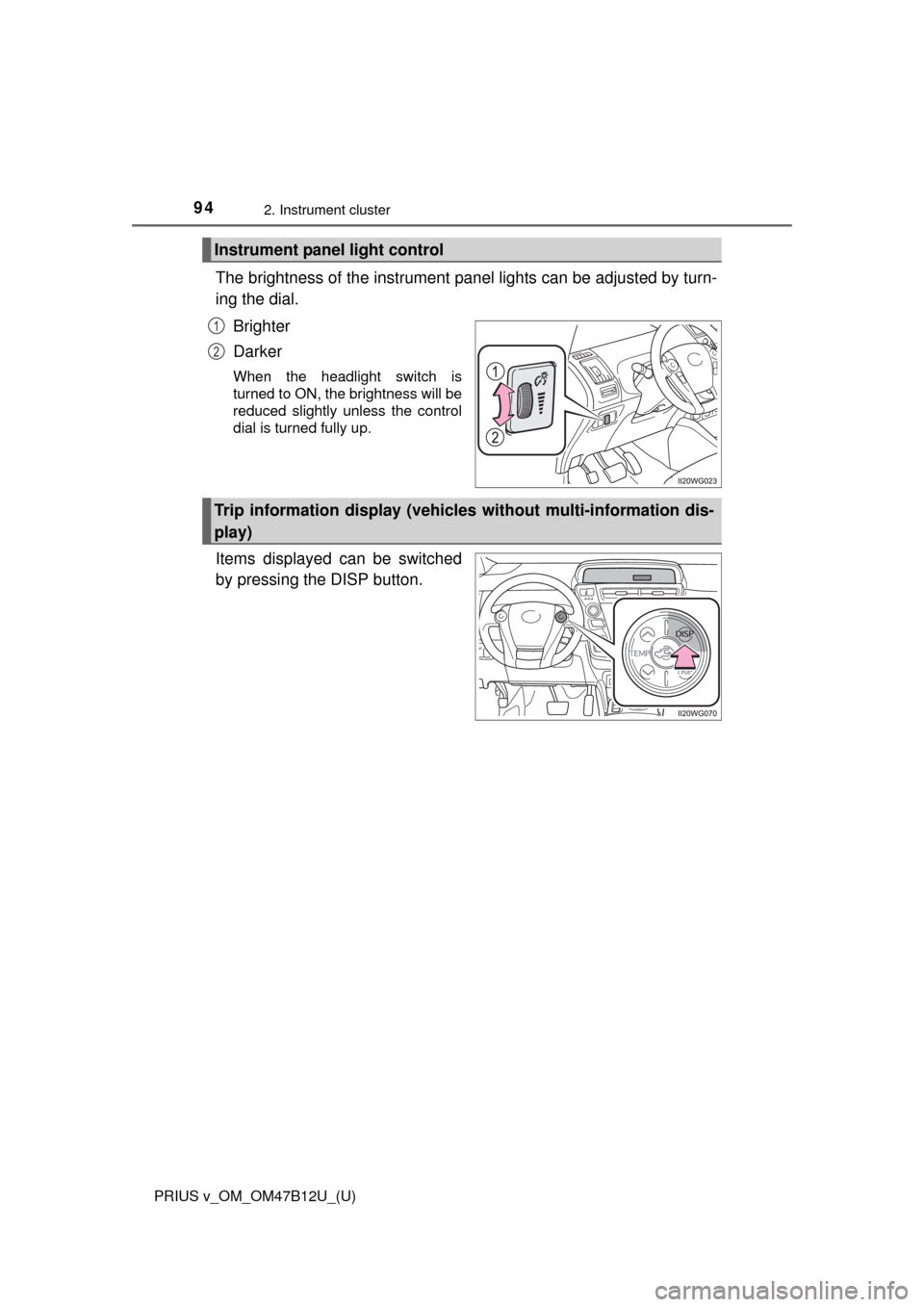

The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
When the headlight switch is
turned to ON, the brightness will be
reduced slightly unless the control
dial is turned fully up.
Items displayed can be switched
by pressing the DISP button.
Instrument panel light control
1
2
Trip information display (vehicles without multi-information dis-
play)

PRIUS v_OM_OM47B12U_(U)
952. Instrument cluster
2
Instrument cluster
■Current fuel consumption
Displays the instant fuel consumption.
■Average fuel consumption
The average fuel consumption is displayed on both the odometer
and the trip meter.
The function can be reset by pressing the DISP button for longer
than 1 second when the average fuel consumption is displayed on
the odometer.
Use the displayed average fuel consumption as a reference.
■Cruising range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion.
As a result, the actual distance that can be driven may differ from
that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power switch off. If the vehicle is refu-
eled without turning the power switch off, the display may not be
updated.
■“SET” screen
The items displayed on Hybrid System Indicator can be setup.
(P. 97)

96
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■Names and meaning of each icons
Eco Driving Indicator Light
(vehicles without multi-infor-
mation display)
Turns on when the vehicle is
driven in Eco-friendly.
Hybrid System Indicator
P. 9 8
EV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
motor) or the gasoline engine is
stopped.
Hybrid System Indicator
1
2
3

PRIUS v_OM_OM47B12U_(U)
972. Instrument cluster
2
Instrument cluster

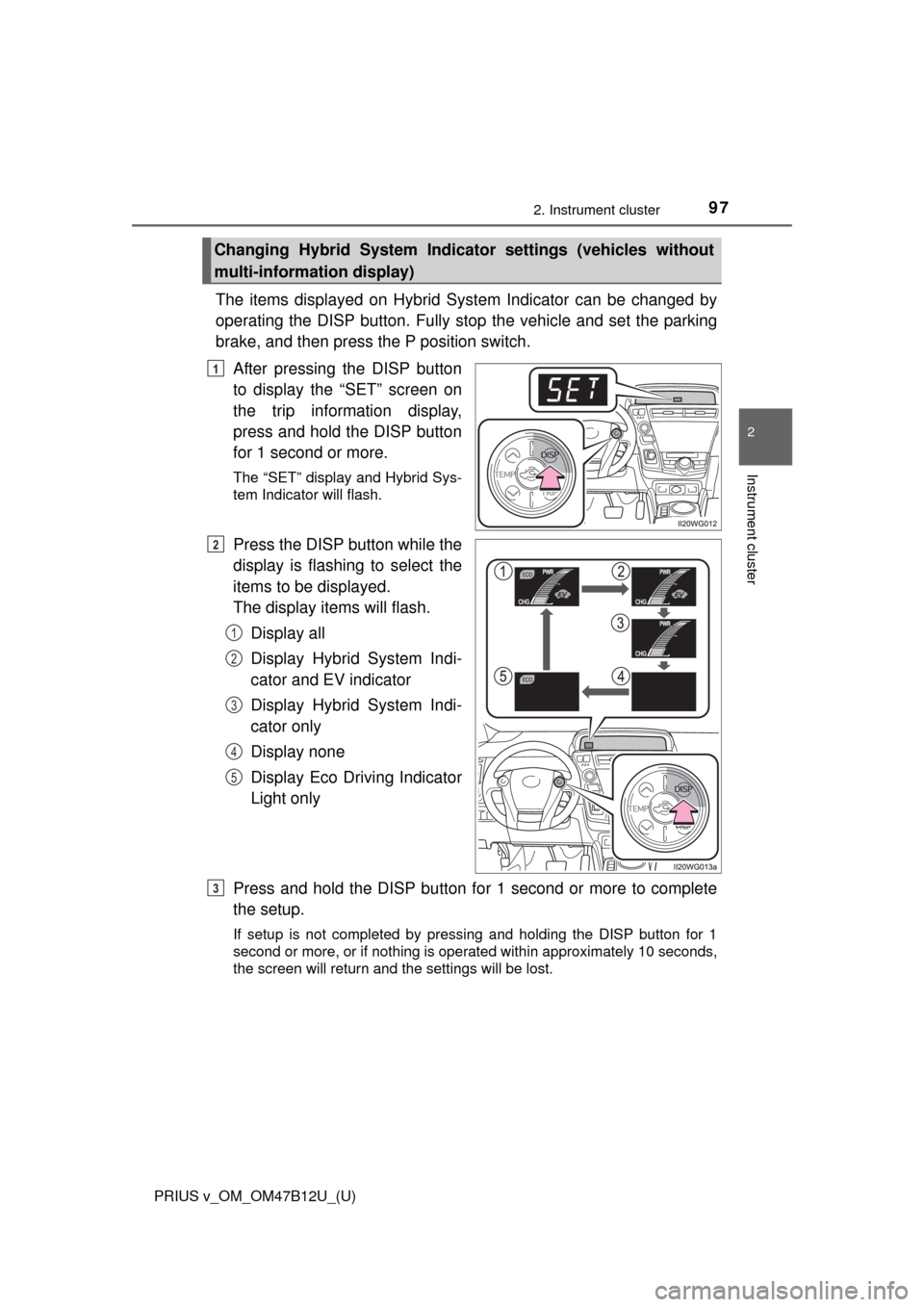

The items displayed on Hybrid System Indicator can be changed by
operating the DISP button. Fully stop the vehicle and set the parking
brake, and then press the P position switch.
After pressing the DISP button
to display the “SET” screen on
the trip information display,
press and hold the DISP button
for 1 second or more.
The “SET” display and Hybrid Sys-
tem Indicator will flash.
Press the DISP button while the
display is flashing to select the
items to be displayed.
The display items will flash.
Display all
Display Hybrid System Indi-
cator and EV indicator
Display Hybrid System Indi-
cator only
Display none
Display Eco Driving Indicator
Light only
Press and hold the DISP button for 1 second or more to complete
the setup.
If setup is not completed by pressing and holding the DISP button for 1
second or more, or if nothing is operated within approximately 10 seconds,
the screen will return and the settings will be lost.
Changing Hybrid System Indicator settings (vehicles without
multi-information display)
1
2
1
2
3
4
5
3
