4-5. Using the driving support systems
4
Driving
Multi-terrain Monitor
The following screens can be selected according to driving conditions.
• Screens that can be selected vary depending on conditions such as
shift position and vehicle speed. ( P. 299)
• Depending on the displayed screen, the display can be switched from normal to wide view display.
The Multi-terrain Monitor helps the driver to check the vehicle
surroundings. It assists in determining the conditions around
the driver in a variety of situat ions, such as when judging condi-
tions during off-road driving or checking for obstacles when
parking.
WARNING
■ When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
●Never rely solely on the Multi-terrain Monitor. As with unequipped vehi-
cles, drive carefully while directly confirming the safety of your surround-
ings and the area to the rear of the vehicle. Take particular care to avoid
parked cars and other obstacles.
● Due to the characteristics of the camera lens, the actual position and dis-
tance of people and other obstacles will differ from those shown on the
Multi-terrain Monitor screen. Directly confirm the safety of your surround-
ings before driving.
● Do not drive while only looking at the screen. When driving, make sure to
directly confirm the safety of your surroundings, such as by visually check-
ing the area and using the vehicle’s mirrors.
● In low temperatures, the screen may darken or the images may become
faint.
Images of moving objects in particular may distort or disappear from the
screen. Therefore, make sure to drive carefully while directly visually con-
firming the safety of your surroundings.
Multi-terrain Monitor screens

LC200_OM_OM60M88U_(U)
2974-5. Using the driving support systems
4
Driving
■Displaying the Multi-terrain Monitor screen
The Multi-terrain Monitor screen will be displayed when the VIEW
switch is pressed while the engine switch is in IGNITION ON mode.
When the vehicle speed exceeds a certain value, the display returns to
the navigation or information display screen.
The amount of time that the Multi-terrain Monitor is displayed differs
depending on conditions such as the vehicle speed. ( P. 302)
VIEW switch
Display
Using the Multi-terrain Monitor screen
1
2

298
LC200_OM_OM60M88U_(U)
4-5. Using the driving support systems
■Switch operations
On some screens, the display mode or display settings can be
changed using the switches.
● Automatic display mode switch
When automatic display mode is turned on, the Multi-terrain
Monitor screen is displayed in the following conditions, even if
the VIEW switch has not been operated. • The shift lever is shifted to D or N
• While driving, the vehicle speed drops to approximately 10 km/h (6 mph) or less (except when the shift lever is in R)
The automatic display mode
switches between on and off
each time is
selected.
When automatic display
mode is on, an indicator illu-
minates on the icon.
Even when automatic display
mode is on, the display can
still be switched by pressing
the VIEW switch.
● Display selection switches
The following switches can be pressed or selected to switch the
Multi-terrain Monitor display screen and to switch from normal to
wide view display.
Indicator
SwitchSwitch Function
VIEW switchChanging a display ( P. 299)
Angle mode
selection switchSwitches between the wide rear view
and wide view display ( P. 308, 315)
Under vehicle
terrain view
selection switchSwitches between the front view and
under vehicle terrain view
(P. 302, 306)

LC200_OM_OM60M88U_(U)
2994-5. Using the driving support systems
4
Driving

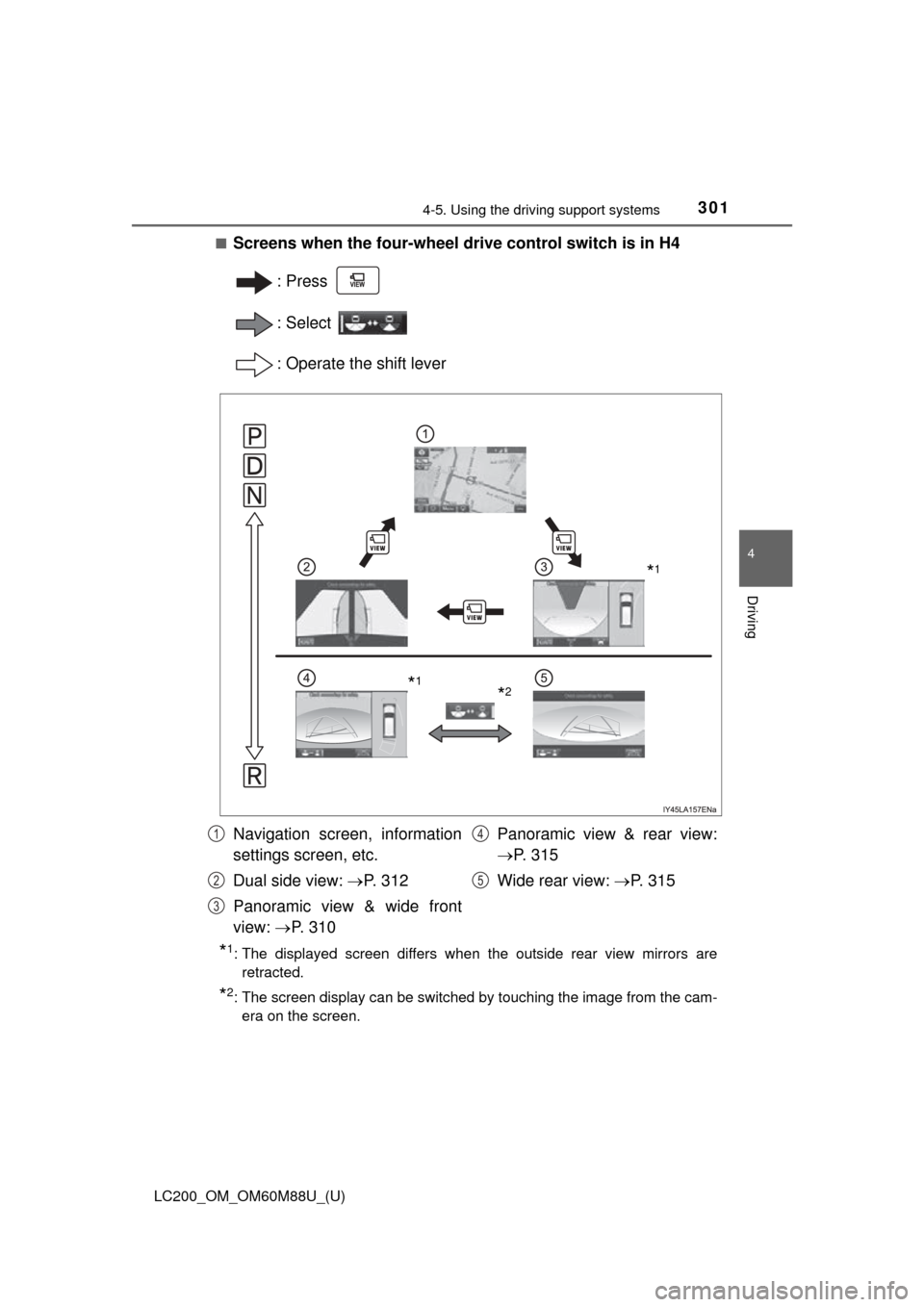

The screen display can be switched by operating the switches as fol-
lows while the Multi-terrain Monitor screen is displayed. (Screens that
can be displayed will vary depending on the positions of the shift lever
and four-wheel drive control switch)
■Screens when the four-wheel drive control switch is in L4
:Press
: Select
: Select
: Operate the shift lever
Changing the Multi-terrain Monitor screen

300
LC200_OM_OM60M88U_(U)
4-5. Using the driving support systems
*: The screen display can be switched by touching the image from the cam-
era on the screen.
*
*
*
Front view & dual side view
(front magnified): P. 3 0 2
Under vehicle terrain view &
dual side view (front magnified):
 P. 3 0 6
Front view & dual side view:
 P. 3 0 2 Under vehicle terrain view &
dual side view:
P. 3 0 6
Rear view & dual side view:
 P. 3 0 8
Wide rear view: P. 3 0 81
2
3
4
5
6

LC200_OM_OM60M88U_(U)
3014-5. Using the driving support systems
4
Driving

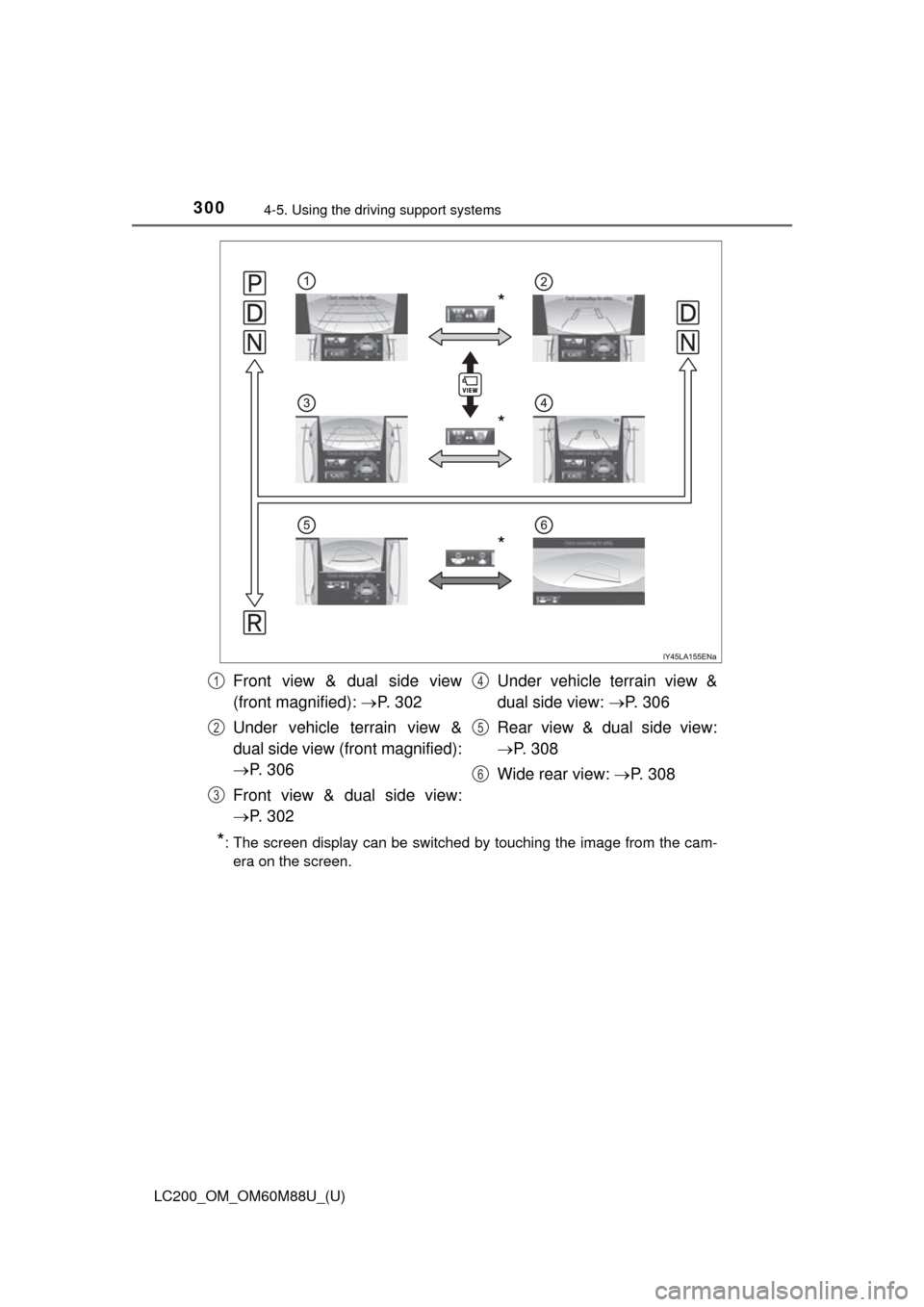

■Screens when the four-wheel drive control switch is in H4
:Press
: Select
: Operate the shift lever
*1: The displayed screen differs when the outside rear view mirrors areretracted.
*2: The screen display can be switched by touching the image from the cam-era on the screen.
*1
*2*1
Navigation screen, information
settings screen, etc.
Dual side view: P. 3 1 2
Panoramic view & wide front
view: P. 310 Panoramic view & rear view:

P. 3 1 5
Wide rear view: P. 3 1 51
2
3
4
5

302
LC200_OM_OM60M88U_(U)
4-5. Using the driving support systems
■Multi-terrain Monitor screen display
The amount of time that the Multi-terrain Monitor screen is displayed changes
as follows according to the vehicle speed at the time the VIEW switch was
pressed.
The Multi-terrain Monitor screen is displayed if the vehicle speed is approxi-
mately 7 mph (12 km/h) or less when the VIEW switch is pressed.
If the vehicle speed exceeds approximately 7 mph (12 km/h), the Multi-terrain
Monitor display is canceled.
The various screens of the Multi-terrain Monitor display information to
support several different driving situations, such as when checking for
obstacles when moving forward or in reverse, or when judging road
surface conditions during off-road driving.

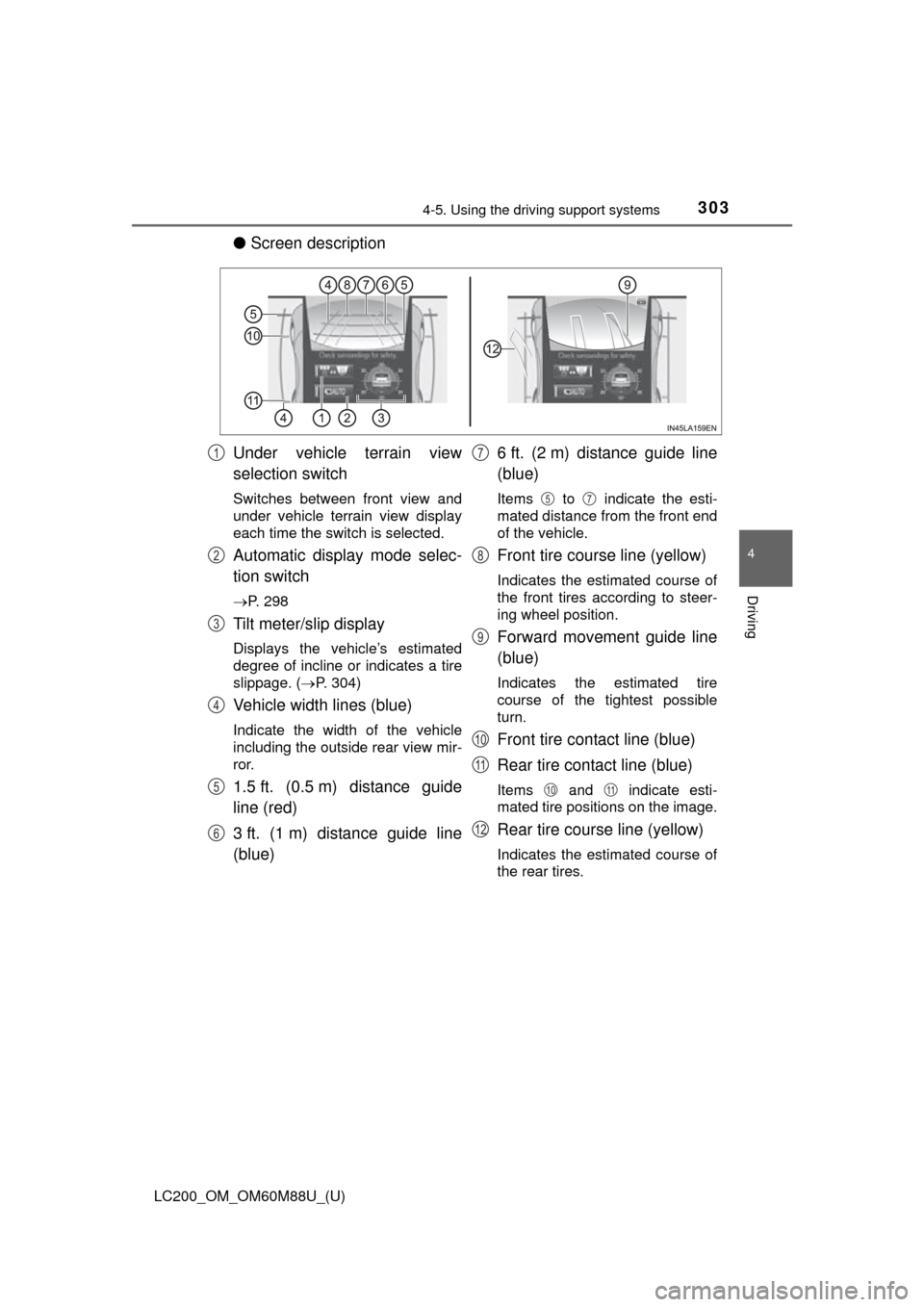

■Front view & dual side view
Front view & dual side view can be used to check the area around
the front of the vehicle.
• In addition to an image of the front of the vehicle, guide lines are
displayed in a composite view to provide reference for when
deciding a direction to move forward in.
• If the VIEW switch is pressed wh ile the screen is displayed, the
screen switches from normal to magnified display. (Pressing the
switch again returns the screen to the normal display)
• If the steering wheel is turned 270  or more, guide lines and
other features to support turning are automatically displayed.
Screen display and functions

LC200_OM_OM60M88U_(U)
3034-5. Using the driving support systems
4
Driving
●Screen description
Under vehicle terrain view
selection switch
Switches between front view and
under vehicle terrain view display
each time the switch is selected.
Automatic display mode selec-
tion switch
P. 298
Tilt meter/slip display
Displays the vehicle’s estimated
degree of incline or indicates a tire
slippage. ( P. 304)
Vehicle width lines (blue)
Indicate the width of the vehicle
including the outside rear view mir-
ror.
1.5 ft. (0.5 m) distance guide
line (red)
3 ft. (1 m) distance guide line
(blue) 6 ft. (2 m) distance guide line
(blue)
Items to indicate the esti-
mated distance from the front end
of the vehicle.
Front tire course line (yellow)
Indicates the estimated course of
the front tires according to steer-
ing wheel position.
Forward movement guide line
(blue)
Indicates the estimated tire
course of the tightest possible
turn.
Front tire contact line (blue)
Rear tire contact line (blue)
Items and indicate esti-
mated tire positions on the image.
Rear tire course line (yellow)
Indicates the estimated course of
the rear tires.
1
2
3
4
5
6
7
57
8
9
10
11
1011
