2978-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)n

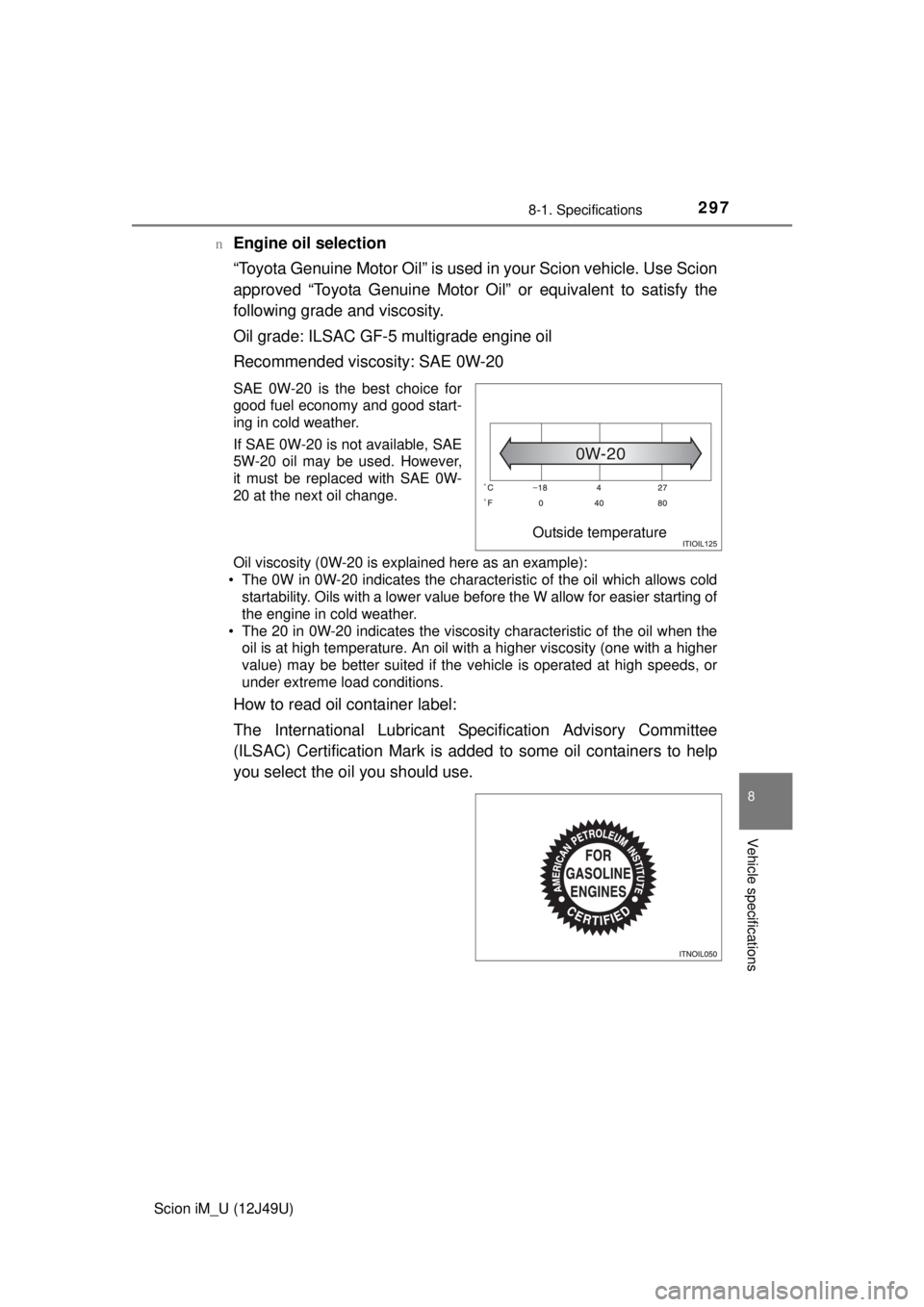

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However,
it must be replaced with SAE 0W-
20 at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, \
or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oi l you should use.
Outside temperature

2988-1. Specifications
Scion iM_U (12J49U)
Cooling system
Capacity
Vehicles with a continuously variable transmission
6.1 qt. (5.8 L, 5.1 Imp. qt.)
Vehicles with a manual transmission
5.9 qt. (5.6 L, 4.9 Imp. qt.)
Coolant type
Use either of the following. • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO SC20HR11
Gap0.043 in. (1.1 mm)
NOTICE
n Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

2998-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Scion dealer.
Electrical system
Battery
Open voltage at
68 F (20 C):
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the engine
and all the lights turned off)
Charging rates5 A max.
Continuously variable transaxle
Fluid capacity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
n Continuously variable transaxle fluid type
Using continuously variable transaxle fluid other than “Toyota Genuine CVT
Fluid FE” may cause deterioration in shift quality, locking up of the transmis-
sion accompanied by vibration and, ultimately, damage to the vehicle’s
transmission.

3008-1. Specifications
Scion iM_U (12J49U)
Manual transaxle
Gear oil capacity
(Reference)2.5 qt. (2.4 L, 2.1 Imp. qt.)
Gear oil type
Use either of the following:• “TOYOTA Genuine Manual TransmissionGear Oil LV”
• Other gear oil that meets API GL-4 and SAE
75W specifications
NOTICE
nManual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 0.2 0.6 in. (5 15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

3018-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,20.4 kgf)
Brakes
Pedal clearance*12.68 in. (68 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lever travel*26  9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire sizeP225/45R17 90V, T125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 17  7 J, 17  4 T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

3028-1. Specifications
Scion iM_U (12J49U)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights 9012 55 A
Front side marker
lights

5B
Front turn signal lights 7444NA 28/8 C
Side turn signal lights 5C
Rear turn signal lights 7440 21 B
Stop lights 7440 21 B
Back-up lights 921 16 B
License plate lights 5B
Interior Vanity lights
5D
Front interior lights/
personal lights 
8B
Rear interior light 8D
Luggage compart-
ment light 
5D
A: HIR2 halogen bulbs
C: Wedge base bulbs (amber) B: Wedge base bulbs (clear)
D: Double end bulbs

3038-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)
nGasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Scion dealer.
n Gasoline quality standards
lAutomotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
l The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
l The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
n Recommendation of the use of gaso line containing detergent additives
l Scion recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
l All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
l Scion strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
Fuel information
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use s hould meet the specifications of
ASTM D4814 in the U.S.A..

3048-1. Specifications
Scion iM_U (12J49U)n
Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Scion recommends these fuels, since the formulations allow for reduced vehi-
cle emissions.
n Non-recommendation of the use of blended gasoline
lIf you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
l Scion does not recommend the use of gasoline containing methanol.
l
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline contain-
ing more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
