■If a warning light comes on, a warn ing message is displayed, or the 12-
volt battery is disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ When refueling, the fuel filler door may take a few moments to open
As part of emission system operation, it may take up to 10 seconds for the
fuel filler door to automatically release after the opener switch is pressed.
Before refueling is possible, a message will be shown on the multi-informa-
tion display. ( P. 261)
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel le\
vel
warning light ( P. 463) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The minimum amount of fuel to add
to make the low fuel level warning light go out is about 2.6 gal. [9.7 L, 2.1 Imp.
gal.], when the vehicle is on a level surface. This value may vary when the
vehicle is on a slope.)
■ Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electro-
magnetic shielding, and therefore em it approximately the same amount of
electromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.

4757-2. Steps to take in an emergency
7
When trouble arises
HIGHLANDER_HV_U (OM48F12U)
Monochrome display
Color display
(If equipped)
Indicates that an intuitive parking assist-sensor is
dirty or covered with iceA buzzer also sounds.
 Clean the sensor.
Preparing the vehicle for refueling.
Wait a moment.
You may commence refueling.
Finish refueling within 30 minutes.
Close the fuel filler door.
Indicates that the accelerator pedal is depressed
while the shift lever is in N
A buzzer also sounds.
 Release the accelerator pedal and shift the
shift lever to D, S or R.
Indicates that the hybrid battery (traction battery)
power has dropped because a long period of time
has elapsed after shifting the shift lever to N
A buzzer also sounds.
 Restart the hybrid system when starting
the vehicle.
Warning messageDetails/Actions
(Flashes)
(Flashes)

608
HIGHLANDER_HV_U (OM48F12U)

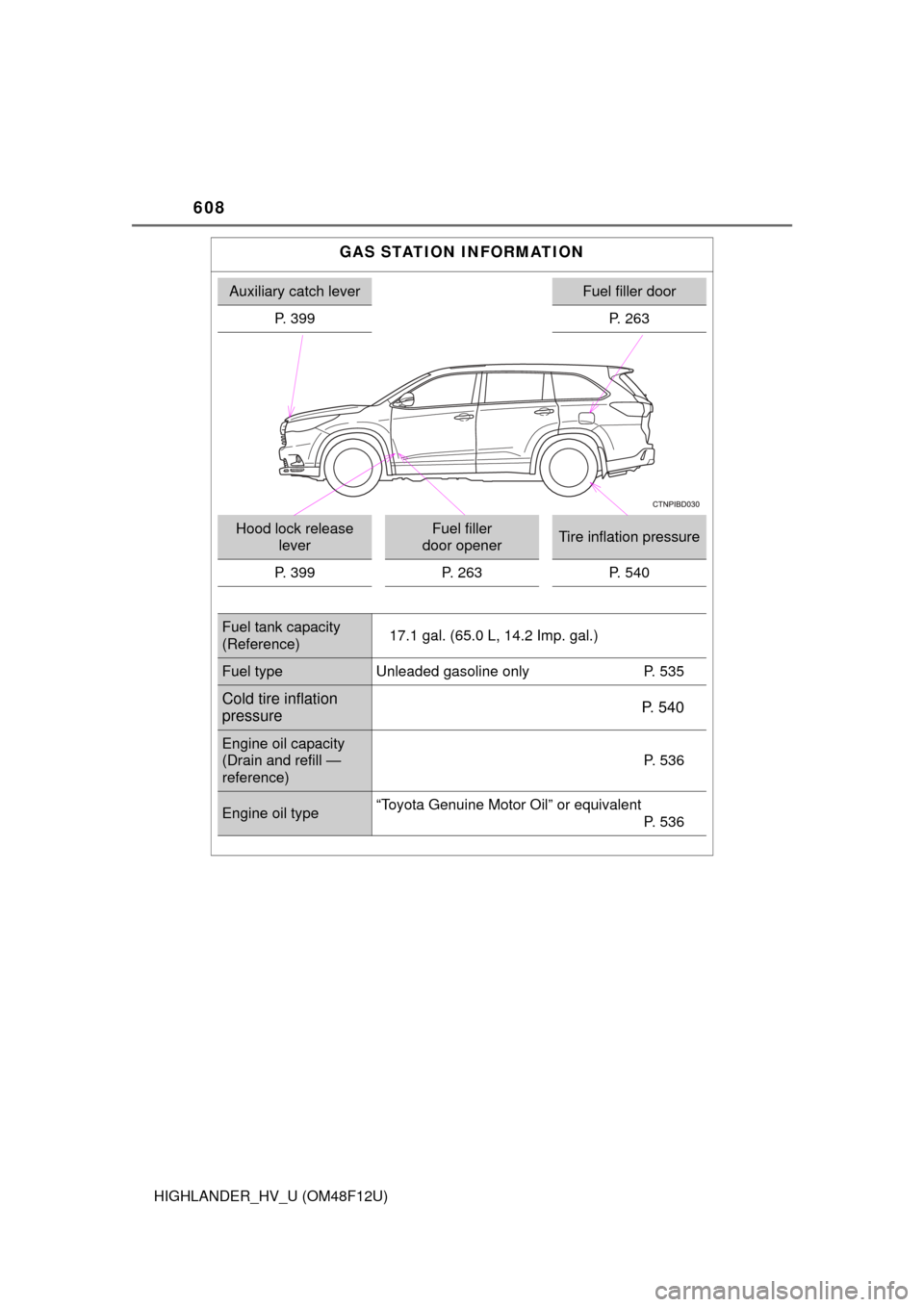

GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 399 P. 263
Hood lock release leverFuel filler
door openerTire inflation pressure
P. 399 P. 263 P. 540
Fuel tank capacity
(Reference) 17.1 gal. (65.0 L, 14.2 Imp. gal.)
Fuel type
Unleaded gasoline only P. 535
Cold tire inflation
pressure P. 5 4 0
Engine oil capacity
(Drain and refill —
reference) P. 536
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 536
